Marine Navigation & Instruments - Transducers

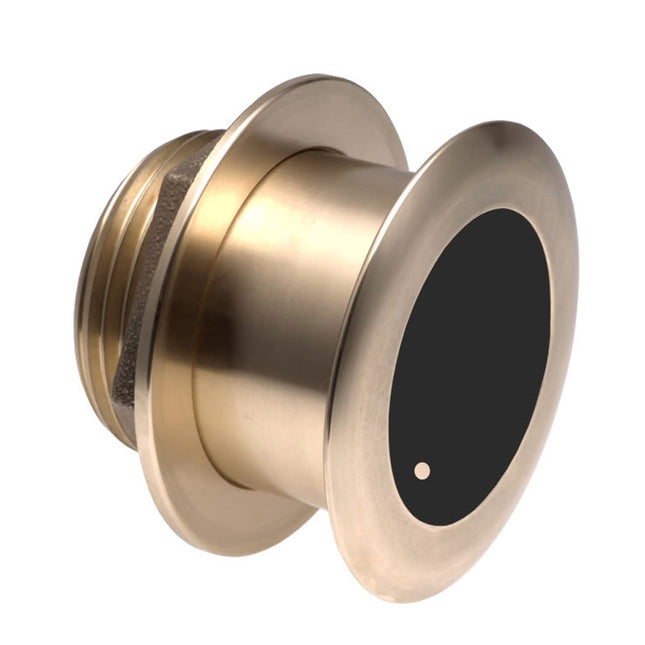

Airmar B175Hw/20° Tilt1kWFlush-mounted bronze housing protrudes less than 1/4" outside hull and can sit on trailer rollers/bunks without damage. Tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, and high frequency versions provide maximum flexibility for the choice of frequencies. Excellent for fiberglass and wood hulls.Max Depth - 3,000'Suppoarted Deadrise/Transom Angles - 16-24° DeadriseWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Mounting Style: Thru-Hull Imagining: Standard Chirp: High Cable Length (Feet): 39' Temperature: Yes Pins: 8 Speed Included: No Box Dimensions: 8"H x 10"W x 12"L WT: 11.2 lbs UPC: 753759995706 Owner's Manual (pdf)Brochure (pdf)

Read more less

GT54UHD-TM Ultra High-Definition Scanning Sonar All-In-One TransducerAll-In-One Transducer One transducer provides the highest resolution ClearVü and SideVü scanning sonar images available and amazingly clear high wide CHIRP traditional sonar High wide CHIRP traditional sonar provides remarkably clear target separation and definition See incredibly detailed images of fish and structure up to 200’ below your boat with 800 kHz ClearVü sonar Two SideVü sonar frequency settings (455/1200 kHz) provide options for extended range of up to 500’ Easy-to-install, compact, all-in-one design includes transom and trolling motor mounts Ultra-High Clarity  The GT54 Ultra High-Definition all-in-one transducer provides image details so clear and precise, you can actually see fish hanging just off branches of submerged trees, brush and rocks. You can see size differences between bigger and smaller fish and even see individual fish swimming in bait balls. You get the highest resolution ClearVü and SideVü scanning sonar images available plus amazingly clear high wide CHIRP traditional sonar1 — all in one transducer.Ultra-High PerformanceUltra High-Definition scanning sonar provides extended range and depth performance. It shows you incredibly detailed images of fish and structure up to 200’ below your boat with 800 kHz ClearVü, while two SideVü sonar frequency settings (455/1200 kHz) provide options for extended range of up to 500’. It’s easy to install with included transom and trolling motor mounts so you can start fishing faster.¹For use with GPSMAP® 8400xsv/8600xsv chartplotter/sonar combosWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Speed Included: No Temperature: Yes Mounting Style: Transom Imagining: Standard/Down/Side Chirp: High Wide Cable Length (Feet): 20' Pins: 12 Box Dimensions: 4"H x 7"W x 10"L WT: 2.3 lbs UPC: 753759225377

Read more less

GT20-TM Transom Mount DownVü 500W (CHIRP 455/800kHz); Traditional 500W (77/200kHz) Transducer w/Temp - 8-PinGet ultra-clear sonar pictures of objects, structure and fish that pass below your boat with this all-in-one 8-pin transducer.This 20 ft transducer cable with built-in fast response temperature sensor has a power rating of 500 W; a depth of 1,900 ft (traditional) and 750 ft (DownVü); an operating frequency of 77/200 kHz (traditional) and 455 kHz (DownVü); and 0 to 70 transom angle.Transducer comes with transom and trolling motor mounts, and installation instructions. Follow the instructions carefully to avoid damaging your boat.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Pins: 8 Imagining: Standard/Down Chirp: Non Traditional Cable Length (Feet): 20' Mounting Style: Transom Box Dimensions: 3"H x 7"W x 7"L WT: 1.5 lbs UPC: 753759152765

Read more less

B744V 600W Triducer 50/200kHz - 8-PinGarmin's bronze, thru-hull mount transducer with fairing provides depth, temperature and speed data. Garmin's transducer has an operating frequency of 50 or 200 kHz and mounts on a 0-24° deadrise angle.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Pins: 8 Mounting Style: Thru-Hull Imagining: Standard Chirp: No Cable Length (Feet): 39' Speed Included: Yes Temperature: Yes Box Dimensions: 4"H x 12"W x 16"L WT: 7.6 lbs UPC: 801769000580 Owner's Manual (pdf)Brochure (pdf)

Read more less

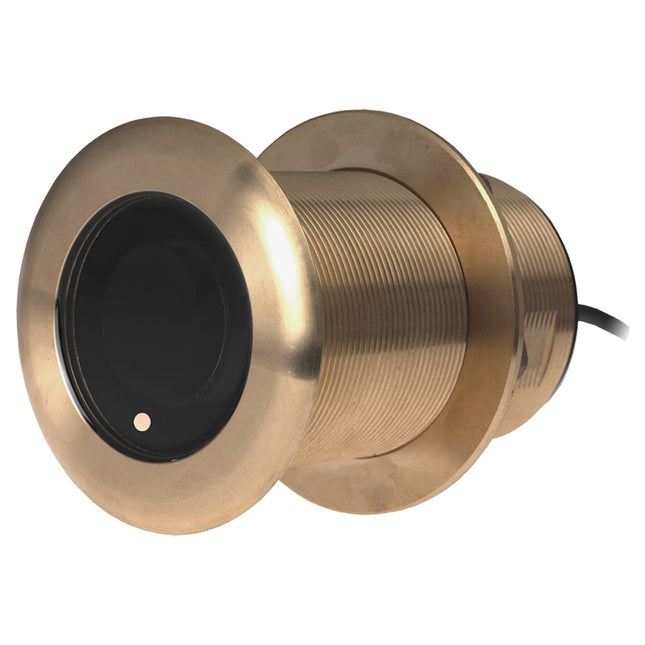

B60 Thru-Hull Transducer 20° Tilt 9-Pin for Navico xSonicThe B60 is a 600W, 50/200 kHz transducer that integrates Airmar’s popular, Tilted Element™ feature. This Tilted Element transducer has the ceramic element fixed at a 20° angle within the housing. When the transducer is installed almost flush with the hull, the tilt of the element corrects for the hull deadrise angle. Orienting the beam directly down ensures maximum echo returns to the transducer for more accurate depth readings.Features: Depth and fast-response water temperature sensing 600 W of power Dual-frequency element: 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200') 200 kHz with a 12° beamwidth for depth performance to 206 m (700') Perfect for center-console or trailered boats Low-profile bronze housing extends only 5 mm (3/16") outside the hull No effect on your boat’s running performance Bronze housing for fiberglass or wood hull Also available in a stainless steel housing (SS60) for use with all hull materials Specifications: Power Rating: 600 W Max Deadrise Angle: 24° Housing: Bronze Functions: Depth, Temperature Hull Material: Fiberglass or wood Max Vessel LOA: Up to 8 m (26') Hole Size: 60 mm (2-3/8") Usable Shaft Length: 68.5 mm (2.70") Acoustic Window: Urethane Common Use: Leisure/Yachting, Fishing Conventional Beam: 45°/12° Max Deadrise: Up to 24° Max Depth: Low frequency- 366 m (1200'), High frequency- 206 m (700') Mounting Style: Tilted Element Thru-Hull Retractable housing: No Single or Dual Frequency: Conventional Dual Frequency Tilted Element: Yes Weight: 1.4 kg (3 lbs.) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Mounting Style: Thru-Hull Pins: 9-Pin Box Dimensions: 2"H x 8"W x 8"L WT: 5.8 lbs Owner's Manual (pdf)Brochure (pdf)

Read more less

B75HW High Wide Tilted Element Chirp Transducer - 20 Degree Deadrise, 600W Thru HullRequires Mix and Match Cable for the appropriate Fishfinder it will be connected to.Airmar’s low-profile Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The B75HW combines the benefits of the high-frequency band for amazing target separation on baitfish and schooling gamefish, with a wide 30° beamwidth for maximum coverage under the boat. The B75H transducer delivers up to 100 kHz of total bandwidth in just one installation and delivers amazing coverage under the boat in depths to 106 meters (350').B75HW transmits across the following bandwidth: High frequency 150 to 250 kHzThe transducer is installed almost flush to the hull. The tilt of the element corrects for the hull deadrise by orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings. Fixed 20° tilted version for 16° to 24° hull deadriseFeatures:  Depth and fast-response water-temperature sensor 600 W with a maximum depth performance of 106 m (350') High frequency: 150 to 250 kHz 30° beamwidth High frequency delivers great shallow-water performance, bottom detail, and clear fish-target returns Low-profile, thru-hull housing provides good resolution at speed when installed properly Bronze housing for use on stepped, planing, or displacement hull Exclusive Xducer ID® technology Fixed 20° tilted version for 16° to 24° hull deadrise Hole Size: 70 mm (2-13/16") CHIRP-Ready Single-Band This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): 9M Chirp: High Wide Imagining: Standard Mounting Style: Thru-Hull Pins: 12 Speed Included: No Temperature: Yes Box Dimensions: 5"H x 8"W x 12"L WT: 5.9 lbs UPC: 801769018141

Read more less

B60 Tilted Element™ 20°20° titled version is designed for 16° - 24° deadrise anglesFor use with Raymarine DSM250/DSM300/DSM300G/DSM30/CP300The bronze B60-20° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.Features: Depth/Temp 50/200 kHz 600w RMS Mid-performance Bronze Specifications: Chirp: No Cable Length (Feet): 33' Temperature: Yes Speed Included: No Mounting Style: Thru-Hull Imagining: Standard Box Dimensions: 3"H x 7"W x 7"L WT: 5.85 lbs Owner's Manual (pdf)Brochure (pdf)

Read more less

B75M Bronze Chirp Thru Hull 20° Tilt - 600WRequires Mix and Match CableRely on Airmar’s broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 70 kHz of total bandwidth in just one installation, saving customers time and money.Features: Depth & fast-response water-temperature sensor Medium—CHIRPS from 80 kHz to 130 kHz, 24° to 16° beamwidth 20° tilted version, 600W 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Bronze transducer housing Boat Size: Up to 8 m (25’) Hull Type: Fiberglass or wood Exclusive Xducer ID® technology This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Mounting Style: Thru-Hull Chirp: Medium Box Dimensions: 5"H x 8"W x 12"L WT: 6 lbs UPC: 801769001792

Read more less

GT21-THPerfect for coastal and offshore fishermen who want traditional sonar and CHIRP ClearVü scanning sonar with a stainless steel stem, this thru-hull mount transducer consistently displays clear and crisp fish arches with superior target separation as well as clear definition of structure below the boat.The CHIRP ClearVü element has a power rating of 500 W and operating frequencies of 260/455 kHz. The traditional sonar has a power rating of 600 W and operating frequencies of 50/200 kHz. It includes a built-in fast-response temperature sensor. For hull deadrises less than 25 degrees. GT21-TH includes an 8-pin transducer with stainless steel stem, fairing block, isolation plate and bushings, mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Pins: 8 Imagining: Standard/Down Cable Length (Feet): 30' Mounting Style: Thru-Hull Chirp: Non Traditional Box Dimensions: 6"H x 14"W x 17"L WT: 8.4 lbs UPC: 753759152833 Owner's Manual (pdf)

Read more less

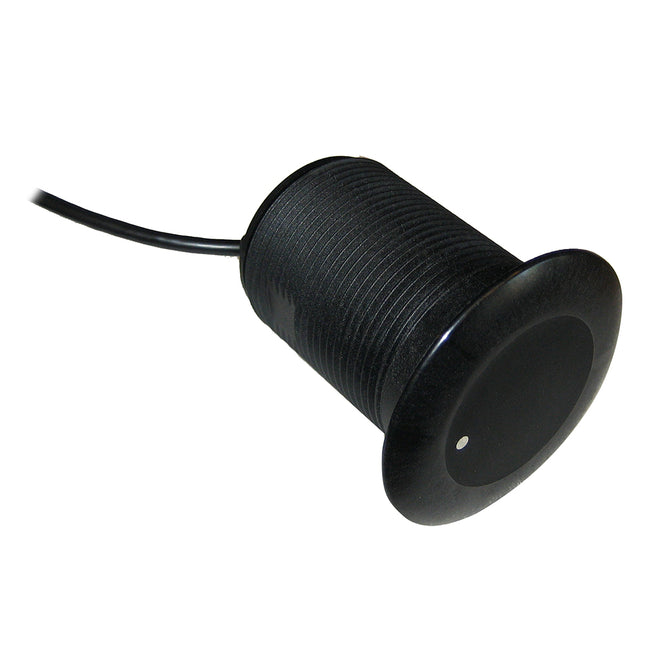

CPT-S Thru-Hull - High Chirp - Plastic - 0°Connects to the CP100 and/or MFD Series that ends in axx8 or esxx8. CPT-S transducers are strictly high chirp sonar transducers and do not include the downvision element.Features: High Chirp Sonar Max Depth: 900' CPT-S 0° plastic is perfect for a sailboat application MFD must have version 16 software or later Specifications: Speed Included: No Mounting Style: Thru-Hull Imagining: Standard Chirp: High Box Dimensions: 6"H x 8"W x 12"L WT: 2.2 lbs UPC: 723193813096

Read more less

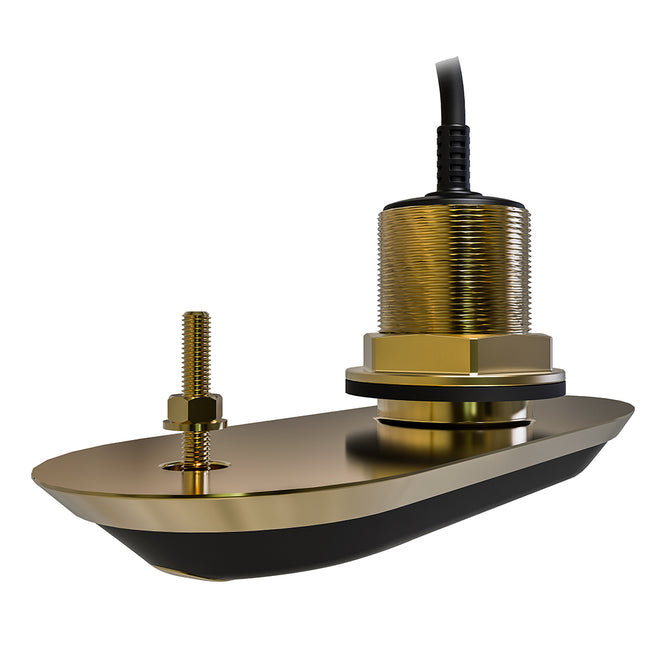

RealVision 3D™ All-In-One Bronze Thru-Hull Transducer - 0° - 8M CableRaymarine’s RV-200 Bronze All-In-One Through Hull Transducer is designed for inboard and outboard powerboats. The RV-200 lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D™ sonar.The RV-200 is a 4-channel, Wide Spectrum CHIRP transducer with DownVision™, SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion. You’ll enjoy crystal-clear imagery in waves, swells, and while maneuvering. The RV-200 also has a built-in fast response water temperature sensor for quick, accurate readings.The RV-200 features a rugged cast-bronze through hull body suitable for fiberglass or wooden hulls. The RealVision 3D™ transducer elements are arranged with a 0° offset for boats with flat bottoms. The lowprofile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV- 200 works great on trailered boats too, and with no fairing block to cut, installation is a breeze.What’s in the Box? RV-200 Bronze All-In-One Through Hull Transducer with 8-meter (26-foot cable) Anti-rotation bolt kit Installation instructions Specifications: Temperature: Yes Speed Included: No Pins: 25 Mounting Style: Thru-Hull Imagining: Standard/Down/Side Chirp: High Cable Length (Feet): 26' Box Dimensions: 7"H x 14"W x 17"L WT: 10.6 lbs UPC: 723193816530

Read more less

RVM-400 Stainless Steel Thru-Hull 0 Degree Deadrise & 8M CableRVM-400 series stainless steel all-in-one through hull transducer brings the power and clarity of RealVision MAX technology to inboard and outboard powerboats. The RVM-400 series transducers are compatible with the RVM1600 sonar module and Axiom 2 Pro RVM chartplotters The RVM-400 series transducers feature DownVision™, SideVision™, 600-Watt High CHIRP, and 3D sonar capability. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes 3D sonar imagery, automatically compensating for vessel motion. The RVM-400 also has a built-in fast-response water temperature sensor for quick, accurate readings.The RVM-400 series transducers feature a rugged stainless steel through hull body suitable for fiberglass, wood, or metal hulls. The low-profile design slips effortlessly through the water without causing drag or cavitation. The RVM-400 is a single, all-in-one transducer suitable for boats with a through-hull transducer mounting position with less than 5° hull deadrise. *Works with Axiom 2 Pro RVM series, and RVM1600 Sounder ModuleFeatures: 600-Watt traditional CHIRP High-performance Down and SideVision ceramics High-speed housing with isolation plate 8M Cable 0° element for hulls with less than a 5° deadrise

Read more less
