Marine Navigation & Instruments - Transducers

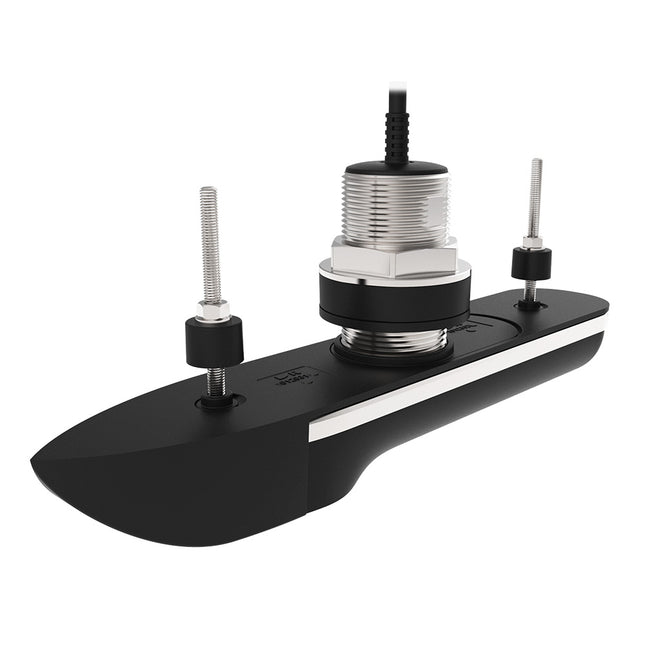

RVM-400 Stainless Steel Thru-Hull 0 Degree Deadrise & 8M CableRVM-400 series stainless steel all-in-one through hull transducer brings the power and clarity of RealVision MAX technology to inboard and outboard powerboats. The RVM-400 series transducers are compatible with the RVM1600 sonar module and Axiom 2 Pro RVM chartplotters The RVM-400 series transducers feature DownVision™, SideVision™, 600-Watt High CHIRP, and 3D sonar capability. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes 3D sonar imagery, automatically compensating for vessel motion. The RVM-400 also has a built-in fast-response water temperature sensor for quick, accurate readings.The RVM-400 series transducers feature a rugged stainless steel through hull body suitable for fiberglass, wood, or metal hulls. The low-profile design slips effortlessly through the water without causing drag or cavitation. The RVM-400 is a single, all-in-one transducer suitable for boats with a through-hull transducer mounting position with less than 5° hull deadrise. *Works with Axiom 2 Pro RVM series, and RVM1600 Sounder ModuleFeatures: 600-Watt traditional CHIRP High-performance Down and SideVision ceramics High-speed housing with isolation plate 8M Cable 0° element for hulls with less than a 5° deadrise

Read more less

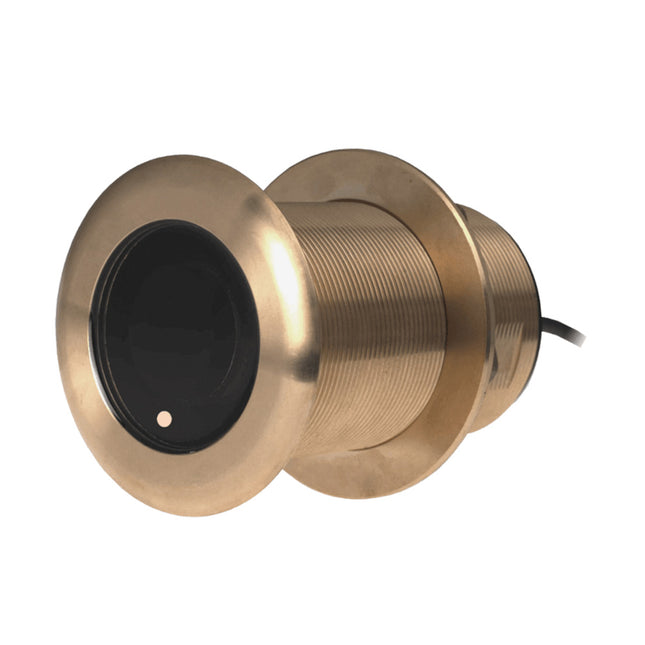

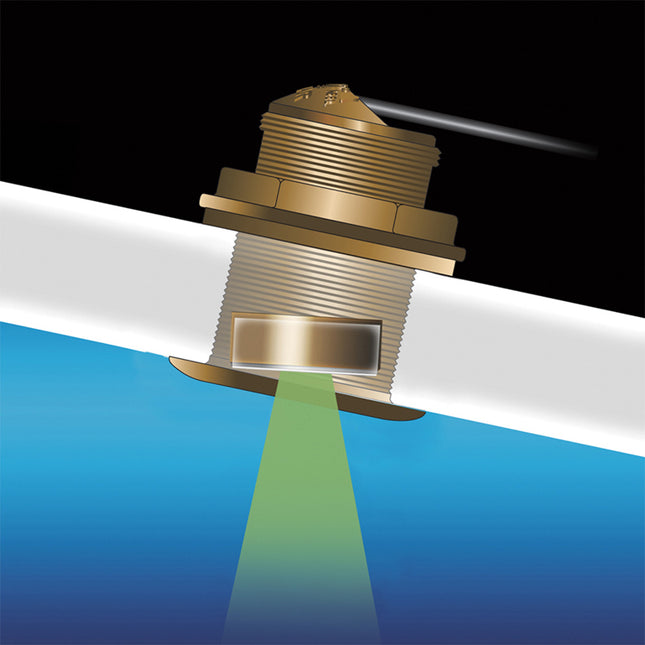

B60 20° Bronze Thru-Hull Mix & Match Cable NeededThe B60 is a 600 W, 50/200 kHz transducer that integrates Airmar’s popular, Tilted Element™ feature. This Tilted Element transducer has the ceramic element fixed at either a 20° or 12° angle within the housing. When the transducer is installed almost flush with the hull, the tilt of the element corrects for the hull deadrise angle. Orienting the beam directly down ensures maximum echo returns to the transducer for more accurate depth readings.Features: Depth and fast-response water temperature sensing 600 W of power Dual-frequency element: 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200') 200 kHz with a 12° beamwidth for depth performance to 206 m (700') Perfect for center-console or trailered boats Low-profile bronze housing extends only 5 mm (3/16") outside the hull No effect on your boat’s running performance Bronze housing for fiberglass or wood hull Also available in a stainless steel housing (SS60) for use with all hull materials Specifications: Power Rating: 600 W Max Deadrise Angle: 24° Housing: Bronze Functions: Depth, Temperature Hull Material: Fiberglass or wood Max Vessel LOA: Up to 8 m (26') Hole Size: 60 mm (2-3/8") Usable Shaft Length: 68.5 mm (2.70") Acoustic Window: Urethane Common Use: Leisure/Yachting, Fishing Conventional Beam: 45°/12° Max Deadrise: Up to 24° Max Depth: Low frequency- 366 m (1200'), High frequency- 206 m (700') Mounting Style: Tilted Element Thru-Hull Retractable housing: No Single or Dual Frequency: Conventional Dual Frequency Tilted Element: Yes Weight: 1.4 kg (3 lbs) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Chirp: No Imagining: Standard Mounting Style: Thru-Hull Speed Included: No Temperature: Yes Box Dimensions: 4"H x 8"W x 10"L WT: 4.5 lbs UPC: 801769000399 Brochure (pdf)

Read more less

B75HW High Wide Tilted Element Chirp Transducer - 12 Degree Deadrise, 600W Thru HullRequires Mix and Match Cable for the appropriate Fishfinder it will be connected to.Airmar’s low-profile Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The B75HW combines the benefits of the high-frequency band for amazing target separation on baitfish and schooling gamefish, with a wide 30° beamwidth for maximum coverage under the boat. The B75H transducer delivers up to 100 kHz of total bandwidth in just one installation and delivers amazing coverage under the boat in depths to 106 meters (350').B75HW transmits across the following bandwidth: High frequency 150 to 250 kHzThe transducer is installed almost flush to the hull. The tilt of the element corrects for the hull deadrise by orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings. Fixed 12° tilted version for 8° to 15° hull deadrises.Features:  Depth and fast-response water-temperature sensor 600 W with a maximum depth performance of 106 m (350') High frequency: 150 to 250 kHz 30° beamwidth High frequency delivers great shallow-water performance, bottom detail, and clear fish-target returns Low-profile, thru-hull housing provides good resolution at speed when installed properly Bronze housing for use on stepped, planing, or displacement hull Exclusive Xducer ID® technology 12° tilted version for 8° to 15° hull deadrises Hole Size: 70 mm (2-13/16") CHIRP-Ready Single-Band This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): 9M Chirp: High Wide Imagining: Standard Mounting Style: Thru-Hull Pins: 12 Speed Included: No Temperature: Yes Box Dimensions: 5"H x 8"W x 12"L WT: 5.8 lbs UPC: 801769018134

Read more less

Bronze Thru-hull Wide Beam Transducer w/Depth & Temp - 0° Tilt, 8-Pin - Airmar B175HWStep up to 1 kW without a fairing with this flush-mounted bronze housing that protrudes less than 1/4-inch outside the hull and can sit on the trailer rollers/bunks without damage.The tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, high, and high wide versions provide maximum flexibility for the choice of frequencies.An excellent choice for fiberglass and wood hulls, this 8-pin transducer has a depth of 600'; an operating frequency of 150-250 kHz; a beamwidth of 25°; and a 0 to 7° deadrise.Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Pins: 8 Mounting Style: Thru-Hull Chirp: High Wide Cable Length (Feet): 39' Imagining: Standard Speed Included: No Box Dimensions: 8"H x 10"W x 12"L WT: 11 lbs UPC: 753759123536

Read more less

FI5001The FI5001 is an analog Wind Transducer for use with NavNet 3D and the FI50 series of instrument displays. It is capable of detecting wind angle accuracy of better than 10° and wind speed accuracy of better than 5% (20 kt). The FI5001 has a power requirements of less than 40 mA on a 12VDC system.Important Note: The FI5001 Sensor does not come with a cable as standard. Please select a 30 meter or 50 meter cable kit when ordering the FI5001 Wind Sensor.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

600W Transom Mount TransducerFeatures: 600 Watts 50/200 kHz 45/11 degree Beam Angles Plastic Transom Mount with Temperature and Removable Speed Assembly 30 Foot Cable with 10-Pin Connector WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Temperature: Yes Pins: 10 Mounting Style: Transom Cable Length (Feet): 30' Speed Included: Yes Box Dimensions: 4"H x 8"W x 10"L WT: 2.6 lbs UPC: 6116793104468 Quick Guide (pdf)Brochure (pdf)

Read more less

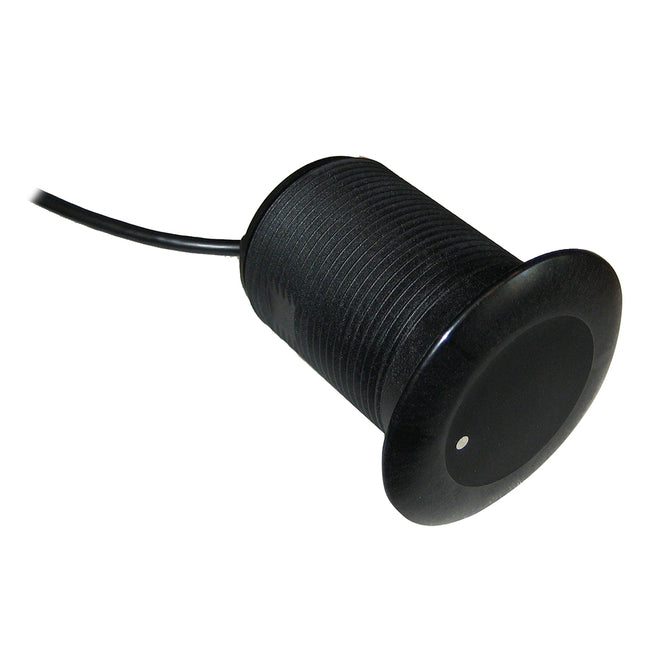

CPT-S High CHIRP Plastic Thru-Hull Flush Mount Transducer - 20° AngleThe CPT-S High CHIRP transducer provides high resolution sonar imagery in a small and inexpensive package.  With a simple design, the CPT-S is easy to install, while still offering excellent performance at speed. This CPT-S is a low profile, flush-mounted plastic Thru Hull High CHIRP transducer  compatible with Raymarine's CP100 sonar module and embedded CHIRP MFD's. This single element conical CHIRP transducer provides a 25 degree fish targeting beam with a maximum depth of 900 feet. This model CPT-S accommodates hulls with a deadrise between 15-25 degrees.Also connects to Axiom Pro S series Units with optional adapter cable A80490.Features: High Chirp Sonar Max Depth: 900' 20 Degree Deadrise

Read more less

B175H-W 1KW Bronze Thru Hull 20° Tilted ElementInstallation: Thru HullMaterial: UrethanePower (RMS): 1kWMax Depth(ft): 800Frequency (KHz): 150-250Records: Depth and TemperatureApproved Hull Material: Fiberglass / WoodCable Length (ft/M): 6ft/2mSupported deadrise: 16-24° DeadriseADDITIONAL NOTES: All wide beam products come with a 2M pigtail off the transducer. Requires a Transducer Extension cable for a Complete Transducer Installation. 10m Extension Cable part number A80327 and A80328 Single B75/B175 operation cable.  Specifications: Temperature: Yes Speed Included: No Mounting Style: Thru-Hull Imagining: Standard Chirp: High Wide Cable Length (Feet): 6' Box Dimensions: 9"H x 11"W x 12"L WT: 9.8 lbs UPC: 723193796276

Read more less

GT15M-TM Transom Mount Transducer - 8-PinGT15M-TM transducer is perfect for fishermen who want clear bottom definition under the boat as well as crisp, clear and wide fish arches with excellent target separation to depth up to 1,900 feet.The 8-pin transducer features mid-band CHIRP traditional sonar (85-165 kHz) and has a power rating of 600 W. It can be mounted on the transom.Follow the included installation instructions carefully to avoid damaging your boat.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Pins: 8 Mounting Style: Transom Imagining: Standard Chirp: Medium Cable Length (Feet): 20' Box Dimensions: 4"H x 6"W x 7"L WT: 1.4 lbs UPC: 753759174484

Read more less

Tilted Element™ Thru-HullMinimize Your DragThe P19 model have been the standard in low-profile models for many years. Their large sensitive ceramics allow deep echosounding up to 206M (700'). These nearly flush units minimize drag as only 5mm (2/10") of the housing extends outside of the hull. The plastic P19 provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for moreaccurate depth readings.Applications Cruising powerboats and sailboats Sailboats Features Depth only or Depth and temperature Fixed 20° tilted versions for 16° to 24° hull deadrise Right angle cable exit offers low headroom and protection when transducer is stepped on Included rubber washer allows tightening of the hull nut to irregular hull surfaces Housings are ABYC H-27 compliant Optional temperature sensor Plastic housing Boat Size: Up to 9M (30') WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Mounting Style: Thru-Hull Imagining: Standard Chirp: No Cable Length (Feet): 30' Temperature: Yes Speed Included: No Pins: 8 Box Dimensions: 4"H x 6"W x 8"L WT: 2.05 lbs UPC: 753759971755 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

B275LHW Bronze Thru-Hull CHIRP Transducer - 12-PinBronze, Thru-Hull CHIRP Transducer with Temp, with 12-Pin Connector, Low-Freq: 42-65 kHz, High-Freq: 150-250 kHz.The 275LH-W series transducers are truly broadband at its best. Paired with Furuno’s DFF1-UHD, the B275LH-W provides a high frequency range of 150-250Khz and a constant 25° beamwidth. The “W” stands for wide and that’s what the B275LH-W really delivers. Unlike traditional high frequency (200kHz) transducers that provide narrow performance, this unique, new wide beam/high frequency design achieves over six times the coverage under the boat compared to standard high-frequency CHIRP Transducers.The B275LH-W is also compatible with the FCV295 and FCV1150 variable frequency Fish Finders, providing the same frequency range with a 25° wide beamwidth provided at every frequency.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Pins: 12 Speed Included: No Temperature: Yes Chirp: Low/High Wide Imagining: Standard Mounting Style: Thru-Hull Box Dimensions: 7"H x 19"W x 26"L WT: 25 lbs UPC: 6116793889952

Read more less

GT23M-TH Stainless Steel, TH Mount Transducer, Mid-Band CHIRP/CHIRP DownVü - 260/455kHz, 500W, 8-PinPerfect for coastal and offshore fishermen who want CHIRP traditional sonar and CHIRP ClearVü scanning sonar with a stainless steel stem, this thru-hull mount transducer consistently displays clear and crisp fish arches with superior target separation as well as clear definition of structure below the boat.The 8-pin transducer features mid-band CHIRP traditional sonar (80-160 kHz) and has a power rating of 600 W. The CHIRP ClearVü (260/455 kHz) element has a power rating of 500 W.For installation, follow the included instructions carefully to avoid damaging your boat.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Mounting Style: Thru-Hull Chirp: Medium Cable Length (Feet): 30' Imagining: Standard/Down Pins: 8 Box Dimensions: 6"H x 14"W x 17"L WT: 8.65 lbs UPC: 753759148607 Owner's Manual (pdf)

Read more less
