Marine Navigation & Instruments - Transducers

Airmar B175Lw/12° Tilt1kWFlush-mounted bronze housing protrudes less than 1/4" outside hull and can sit on trailer rollers/bunks without damage. Tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, and high frequency versions provide maximum flexibility for the choice of frequencies. Excellent for fiberglass and wood hulls.Max Depth - 3,000'Suppoarted Deadrise/Transom Angles - 8-15° DeadriseWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Mounting Style: Thru-Hull Cable Length (Feet): 39' Chirp: Low Pins: 8 Imagining: Standard Box Dimensions: 8"H x 10"W x 12"L WT: 12 lbs UPC: 753759995720 Owner's Manual (pdf)Brochure (pdf)

Read more less

GT24UHD-TM Ultra High-Definition Scanning Sonar All-In-One TransducerAll-In-One Transducer One transducer provides the highest resolution ClearVü scanning sonar images available and amazingly clear high wide CHIRP traditional sonar High wide CHIRP traditional sonar provides remarkably clear target separation and definition See incredibly detailed images of fish and structure up to 200’ below your boat with 800 kHz ClearVü sonar Easy-to-install, compact, all-in-one design includes transom and trolling motor mounts Ultra-clear View of What’s BelowThe GT24 Ultra High-Definition all-in-one transducer provides image details so clear and precise, you can actually see fish hanging just off branches of submerged trees, brush and rocks. You can see the difference between bigger and smaller fish and even see individual fish swimming in bait balls. You get the highest resolution ClearVü scanning sonar images available plus amazingly clear high wide CHIRP traditional sonar1 — all in one transducer.Ultra PerformanceUltra High-Definition scanning sonar shows you incredibly detailed images of fish and structure up to 200’ below your boat with 800 kHz ClearVü scanning sonar. It’s easy to install with included transom and trolling motor mounts so you can start fishing faster.¹For use with GPSMAP® 8400xsv/8600xsv chartplotter/sonar combosWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Pins: 8 Mounting Style: Transom Imagining: Standard/Down Cable Length (Feet): 20' Box Dimensions: 2"H x 9"W x 9"L WT: 0.4 lbs UPC: 753759225360

Read more less

GT56UHD-THP Thru-Hull Mount Transducer - PairThis all-in-one transducer offers ultimate versatility, featuring Ultra High-Definition ClearVü and SideVü scanning sonars, high wide CHIRP traditional sonar, and more, so you can spend more time catching fish.Get brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars. It puts more power on targets via a downward-facing element. See everything the first time with stunningly clear images of structure and fish off to the sides of your boat. SideVü sonar now has a 20% greater range at 1,000 kHz, so you can see even farther than before.Features: See everything below and around your boat with Ultra High-Definition scanning sonar High wide CHIRP traditional sonar delivers target separation like no other Multiple sonar frequencies have you covered — no matter what depth you’re fishing See targets and structure in bright, vivid color Mount this transducer your way — transom, trolling motor or thru-hull Specifications: Cable Length (Feet): 25' Chirp: High Wide Imagining: Standard/Down/Side Mounting Style: Thru-Hull Pins: 12 Speed Included: No Temperature: Yes Box Dimensions: 4"H x 7"W x 18"L WT: 15 lbs UPC: 753759294236

Read more less

XM 9 HW MDI T Transom Mount TransducerMEGA Down Imaging+ Transom Mount Transducer supports MEGA Imaging+/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design, impact-release mounting bracket and 20' cable. Features: This accessory is compatible with the following Humminbird products: HELIX 8 G3N Series MEGA DI+ and MEGA SI+, HELIX 9 G3N Series MEGA DI+ and MEGA SI+, HELIX 10 G3N Series MEGA DI+ and MEGA SI+, HELIX 12 G3N Series MEGA DI+ and MEGA SI+. Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz Dual Spectrum CHIRP Max Depth: 1200ft (365m) Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 125ft (38m), MEGA DI+: 1075-1150 kHz - 200ft (61m) 1-Year Limited Warranty WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Pins: 7 Mounting Style: Transom Imagining: Standard/Down Chirp: High Wide Cable Length (Feet): 20' Box Dimensions: 7"H x 8"W x 10"L WT: 2.25 lbs UPC: 082324053207 Owner's Manual (pdf)

Read more less

RealVision 3D™ Bronze Thru-Hull Transducer Pair Pack - 20° - 8M Cable & Y-CableDesigned for inboard or outboard boats, the RV-220 Bronze Through Hull Transducer System lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D™ sonar.The RV-220 system is a 4-channel, Wide Spectrum CHIRP transducer system with DownVision™, SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside. The transducer system has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion. You’ll enjoy crystal-clear imagery in waves, swells, and while maneuvering. The RV-220 system also has a built-in fast response water temperature sensor for quick, accurate readings.Raymarine’s RV-220 Bronze Through Hull Transducer system pack contains a pair of RealVision 3D transducers with internal offset to accommodate hull deadrise angles from 13° to 20°. This completely eliminates the need for fairing blocks. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-220 system works great on trailered boats too.The RV-220 system features rugged cast-bronze through hull bodies suitable for fiberglass or wooden hulls. One transducer transmits and receives to port and downwards, the other to starboard and downwards, ensuring a full 180° of underwater coverage even on boats with deep keels or other underwater protrusions. Each transducer features a 2M pigtail, joining y-cable and 8-meter extension cable, resulting in an overall cable length of 10M (33'.)What’s in the Box? RV-220P Bronze Port Transducer with 2M cable RV-220S Bronze Starboard Transducer with 2M cable RealVision 3D Transducer Y-Cable RealVision 3D 8M (26') Transducer Extension Cable Anti-rotation bolt kit Installation instructions Specifications: Temperature: Yes Speed Included: No Pins: 25 Imagining: Standard/Down/Side Chirp: High Cable Length (Feet): 33' Mounting Style: Thru-Hull Box Dimensions: 14"H x 16"W x 28"L WT: 23.2 lbs UPC: 723193855379

Read more less

Pro View Ice Ducer TransducerIce Ducers have revolutionized the way anglers use sonar for ice fishing. The ease of use along with the reliable performance took away much of the former problems with seeing the bait, a most important requirement for ice anglers. Additionally, anglers can easily jump from hole to hole in an effort to find and catch fish on the move. Vexilar offers the Ice Ducer in four beam angles; 19 degree, 12 degree, 9 degree (Pro View), and a switchable tri-beam model with 8, 12 and 20 cone angles.Features: Reliable float and stopper system ensures reliably accurate readings every time. Easily adjust for different ice thickness conditions. Specially designed cable stays limp in cold weather. Specifications: Quality Barium Titanate crystal Earth-grounded cable construction One year warranty WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Mounting Style: Portable Cable Length (Feet): 7' Box Dimensions: 3"H x 6"W x 7"L WT: 1.1 lbs UPC: 052762975010

Read more less

GT36UHD-TM Transom Mount TransducerLess time finding. More time fishing. The GT36 transducer offers ultimate versatility, featuring Ultra High-Definition SideVü scanning sonar with 20% greater range at 1 MHz and Ultra High-Definition ClearVü scanning sonar for top performances at all depths. Vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure. This transducer includes transom and trolling motor mount hardware.Features: Get Ultra High-Definition SideVü scanning sonar with 20% greater range at 1 MHz and Ultra High-Definition ClearVü scanning sonar 455 kHz SideVü scanning sonar lets you see up to 500’ on each side of your boat Three scanning sonar frequencies — 455 kHz, 800 kHz and 1 MHz — deliver top performances at all depths Vivid scanning sonar color palettes make it easy to distinguish targets and structure Easy to install with transom and trolling motor mount hardware Specifications: Temperature: Yes Speed Included: No Pins: 12 Mounting Style: Transom Imagining: Down/Side Chirp: Medium/Non Traditional Cable Length (Feet): 25' Box Dimensions: 4"H x 6"W x 12"L WT: 3.1 lbs UPC: 753759269319 Owner's Manual (pdf)Brochure (pdf)

Read more less

Airmar B744VL 200/50kHz Bronze Long Stem Thru-hull Transducer (8-pin)010-10193-22Our bronze, thru-hull mount long stem transducer provides depth, speed and temperature data. This transducer has an operating frequency of 50 or 200 kHz and mounts on a 0-28° deadrise angle.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: Yes Pins: 8 Mounting Style: Thru-Hull Imagining: Standard Chirp: No Cable Length (Feet): 39' Box Dimensions: 3"H x 12"W x 16"L WT: 8.9 lbs UPC: 753759971793 Owner's Manual (pdf)Brochure (pdf)

Read more less

TM185HW High Wide CHIRP Transducer with Temp Transom MountHigh-Frequency, Wide-Beam CHIRP Transducer with Temperature - Urethane Transom Mount with Stainless Bracket Features: Power Rating: 1kW Function: Depth,Temperature Frequency: CHIRP 150-250 kHz Mount Style: Transom Install Type: Transom Mount Housing Type: Urethane Housing Material: Urethane/Stainless Bracket This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

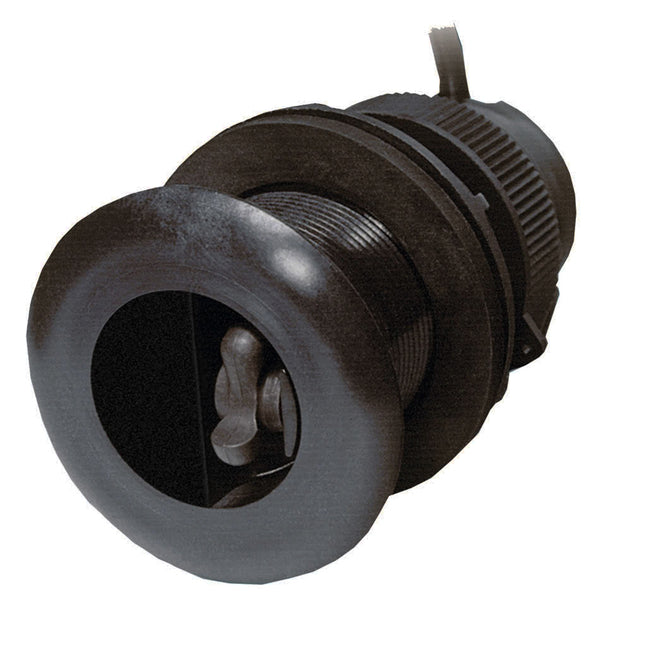

Raymarine DST800 Nylon Thru Hull Transducer with Depth, Speed, and Temp for ST60, ITC-5, I50 comes with spade connectors. Specifications: Temperature: Yes Speed Included: Yes Mounting Style: Thru-Hull Chirp: No Cable Length (Feet): 45' Box Dimensions: 4"H x 8"W x 10"L WT: 3 lbs UPC: 919750064944

Read more less

Airmar B150Mw/12° Tilt300WFlush-mounted bronze housing,tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, and high frequency versions provide maximum flexibility for the choice of frequencies. Excellent for fiberglass and wood hulls.Entry Level Chirp Solution. Provides good depth capability and good target separation.Max Depth - 1,500'Suppoarted Deadrise/Transom Angles - 8-15° DeadriseWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Pins: 8 Mounting Style: Thru-Hull Imagining: Standard Chirp: Medium Cable Length (Feet): 39' Box Dimensions: 4"H x 8"W x 10"L WT: 3.8 lbs UPC: 801769000832 Owner's Manual (pdf)Brochure (pdf)

Read more less

XM 9 20 MSI T MEGA Transom Mount TransducerMEGA SI, MEGA DI, DualBeam PLUS, 20/60/86/55 degrees, 200/83/455/800 kHz and 1.2 MHz, temperature built-in. For HELIX MEGA Side Imaging units only. WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Pins: 7 Mounting Style: Transom Imagining: Standard/Down/Side Box Dimensions: 7"H x 8"W x 10"L WT: 2.8 lbs UPC: 082324050275 Owner's Manual (pdf)

Read more less
