Marine Navigation & Instruments - Transducers

NMEA 2000 Transducer Smart Sensor DTS810This combination transducer gives you accurate information about depth, speed and water temperature. The transducer is supplied with a thru-hull / ground sleeve for installation in the bottom of the vessel. The transducer can be easily pulled out for cleaning and maintenance. The data from the Triducer can be displayed on any radar, chart plotter, or device that accepts NMEA 0183 or NMEA 2000® data. The Airmar type DST810 breakthrough sensor fits into the Airmar type P617V breakthrough sleeve (included with the DST810). Because the widely used airmar thru-hull transducer type DST800 is also supplied with the thru-hull type P617V, an exchange / upgrade of existing transducers of the type DST800 with the type DST810 is possible without much effort. Popular depth sensor for shallow water performance.

Read more less

Open Water Universal Transducer KitThis is a 3-in- 1 transducer mounting kit that comes with a 20 degree transducer that has everything you need to mount it externally for high speed use, with a suction cup mount for portable use or with a special bracket to allow you to attach to an electric trolling motor. Works on all models of Vexilar Flashers except the FLX-28. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Mounting Style: Portable Cable Length (Feet): 25' Box Dimensions: 3"H x 5"W x 7"L WT: 1.4 lbs UPC: 052762171009

Read more less

B619 20° Tilt Bronze Thru-Hull Transducer - 8-PinMinimize Your DragThe B619 model have been the standard in low-profile models for many years. Their large sensitive ceramics allow deep echosounding up to 206M (700'). These nearly flush units minimize drag as only 5mm (2/10") of the housing extends outside of the hull. The bronze B619 provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for moreaccurate depth readings.Applications: Cruising powerboats and sailboats Sailboats Features: Depth only or Depth and temperature Fixed 20° tilted versions for 16° to 24° hull deadrise Right angle cable exit offers low headroom and protection when transducer is stepped on Included rubber washer allows tightening of the hull nut to irregular hull surfaces Housings are ABYC H-27 compliant Optional temperature sensor Bronze housing Boat Size: Up to 9M (30') WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Speed Included: No Pins: 8 Mounting Style: Thru-Hull Imagining: Standard Chirp: No Temperature: Yes Cable Length (Feet): 30' Box Dimensions: 4"H x 6"W x 8"L WT: 3.4 lbs UPC: 753759971731 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

XPTH 14 HW MSI T Plastic Thru Hull TransducerSOLIX MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP plastic thru hull transducer. This transducer supports MEGA Imaging+/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design and 30’ cable. Features: This accessory is compatible with the following Humminbird products: SOLIX 10 CHIRP MEGA SI+ GPS G2, SOLIX 12 CHIRP MEGA SI+ GPS G2, SOLIX 15 CHIRP MEGA SI+ GPS G2 MEGA Side Imaging Frequencies - Max Range (side-to-side): 455kHz: 440-500 kHz - 800ft (244m), 800kHz: 790-850 kHz - 250ft (76m), MEGA SI+: 1075-1150 kHz - 400ft (122m) MEGA Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 250ft (76m), MEGA DI+: 1075-1150 kHz - 200ft (61m) Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz Dual Spectrum CHIRP Max Depth: 1200ft (365m) Dimensions: L 8.4" x W 2.3" x D 1.0" - Stem Length 5", Stem Diameter 1" 1-Year Limited Warranty Specifications: Imagining: Standard/Down/Side Chirp: High Wide Cable Length (Feet): 30' Speed Included: No Mounting Style: Thru-Hull Temperature: Yes Pins: 14 Box Dimensions: 4"H x 10"W x 15"L WT: 2.9 lbs UPC: 082324053283

Read more less

SSTH 14 HW MSI+ Stainless Steel Mega Thru-Hull 14-PinMeasures: Depth/Temperature. Frequency: 83/200/455/800kHz and 1.2 MHz. SOLIX MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP stainless steel thru hull transducer. This transducer supports MEGA Imaging+/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design and 30’ cable.

Read more less

XNT-14-HW-T Dual Spectrum CHIRP TM Transducer with Temp for SOLIX™Transom Mount Dual Spectrum CHIRP Transducer supports Dual Spectrum CHIRP 2D Sonar with high frequency beam and wide cone angle, offering CHIRP range of 150-220kHz and max depth of 1200ft. Includes built-in temperature sensor, all metal bracket and 20’ cable. Features: This accessory is compatible with the following Humminbird products: SOLIX 10, 12, 15 – All Models. Side Imaging™ and Down Imaging™ units can support the XNT 14 HW T as a 2D sonar only transducer. This transducer does not support Side Imaging or Down Imaging. Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz Dual Spectrum CHIRP Max Depth: 1200ft (365m) WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Mounting Style: Transom Temperature: Yes Speed Included: No Imagining: Standard Chirp: High Wide Cable Length (Feet): 20' Pins: 14 Box Dimensions: 7"H x 8"W x 10"L WT: 1.35 lbs UPC: 082324053054 Owner's Manual (pdf)

Read more less

Transom Mount TransducerDual/HD Side Imaging Transom, 20/60/180 cable degree, 200/83/455/800 kHz with built-in temperature. 20' cable.WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Speed Included: No Mounting Style: Transom Chirp: No Cable Length (Feet): 20' Temperature: Yes Box Dimensions: 6"H x 8"W x 8"L WT: 1.95 lbs UPC: 082324507496 Owner's Manual (pdf)

Read more less

CPT-S Transom Mount - Conical - High ChirpConnects to the CP100 and/or MFD Series that ends in axx8 or esxx8. CPT-S transducers are strictly high chirp sonar transducers and do not include the downvision element.Also connects to Axiom Pro S series Units with optional adapter cable A80490Features: High Chirp Sonar Transom Mount has a trolling motor bracket accessory Max Depth: 900' MFD must have version 16 software or later Specifications: Mounting Style: Transom Chirp: High Temperature: Yes Speed Included: No Imagining: Standard Box Dimensions: 3"H x 8"W x 12"L WT: 1.4 lbs UPC: 723193813102

Read more less

B175M Bronze 1kW CHIRP 20° TiltRely on Airmar’s broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money. A tilted element model in the Chirp Thru-Hull product line, the B175M CHIRP across the following bandwidth:Medium Frequency 85-135 kHz Specifications: Chirp: Medium Imagining: Standard Temperature: Yes Speed Included: No Box Dimensions: 9"H x 10"W x 12"L WT: 11.25 lbs UPC: 723193729120

Read more less

B75 High 20 Degree CHIRP Transducer 8-Pin for GarminAirmar’s Broadband/CHIRP transducers represent the next generation of technology that will allow fishermen to unlock secrets in fishfinding. Echosounder operation away from the traditional 50 kHz and 200 kHz has proven that different fish species return better signals at various frequencies. Airmar’s Broadband Transducers are capable of operating over a wide (or “Broad”) frequency band ranging from 25 kHz to 60 kHz and from 130 kHz to 210 kHz.Traditional fishfinders transmit a pulse at a single frequency (50 kHz or 200 kHz), which is often referred to as a “tone burst”. Better deep-water and bottom detection is obtained by transmitting a longer pulse, because the fishfinder is delivering more energy to the transducer. However, the drawback of a long pulse is that it provides reduced target resolution. For example, if a fishfinder transmits a pulse that is 500 microseconds in duration, it has a pulse length of 0.7 m (2.4’). With a tone burst, no targets can be resolved that are closer to one another than the pulse length. Fish less than 0.7 m (2.4’) apart, or less than 0.7 m (2.4’) from the bottom, can not be detected. Fish schools will appear in this case as a single large mass, while fish close to the bottom will appear attached to the sea bed and will be difficult or impossible to detect.With CHIRP, the transmission pulses are typically very long and may start at 40 kHz and end at 60 kHz. By comparing the shape of the stored transmission pulse with the received echoes from the transducer, it is possible to find echoes in the noise and precisely determine their range with astounding accuracy. Using CHIRP, it is now possible to obtain: Much greater range because very long pulses can be used. Much better resolution because the sonar pulse is swept across a frequency band (from 40 kHz to 60 kHz, for example). Enables targets to be precisely located within inches on the display using pattern-matching techniques. Closely spaced fish and fish lying on the bottom can be accurately detected and displayed as distinct targets. Because weak fish and bottom echoes can be resolved within the noise (the ‘snow’ on a conventional fishfinder display), it is possible both to detect targets at far greater depths than before and track the bottom at higher boat speeds.Features: 12 m (40’) cable Depth and fast-response water-temperature sensor Same elements and performance as the B765LH/LM offered in a low-profile housing Bronze transducer housing Boat Size: Up to 8 m (25’) Hull Type: Fiberglass or wood

Read more less

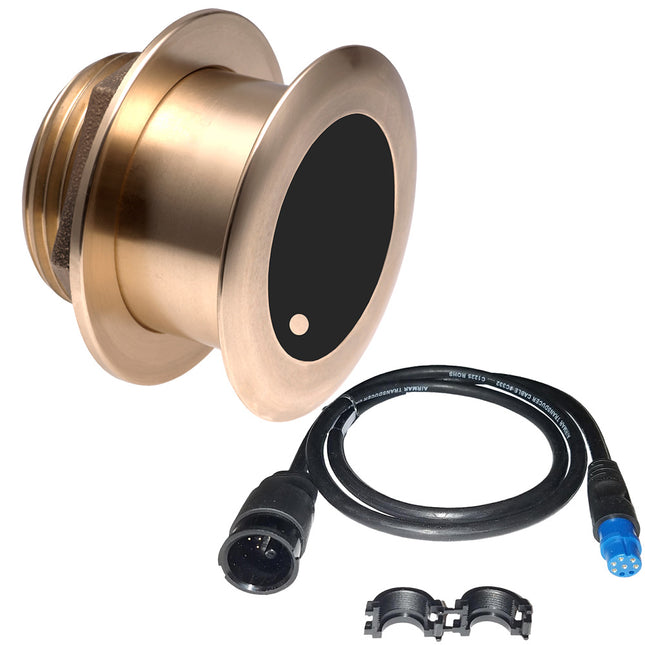

B175HW Bronze 20 Degree Thru-Hull 1kW for Garmin with 8-Pin ConnectorGet more coverage under your boat with Airmar’s unique wide-beam, high-frequency, Chirp-ready B175HW. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high-frequency band delivers superior shallow-water performance, bottom detail, and fish-target separation. The constantly wide beam provides twice the coverage for detecting fish in the upper-water column and clear fish arches on the display compared to most high-frequency, narrow-beam transducers. The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 152 m (500').Tilted Element™ transducers have the element fixed at either a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull's deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.Features: Garmin 8-Pin Mix & Match Cable for Chirp Transducers Depth and fast-response water-temperature sensing 1 kW of power High frequency: 150 to 250 kHz Constant 25° beamwidth Maximum depth of 152 m (500') 100 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz, plus everything else in the bandwidth Low-profile, thru-hull housing provides good display resolution at speed when installed properly Recommended for stepped, planing, or displacement hull Bronze housing for use in fiberglass or wood hull Also available in a stainless steel housing (SS175HW) and as thru-hull with fairing (B285HW), transom (TM185HW), and in-hull (M285HW) mounts Patented Xducer ID® technology Specifications: Power Rating: 1 kW Max Deadrise Angle: 24° Housing: Bronze Functions: Depth, Temperature Hull Material: Fiberglass or wood Max Vessel LOA: Up to 11 m (36') Hole Size: 95 mm (3-3/4") Usable Shaft Length: 71 mm (2.80") Mounting Style: Tilted Element Thru-Hull Acoustic Window: Urethane Common Use: Fishing High Frequency: 150-250 kHz High-Wide Beamwidth: 25° Max Deadrise: Up to 24° Max Depth: 150 m (500') Retractable housing: No Single or Dual Frequency: CHIRP-Ready Single-Band Tilted Element: Yes Weight: 2.7 kg (6 lbs.) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

TM165HW Chirp High Wide 600W Transom Mount Transducer - Requires Adapter CableReplacing a non-Chirp or single frequency transducer with the AIRMAR TM165HW (High Wide) 600W Chirp-ready transom mount transducer provides anglers with an inexpensive and easy performance upgrade to their current sonar systems. The TM165HW is legendary for producing the finest detail and largest coverage area of any transom mounted model in its class. The TM165HW is perfect for fishing boats up to 25 feet (8 meters) and recommended for planing hulls made from fiberglass, metal or wood - both outboard and IO.TM165HW delivers large, crisp return images on the display with a noise-free, clear picture of the action below. Better coverage from top to bottom with stronger, well-defined fish targets.Super Wide 30° Average Beamwidth Achieves 3x the Coverage Under the Boat as Compared to Standard High Frequency Chirp-ready Transducers (eg, the popular B75H)The TM165HW is compatible with the following sonar brands and models:  Lowrance: All models compatible except Hook series Humminbird: SM300; Helix and Solix can be set manually Garmin: GPSMAP 7600, 8600, 7X2/9X2/10x2/12x2, GSD26 Raymarine: compatible with all models Simrad: compatible with all models Features: Depth and fast-response water-temperature sensor Requires Mix and Match cable 600 W with a maximum depth of 152 m (500')  High Frequency: 150 kHz to 250 kHz for superior shallow water performance, bottom detail and fish target separation High-wide beamwidth provides more coverage under the boat for detecting fish in the upper water column Super wide 30° average beamwidth for superior coverage under the boat and maximum detection area High-performance, low-profile design provides excellent resolution at speed when installed properly  Exclusive Xducer ID® technology The TM165HW is an AIRMAR Mix and Match transducer. 600W Mix and Match transducers are made as a common base transducer with a short (9m) cable attached, plus an interchangeable longer 1m) brand-specific adapter cable.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Temperature: Yes Speed Included: No Pins: 12 Mounting Style: Transom Imagining: Standard Chirp: High Wide Cable Length (Feet): 9m Box Dimensions: 4"H x 8"W x 11"L WT: 2.55 lbs UPC: 801769002775 Brochure (pdf)
