Marine Navigation & Instruments - Transducers

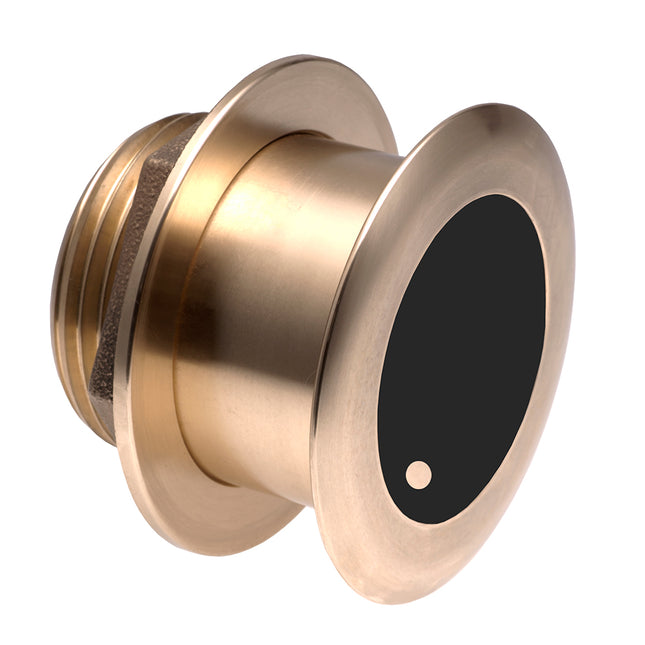

B175M Bronze 20 Degree Thru-Hull 1kW for Garmin with 8-Pin ConnectorThe B175M’s medium frequency delivers the right combination of coverage under the boat, extended depth range, and the ability to produce clean and accurate target and structure returns in mid- to deeper water. Medium frequency also provides excellent shallow-to-mid-depth performance, bottom detail, and fish-target separation. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths of up to 457 m (1500') and gives ultra-clear target resolution.Airmar’s Tilted Element™ transducers have the element fixed at a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull's deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.Features: Garmin 8-Pin Mix & Match Cable for Chirp Transducers Depth and fast-response water-temperature sensing 1 kW of power Medium frequency: 85 to 135 kHz 16° to 11° beamwidth Maximum depth of 457 m (1500') 50 kHz of total bandwidth from one transducer Low-profile, thru-hull housing provides good display resolution at speed when installed properly Recommended for stepped, planing, or displacement hull Bronze housing for use in a fiberglass or wood hull Also available in a stainless steel housing (SS175M) and a thru-hull (B285M) or in-hull (M135M) mount Patented Xducer ID® technology Specifications: Power Rating: 1 kW Max Deadrise Angle: 24° Housing: Bronze Functions: Depth, Temperature Hull Material: Fiberglass or wood Hole Size: Fiberglass or wood hull 95 mm (3-3/4"), Metal hull 105 mm (4-1/8") Usable Shaft Length: 55 mm (2.18") Mounting Style: Tilted Element Thru-Hull Acoustic Window: Urethane Common Use: Fishing Max Deadrise: Up to 24° Max Depth: 457 m (1500') Medium Frequency: 85-135 kHz Medium Frequency Beamwidth: 16°-11° Retractable housing: No Single or Dual Frequency: CHIRP-Ready Single-Band Tilted Element: Yes Weight: 2.7 kg (6 lbs.) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

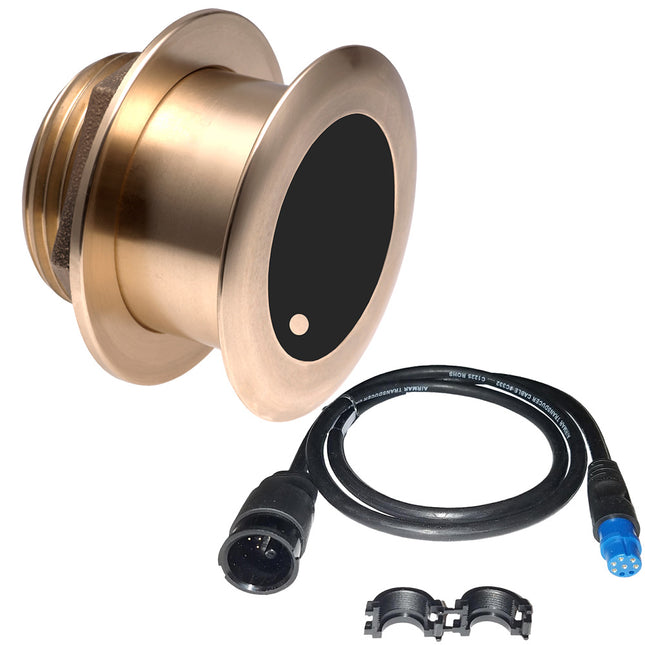

B175HW Bronze 12 Degree Thru-Hull 1kW for Garmin with 8-Pin ConnectorGet more coverage under your boat with Airmar’s unique wide-beam, high-frequency, Chirp-ready B175HW. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high-frequency band delivers superior shallow-water performance, bottom detail, and fish-target separation. The constantly wide beam provides twice the coverage for detecting fish in the upper-water column and clear fish arches on the display compared to most high-frequency, narrow-beam transducers. The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 152 m (500').Tilted Element™ transducers have the element fixed at either a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull's deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.Features: Garmin 8-Pin Mix & Match Cable for Chirp Transducers Depth and fast-response water-temperature sensing 1 kW of power High frequency: 150 to 250 kHz Constant 25° beamwidth Maximum depth of 152 m (500') 100 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz, plus everything else in the bandwidth Low-profile, thru-hull housing provides good display resolution at speed when installed properly Recommended for stepped, planing, or displacement hull Bronze housing for use in fiberglass or wood hull Also available in a stainless steel housing (SS175HW) and as thru-hull with fairing (B285HW), transom (TM185HW), and in-hull (M285HW) mounts Patented Xducer ID® technology Specifications: Power Rating: 1 kW Max Deadrise Angle: 24° Housing: Bronze Functions: Depth, Temperature Hull Material: Fiberglass or wood Max Vessel LOA: Up to 11 m (36') Hole Size: 95 mm (3-3/4") Usable Shaft Length: 71 mm (2.80") Mounting Style: Tilted Element Thru-Hull Acoustic Window: Urethane Common Use: Fishing High Frequency: 150-250 kHz High-Wide Beamwidth: 25° Max Deadrise: Up to 24° Max Depth: 150 m (500') Retractable housing: No Single or Dual Frequency: CHIRP-Ready Single-Band Tilted Element: Yes Weight: 2.7 kg (6 lbs.) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

B175H Bronze 20 Degree Thru-Hull 1kW for Garmin with 8-Pin ConnectorAirmar’s low-profile, Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The high-frequency band delivers a narrow beamwidth, which is excellent for pinpointing fish holding tight to wrecks, reefs, and other structures. High frequency also shows amazing target separation on baitfish and schooling gamefish. Transmitting across 130 to 210 kHz, the B175H has up to 80 kHz of total bandwidth in just one installation for superior shallow-water performance and bottom detail.Tilted Element™ transducers have the element fixed at a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull's deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.Features: Garmin 8-Pin Mix & Match Cable for Chirp Transducers Depth and fast-response water-temperature sensing 1 kW of power with a maximum depth of 304 m (1000') High frequency: 130 to 210 kHz 10° to 6° beamwidth 80 kHz of total bandwidth from one transducer High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation Low-profile, thru-hull housing yields good display resolution at speed when installed properly Recommended for stepped, planing, or displacement hull Bronze housing for use in a fiberglass or wood hull Also available in a stainless steel housing (SS175H) for use in all hull materials Patented Xducer ID® technology Specifications: Power Rating: 1 kW Max Deadrise Angle: 24° Housing: Bronze Functions: Depth, Temperature Hull Material: Fiberglass or wood Max Vessel LOA: Up to 11 m (36') Hole Size: Fiberglass or wood hull 95 mm (3-3/4"), Metal hull 105 mm (4-1/8") Usable Shaft Length: 71 mm (2.80") Mounting Style: Tilted Element Thru-Hull Acoustic Window: Urethane Common Use: Leisure/Yachting, Fishing High Frequency: 130-210 kHz High Frequency Beamwidth: 15°-9° Max Deadrise: Up to 24° Max Depth: 304 m (1000') Retractable housing: No Single or Dual Frequency: CHIRP-Ready Single-Band Tilted Element: Yes Weight: 2.7 kg (6 lbs.) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

B175H Bronze Thru Hull 20° Tilt - 1kWRequires Mix and Match CableRely on Airmar’s new broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.Features: High—CHIRPS from 130 kHz to 210 kHz, 15° to 9° beamwidth 20° tilted version, 1KW 80 kHz of total bandwidth from one transducer Depth & fast-response water-temperature sensor Bronze transducer housing Boat Size: Up to 11 m (36’) Hull Type: Fiberglass or wood Exclusive Xducer ID® technology This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Mounting Style: Thru-Hull Chirp: High Box Dimensions: 8"H x 10"W x 12"L WT: 10.65 lbs UPC: 801769001921

Read more less

B175M Bronze Thru Hull 20° Tilt - 1kWRely on Airmar’s new broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.Requires Mix and Match CableFeatures: Medium—CHIRPS from 85 kHz to 135 kHz, 24° to 16° beamwidth 20° tilted version, 1KW 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Depth & fast-response water-temperature sensor Bronze transducer housing Boat Size: Up to 11 m (36’) Hull Type: Fiberglass or wood Exclusive Xducer ID® technology This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Mounting Style: Thru-Hull Chirp: Medium Box Dimensions: 8"H x 10"W x 11"L WT: 10.7 lbs UPC: 801769001891

Read more less

B175HW Bronze Thru Hull 12° Tilt - 1kWRequires Mix and Match CableGet more coverage under the boat with Airmar's new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25° beam width, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducersA unique property of the new high frequency transducers is that the beam width is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.Features: Depth & fast-response water-temperature sensor 12 degree tilted version, 1KW High—CHIRPS from 150 kHz to 250 kHz 25° constant beamwidth 100 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Boat Size: 8 m (25’) and above Hull Type: Fiberglass or wood Exclusive Xducer ID® technology This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Mounting Style: Thru-Hull Chirp: High Wide Box Dimensions: 8"H x 10"W x 12"L WT: 10.7 lbs UPC: 801769002072

Read more less

P79 Plastic In-Hull Transducer, 600w (10-Pin) 600 Watts 50/200 kHz 45/15 degree Beam Angles Plastic In-Hull Mount for Shoot-Through Applications 30 Foot Cable with 10-Pin Connector WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Temperature: No Speed Included: No Mounting Style: In-Hull Box Dimensions: 4"H x 8"W x 10"L WT: 2.6 lbs UPC: 611679220240 Owner's Manual (pdf)Brochure (pdf)

Read more less

ST1801kW Thru-Hull Stainless Steel Transducer - 50/200 kHzFeatures: Type - CW Dual Frequency - 50/200 kHz Power - 1kW Tilt - 0 degree Housing - Stainless Steel Thread Diameter - 30mm/1.18" Specifications: Cable Length (Feet): 26' Mounting Style: Thru-Hull Pins: 8 Speed Included: No Temperature: Yes Box Dimensions: 6"H x 9"W x 12"L WT: 8.9 lbs UPC: 010407360010

Read more less

B60 600W Tilted Element 12° - 8-PinThis entry-level tilted bronze transducer accommodates deadrise angles of 8 to 15 degrees without a fairing.An excellent choice for fiberglass and wood hulls, this 600W 8-pin transducer has a depth of 800' to 1,200'; an operating frequency of 50 to 200 kHz; and a beamwidth of 45 to 12 degrees.Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.*Do not use on metal hulls. When using with a 6-pin Garmin sounder, a transducer adapter cable is required.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Pins: 8 Mounting Style: Thru-Hull Imagining: Standard Chirp: No Cable Length (Feet): 39' Box Dimensions: 5"H x 6"W x 10"L WT: 5 lbs UPC: 753759971830 Owner's Manual (pdf)Brochure (pdf)

Read more less

Rubber Coated Transducer, 1kW (No Plug) 1 kW 50 kHz 28 degree Beam Angle 6.6 lbs. Rubber Coated - Chest, Housing or Tank Mounted 15-Meter Cable, no connector provided May be used for 75 kHz frequency setting feature, available only in FCV1100/1200 and FCV1200BB WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Temperature: No Speed Included: No Box Dimensions: 4"H x 13"W x 15"L WT: 8.8 lbs UPC: 611679111159 Quick Guide (pdf)

Read more less

B175M Bronze CHIRP 0° Thru-Hull TransducerFeatures: Depth/Temperature Thru-Hull Hull deadrise = 0º to 7º CP450C Plug on Cable Urethane Frequency: Medium 80-130 kHz Power: 1KW Medium: 24-16 degree beamwidth Hull type: Fiberglass and Wood Note: Requires A80328 Single B75/B175 Operation Cable Specifications: Mounting Style: Thru-Hull Chirp: Medium Imagining: Standard Temperature: Yes Speed Included: No Box Dimensions: 8"H x 11"W x 12"L WT: 11.6 lbs UPC: 723193729069

Read more less

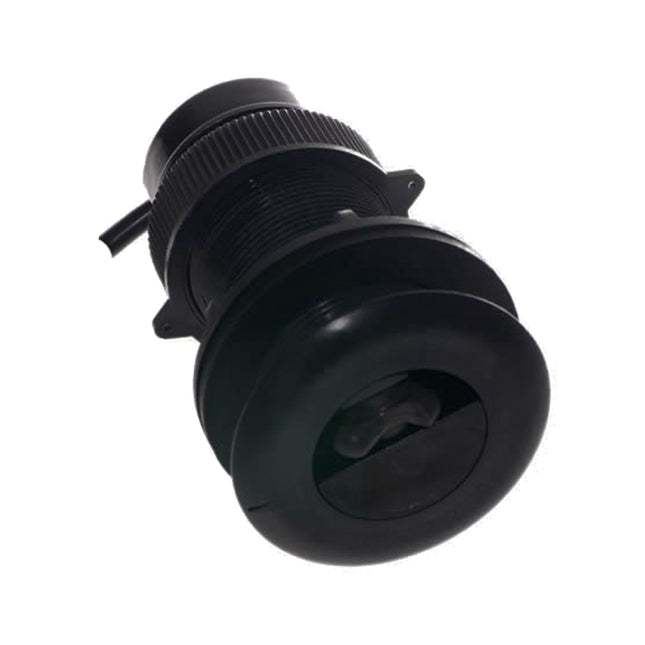

Combined Speed/Temperature and Depth Transducer for use with the mn100 Micronet system. Supplied with thru hull housing and blanking plug and 3 meters of cable.Features: Requires only one hole in the hull Standard 51mm (2") hole size Internal Temperature Sensor
