T-760 Compact Color Radar with 4kW 18" DomeBig radar performance and features are available for any size boat -- and budget with the SI-TEX T-760. A vertically oriented, slim case boasts advanced touch screen technology and a host of professional features. Powerful 4kW output ensures superior target acquisition and tracking in the the most challenging conditions.The T-760 Series case measures only 5.4" W X 8.9" H X 3.5" D. Yet, this system boasts a long list of professional-grade features, including powerful 4kW output, up to 24nm range, multi-speed antenna rotation, standard 50-target AIS tracking capability and standard 10-target MARPA - features often associated with larger, costlier systems. Control of all these features is achieved via the T-760's touch screen LCD display and single rotary encoder dial, for simple, intuitive operation.The series includes the T-760, equipped with an 18-inch compact radome antenna for solid performance in a wide range of conditions and range scale choices from 1/8th nm to 24nm. Both the T-760 and T-761 feature powerful 4kW transmitters, ensuring accurate detection and presentation of targets large and small. Both models also offer multi-speed antenna rotation (16/27/36/48rpm) for optimum target detection and tracking over a range of boat speeds.Among many other notable standard features of the T-760 Series are Relative Motion, True Motion, North-Up, Head-Up and Course-Up presentation modes, Auto or Manual Sea/Rain Clutter modes, 11 Trail Indication settings (including Off and Continuous), and more. With input from a SI-TEX Metadata AIS module (or other AIS receiver), the T-760 Series can track up to 50 AIS targets simultaneously for enhanced navigational safety in crowded waterways. With input of bearing, ship's speed and lat/lon data, the T-760 Series empowers navigators with professional MARPA tracking of up to 10 targets at distances up to 20nm.In the SI-TEX tradition, the T-760 Series radar is ruggedly built to withstand harsh conditions at sea on commercial as well as recreational vessels. SI-TEX's two-year limited warranty and Long Island, New York-based service department are the navigator's assurance of reliable performance and long-term satisfactionFeatures: 7" color LCD display 10M Cable Intuitive touch screen/rotary dial control Standard 50 target AIS tracking Standard 10 target MARPA Multi-speed (16-48 rpm) antenna rotation for optimum performance in real-world conditions Features include Relative Motion/True Motion/Head-Up/North-Up Optional color RGB video output Specifications: Array Size (Inches): 18" Power - Output: 4kW Range - Max (Miles): 24nm Screen Size: 7" Box Dimensions: 16"H x 21"W x 21"L WT: 30 lbs UPC: 010407230740 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

XM-14-HW-MSI-T MEGA SI+/DI+ Dual Spectrum CHIRP TM Transducer with Temp for SOLIX™MEGA Side Imaging+ Transom Mount Transducer supports MEGA Imaging+/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design, all metal bracket and 20’ cable.Features: This accessory is compatible with the following Humminbird products: SOLIX 10 CHIRP MEGA SI+ GPS G2, SOLIX 12 CHIRP MEGA SI+ GPS G2, SOLIX 15 CHIRP MEGA SI+ GPS G2. Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz Dual Spectrum CHIRP Max Depth: 1200ft (365m) MEGA Side Imaging Frequencies - Max Range (side-to-side): 455kHz: 440-500 kHz - 800ft (244m), 800kHz: 790-850 kHz - 250ft (76m), MEGA SI+: 1075-1150 kHz - 400ft (122m) MEGA Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 250ft (76m), MEGA DI+: 1075-1150 kHz - 200ft (61m) Specifications: Cable Length (Feet): 20' Temperature: Yes Speed Included: No Pins: 14 Mounting Style: Transom Imaging: Standard/Down/Side Chirp: High Wide Box Dimensions: 4"H x 9"W x 15"L WT: 2.9 lbs UPC: 082324053252 Owner's Manual (pdf)

Read more less

Foulfree Transducer Coating Formulated by industry-leading scientists and certified by Airmar for transducers.   Fouling on the face of transducers can reduce their sensitivity, bottom-echo returns and positive fish targets.  It can also increase the turbulence over the face of the transducer causing aeration and loss of bottom contact.  Foulfree keeps transducers clean and operating at the top of their game for the clearest sonar images possible.  The proprietary clear coat forms a slick surface that marine growth can’t grab onto, keeping your transducer surface clean and clear. Features: Foulfree™ is simple to apply and lasts for 12-24 months Transducer safe - Airmar certifies that Foulfree™ coating on its transducers results in no loss in transducer performance Biocide Free - Foul-release, not antifoul.  Foul-release coatings use physical means to reduce fouling, creating a surface that’s tough for marine organisms to adhere to Easy to apply A foul-free transducer equals more clarity, detail, and visibility below the waterline. Technical Specifications: Coverage Rate - 1ft² (two (2) average size transducers) In the Box: Abrasive pad XDclean wipe XDprime, wipe Applicator brush Foulfree Clear coat - 15ml *Sold as an IndividualThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Type: Service Kits Box Dimensions: 2"H x 2"W x 5"L WT: 0.15 lbs UPC: 9421903335425 Quick Guide (pdf)

Read more less

ICE Fishing Flasher Soft-Sided Carrying Case Soft-sided carrying case. (No shuttle, battery, or charger)WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

Read more less

Raynet to RJ45 Female Adapter 100mmThis adapter has a RayNet Female connector at one end, and a RJ45 Female Gland connector at the other end. The Gland makes the RJ45 Female socket watertight. A typical use for this cable would be to convert a RJ45 Digital Radar Cable to a RayNet Radar Cable so you can connect the cable directly into the new HS-5 Network Switch or directly into the back of an ace or gS Series multifunction display.

Read more less

SeaTalkngT-Piece Connector. Used for connecting white SeaTalkng Spur Cables to Blue SeaTalkng Backbone Cables.

Read more less

SeaTalkng Terminators attach at each end of SeaTalk backbone. Two are required per system.

Read more less

Micro Double-Ended Cordset - 1MMechanical Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray Contact Mat/Plating: Brass/Gold Coupling Nut Mat/Plating: Brass/Nickel Connector Outside Diameter: 0.59"Electrical Current Rating: 4.0 Amps Voltage Rating: 250 VCable Outer Jacket Mat/Color: PVC/Gray Conductor Insulation Material: HDPE (data pair), SRPVC (power pair) Number of Conductors: 4X22 AWG, 22 AWG Drain Wire Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair) Environmental Protection Class: IEC IP68, NEMA 1,3,4,6P Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)Approvals (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625,AWM 80 deg C 300V (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C,AWM I/II A/B 80C 300V FT4 NMEA: NMEA 2000 Approved Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 1m NMEA 2000 Connectors: Backbone/Drop Cables Box Dimensions: 1"H x 4"W x 5"L WT: 0.2 lbs UPC: 873804001517

Read more less

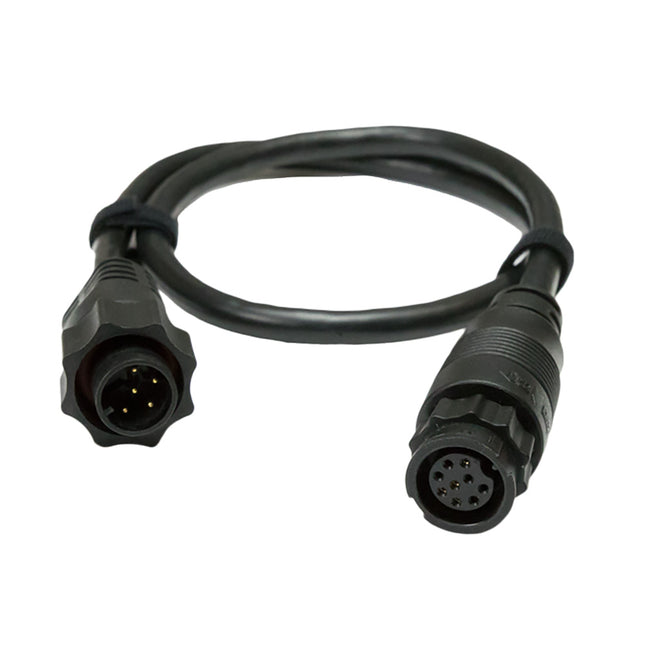

9-Pin Black to 7-Pin Blue Adapter Cable for Non-CHIRP TransducersConnects a non-CHIRP transducer with a 9-pin black connector to the older 7-pin blue sockets on displays and echosounder modules. For use with transducers that have an analog temperature sensor.

Read more less

NMEA 2000 Blanking Cap - MaleCovers unused couplers. Protects unused tee connectors from dust and water. Comes in a 2-Pack.WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Connection Gender: Male Data Interface: NMEA 2000 Box Dimensions: 1"H x 3"W x 5"L WT: 0.05 lbs UPC: 091887982374

Read more less

AS-ETH-5PGL 5 Port Ethernet SwitchThis Ethernet switch allows you to connect to up to five compatible Humminbird fish finders and Ethernet-compatible devices to create an integrated network capable of sharing information across all connected devices. The amber power light lets you know you are connected to power, while the amber and green connection lights give you a quick status of what’s connected. Features: Connect up to five Humminbird fish finders and other compatible Ethernet devices for data sharing across the network. Expand your network's capacity up to 20 devices by linking additional switches together (sold separately). Compatible with all XPLORE, APEX, SOLIX, HELIX G4N and HELIX G3N fish finder models. Connection Light: Solid = Connected; Flashing = Data Transfer in Progress; No Light = No Connection Amber Connection Light: XPLORE, HELIX G4N & G3N, AS ETH NMEA2K, Minn Kota Trolling Motor, Radar Green Connection Light: APEX, SOLIX, MEGA Live, TargetLock, AS ETH 5PXG, AS ETH 5PGL Amber Power Light: Connected to power Additional Ethernet cables are required to connect devices to this switch. AS EC QDE connectors will also be required to connect compatible HELIX models to the Ethernet switch. Includes: Ethernet switch, power cable, mounting hardware 1-Year Limited Warranty

Read more less

XM-14-HW-MDI-T MEGA DI+ Dual Spectrum CHIRP Transom Mount Transducer with Temp for SOLIX™ MEGA DIMEGA Down Imaging+ Transom Mount Transducer supports MEGA Imaging+/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design, all metal bracket and 20’ cable. Features: This accessory is compatible with the following Humminbird products: SOLIX 10 CHIRP MEGA DI+ GPS G2, SOLIX 12 CHIRP MEGA DI+ GPS G2, SOLIX 15 CHIRP MEGA DI+ GPS G2. Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz Dual Spectrum CHIRP Max Depth: 1200ft (365m) MEGA Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 125ft (38m), MEGA DI+: 1075-1150 kHz - 200ft (61m) WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Mounting Style: Transom Imaging: Standard/Down Cable Length (Feet): 20' Pins: 14 Chirp: High Wide Box Dimensions: 7"H x 8"W x 10"L WT: 2.45 lbs UPC: 082324053191 Owner's Manual (pdf)
