Marine Navigation & Instruments

B275LH-W Bronze Thru-Hull Transducer - 12-PinGet more coverage under your boat with Airmar’s unique wide beam, high frequency Chirp-ready transducers. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high frequency band results in superior resolution. The constant wide beamwidth provides twice the coverage under the boat and excellent fish arches on the display compared to most high frequency narrow beam transducer options.The included high-performance fairing improves broadband performance at speeds over 30 knots (34 MPH).The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 500'.The low frequency band and 1 kW of power also provides great deeper water performance. Get the best of both worlds with Airmar’s dual frequency Chirp-ready transducers with wide beam coverage.Features: Depth and fast-response water-temperature sensor 1 kW for great deep water performance from the low frequency Low Frequency: 42 kHz to 65 kHz with maximum depth of 914 m (3000') 25° to 16° beamwidth High Frequency: 150 kHz to 250 kHz with maximum depth of 152 m (500')25° constant beamwidth 123 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth High frequency provides superior shallow water performance, bottom detail and fish target separation High wide beamwidth provides more coverage under the boat for detecting fish in the upper water column Bronze transducer housing with high-performance fairing for optimal performance at higher speeds Recommended boat size: 8 m (25') and above Hull Type: Fiberglass or wood Exclusive Xducer ID® technology WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Mounting Style: Thru-Hull Imaging: Standard Chirp: Low/High Wide Cable Length (Feet): 39' Temperature: Yes Speed Included: No Pins: 12 Box Dimensions: 7"H x 19"W x 26"L WT: 24.15 lbs UPC: 753759123574 Brochure (pdf)

Read more less

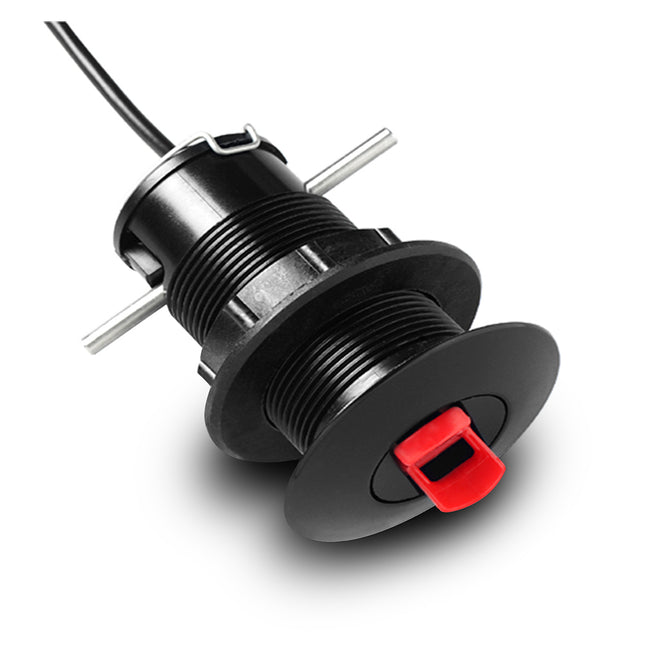

GST™ 43 Thru-Hull Speed/Temperature TransducerThe GST 43 is a thru-hull transducer that can read water speed and temperature. The transducer can retrofit an existing Nexus 43mm thru-hull transducer (TH43).Bundled with the GST 10, the GST 43 can connect directly to the NMEA 2000® network, and the information can be displayed on a compatible Garmin chartplotter or instrument display.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Mounting Style: Thru-Hull Box Dimensions: 3"H x 6"W x 9"L WT: 1.4 lbs UPC: 753759139872

Read more less

Protective Cover for echoMAP™ 9Xsv SeriesGarmin's protective cover fits your compatible echoMAP™, helping to keep it safe from the harsh marine environment when not in use.Compatible Devices: echoMAP™ 93sv echoMAP™ 94sv WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Covers Box Dimensions: 1"H x 7"W x 12"L WT: 0.3 lbs UPC: 753759127008

Read more less

B60 600W Tilted Element 12° - 8-PinThis entry-level tilted bronze transducer accommodates deadrise angles of 8 to 15 degrees without a fairing.An excellent choice for fiberglass and wood hulls, this 600W 8-pin transducer has a depth of 800' to 1,200'; an operating frequency of 50 to 200 kHz; and a beamwidth of 45 to 12 degrees.Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.*Do not use on metal hulls. When using with a 6-pin Garmin sounder, a transducer adapter cable is required.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Pins: 8 Mounting Style: Thru-Hull Imaging: Standard Chirp: No Cable Length (Feet): 39' Box Dimensions: 5"H x 6"W x 10"L WT: 5 lbs UPC: 753759971830 Owner's Manual (pdf)Brochure (pdf)

Read more less

Inboard Rotary FeedbackThe SI-TEX Inboard Rotary Feedback, provides the Autopilot with information about the physical position of the rudder. This is necessary to provide optimum steering performance and accuracy. The rudder follower package includes rudder follower, 15.2cm (50') cable.Features: Horizontal or vertical mounting positions Snap together assembly Stainless steel, brass and plastic construction Watertight glass fiber reinforced housing Specifications: Type: Parts Box Dimensions: 4"H x 15"W x 15"L WT: 3.3 lbs UPC: 010407610160

Read more less

Course Computer Unit (CCU) - Reactor™ 40 Steer-by-wireGarmin's CCU is the brain of the Reactor 40 autopilot system, containing sensory equipment used to determine heading and rate of turn. Connect the CCU to your boat's steering system and the NMEA 2000® network to communicate with your GHC™ 20 and optional NMEA 2000-compatible devices.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

GT12M Bronze Thru-Hull - 350W - 0 DegreeDesigned for reduced drag and optimum sonar performance on midsize fishing and cruising boats, this flush-mounted, 350-watt mid-band CHIRP transducer clearly defines fish arches, structure, and bottom depth returns on your display.Midband Chirp Traditional SonarThis 8-pin, 350-watt bronze thru-hull transducer features high-definition mid-band CHIRP sonar that clearly defines fish targets and structures down to 800’ in saltwater and 1,200’ in freshwater.Broad Frequency RangeUse the perfect frequency for the waters you’re fishing. Covering the medium frequency range, this transducer pulses from 85–165 kHz, displaying a wide coverage area, crisp fish arches, and accurate depth readings.Optimum Ping SensitivityOffering excellent sonar sensitivity, low noise, high resolution, and good separation of targets, this robust transducer makes it easier than ever to distinguish fish and structure on your compatible chartplotter display.Thru-Hull InstallationA durable bronze housing and stem offer straightforward thru-hull flush mounting for minimum drag and optimum beam orientation for clear sonar returns.Auto-ID TechnologyEnjoy simple plug-and-play operation with Garmin auto-identification technology — which enables the sonar to automatically configure itself to the transducer being used.Fits Various Hull TypesConfigurable for a wide variety of boat hull materials, including fiberglass, composite, and wood, the transducer is available in a range of tilt versions to accommodate deadrise angles of 0–20° without a fairing block.In the Box: GT12M-THF transducer Jam nut Washer Documentation Specifications: Transducer Frequency: Medium band CHIRP (85-165 kHz) Transducer Power: 350 W Transducer Beamwidth: 24° -16° Transducer Maximum Depth: 800 ft saltwater / 1200 ft freshwater Transducer Cable Length: 50 ft Transducer Depth/Speed/Temperature: Depth, temperature Transducer Number of Pins: 8-pin Housing Material: Bronze Transducer Supported Deadrise/Transom Angles: 0° supports hull deadrise angles from 0° to 7° Specifications: Cable Length (Feet): 50' Chirp: Medium Mounting Style: Thru-Hull Pins: 8 Speed Included: No Temperature: Yes Box Dimensions: 7"H x 8"W x 11"L WT: 7.25 lbs UPC: 753759319892

Read more less

Marine Network Adapter Cable - Small Female (Right Angle) to Large FemaleAdapt the small network connector on your Garmin device to a large connector of Garmin Marine Network cables. Compatible with:GMR Fantom® 124, 126, 18x/24x Dome Radar, 254, 246, 54, 56 radarsTechnical Specifications:Length - 11.8" (30cm)*Sold as an Individual

Read more less

8-Pin Trnasducer Extension Cable- 10'Connect your transducer to your sonar device with this 10'(3M) 8-pin extension cable.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Extension Box Dimensions: 1"H x 6"W x 8"L WT: 0.5 lbs UPC: 753759128814

Read more less

Protective Screw Cover for NMEA2000 Male Micro Connectors - 10-PackScrew-cap covers for NMEA 2000 Micro connectors.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Connection Gender: Male Data Interface: NMEA 2000 Box Dimensions: 0"H x 5"W x 7"L WT: 0.05 lbs UPC: 5060998710652

Read more less

Self-Contained Boat Network - Complete Network f/8 Devices w/Internal Terminators & Power FeedInstalling small NMEA 2000® networks is quicker and easier than it’s ever been with the Self-contained Boat Network (SBN) from Actisense.The equivalent of eight T-pieces in a single case provides a significant time and space saving with no more connecting multiple T-pieces together. Termination resistors are built in which increases the saving on time and space.Once the attached 3 meter cable is connected to the boats power supply, an NMEA 2000 network for up to eight devices is ready to use, taking ‘plug & play’ to the next level.Features: Self-contained NMEA 2000 Network Integrated Termination Resistors 8x NMEA 2000 drops Ruggedized, flame retardant over-molded housing Metal coupling nuts Integrated EMI Shield Orange, UL Rated, 3-meter power cable Color coded wires, stripped and tinned Low cost, quick to install, and provides an easy way to connect multiple NMEA 2000 devices Simple installation, fewer components, more reliable, lower cost Accommodates the vast majority of compact NMEA 2000 networks Suitable for wet and harsh conditions- highly desirable in marine environments Reliable, long lasting connections Less likely to be susceptible to interference UL rated cable provide peace of mind. Color easily differentiates the power cable form drop cables Quick installation, no special tools required Technical Specifications:Electrical Rated Current - 3A Rated Voltage - 60 V (AC/DC) Internal Termination Resistors - 2 x 120Ω 250mW Mechanical Female Contact - Phosphor bronze, gold plated Contact Carrier - PA66 (30% Glass filled), black Contact Polarization - Standard M12 – “A” – polarization Mating Thread - M12 Screw Cap - Brass, nickel plated O-Ring Seal - Rubber, black Housing - TPU (Halogen Free) over Epoxy filled PBT housing Flammability rating - UL94 V-0 Internal Housing Shield - Copper foil Cable Jacket Material - 0.8mm Nom. PVC, orange Cable Outer Diameter - 6.8mm Cable Length - 3m Wire Length - 150mm (10mm stripped and tinned) Wire Jacket - PVC, Red & Black Wires - 16 AWG (stripped and tinned) Drain - 18 AWG (34 strand tinned copper) Cable Shield - Al-mylar Weight - 410g Approvals and Certifications Protection - IP67 (when mated) Operating Temperature - -25°C to +70°C Storage Temperature - -40°C to +85°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Data Interface: NMEA 2000 Cable Length (Meters): 3m Box Dimensions: 1"H x 6"W x 8"L WT: 0.9 lbs UPC: 5060998710188 Owner's Manual (pdf)Brochure (pdf)

Read more less

IDMK X10 XPLORE 10 In-Dash Mounting BracketIn-dash mounting kit for the Humminbird XPLORE Series fish finder is made with rugged, high-strength aluminum for a quick and easy install. This kit includes mounting hardware.Features: Allows for quick and easy in-dash installation Rugged, high-strength aluminum design Contains all necessary mounting hardware 1-Year Limited Warranty
