Marine Navigation & Instruments

GPS160 TriNav Sensor with SeaTalk Interface BundleThe GPS160, a high performance positioning sensor using GPS, Galileo and Glonass satellite systems for exceptional positioning accuracies and redundancies.TriNav technology allows all three systems to be simultaneously utilized for navigation. The device can also be field programmed for a variety of modes such as single GNSS operation (eg Galileo only) as well as output configurations such as update rate, NMEA sentence structure etcThe GPS160 is available with a NMEA 0183 output (4800, 38400 and 115200 baud programmable) and a USB variant for PC, MAC and Linux. For NMEA 2000 systems, a bundle is available with iKonvert allowing easy and flexible NMEA 2000 installation without the need for cumbersome drop cables.The GPS160 also support an external MOB switch or device. When activated, it creates a “synthesized” AIS SART MOB message on the NMEA output which can be interfaced with a local plotter for MOB identification.The GPS160 supports GPS, Glonass and Galileo positioning. Our TriNav technology is used to combine signals from all three systems to compute the best possible fix accuracy and reliability.Galileo is the global navigation satellite system (GNSS) that has been developed over the past two decades. It joins the GPS and GLONASS systems and offers mariners a 3rd reliable positioning source. It is planned to be fully operational in 2020.Features: 72 channel GPS, Glonass and Galileo GNSS positioning receiver Typically sub 1m accuracy thanks to TriNav technology –combines all satellite data for optimum accuracy Can be configured as dedicated GPS, Glonass or Galileo only device Sophisticated anti-spoofing algorithm for robust positioning performance and interference rejection Available in NMEA 0183, NMEA 2000 (with iKonvert interface)and wireless (with WLN10SM) variants GPS160USB also available with USB connection for PC/MAC User/field selectable 4800, 38400 and 115200 baud operation through simple internal DIP switches Multiple formats of NMEA data output including datum information –user configurable through internal DIP switches Up to 18Hz update rate (user selectable) Ultra low (<20mA) power consumption at 12V DC Input for MOB switch/system –when activated generates synthetic AIS MOB NMEA output to activate MOB position on plotter Professional system (ECDIS) support with datum sentence structure (DTM/GBS/GNS/GRS/GSA/GST) Puck installation or fits 3rd party industry standard 1” x 14TPI threaded mount Brochure (pdf)

Read more less

Garmin 12-Pin Mix & Match Cable for Chirp TransducersAirmar's Garmin Mix & Match CableFeatures: 12-Pin Specifically for Chirp Transducers This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Type: Adapters Box Dimensions: 1"H x 4"W x 4"L WT: 0.2 lbs UPC: 801769003239

Read more less

Thru-Hull Transducer - 235kHz, 1-5/8" Diameter & 26' CableProvides minimal drag in the water. 235kHz transducer and 1-5/8" diameter with 26 feet of cable.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

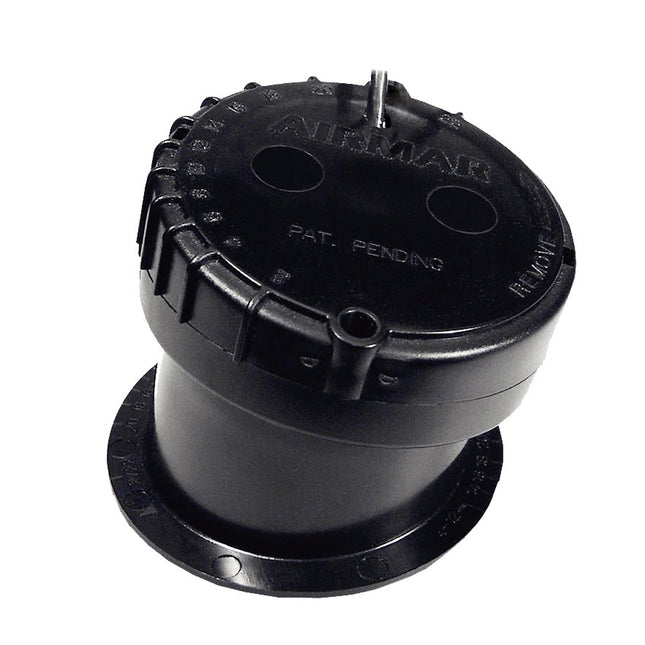

Airmar P79 Adjustable 200/50kHz Plastic In-hull Transducer (8-pin)010-10327-20This entry level in-hull transducer with an adjustable deadrise angle makes installation a snap.The 8-pin 600 W transducer has a depth of 800 to 1,200 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 45 to 12 degrees; and a 0 to 22 degree deadrise.Transducer kit comes with installation instructions*. Follow the instructions carefully to avoid damaging your boat.*Fiberglass should be no more than 5/8" thick. Not recommended for cored hulls.When using with a 6-pin Garmin sounder, transducer adapter cable part number 010-11612-00 is required.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Pins: 8 Mounting Style: In-Hull Imagining: Standard Chirp: No Cable Length (Feet): 25' Temperature: No Speed Included: No Box Dimensions: 5"H x 7"W x 9"L WT: 2.7 lbs UPC: 801769000153 Owner's Manual (pdf)Brochure (pdf)

Read more less

NMEA 2000 Starter Kit - Single UnitFrom boat performance to weather and water conditions, make sense of it all with NMEA 2000 networking on your Humminbird control head. The NMEA 2000 Starter Kit - Single provides the essential components to build a single device NMEA 2000 network. Features: Compatible with: HELIX G4N models and all SOLIX models. Compatible Humminbird Legacy models (must also use (1) AS ETH NMEA2K and (1) AS EC QDE) : HELIX 7 G2N/G3N, all HELIX 8, all HELIX 9, all HELIX 10, all HELIX 12 Update bullet #3 : Kit includes: (1) 1 meter power cable and T -connector, (1) male terminator, (1) female terminator, (1) T-connector, (1) 2 meter (6.5ft) drop cable 1-Year Limited Warranty

Read more less

XP-14-HW-T Dual Spectrum CHIRP In-Hull Transducer with Temp for SOLIX™In-Hull Dual Spectrum CHIRP Transducer supports Dual Spectrum CHIRP 2D Sonar with high frequency beam and wide cone angle, offering CHIRP range of 150-220kHz and max depth of 1200ft. Intended for glue-in installation inside single layer fiberglass hulls. Includes built-in temperature sensor, epoxy kit and 20’ cable. Features: This accessory is compatible with the following Humminbird products: SOLIX® 10, 12, 15 – All G2 Models. Side Imaging™ and Down Imaging™ units can support the XP 14 HW T as a 2D sonar only transducer. This transducer does not support Side Imaging or Down Imaging. Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz DUAL Spectrum CHIRP Max Depth: 1200ft (365m) WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Pins: 14 Mounting Style: In-Hull Imagining: Standard Chirp: High Wide Speed Included: No Cable Length (Feet): 20' Box Dimensions: 7"H x 8"W x 10"L WT: 1.35 lbs UPC: 082324053092 Owner's Manual (pdf)

Read more less

GM H910 Gimbal Mount BracketGimbal mount for HELIX 9 and HELIX 10 SeriesWARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Mounting Brackets Box Dimensions: 3"H x 6"W x 12"L WT: 0.95 lbs UPC: 082324048418

Read more less

AS GPS NMEA ONIX Splitter CableONIX Splitter Cable to connect with optional external GPS receiver AS GRP or AS GPS HS for 1 additional NMEA 0183 communicationWARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Data Interface: NMEA 0183 Box Dimensions: 2"H x 8"W x 9"L WT: 0.4 lbs UPC: 082324038938

Read more less

Field Installable ConnectorsUse our waterproof male/female field-installable connectors at the foot of the mast for easy connection of the mast cables on our gWindT family of transducers when stepping the mast.Compatible Devices: GND™ 10 Black Box Bridge gWind™ Race Transducer gWind™ Transducer gWind™ Wireless Transducer WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

High Definition 3MP IP Mini Dome Camera - 2MP Resolution - 316 Stainless Steel & 160-Degree Horizontal Field of View - 1.8mm LensIris’s SX60 range of miniature marine-grade stainless steel cameras is available in multiple formats and delivers the highest quality video to suit your application.The IRIS-S460 is a high-definition 3MP IP camera that is directly compatible with Raymarine chart plotters (running LH2 / LH3 software), Navico MFDs (Simrad, Lowrance, B & Gs), and Furuno Timezero software v4.1 and above. Compatible with Garmin via our CMAC series of switchers, interfaces, and recorders.The IRIS-S460 features built-in Power over Ethernet (PoE) or 12VDC operation and is ONVIF compliant, supporting multiple streams, variable bitrates, and a host of image settings, including image mirror and flip, color, contrast, and brightness settings.The S460’s 316 stainless steel housing provides the ultimate protection in the harsh marine environment and is, therefore, the perfect solution for deck monitoring aboard workboats, fishing vessels, and passenger's vessels, while fitting in equally well with the high-end aesthetic of luxury vessels and mega yachts.Measuring only 58mm high by 60mm in diameter, the S460 is small enough to provide unobtrusive surveillance and also for use in areas where space is tight, such as engine rooms or anchor wells. Built-in infrared LEDs operate automatically via a day/night filter to provide illumination up to 10 meters at night and in low-light conditions.Whether you need a high-quality and rugged camera as part of your onboard surveillance system, for engine room, deck, and companionway monitoring, or as a robust and stylish docking or backup camera, the IRIS-SX60 range of cameras is the perfect solution.Features: Marine Grade 316 Stainless Steel rugged corrosion-free case Compatible with Raymarine / Axiom chart plotters running LH2 and higher Compatible with Simrad, Lowrance & B & G Compatible with Furuno software running TZ4.1 and above Garmin Compatibility in conjunction with CMAC Systems High polish finish Built-in infra-red LED illumination (10m Range) PoE & 12VDC connections Extremely low power consumption IP66 environmental protection Specifications: Lens (millimeter): 1.8mm Horizontal Field of View: 160-degree HFOV Sensor (inch): 1/4” CMOS Sensor Resolution: Variable - 1920x1080P (2MP) max Interface: RJ45 10/100 base t ethernet Video Processing: H.264 Codec / dual stream Protocols/Video Format: TCP/UDP/HTTP/Multicast/UPnP/NTP/RTSP/ONVIF Onvif: Profile S v2.4 Bitrate: VBR / CBR 32kbps 8Mbps Illumination: 6 x 850nm infra-red - 10-meter range Lens/Field of View: 1.8mm wide angle option Mirroring: Horizontal & vertical - configure via browser Automatic Gain Control: Supported / multiple levels Compatibility:  Raymarine / Axiom (LH2 or higher), NAVICO MFD’s inc SIMRAD / LOWRANCE, B & G, Furuno Timezero v4.1 and higher. PC-based systems, MFDs with digital (HDMI / DVI) Input, MFDs via IRIS NVR/HVR, IE Browser, CMAC systems Operating Temperature: -30 +60-degrees C Connections: Water-resistant RJ45 Socket / non-PoE with DC power socket Material: 316 Stainless Steel Power: PoE IEEE802.3af / 12VDC <200mA max. Weight & Dimensions: 0.420Kg / 59.5mm ø x 52.93mm H Environmental: IP66 Brochure (pdf)

Read more less

HD IP Flush Vertical Surface Mount - 3MP Max Resolution - 316L Marine Grade Stainless Steel - Recess Mount DomeIris’ Sx76 series camera is the first of its kind designed to be installed into a bulkhead or vertical surface. Its waterproof stainless steel case is machined from marine-grade 316L stainless steel, which means it will not corrode in harsh saltwater environments, making it a great option as a backup or docking camera for boats. By mounting the camera on the sides of your boat, it can even be used when mooring alongside jetties or pontoons. During installation, the camera’s inner ball can be adjusted and then locked into position by simply tightening the outer bezel to achieve the desired view. For IP-based systems, the S476 features 3MP high-definition resolution and 12VDC or PoE power.As well as marine applications, the camera's tough case, and small footprint make it a perfect visibility aid for recreational vehicles, fire and rescue trucks, and other applications where a robust and reliable high-definition camera is required.The camera is certified to EN60945, EN55032, EN55035, and EN60529 (IP66) and is ONVIF compliant. For marine applications, the camera is directly compatible with Raymarine LH2 and above, Simrad, Lowrance, and B & G. For Garmin systems, use them in conjunction with Iris CMAC systems. Features: 1.8mm Standard (160-degree horizontal field of view) Corrosion-Proof 316L Marine Grade Stainless Steel 3MP Hi-Def IP Camera Format IP Version - max. 3MP Hi-Def resolution Super wide angle 160-degree lens IP version supports PoE and 12VDC - ultra-low power Built-in infrared LED illumination (10m range) EN60945, EN55032, EN55035, EN50529 (IP66) , FCC, CE Shock & vibration proof Super rugged and easy to install Applications: Perfect for extreme environments Workboats & tug boats Fishing vessels Engine room monitoring Law enforcement & military Wind farm vessels SUVs, RVs, work vehicles, and trucks Luxury vessels Passenger ferries & cruise liners Specifications: Lens (millimeter): 1.8mm Horizontal Field of View: 160-degree HFOV Sensor (inch): Sensor 1/4” CMOS Sensor Resolution: Variable - 3MP Max (2304 x 1296) Interface: RJ45 10/100 Base T Ethernet Video Processing: H.264 Codec / Dual Stream Protocols/Video Format: TCP/UDP/HTTP/Multicast/UPnP/NTP/RTSP/ONVIF Onvif: Profile S v21.06 Bitrate: VBR / CBR 32kbps 8Mbps Illumination: 6 x 850nm Infra-Red - 10-meter range Lens/Field of View: 1.8mm Standard (160-degree HFOV) Mirroring: Horizontal & Vertical - Configure via Browser Automatic Gain Control: Supported / multiple levels Compatibility: Raymarine / Axiom (LH2 or higher), Simrad / B & G / Lowrance (Latest NOS / NEON OS) / PC-based systems, MFDs with digital (HDMI / DVI) Input, MFDs via IRIS NVR/HVR, IE Browser Operating Temperature: -30 + 60-degrees C Connections: Video: Water Resistant RJ45 Socket / Non-PoE with DC Power Socket Material: Marine Grade 316L Stainless Steel (highly polished as a standard) Power: +12VDC (+10 +15VDC Range) / 1W Nominal / 1.8W Max (LED’s ON) Power Over Ethernet (PoE): IEEE802.3af Weight & Dimensions: 88mm ø x 22.25mm above and below the mounting surface Environmental: EN60529 / IP66 EMC: EN55032:2015/A11:2020 & EN55035:2017/A11:2020 EN60945:2002 Sections 9 & 10 / PoE with Compliant PoE Injector / FCC Part 15 A & B RoHS: EN6300:2018 Brochure (pdf)

Read more less

Control for Garmin OneHelm Host Interface (No Recording) / HybridManage and control your onboard cameras and alarms via the new Iris Control HTML5 app. Upload your deck plans and photos, drag and drop the dedicated camera and alarm icons, and you now have the most feature-rich and intuitive marine security and surveillance system in the world. Navigate through your deck plans and select camera icons to switch video inputs, control PTZ cameras via the ultra-responsive virtual joystick, configure and select camera tours and scans, activate thermal color palettes, gyro control, and much, much more! Iris Control frees up helm space by removing the need for additional control hardware and joysticks.IrisControl is the only app of its type in the world, developed especially for boat owners, operators, and crew, and has been designed to run on chartplotter HTML5 platforms such as Garmin’s award-winning OneHelm program.IrisControl is hosted on the CMAC range of onboard management and recording units and interface modules.Features: Hybrid Fully Integrated Camera and Alarm Control & Management Interface Upload your own deck plans & photos and drag & drop camera & alarm icons to select & control Garmin OneHelm™ Integration Control and switch your cameras Configure your boat alarm system, control individual and group alarms Razor-sharp, scaled control via IrisControl’s virtual joystick Firmware is upgradeable to unlock new features as & when they become available

Read more less
