Marine Plumbing & Ventilation - Hose

1-1/2" Ocean-Flex Multipurpose Hose - Sold by the FootThis unique marine hose can be used for a multitude of applications for both Commercial and Recreational Vessels including Fuel Fill, Feed, and Vent (Diesel & Gasoline – Type A1), Lube Oil, Wet Exhaust, Water (Vital and Non-Vital), Bilge, Coolant, Drains, and Sanitation applications. OCEAN-FLEX boasts compliance with the following standards: USCG Inspected Vessels (Title 46 CFR Sub-Chap. T), SAE J1942 (Code F, VW, NVW), USCG Type A1, SAE J1527 A1 R2, SAE J2006 R2, SAE J20R2 B, SAE J20R4 B, SAE J20R5 B, SAE J30R5, ABYC H-22, H-24, H-33 P-1, P-4, ISO 7840 A1, ISO 8469 B1, ISO 13363 2B, and CE.Provides excellent resistance to fuel, fire, heat, cold, ozone, and aging. Also provides excellent bend-ability and adheres to more standards than any other marine hose.Specifications: Construction: Tube Black Nitrile, Cover Black Nitrile Reinforcement: Multiple Textile Spirals, Dual Steel Wire Helix Temperature Range: -20°F to 212°F (-29ºC to 100ºC) Lengths: 12.5’ (3.81 m) Length, 25’ (7.62 m) Coil (4”–6”), 50’ (15.24 m) Coil (up to 3-1/2” ID.) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: ID Diameter (inches): 1-1/2" Length (Feet): Sold By The Foot Box Dimensions: 2"H x 2"W x 12"L WT: 0.5 lbs Quick Guide (pdf)

Read more less

1-1/2" Flex Marine Wet Exhaust & Water Hose - Black - Sold by the FootTrident Flex wet exhaust hose for longer bent connections. In smaller I.D.s for engine intake, critical water, drain, scupper bilge & sanitation uses. Resists heat, ozone, exhaust, panting, and collapse. Black High Temp EDPM Rubber 250°F (121°C) Max.Features:  Sold by the foot Extra heavy tube and cover with wire helix between 2-ply reinforcement provides excellent flexibility and bend radius Exceeds SAE J2006-R2, ABYC & NMMA P-1 exhaust standards, and Lloyd’s Registry Type Approved Application: Trident Flex wet exhaust hose for longer bent connections In smaller I.D.s for engine intake, critical water, drain, scupper bilge & sanitation uses Construction: Tube & Cover: High temp EDPM rubber Color: Black with blue stripe Reinforcement: Multi-ply, high-tenacity polyester, steel helix Temperature Range: 250°F (121°C) Specifications: Inner Diameter: (inch) 1-1/2" / (mm) 38 Outer Diameter: (inch) 1.97 / (mm) .05 Working Pressure: (Psi) 60 / (bar) 4.1 Bend Radius: (inch) 4.0" / (mm) 102 Weight: (Lb./50ft.) 45 / (Kg/m) .518 *Burst Pressure is 4 x Working PressureThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: ID Diameter (inches): 1-1/2" Length (Feet): Sold By The Foot Box Dimensions: 1"H x 1"W x 6"L WT: 0.9 lbs Quick Guide (pdf)

Read more less

3/4" Heavy Duty PVC Bilge & Livewell Hose (FDA) - Clear with Black Helix - Sold by the FootTrident Smooth extra heavy wall vinyl (FDA) well hose. All clear (see thru) with black helix. Excellent durability, flexibility & bend radius for XHD bilge, live well, drain, scupper lines, etc. No cuffs are required. Features: Sold by the foot Flexible, but the 147 series is less flexible than the 149 series of hoses Application:Bilge and live well hoseSpecifications: Tube & Cover: Clear vinyl reinforced with black helix  Color: Clear with black helix Reinforcement: PVC Helix Temperature Range: 10°F-120°F (-12°C-49°C)  Inner Diameter: (inch) 3/4" / (mm) 19 Outer Diameter: (inch) 0.968" / (mm) 24.6 Working Pressure: (Psi Vac In./Hg) 28 Weight: (Lb./ 50 ft.) 11 / (Kg/m) 0.33 Bend Radius: (inch) 2.25" / (mm) 57.2 *Burst Pressure is 4 x Working PressureThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: ID Diameter (inches): 3/4" Length (Feet): Sold By The Foot Box Dimensions: 1"H x 1"W x 6"L WT: 0.18 lbs Quick Guide (pdf)

Read more less

1" x 50' Box VAC XHD Sanitation Hose - Hard PVC Helix - WhiteTrident Ply Extra heavy-duty sanitation hose of smooth white vinyl. Specially compounded to provide excellent resistance to odor permeation and (FDA) potable water fill. Also for the critical bilge, drain scuppers, live wells, etc. Self-draining installations are recommended for the longest odor-free service.Features: A hard PVC helix gives good flexibility and bend radius No cuffs are required Application: Specially compounded to provide resistance to odor permeation and (FDA) potable water fill Also for critical bilge, drain scupper, live well, etc Specifications: Tube & Cover: Hard PVC helix Color: White Reinforcement: PVC Helix Temperature Range: 10°F-120°F (-12°C-48°C)  Boxed: 50ft. / (15.2m) Inner Diameter: (inch) 1" / (mm) 25.4 Outer Diameter: (inch) 1.262" / (mm) 32.1 Working Pressure: (Psi Vac In./Hg) 28 Weight: (Lb./ 50 ft.) 15 / (Kg/m) 0.52  Bend Radius: (inch) 3" / (mm) 76.2 *Don't use with alcohol, anti-freeze, petrochemicals, or solvents*Burst Pressure is 4 x Working Pressure Specifications: Length (Feet): 50' ID Diameter (inches): 1" Box Dimensions: 5"H x 22"W x 22"L WT: 15.75 lbs UPC: 704917006291 Quick Guide (pdf)

Read more less

1/2" x 50' Boxed Reinforced PVC (FDA) Hot Water Feed Line Hose - Drinking Water Safe - Translucent RedTrident 166 Series Red - polyester reinforced PVC hose for "Hot Water" feed lines. The FDA-grade tube is non-toxic, odorless, and tasteless. Suitable for use in harsh operating conditions with temperatures of up to 149ºF (65ºC) and can handle pressures to a maximum of 250 psi (varies based on i.d size). Features:  The Red cover allows for easy identification of "Hot Water" lines on your boat Made of 3-ply polyester for excellent abrasion resistance and sustained flexibility This hose is safe for use with drinking water Application:Perfect for hot, pressurized applications, hot water feed, drains, and vent linesConstruction: Tube & Cover: Clear FDA tube  Color: Red Transparent  Reinforcement: Polyester Temperature Range: -18°F to 149°F (-28°C to 65°C) Length: 50’ (15.24m) Specifications: Inner Diameter: (inch) 1/2" / (mm) 12.7 Outer Diameter: (inch) .777 / (mm) 19.6 Working Pressure: (PSI Vac In./Hg) 250 / (bar) 17 Bend Radius: (inch) 0.98" / (mm) 25 *Burst Pressure is 4 x Working Pressure Specifications: Length (Feet): 50' ID Diameter (inches): 1/2" Box Dimensions: 3"H x 18"W x 18"L WT: 7.45 lbs UPC: 704917024028 Quick Guide (pdf)

Read more less

3/4" x 50' VAC XHD Bilge & Live Well Hose - Hard PVC Helix - BlackTrident VAC XHD Bilge and Live Well Hose. Helical PVC reinforcement provides excellent flexibility and bend radius for live well and heavy-duty bilge applications. It has a smooth outer surface to allow for easy clamping. The excellent bend radius of this product gives you the flexibility of a rubber hose making installations a breeze.Features:149 series of hoses is extra flexible Application:Bilge and live well hoseSpecifications: Tube & Cover: Hard PVC helix Color: Black Reinforcement: PVC Helix Temperature Range: 10°F-120°F (-12°C-48°C)  Boxed: 50ft. / (15.2m) Inner Diameter: (inch) 3/4" / (mm) 19.1 Outer Diameter: (inch) .986" / (mm) 25 Working Pressure: (Psi Vac In./Hg) 28 / (Bar) 1.93 Weight: (Lb./ 50 ft.) 11 / (Kg/m) 4.99 Bend Radius: (inch) 3" / (mm) 76.2 *Burst Pressure is 4 x Working Pressure Specifications: Length (Feet): 50' ID Diameter (inches): 3/4" Box Dimensions: 5"H x 18"W x 18"L WT: 9.4 lbs UPC: 704917017822 Quick Guide (pdf)

Read more less

TastePURE 25' Drinking Water HoseThis 25-foot Camco drinking water hose has a 1/2-inch ID and is reinforced for maximum kink resistance. Made of NSF-certified FWH hose, this PVC hose is lead-free, BPA-free, phthalate-free, and certified to NSF/ANSI/CAN 61 for drinking water.Features: Reinforced for maximum kink resistance; includes an easy grip swivel female connector; UV stabilized for long life Compliant with All Federal and State-Level Low Lead Laws: CSA low lead content certified to NSF/ANSI 372 Made in the USA Specifications:Measurements: 25 feet long with a 1/2-inch ID Specifications: ID Diameter (inches): 1/2" Length (Feet): 25' Box Dimensions: 3"H x 10"W x 10"L WT: 2.4 lbs UPC: 014717227339

Read more less

5/8" x 50' Boxed Reinforced PVC (FDA) Cold Water Feed Line Hose - Drinking Water Safe - Translucent BlueTrident 165 Series Blue - polyester reinforced PVC hose for "Cold Water" feed lines. The FDA-grade tube is non-toxic, odorless, and tasteless. Suitable for use in harsh operating conditions with temperatures as low as -18.4ºF (- 28ºC) and can handle pressures up to 250 psi (varies based on I.D size).Features:  The Blue cover allows for easy identification of "Cold Water" lines on your boat   Made of 3-ply polyester for excellent abrasion resistance and sustained flexibility This hose is safe for use with drinking water Application:Perfect for cold pressurized applications, water feed, drains, and vent linesConstruction: Tube & Cover: Clear FDA tube  Color: Blue Transparent  Reinforcement: Polyester Temperature Range: -18°F to 149°F (-28°C to 65°C) Length: 50’ (15.24m) Specifications: Inner Diameter: (inch) 5/8" / (mm) 15.9 Outer Diameter: (inch) .866 / (mm) 22.5 Working Pressure: (PSI Vac In./Hg) 230 / (bar) 16 Bend Radius: (inch) 1.26" / (mm) 32 *Burst Pressure is 4 x Working Pressure Specifications: Length (Feet): 50' ID Diameter (inches): 5/8" Box Dimensions: 5"H x 18"W x 18"L WT: 8.6 lbs UPC: 704917023960 Quick Guide (pdf)

Read more less

1-1/8" Heavy Duty PVC Bilge & Livewell Hose (FDA) - Clear with Black Helix - Sold by the FootTrident Smooth extra heavy wall vinyl (FDA) well hose. All clear (see thru) with black helix. Excellent durability, flexibility & bend radius for XHD bilge, live well, drain, scupper lines, etc. No cuffs are required. Features: Sold by the foot Flexible, but the 147 series is less flexible than the 149 series of hoses Application:Bilge and live well hoseSpecifications: Tube & Cover: Clear vinyl reinforced with black helix  Color: Clear with black helix Reinforcement: PVC Helix Temperature Range: 10°F-120°F (-12°C-49°C)  Inner Diameter: (inch) 1-1/8" / (mm) 28.6 Outer Diameter: (inch) 1.39" / (mm) 35.4 Working Pressure: (Psi Vac In./Hg) 28 Weight: (Lb./ 50 ft.) 15 / (Kg/m) 0.45 Bend Radius: (inch) 3.5" / (mm) 8.9 *Burst Pressure is 4 x Working PressureThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: ID Diameter (inches): 1-1/8" Length (Feet): Sold By The Foot Box Dimensions: 2"H x 2"W x 2"L WT: 0.28 lbs Quick Guide (pdf)

Read more less

1/2" x 50' Boxed Reinforced PVC (FDA) Cold Water Feed Line Hose - Drinking Water Safe - Translucent BlueTrident 165 Series Blue - polyester reinforced PVC hose for "Cold Water" feed lines. The FDA-grade tube is non-toxic, odorless, and tasteless. Suitable for use in harsh operating conditions with temperatures as low as -18.4ºF (- 28ºC) and can handle pressures up to 250 psi (varies based on i.d size).Features:  The Blue cover allows for easy identification of "Cold Water" lines on your boat   Made of 3-ply polyester for excellent abrasion resistance and sustained flexibility This hose is safe for use with drinking water Application:Perfect for cold pressurized applications, water feed, drains, and vent linesConstruction: Tube & Cover: Clear FDA tube  Color: Blue Transparent  Reinforcement: Polyester Temperature Range: -18°F to 149°F (-28°C to 65°C) Length: 50’ (15.24m) Specifications: Inner Diameter: (inch) 1/2" / (mm) 12.7 Outer Diameter: (inch) .777 / (mm) 19.6 Working Pressure: (PSI Vac In./Hg) 250 / (bar) 17 Bend Radius: (inch) 0.98" / (mm) 25 *Burst Pressure is 4 x Working Pressure Specifications: Length (Feet): 50' ID Diameter (inches): 1/2" Box Dimensions: 3"H x 18"W x 18"L WT: 7.1 lbs UPC: 704917023946 Quick Guide (pdf)

Read more less

1/2" Reinforced PVC (FDA) Cold Water Feed Line Hose - Drinking Water Safe - Translucent Blue - Sold by the FootTrident 165 Series Blue - polyester reinforced PVC hose for "Cold Water" feed lines. The FDA-grade tube is non-toxic, odorless, and tasteless. Suitable for use in harsh operating conditions with temperatures as low as -18.4ºF (- 28ºC) and can handle pressures up to 250 psi (varies based on i.d size).Features:  Sold by the foot The Blue cover allows for easy identification of "Cold Water" lines on your boat   Made of 3-ply polyester for excellent abrasion resistance and sustained flexibility This hose is safe for use with drinking water Application:Perfect for cold pressurized applications, water feed, drains, and vent linesConstruction: Tube & Cover: Clear FDA tube  Color: Blue Transparent  Reinforcement: Polyester Temperature Range: -18°F to 149°F (-28°C to 65°C) Specifications: Inner Diameter: (inch) 1/2" / (mm) 12.7 Outer Diameter: (inch) .777 / (mm) 19.6 Working Pressure: (PSI Vac In./Hg) 250 / (bar) 17 Bend Radius: (inch) 0.98" / (mm) 25 *Burst Pressure is 4 x Working PressureThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: ID Diameter (inches): 1/2" Length (Feet): Sold By The Foot Box Dimensions: 1"H x 1"W x 1"L WT: 0.14 lbs

Read more less

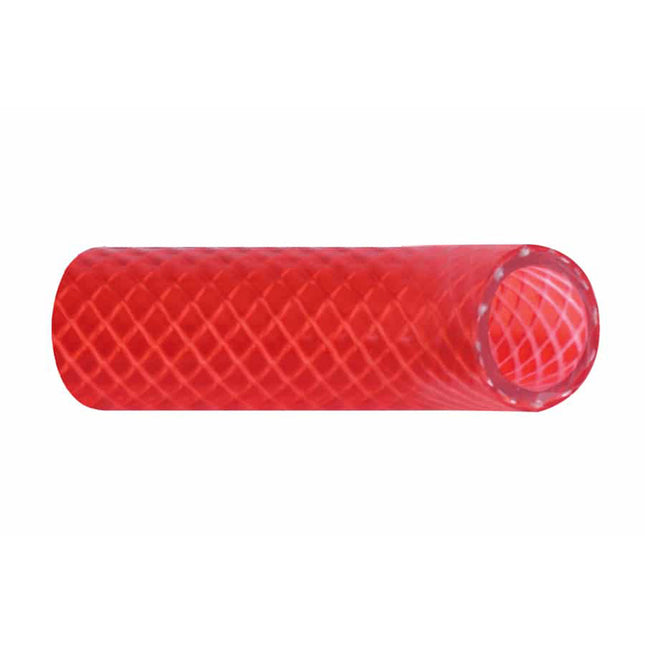

3/4" Reinforced PVC (FDA) Hot Water Feed Line Hose - Drinking Water Safe - Translucent Red - Sold by the FootTrident 166 Series Red - polyester reinforced PVC hose for "Hot Water" feed lines. The FDA-grade tube is non-toxic, odorless, and tasteless. Suitable for use in harsh operating conditions with temperatures of up to 149ºF (65ºC) and can handle pressures to a maximum of 250 psi (varies based on i.d size). Features:  Sold by the foot The Red cover allows for easy identification of "Hot Water" lines on your boat Made of 3-ply polyester for excellent abrasion resistance and sustained flexibility This hose is safe for use with drinking water Application:Perfect for hot, pressurized applications, hot water feed, drains, and vent linesConstruction: Tube & Cover: Clear FDA tube  Color: Red Transparent  Reinforcement: Polyester Temperature Range: -18°F to 149°F (-28°C to 65°C) Specifications: Inner Diameter: (inch) 3/4" / (mm) 19 Outer Diameter: (inch) 1 / (mm) 25.4 Working Pressure: (PSI Vac In./Hg) 220 / (bar) 15 Bend Radius: (inch) 1.5" / (mm) 38 *Burst Pressure is 4 x Working PressureThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: ID Diameter (inches): 3/4" Length (Feet): Sold By The Foot Box Dimensions: 1"H x 1"W x 6"L WT: 0.22 lbs Quick Guide (pdf)

Read more less
