Marine Plumbing & Ventilation

Aft-Deck ShowerInstall flush in the transom or under the gunwale. Includes hinged cover and replaceable sprayer head. Fixtures are corrosion-resistant. Housing and cover are made of high-impact, UV resistant, engineering-grade plastic and are pre-drilled for six #8 fasteners. Comes with 6' hose, shut-off and hot/cold mixing controls. Connects to freshwater system for showeringWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Misc Box Dimensions: 5"H x 5"W x 11"L WT: 1.91 lbs UPC: 022697413147 Quick Guide (pdf)

Read more less

18920-9043 Service Kit for 31600, 31620, 31630 PumpsContains: Diaphragms Valves Clips Compatible Series: 31600-Series 31620-Series 31630-Series 42755-Series

Read more less

Waste Pump Assembly - 24V QF/DSFeatures: Waste Pump and Motor 24V For Quiet Flush Toilet  CE Approved   WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Specifications: Type: Waste Pumps Box Dimensions: 5"H x 9"W x 9"L WT: 4.25 lbs UPC: 671880522366

Read more less

Rule-Mate 2000 GPH 24 Volt Fully Automated Bilge PumpThe Rule-Mate® 2000 GPH pump consists of a powerful Rule® bilge pump and a highly intelligent circuit board in a single housing. The pump activated when the water reaches 2-1/2" and automatically shuts off when the pump senses no water against the impeller, reducing the remaining water to approximately 5/8". ttRule-Mate IntelligenceRule-Mate Bilge pumps have built-in programming that can sense when the pump is running but not pumping water. This is a very unique feature to bilge pumps because it protects the pump and the vessel, especially the vessels batteries. If debris fouls the sensor or the pump becomes air-bound, the pump will stop running and begin to "check" for water every 2-1/2 minutes. Once the debris is removed, the pump will revert to its normal operation, turning on when the water reaches 2-1/2" and shutting off at 5/8". 2000 GPH (7570 LPH) at 0' (27.2V) All-in-one pump and switch Extra long life heavy duty motor 1" NPS discharge with 1" AND 1 1/8" screw-on ports Three year warranty WARNING: This product can expose you to chemicals including FORMALDEHYDE (GAS) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Specifications: Volts: 24v Operation: Automatic Gallons Per Minute: 33.3 GPM Gallons Per Hour: 2000 GPH Type: Electric Box Dimensions: 5"H x 7"W x 8"L WT: 4.35 lbs UPC: 042237114303 Owner's Manual (pdf)

Read more less

Stainless Steel Scupper Valve Barbed - 1-1/2" Hose SizePolish your image with these beautiful, durable stainless steel fittings. Why specify plastic parts when these fittings will last the life of the boat?Rugged Stainless Construction: Cast from certified Enhanced 316 Stainless Steel alloy for strength and lifetime corrosion-resistance All visible areas are polished to a mirror finish, then passivate each part for additional protection Thick steel sidewalls withstand continual stress and hose flexing Faster, Simpler Installation: Each Scupper Valve is available with a new silicone gasket A channel under the flange holds a bead of sealant, making it easier to apply a trouble-free seal All models have wrench flats or an end notch to hold as a gripping surface; one installer can tighten all connections from inside the hull The barbed tail ends provide plenty of room to hold multiple clamps Stainless Steel Scupper Valves, Barbed: The Scupper Flap is tough neoprene rubber with a molded V that fits into the grooved body to reduce backwash Fasteners are concealed and corrosion-proof Specifications: Hose size: (inch) 1-1/2" inner diameter Thread Diameter: (inch) 1-7/8"  Flange O.D. (outside diameter): (inch) 3" Thread Length: (inch) 3-1/2" Barb Length: (inch) 1-1/2" Total Length: (inch) 5-1/2" Install Hole Saw Size: (inch) 2"  Thread NPSM: (inch) 1-1/2" Max Hull Thickness: (inch) 3" *Stainless Steel Thru-Hull Connectors are designed for installation above the water line only Specifications: Hose Size: 1-1/4" Material: Stainless Steel Box Dimensions: 3"H x 3"W x 6"L WT: 3 lbs UPC: 022697665539 Quick Guide (pdf)

Read more less

1" x 50' Box VAC XHD Sanitation Hose - Hard PVC Helix - WhiteTrident Ply Extra heavy-duty sanitation hose of smooth white vinyl. Specially compounded to provide excellent resistance to odor permeation and (FDA) potable water fill. Also for the critical bilge, drain scuppers, live wells, etc. Self-draining installations are recommended for the longest odor-free service.Features: A hard PVC helix gives good flexibility and bend radius No cuffs are required Application: Specially compounded to provide resistance to odor permeation and (FDA) potable water fill Also for critical bilge, drain scupper, live well, etc Specifications: Tube & Cover: Hard PVC helix Color: White Reinforcement: PVC Helix Temperature Range: 10°F-120°F (-12°C-48°C)  Boxed: 50ft. / (15.2m) Inner Diameter: (inch) 1" / (mm) 25.4 Outer Diameter: (inch) 1.262" / (mm) 32.1 Working Pressure: (Psi Vac In./Hg) 28 Weight: (Lb./ 50 ft.) 15 / (Kg/m) 0.52  Bend Radius: (inch) 3" / (mm) 76.2 *Don't use with alcohol, anti-freeze, petrochemicals, or solvents*Burst Pressure is 4 x Working Pressure Specifications: Length (Feet): 50' ID Diameter (inches): 1" Box Dimensions: 5"H x 22"W x 22"L WT: 15.75 lbs UPC: 704917006291 Quick Guide (pdf)

Read more less

1/2" x 50' Boxed Reinforced PVC (FDA) Hot Water Feed Line Hose - Drinking Water Safe - Translucent RedTrident 166 Series Red - polyester reinforced PVC hose for "Hot Water" feed lines. The FDA-grade tube is non-toxic, odorless, and tasteless. Suitable for use in harsh operating conditions with temperatures of up to 149ºF (65ºC) and can handle pressures to a maximum of 250 psi (varies based on i.d size). Features:  The Red cover allows for easy identification of "Hot Water" lines on your boat Made of 3-ply polyester for excellent abrasion resistance and sustained flexibility This hose is safe for use with drinking water Application:Perfect for hot, pressurized applications, hot water feed, drains, and vent linesConstruction: Tube & Cover: Clear FDA tube  Color: Red Transparent  Reinforcement: Polyester Temperature Range: -18°F to 149°F (-28°C to 65°C) Length: 50’ (15.24m) Specifications: Inner Diameter: (inch) 1/2" / (mm) 12.7 Outer Diameter: (inch) .777 / (mm) 19.6 Working Pressure: (PSI Vac In./Hg) 250 / (bar) 17 Bend Radius: (inch) 0.98" / (mm) 25 *Burst Pressure is 4 x Working Pressure Specifications: Length (Feet): 50' ID Diameter (inches): 1/2" Box Dimensions: 3"H x 18"W x 18"L WT: 7.45 lbs UPC: 704917024028 Quick Guide (pdf)

Read more less

Baitmaster™ II Livewell Pump - 24 VDC - 4.0 GPM - Rated for Tanks up to 35 Gal - Self-PrimingThe Shurflo® PRO BAITMASTER™ II heavy-duty livewell/washdown pump is excellent for live-well or washdown applications in harsh marine environments. The seamless motor shell and sealed switch protect the pump from splashed liquids. Self-priming and can run dry without damage. For tanks sized 35 gallons and under.Features: Sealed switch Ignition protected Thermally protected 4901 replacement Sealed motor Corrosion-resistant electro-coated motor 4 independent chambers Built-in check valve Co-molded diaphragm Self-priming up to 6 feet Dry run capability Specifications: Dimensions: 10” x 5” x 4.75” (254 x 127 x 120 mm) Voltage: 24 DC Flow Rate: 4.0 GPM (15.1 LPM) Amps (Max): 4 Shut-Off Pressure: 45 PSI (3.1 Bar) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Gallons Per Hour: 4.0 GPM Volts: 24v Box Dimensions: 6"H x 7"W x 13"L WT: 7.95 lbs UPC: 752324012022 Quick Guide (pdf)

Read more less

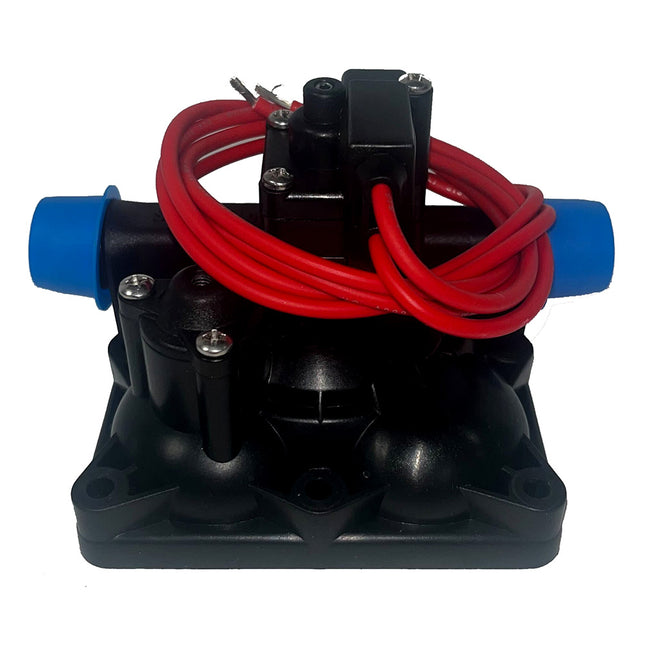

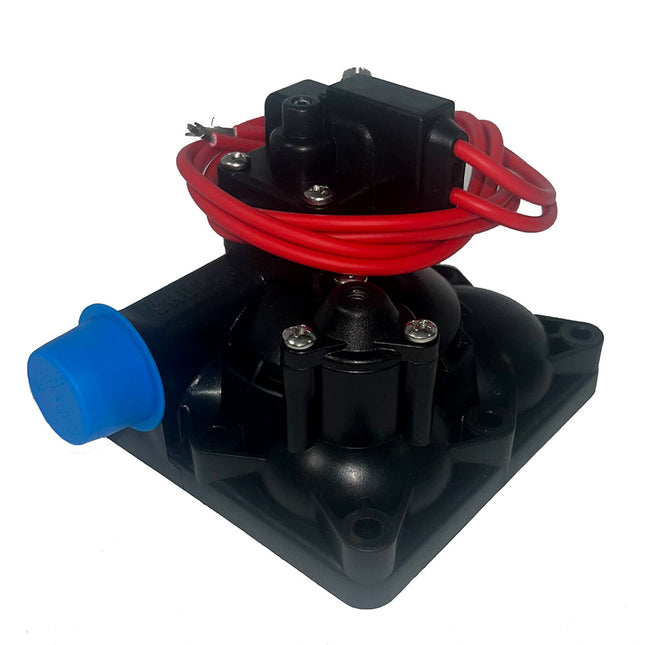

Upper Assembly Replacement for 4148/4149/415/4558 Series PumpsThis Shurflo upper assembly replacement is for the 4148/4149/415/4558 pumps listed below: Aqua King™ II Premium 4.0 Aqua King™ II Premium 4.0 24 VDC Aqua King™ II Supreme 5.0 Aqua King™ II Supreme 5.0 24 VDC Shurflo High Flow System 12V 4558-153-E75 (4158-153-A75 [4158-153-E75*]) Shurflo High Flow System 24V 4558-163-E75 (4158-163-A75 [4158-163-E75**]) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Quick Guide (pdf)

Read more less

1-1/4" 90 Degree Hose Thru-Hull Fitting Features: 90 Degree Barb #316 Stainless Steel Thru Hull with Bronze Hose Connection UL Listed 647B Specifications: Hose Size: 1-1/4" Material: Stainless Steel Box Dimensions: 5"H x 6"W x 6"L WT: 1.15 lbs UPC: 742985139305

Read more less

Marine Elegance™*Sea/Fresh Combines Solenoid and Remote in 1 unit for easy switching during use*The Marine Elegance is the ultimate in electric marine toilets. Offering the luxury of a full size seat in a one piece china bowl developed with a unique mounting system. It offers a super small footprint at just 8 ½” x 9 ¾”.  All toilets are now supplied with a slow close toilet seat that includes stops to help prevent the seat from shifting while in use during heavy seas. With the same Vortex-Vac technology also offered in the Atlantes Freedom, it creates a vacuum in the bowl, eliminating the need for extra vacuum generation equipment. Unlike typical vacuum toilet systems, a convenient, built-in shredder with stainless steel blades transforms waste into small particles to reduce clogs. The efficient action of the pump quickly and quietly pulls waste from the bowl with the ability to push the waste an amazing 10' vertically and 100' horizontally. Performing at a noise level less than 63 decibels it won’t alert everyone in the boat or on the dock that nature is calling. Benefits: Low water usage Small footprint for compact installation One piece vitreous china bowl Angled back for contoured fit Quiet operation Unmatched rinsing capabilities Low water consumption Built in shredder reduces clogs Can pump 10ft vertically, or 100ft horizontally The Raritan Programmable Smart Toilet Control:The Raritan Smart Toilet Control is a fully programmable flush control. The control allows users to flush the toilet with no water, a small amount of water or a fully timed flush. the timed flush feature can be adjusted on the panel without having to remove any components. Normal Flush - starts a timed flush, walk away and the toilet will run through a sequence of intake and discharge modes ensuring maximum bowl rinse, bowl re-fills to leave water in the bow Water Saver - starts a timed flush using half of the water of a normal flush. Bowl refills to leave water in the bowl. Water Only - adds additional water to the bowl without discharging any of the contents of the bowl. Allows the user to wet the bowl prior to use or fill the bowl to a certain level to minimize water usage. Empty Only - allows the user to evacuate the bowl while using no water. While the button is pressed the discharge pump will run, when released the pump stops. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Color: White Gallons Per Minute: 3 GPM Inlet Size: 3/4" Operation Method: Electric Outlet Size: 1-1/2" Rinse Water: RAW Suction Lift (ft.): 4' Volts: 12v Type: Toilet Size: Household Size Box Dimensions: 17"H x 23"W x 23"L WT: 54 lbs UPC: 085462024917 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

11810 - 6 Gallon Water Heater - 120VKuuma's Premium 6 Gallon Water Heater is perfect for a new installation or as a replacement to an existing water heater.   Constructed of corrosion-resistant, marine-quality aluminum and heats water with the use of an electrical power or integrated heat exchanger.Features: Ignition protected controls Mounting tabs Manual reset Technical Specifications: Capacity - 6 Gallon Electrical Input - 120V Orientation - Horizontal Mounting Brackets - Side and Side Heating Source - Front heat exchange Maximum Water Temperature - 210°F T & P Valve Type - 100psi and 210° F Wiring Configuration - L1 and N Dimensions (W x H x D) - 15-5/8" x 13-5/8" x 19-3/8" *Sold as an Individual WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gallons: 6 Heat Exchanger: Yes Volts: 120 Box Dimensions: 16"H x 17"W x 23"L WT: 22 lbs UPC: 014717118101 Owner's Manual (pdf)Brochure (pdf)

Read more less
