Marine Safety - Fume Detectors

Fixed Heat Detector with BaseThe Fireboy-Xintex Heat Detector uses a single thermistor to sense the air temperature around the detector. This heat detector was designed to detect how fast the temperature is increasing.Features: 163°F Fixed Heat Detector Housing: White flame-retardant polycarbonate Terminals: Nickel-plated stainless steel Ideal in environments that are dirty or smoky Unaffected by wind or atmospheric pressure Remote test feature Specifications: Detection Principle: Measurement of heat using a thermistor Sampling Frequency: Once every four seconds Supply Voltage: 8.5 V dc to 33 V dc Supply Wiring: Two wire supply, polarity sensitive Power-up Time: < 20 seconds Minimum: ‘detector active’ voltage: 6 V Holding Voltage: 5 V - 33 V Minimum Holding Current: 8 mA  Minimum Voltage to Light Alarm LED: 5 V  Alarm Reset Voltage: < 1 V  Alarm Reset Time: One second  Alarm Indicator: Integral indicator with 360º visibility Operating & Storage Temperature: -40ºC to +70ºC Operation: Open-web casing that enables air to flow freely across a thermistor which measures the air temperature every two seconds  A microprocessor stores the temperatures and compares them with pre-set values to determine whether a fixed upper limit - the alarm level - has been reached Detectors the microprocessor uses algorithms to determine how fast the temperature is increasing

Read more less

80 Series White Propane Gas Alarm - 12VUniversal Replacement! This unit comes with a trim ring to cover existing screw holes and fit newer units into previous installation cutouts.Features: Low Profile, Slim design Designed for the Rugged RV Environment. Ideal for Class A Motorhomes, Class B Van Campers, Class C Mini-Motorhomes, Travel Trailers, Fifth Wheels, Truck & Folding Campers. Advanced Technology - The Alarm Mute button silences the alarm while the RV is ventilated. Rapid recovery sensor resets when silenced or reactivates the alarm if dangerous levels of Propane remain. Reliable. 12 Volt power means no missing or dead batteries to replace. Approved. Meets RVIA/NFPA requirements. Conforms to UL STD 1484 RV. Specifications: Power Supply & Current Draw: 100 mA @ 12 VDC Operational Range: 12 Volts +/-15% Low voltage power warning Operating Temperature: -40° F to +158° F Case Size: 4.25″W x 2.75″H x 0.75″D Trim Ring Size: 7”W x 4”H x 1”D

Read more less

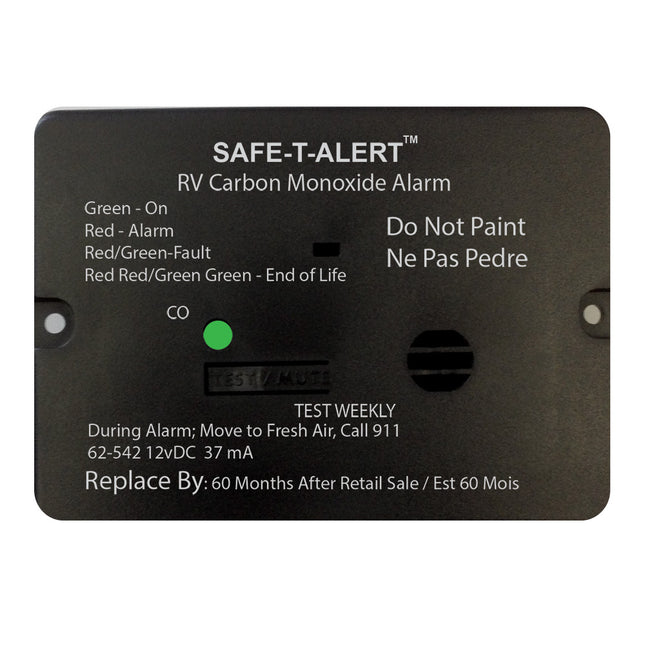

62 Series Carbon Monoxide Alarm w/Relay - 12V - 62-542-R-Marine - Flush Mount - BlackMini Carbon Monoxide Alarm with a compact space saving design that replaces your CO alarms that are over 5 years old! The 62-542-R-Marine includes a normally closed relay. Used to turn on exhaust fans, remotes, horns, lights, signals or connect to alarm systems.Features: Space Saving Compact design for boats Flush Mount Designed for the harsh marine environment No False Alarms due to new boat smell, outgassing or non-hazardous levels of hydrocarbon gases encountered while boating Advanced Technology - Alarm Mute button silences alarm while boat is ventilated Rapid recovery sensor resets when silenced or reactivates alarm if dangerous levels of CO remain Reliable - 12 Volt power means no missing or dead batteries to replace Memory Scan™- Retains the CO level that activated the alarm. After ventilation, it is impossible to know what the CO level was unless your detector has memory Micro Current Technology - Saves precious battery power in a boat62-541-R-Marine and 62-542-R-Marine include normally closed relay Use to turn on exhaust fans, remote horns/lights/signals or connect to alarms systems Listed to UL 2034 Marine Use and CSA 6.19-01 Specifications: Fume Type: Carbon Monoxide Generator Shutdown: No Voltage - Input Range (Volts): 12v Box Dimensions: 2"H x 8"W x 10"L WT: 0.5 lbs UPC: 715456625492

Read more less

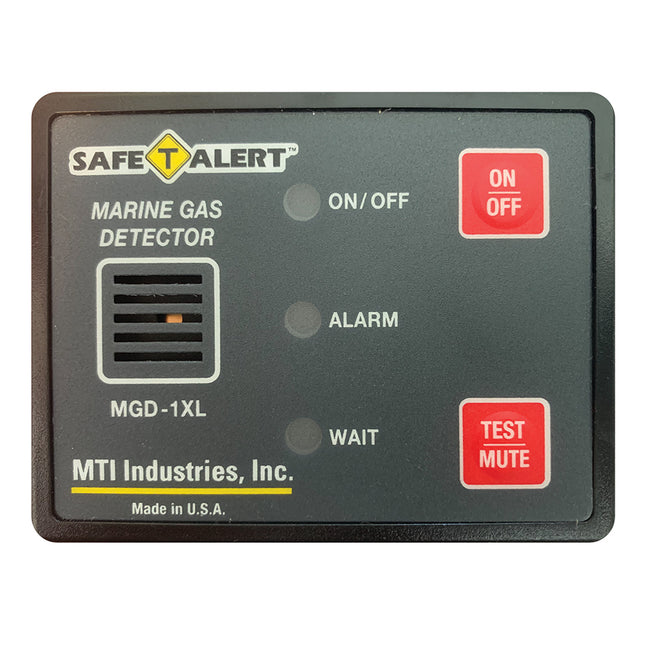

Marine Gas Fume DetectorProvides protection against accidents caused by Gas/Propane spills or leaks. The remote sensor monitors the bilge/engine compartment during and after fueling. Install the galley or LP tank locker sensor to protect against propane leaks.Features: Sight and Sound Alarm Indicator Dual signaling sounds an alarm and activates a warning light Marine Proven Exclusively designed for the harsh marine environment Smart Sensor Detects the build-up of explosive gases On/Off/Test For a one-touch analysis of detector performance Money Saving Qualify for marine insurance discounts Specifications: Voltage - Input Range (Volts): 12v Generator Shutdown: No Fume Type: Gasoline & Propane Box Dimensions: 4"H x 8"W x 10"L WT: 0.85 lbs UPC: 715456801100 Quick Guide (pdf)Brochure (pdf)

Read more less

Combo Carbon Monoxide Propane Alarms Flush Mount - WhiteHave a safe TRIP!Test and inspect the Propane and CO alarms installed in your RV every week and replace malfunctioning alarms.Replace all Propane and CO alarms that are 5 years old or older.Install alarms listed for RV use.Prevent accidents by teaching family and friends about the operation of the alarms. Never ignore a sounding alarm.Features: Double-duty alarm - Detects both gas leaks and CO gas simultaneously Reliable - 12V power means no missing or dead batteries to replace Durable - Built for the extreme RV environment Approved - Meets RVIA/NFPA requirements End of Life Signal Specifications: Fume Type: Carbon Monoxide Voltage - Input Range (Volts): 12v Generator Shutdown: No Box Dimensions: 2"H x 8"W x 10"L WT: 0.5 lbs UPC: 715456357423

Read more less

Gasoline Fume Detector - Chrome Bezel - 12/24VThe Single Channel Gasoline Fume Detector is an effective means to monitor gasoline fumes in an engine compartment, fuel tank storage area or in other areas where gasoline fumes might accumulate.  Features: Simple Installation Audible and visual alarm to indicate LEL (Lower Explosive Level) presence  Monitors one (1) single area  Technical Specifications: Operating Temperature: -40° to 185°F (-40° to 85°C) Current Draw Nominal - 55mA  Current Draw Maximum - 95mA Operating Voltage - 9 to 30V DC Alarm Horn - 68 dB Display Style - Round with Chrome Bezel Display Dimensions - 2-3/16" (5.6 cm) round Cutout Dimension - 2-1/16" (5.2 cm) round hole In the Box: Fume Detector Fuel sensors x one (1) 20' Extension Cable x one (1) Instruction manual *Sold as an Individual  Specifications: Blower Relay: No Fume Type: Gasoline Generator Shutdown: No Sensors Included: 1 Voltage - Input Range (Volts): 9 to 30 Box Dimensions: 4"H x 4"W x 8"L WT: 1 lbs UPC: 619749202530 Owner's Manual (pdf)Brochure (pdf)

Read more less

CO Alarm 12/24V DC with Interconnect - Black  A Carbon Monoxide (CO) detector should be installed in each accommodation space.  Small crafts or RV's with an open design may require only one (1) detector for adequate protection.  If two (2) or more sleeping areas or spaces are partitioned, then one (1) detector should be installed in each of the spaces.The Fireboy-Xintex CMD6-M Series CO alarm uses a sensor operating with a microprocessor to measure Carbon Monoxide (CO) levels.  Using a “Time Weighted Average” (TWA) process, it monitors CO concentration, temperature and time to calculate levels of Carboxyhemoglobin (COHb).  COHb is the degree to which the oxygen carrying capacity of the blood is impeded by the union of carbon monoxide to the hemoglobin and as expressed as a percentage.  The human body absorbs CO easier than oxygen and COHb is the ratio absorbed carbon monoxide to oxygen in bloodstream. The CMD6-M alarm calculates the COHb as function of time and determines the appropriate alarm response.*Long sensor life – approximately 7 year end-of-life (EOL)Features: Interconnect up to ten (10) CO alarms - all connected CO alarms sound together  Microprocessor controlled Compact design for inconspicuous protection Time-weighted average CO measurement process constantly monitors all CO levels Highly resistant to most chemicals, solvents & cleaners CMD6-MD 12/24V DC model uses boat power and has permanent internal backup Lithium-metal batteries Technical Specifications: Power Usage - 4 mA Alarm Point - 10% COHb Alarm Horn - 85 dBA Dimensions - .5" x 3.5" x 1.21" (8.9 x 8.9 x 3.1 cm) Interconnect Functionality - Yes *Sold as an Individual  Specifications: Blower Relay: No Fume Type: Carbon Monoxide Generator Shutdown: No Sensors Included: 1 Voltage - Input Range (Volts): 12 - 24 Box Dimensions: 2"H x 4"W x 6"L WT: 0.4 lbs UPC: 619749208846 Owner's Manual (pdf)Brochure (pdf)

Read more less

Two Zone Detection & Alarm Panel - 2-5/8" Display - 12/24V DCEach system consists of a monitor panel and up to 14 smoke or heat detectors and/or rate of rise heat detectors connected to each zone (sold separately.)Features: Visual and audible indications of a fire or fault Water resistant display Voltage and EMI protected Reverse polarity protected Specifications: Supply Voltage: 9-32V DC Zone Loop Voltage: 24V DC (regardless of input voltage) Minimum Alarm Current: 15mA Maximum Current Per Zone: 400mA Maximum Sensors Per Zone: 8 EOL Resistor: 5.6kΩ Potential Free Transistor Output (Fault, Alarm): 50V max Relay Output (Buzzer): 2A Owner's Manual (pdf)

Read more less

Deluxe Helm Display w/Membrane Switch, Remote Horn & LEDs f/Engine Shutdown System - Black Bezel DisplayFeatures/Specifications: Compact Design 2-5/8" Square Black Bezel Simple Installation 9-30VDC Operating Temperature: -40°F to 185°F (-40°C to 85°C) Reverse Polarity Protected Specifications: Blower Relay: No Generator Shutdown: No Voltage - Input Range (Volts): 9-30v Box Dimensions: 3"H x 4"W x 7"L WT: 0.4 lbs UPC: 619749207269

Read more less

85 Series Carbon Monoxide Propane Gas Alarm - 12V - BlackFeatures: Green-On, Red-Alarm, Red/Green-Fault, Red Red/Green Green - End of Life During Alarm Move to Fresh Air, Call 911 Replace By: 60 Months After Sale Test Weekly - Press Test Switch

Read more less

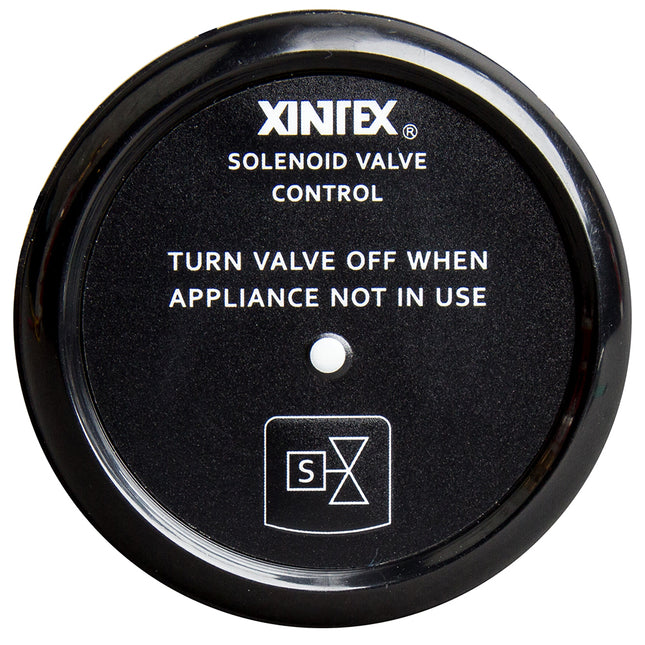

Propane Control & Solenoid Valve w/Black Bezel DisplayMinimize the risk of personal injury and possible explosions! Conveniently turn off the gas supply at the source with the push of a button when not in use.Features/Specifications: Compact Design 2-3/16" Round Black Bezel Solenoid Valve Simple Installation 9-30VDC Operating Temperature: -40°F to 185°F (-40°C to 85°C) Reverse Polarity Current Draw @ 12 VDC: Nominal:20mA / Maximum:650mA Specifications: Blower Relay: No Fume Type: Propane Generator Shutdown: No Voltage - Input Range (Volts): 9-30v Box Dimensions: 4"H x 4"W x 8"L WT: 1.01 lbs UPC: 619749202219

Read more less

62 Series Carbon Monoxide Alarm - 12V - RV Surface Mount - WhiteFeatures: White Mini Carbon Monoxide Alarm Surface Mount Space Saving - Compact design for RVs Designed for the Rugged RV Environment. Ideal for Class A Motor homes, Class B Van Campers, Class C Mini-Motor Homes, Travel Trailers, Fifth Wheels, and Truck & Folding Campers. Advanced Technology. The alarm Mute button silences the alarm while the RV is ventilated. Rapid recovery sensor resets when silenced or reactivates alarm if dangerous levels of CO remain. Memory Scan™. Retains the CO level that activated the alarm. After ventilation, it is impossible to know what the CO level is unless your detector has memory. Reliable - 12 Volt power means no missing or dead batteries to replace Micro Current Technology - Saves battery power Durable - Built for the extreme RV environment Approved - Meets RVIA/NFPA requirements Specifications: Conforms To ANSI / UL STD 2034* * Testing Laboratory: ETL/Intertek Alarm Point: 400 PPM 4-15 Minutes Low voltage power warning at 7 Volts Power Supply and Current Draw: 37 mA @ 12.0 VDC Operational Range: 12.0 Volts +/-15% Low voltage power warning at 7 Volts Operating Temperature: -40°F to +158°F Case Size: 3.5″W x 2.5″H x 1.25″D – Mounting Bracket .25″D

Read more less
