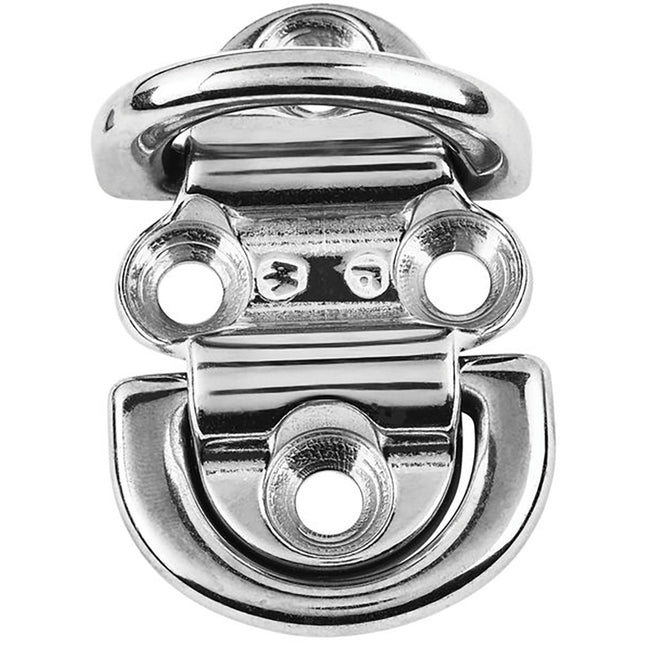

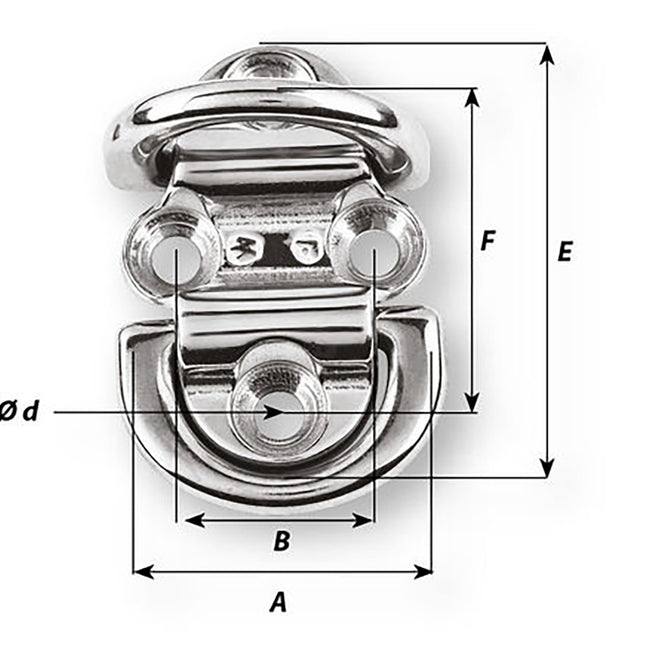

Double Folding Pad Eye - 8mm Diameter - 5/16"Features: Fully drop forged product with outstanding working and breaking loads regardless of the angle of the load Perfect solution attachment (stay, blocks, jib tack point) Possibility to attach several stays Modern and optimized design to suit the aesthetics of modern boats They can be folded down to minimize the risk of injuries The silicon pad eliminates noise and unpleasant vibrations Applications: For any fastening/attachment application Allows to attach several shrouds  Specifications: Materials: 316L stainless steel grade Working load: (lb) 5290 / (kg) 2400  Breaking load: (lb) 9470 / (kg) 4300  Weight: (lb) 0.556 / (g) 252  Dimensions: A: (inch) 2 21/64" / (mm) 59  B: (inch) 1 3/8" / (mm) 35  C: (inch) 43/64" / (mm) 17  d diameter: (inch) 21/64" / (mm) 8.5  D diameter: (inch) 5/16" / (mm) 8  E: (inch) 3 3/16" / (mm) 81  F: (inch) 2 21/64" / (mm) 59  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

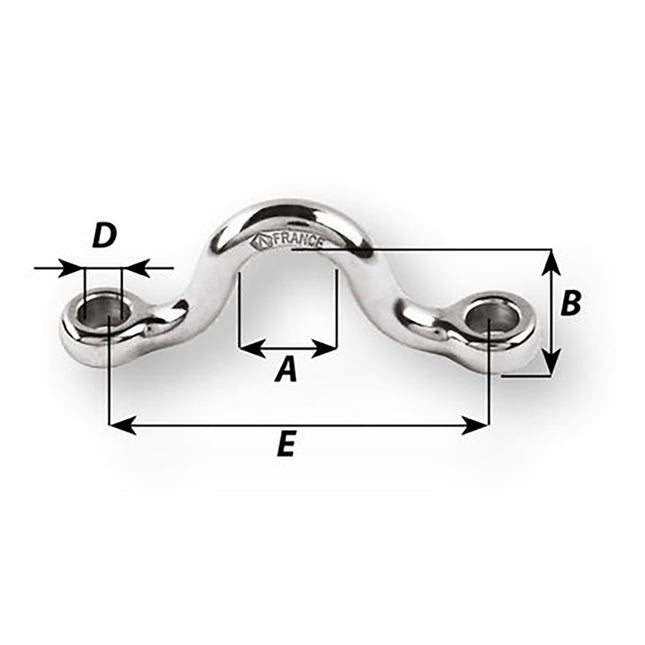

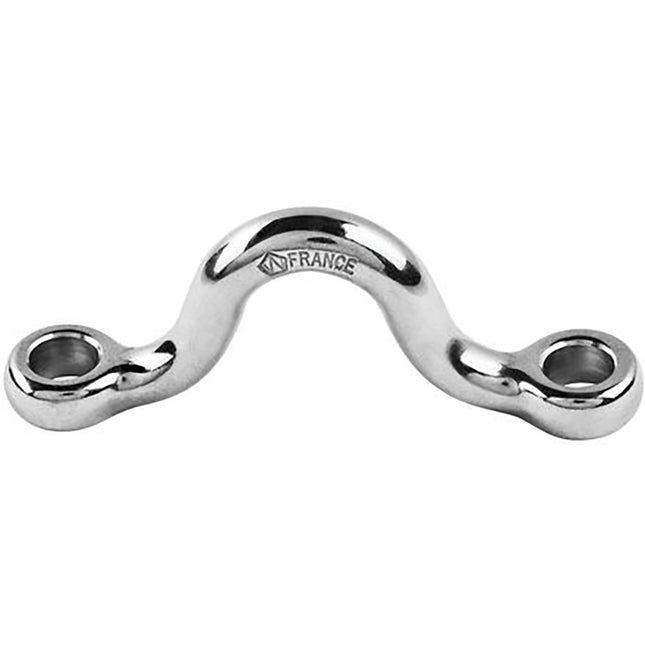

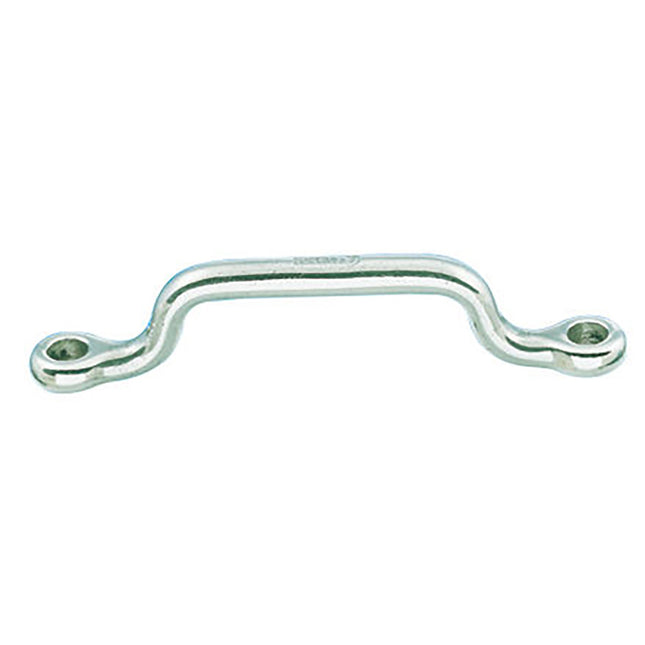

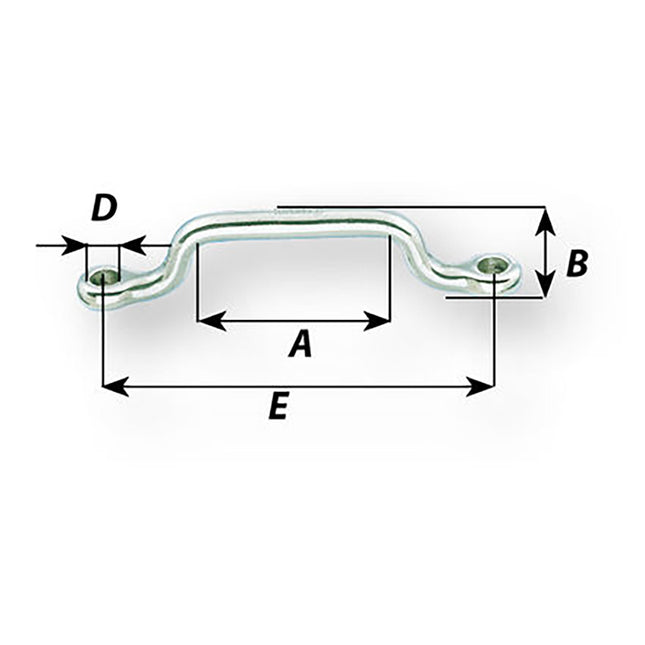

Eye Strap - 4mm Diameter - 5/32" - 30mm Spacing - 1-17/64"Features: Complete range of drop-forged saddles with high-quality stainless steel (316L) Outstanding strength The round shape reduces the wear of the components connected to them (straps, ropes...) Applications: Fastening applications  Attachment of straps & cordage Specifications: Materials: 316L stainless steel grade Breaking load: (lb) 1430 / (kg) 650  Weight: (lb) 0.009 / (g) 4  Dimensions: A: (inch) 5/16" / (mm) 8  B: (inch) 7/16" / (mm) 11  D diameter: (inch) 5/32" / (mm) 4  E: (inch) 1 17/64" / (mm) 32  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

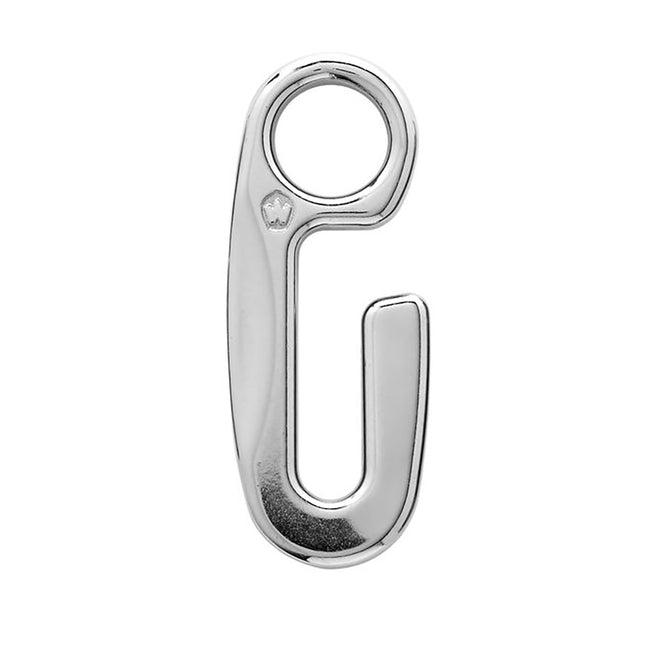

Chain Grip - For 10mm Chain - 3/8" - 103mm Length - 4-1/16"Features:  For a 10mm chain Perfect for ensuring safe anchoring by easing the tension on the anchor chain Protects the boat by reducing the chafe of the chain on the rub rail and roller chock Positioned between two links of the chain (single-handed operation) Optimized design to avoid accidental release of the chain One piece with nonmoving parts Forged in Duplex stainless steel grade (increased mechanical & corrosion resistance)  Applications:MooringSpecifications: Materials: Duplex stainless steel grade Dimensions: Rope size: (mm) 22 Length: (inch) 4 1/16" / (mm) 103  Working load: (lb) 1580 / (kg) 720  Breaking load: (lb) 2820 / (kg) 1280  Weight: (lb) 0.344 / (g) 156  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

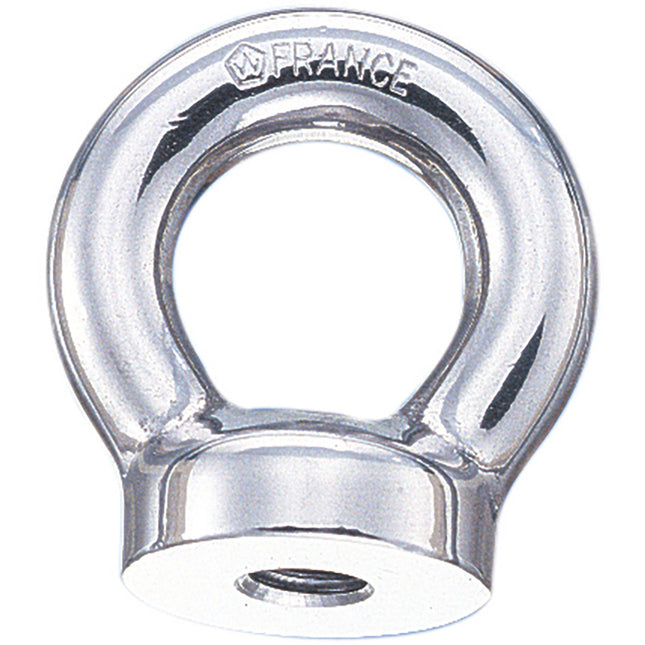

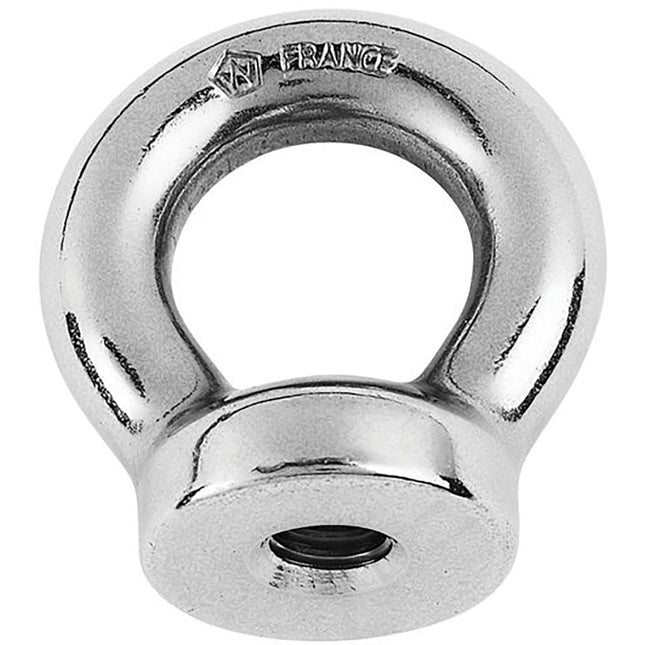

3/8" Eye Nut - 21/32" DiameterFeatures: Imperial thread A complete range of single-piece forged products for fastenings applications Outstanding breaking loads Available in different sizes  Applications: Various fastening applications Towing application Waterskiing lines attachment Specifications:Materials: 316L stainless steel gradeDimensions: Diameter: (inch) 21/32" / (mm) 16.6 Thread UNC (Unified Coarse): 3/8" x 16" *Sold as an Individual

Read more less

Webbing Eye Strap - 4mm Diameter - 5/32" - 56mm Spacing - 2-13/64"Features: Drop-forged webbing eye straps with high-quality stainless steel (316L) Outstanding strength Specific use for webbing Applications:The perfect solution to attach webbingSpecifications: Materials: 316L stainless steel grade Weight: (lb) 0.015 / (g) 7  Dimensions: A: (inch) 1 7/64" / (mm) 28  B: (inch) 13/64" / (mm) 5  D diameter: (inch) 5/32" / (mm) 4  E: (inch) 2 13/64" / (mm) 56  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

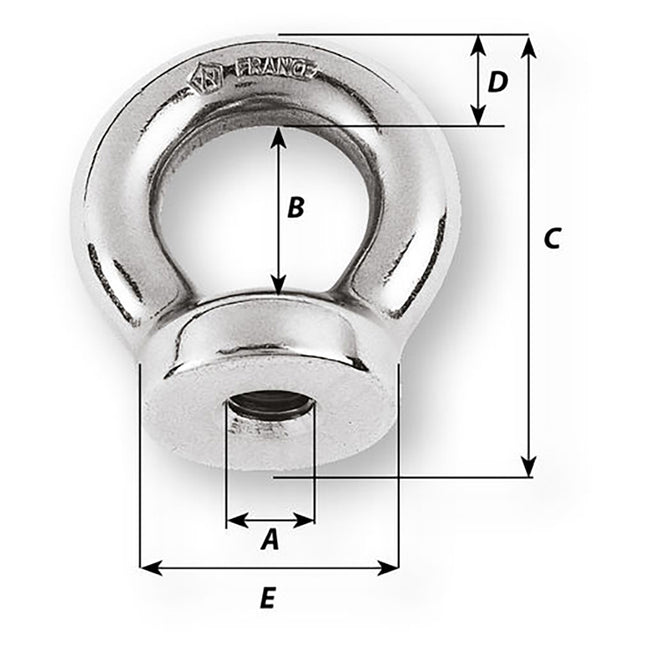

8mm Eye Nut - 1/2" DiameterFeatures: A complete range of single-piece forged products for fastenings applications Outstanding breaking loads Available in different sizes Applications: Various fastening applications Towing application Waterskiing lines attachment Specifications: Materials: 316L stainless steel grade Breaking load: (lb) 4850 / (kg) 2200  Weight: (lb) 0.044 / (g) 20  Dimensions: A: (inch) M8 x125 / (mm) M8 x125  B: (inch) 33/64" / (mm) 13  C: (inch) 1 1/16" / (mm) 27  D: (inch) 15/64" / (mm) 6  E: (inch) 43/64" / (mm) 17  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

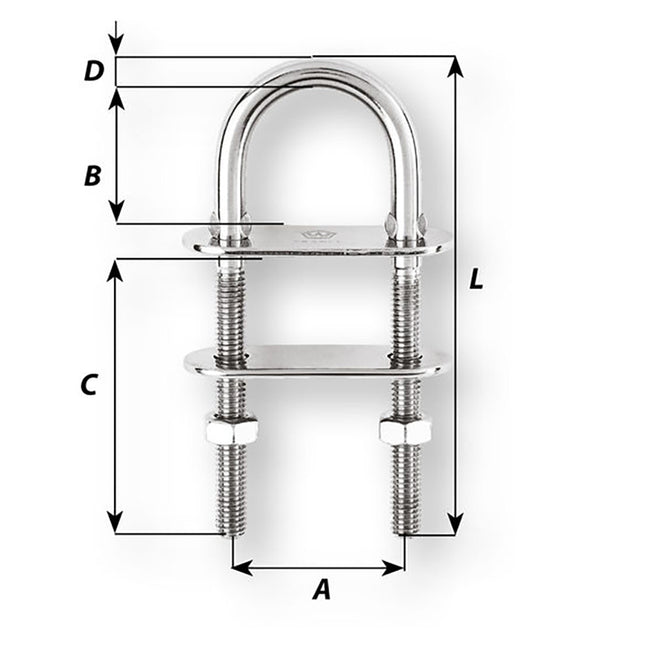

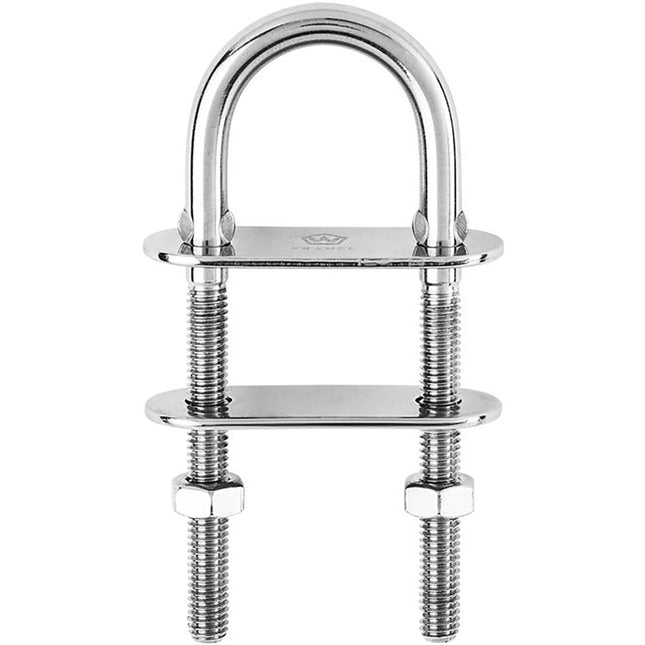

U-Bolt Pad Eye - 12mm Diameter - 15/32" - 130mm Length - 5-1/8"Features: Entirely drop forged product with high-quality stainless steel Outstanding working and breaking loads For any fastening applications (shrouds, lifelines, blocks...) Delivered with bolts and counter-plate Max tightening torque: 60 Nm Applications:Various fastening applications: shrouds, lifelines, blocks…Specifications: Materials: 316L stainless steel grade Working load: (lb) 14100 / (kg) 6400   Breaking load: (lb) 22040 / (kg) 10000  Weight: (lb) 0.769 / (g) 349  Dimensions: A: (inch) 1 47/64" / (mm) 44  B: (inch) 1 11/32" / (mm) 34  C: (inch) 2 3/4" / (mm) 70  D diameter: (inch) 15/32" / (mm) 12  Length: (inch) 5 1/8" / (mm) 130  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

Eye Strap - 5mm Diameter - 13/64" - 37.5mm Spacing - 1-15/32"Features: Complete range of drop-forged saddles with high-quality stainless steel (316L) Outstanding strength The round shape reduces the wear of the components connected to them (straps, ropes...) Applications: Fastening applications  Attachment of straps & cordage Specifications: Materials: 316L stainless steel grade Breaking load: (lb) 3960 / (kg) 1800  Weight: (lb) 0.02 / (g) 9  Dimensions: A: (inch) 25/64" / (mm) 10  B: (inch) 35/64" / (mm) 14  D diameter: (inch) 13/64" / (mm) 5  E: (inch) 1 15/32" / (mm) 37.5  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

5/8" Eye Nut - 1 1/16" DiameterFeatures: Imperial thread A complete range of single-piece forged products for fastenings applications Outstanding breaking loads Available in different sizes  Applications: Various fastening applications Towing application Waterskiing lines attachment Specifications:Materials: 316L stainless steel gradeDimensions: Diameter: (inch) 1 1/16" / (mm) 27 Thread UNC (Unified Coarse): 5/8" x 11" *Sold as an Individual

Read more less

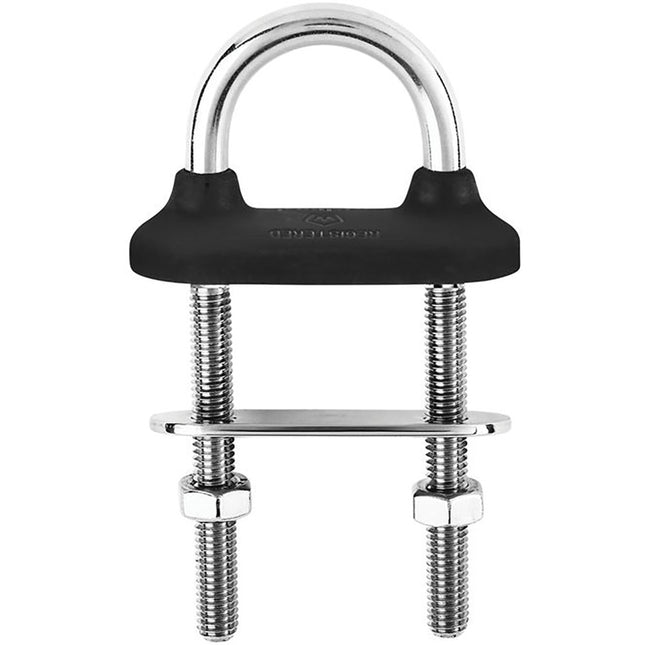

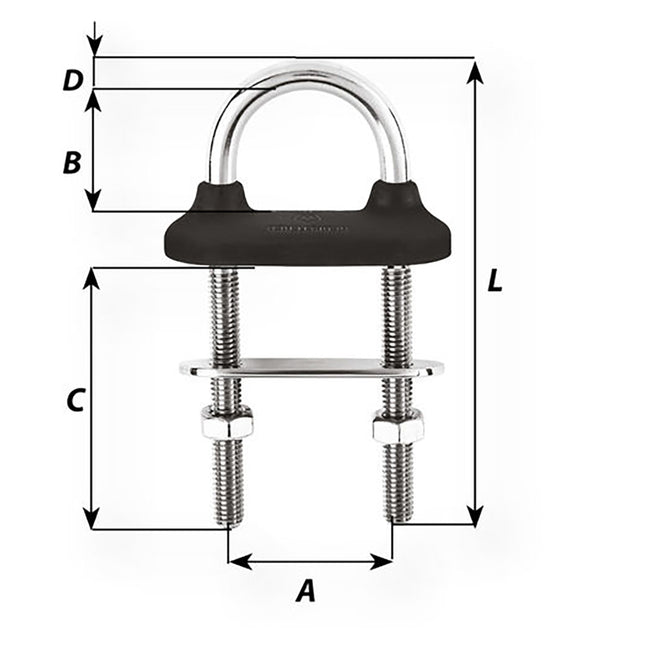

Black Watertight U-Bolt - 12mm Diameter - 15/32" - 110mm Length - 4 21/64" Features:  Fully dropforged product with high quality stainless steel Outstanding working and breaking loads Complete water-tightness thanks to the resistant rubber collar (black color) Easy installation (no need to use a waterproof sealant) Delivered with bolts and counter-plate Max tightening torque: 60 Nm Applications:Various fastening applications: shrouds, lifelines, blocks…Specifications:  Materials; 316L stainless steel grade Color: Black Working load: (lb) 14100 / (kg) 6400  Breaking load: (lb) 22040 / (kg) 10000  Weight: (lb) 0.761 / (g) 345  Dimensions: Length: (inch) 4 21/64" / (mm) 110  A: (inch) 1 47/64" / (mm) 44  B: (inch) 1 1/16" / (mm) 27  C: (inch) 1 31/32" / (mm) 50  D diameter: (inch) 15/32" / (mm) 12  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

U-Bolt Pad Eye - 10mm Diameter - 25/64" - 90mm Length - 3-35/64"Features: Fully drop forged product with high-quality stainless steel Outstanding working and breaking loads For any kind of fastening applications (shrouds, lifelines, blocks...) Delivered with bolts and counter-plate Max tightening torque: 36 Nm Applications:Various fastening applications: shrouds, lifelines, blocks…Specifications: Materials: 316L stainless steel grade Working load: (lb) 7930 / (kg) 3600  Breaking load: (lb) 15430 / (kg) 7000  Weight: (lb) 0.441 / (g) 200  Dimensions: A: (inch) 1 37/64" / (mm) 40  B: (inch) 1 17/64" / (mm) 32  C: (inch) 1 49/64" / (mm) 45  D diameter: (inch) 25/64" / (mm) 10   Length: (inch) 3 35/64" / (mm) 90  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

Black Watertight U-Bolt - 10mm Diameter - 25/64" - 90mm Length - 3-35/64" Features:  Fully drop-forged product with high-quality stainless steel Outstanding working and breaking loads Complete water-tightness thanks to the resistant rubber collar (black color) Easy installation (no need to use a waterproof sealant) Delivered with bolts and counter-plate Max tightening torque: 36 nm Applications:Various fastening applications: shrouds, lifelines, blocks…Specifications:  Materials: 316L stainless steel grade Color: Black Working load: (lb) 7930 / (kg) 3600  Breaking load: (lb) 15430 / (kg) 7000  Weight: (lb) 0.483 / (g) 219  Dimensions: Length: (inch) 3 35/64" / (mm) 90  A: (inch) 1 37/64" / (mm) 40  B: (inch) 1 1/32" / (mm) 26  C: (inch) 1 49/64" / (mm) 45  D diameter: (inch) 25/64" / (mm) 10  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)
