Sailing - Blocks

Size 2 35mm Plain Bearing Pulley Block Double with SwivelThe Barton Size 2 Plain Bearing Block has a 35mm (1 3/8") sheave. This block range size provides high performance and load values in a variety of assemblies & configurations. The range has an internal stainless steel frame and precision components. Also available in ball bearing sheave options. The lightweight design makes this range perfect for a multitude of uses on every yacht.Suitable for up to 8mm (5/16") rope.Specifications: Weight: 87g Dimensions: 83 × 39 × 38 mm Size: 2 (35MM) Block Type: Fixed Eye No. of Sheaves: Double Bearing Type: Plain Sheave Size: 35mm x 11mm (1 3/8" x 15/32") Max rope diameter: 8mm (5/16") SWL: 370kg (815lbs) Break load: 740kg (1630lbs) Max rolling load (ball bearing blocks): 260kg (573lbs) Quick Guide (pdf)

Read more less

Size 5 54mm Plain Bearing Pulley Block Double Block & SwivelThe Size 5 Barton range of blocks has a 54mm 2 1/8" sheave. They are a rugged construction, featuring high-grade moulded side plates that are through-bolted and riveted for added strength and security. All load-carrying components and interior frame are from marine-grade 316 stainless steel, and both plain and ball bearing sheaves are available. This sleek and versatile range is engineered for use on larger cruising and racing yachts and is compatible with our ball bearing mainsheet traveller system.Suitable for up to 12mm 7/16" rope.Specifications: Weight: 290 g Dimensions: 130 × 59 × 58 mm Size: 5 (54MM) Block Type: Swivel No. of Sheaves: Double Bearing Type: Plain Sheave Size: 54mm x 17mm (2 1/8" x 5/8") Max rope diameter: 12mm (7/16") SWL: 750kg (1650lbs) Break load: 1500kg (3300lbs) Max rolling load (ball bearing blocks): 525kg (1157lbs) Quick Guide (pdf)

Read more less

Size 3 45mm Plain Bearing Pulley Block Double Swivel & BecketThe size 3 Barton plain bearing blocks have 45mm (1 3/4" sheave size 3 block range incorporates modern design with stainless steel frames and the latest advanced materials, using 30% fibre glass-filled nylon and Acetal sheaves to maximise their strength whilst keeping weight to a minimum. Suitable for use as mainsheet, vangs, lead blocks, or wherever a powerful and compact purchase system is required on dinghies, dayboats, and lightweight cruisers.Suitable for up to 10mm (3/8") rope.Specifications: Weight: 143 g Dimensions: 118 × 46 × 47 mm Size: 3 (45MM) Block Type: Swivel + Becket No. of Sheaves: Double Bearing Type: Plain Sheave Size: 45mm x 13mm (1 3/4" x 35/64") Max rope diameter: 10mm (3/8") SWL: 400kg (881lbs) Break load: 800kg (1763lbs) Max rolling load (ball bearing blocks): 270kg (595lbs) Quick Guide (pdf)

Read more less

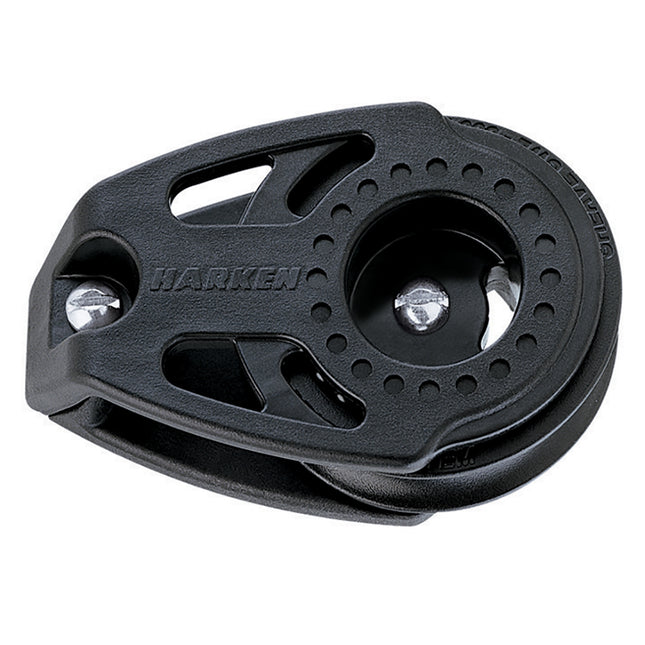

40mm Carbo Block 90° Fixed HeadLow-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to the popular Harken Black Magic block line, these small, compact blocks have very high working loads for safe, easy trimming. Features: Sheave Ø (mm): 40 mm Sheave Ø (in): 1-9/16 in Maximum line Ø (mm): 10 mm Maximum line Ø (in): 3/8 in Maximum working load (kg): 220 kg Maximum working load (lb): 485 lb

Read more less

Series 20 Ball Bearing Block- Single, Stand-Up Loop TopFeatures: Low friction High static and dynamic load capacity Lightweight Precision molded Acetal sheaves running on stainless steel or Torlon® ball bearings provide high performance & low friction.Applications: Dinghy control lines Dinghy vangs Cunninghams Traveler controls Materials: Stainless steel ball bearings UV stabilized Acetal sheave Grade 316 stainless steel load strap and head fitting Impact and UV resistant, fiber reinforced Nylon cheeks

Read more less

90mm Synchro Block - SingleLewmar's Synchro Blocks are engineered for speed, efficiency, and superior handling.  Using a combination of scientifically optimized block geometry, a Free-Spin bearing, and a self-aligning head to reduce friction and increase efficiency by up to 40%, over budget blocks on mainsheet systems. Each component is perfectly synchronized with the movement of the rope, providing you with an easier, smoother transfer of power from deck to sail and less wear on your rope.Features: Stainless steel strap for improved strength and longer service life Stiff glass fiber reinforced cheeks to prevent lines from wedging Innovative design with “tool-free” sliding swivel locking mechanism Technical Specifications: Working Load Limit - 4400lb Weight - 14.57oz Maximum Line Size - .55" (14mm) *Sold as an Individual

Read more less

Series 40 Ball Bearing Orbit Block - Single - Becket - Cleat - Swivel HeadFeatures: Ultra Lightweight Low friction 2-stage Orbital ball bearing system Highest working load in its class Low profile and compact High performance cleating LightweightKilogram for kilogram of working load, BB and RT Orbit Blocks™ are the world’s lightest. The unique orbital design allows the bearing to only be in the active areas of the floating sheave. This minimizes the mass of the inactive return race and hub.Weight and bulk are further reduced in the different block configurations. The ball bearing single and becket block has a through-sheave becket arrangement. The result? The lowest weight possible.Multi-sheave blocks have only single intermediate cheeks and an ultra-light and efficient head arrangement. This gives a 30% weight saving advantage over the nearest competitor. Other brands just link together their single blocks. This results in unnecessary double cheeks between each sheave, held together by a heavy steel channel across the top of the block.Highest Working Load In It's ClassThe orbital ball-bearing arrangement gives the largest possible bearing race diameter. This maximizes load performance. The proven Ronstan 2-stage bearing system features high compression grade acetal ball bearings and a secondary full-contact bearing. This gives minimum friction across the full working load range.The floating sheave and bearing system is supported by a fiber-reinforced load frame. The design was computer modeled to be stress optimized.Applications: Mainsheet systems on spinnaker sheet on dinghies to 5m (16ft) Spinnaker sheets on dinghies, sportsboats and small keel boats to 5m (16ft) Halyard, vang and backstay applications on boats to 8m (26ft) Control line applications on larger yachts Materials: Ball Bearings - High compression strength carbon black Acetal. Stage 2 Bearing - Glass fibre reinforced, MoS2 impregnated Nylon Frame/Cheeks - Toughened, glass fibre reinforced Nylon Sheave - Carbon fiber reinforced, PTFE impregnated Nylon

Read more less

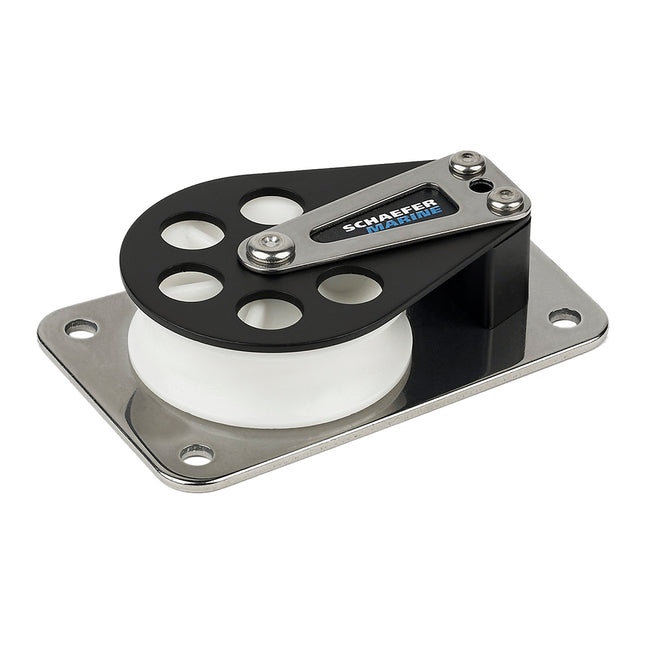

Series 3 Flat Base/Alum Cheek/Delrin SheaveDelrin™ plain bearing sheave ensures smooth operation and high safe working load. Stainless Steel base distributes loads to a larger surface area.Specifications: Sheave Dia. 1-7/16" (37 mm) Max Line 7/16" (11 m) Length 2-7/8" (73 mm) Width 1-3/4" (44 mm) Height 3/4" (19 mm) Fasteners (4) #10- RH (5 mm) C/C 2-3/8" (60 mm) SWL 1000 lbs. (450 kg) Weight Alum. 2.5 oz. (71 g)

Read more less

Series 30 Block - Single - Loop TopFeatures: Maintenance free Economical Lightweight durable construction Stainless steel cheeks and Acetal sheaves ensure a long service life with virtually no maintenance Hollow rivets in the block heads can be fitted with shackles, which can also be used to add a becket for extra purchase Applications: Vang, cunningham and trapeze retriever systems on dinghies Leech line tackles, bunk adjusters etc on larger yachts Materials: UV Stabilized Acetal sheave Grade 316 stainless steel cheeks Specifications:Sheave Ø:29mm(1-1/8")Max. Rope Ø:8mm(5/16")M.W.L.:300kg(660lbs)B. L.:600kg(1,320lbs)Weight:20g(0.7oz)

Read more less

Size 3 Stanchion Lead Block - Single with Becket & Cam Cleat Barton Marine's stanchion lead blocks have proven to be popular with Cruising sailors all over the World.  Mounted onto the stanchion base, the stanchion lead block enables the Genoa furling line to be led back to the cockpit for easy adjustment. Ball bearing sheaves have a precision molded acetal sheave running on a significant diameter brass bearing, ensuring free running under the highest loads.   The unit will fully rotate about the swivel head to match your pulling angle. Cam cleat will secure the line into place.  Block attachment to stanchion is by means of screwing together the integral Stainless Steel strap.Technical Specifications Sheave - Single Sheave Size - 1-3/4" (45mm) Maximum Rope Diameter -  3/8" (10mm) Safe Working Load - 881 lb (400 kg) Maximum Stanchion (Tube) Size - 1" (25mm)  *Sold as an Individual  Quick Guide (pdf)Brochure (pdf)

Read more less

29mm Carbo T2 BlockThe high-strength composite T2™ is the first block with no metal shackles or rivets. It is used for traveler controls, mainsheets and vangs, cascades, bridles, and other systems where small, lightweight blocks are called. The T2 can be tied, spliced, or lashed to almost anything. The length of the Spectra® line is included. Spectra® is a registered trademark of Honeywell International, Inc.Specifications: Sheave Ø (mm): 29 mm Sheave Ø (in): 1-1/8 in. Length (mm): 43 mm Length (in): 1-11/16 in. Weight (g): 12 g Weight (oz): 0.4 oz Maximum Line Ø (mm): 8 mm Maximum Line Ø (in): 5/16 in. Maximum Working Load (kg): 150 kg Maximum Working Load (lb): 330 lbs. Breaking Load (kg): 454 kg Breaking Load (lb): 1000 lbs. Owner's Manual (pdf)

Read more less

60mm Single Element Block Mastbase with SwivelElement blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks.Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.Specifications: Sheave: 60mm (2-3/8" Max Line: 14mm (9/16") Max Working Load: 1100kg (2425lbs)

Read more less
