Sailing - Blocks

8mm Snap Close Shackle - 5 Pack Simply push the shackle together, but once it's snapped shut, it won't come undone again.Specifications: Material: Nylon Package Size: 5 included

Read more less

60mm Triple Aluminum Element Block with SwivelElement blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks.Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.Features: Sheave Ø (mm): 60 mm Sheave Ø (in): 2-3/8 in Maximum line Ø (mm): 14 mm Maximum line Ø (in): 9/16 in Maximum working load (kg): 1650 kg Maximum working load (lb): 3638 lb

Read more less

60mm Triple Aluminum Element Block with Swivel & BecketElement blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks.Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.Features: Sheave Ø (mm): 60 mm Sheave Ø (in): 2-3/8 in Maximum line Ø (mm): 14 mm Maximum line Ø (in): 9/16 in Maximum working load (kg): 1650 kg Maximum working load (lb): 3638 lb

Read more less

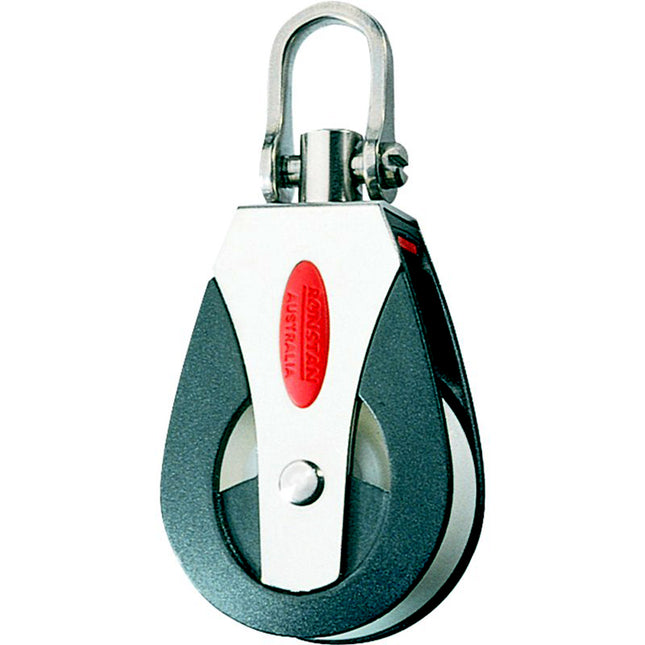

Series 40 All Purpose Block - Single - Universal HeadAll purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required.Features: Exceptionally high working loads Low maintenance, long service life Self-lubricating sheave Captive Lock™ universal head Slotted pin shackle eliminates fouled lines Applications: Mainsheet Halyard Vang Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8M(26') Materials: U.V. stabilized Acetal sheaves Impact and U.V. resistant, fiber reinforced Nylon cheeks Grade 316 stainless steel bearing race Grade 316 stainless steel load strap and head fitting Specifications:Sheave Ø:t40mm(1-9/16")Max. Rope Ø:t10mm(7/16")Pin Ø: 5mm(3/16")M.W.L.:t400kg(880lbs)B. L.:t1,000kg(2,200lbs)Weight:t71g(2.5oz)

Read more less

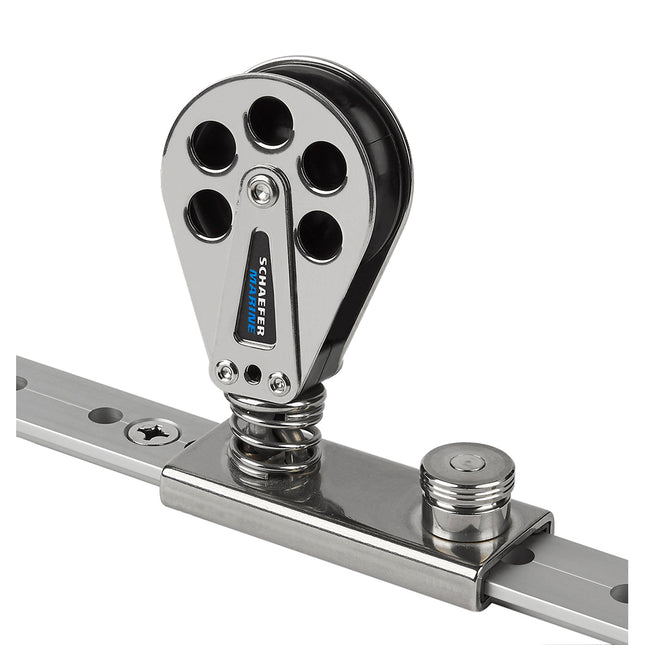

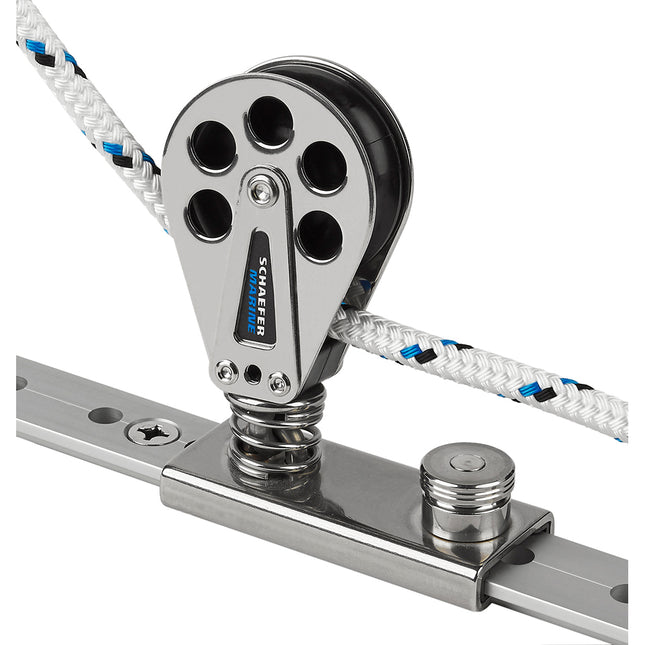

Spring Loaded/Lined Slide/Stainless Steel for 1-1/4" T-TrackDelrin™ sheave ensures smooth operation and high safe working load. Stainless Steel cheeks and stainless steel slider ensure reliability. Polyethylene liner and pin stop allow for easy adjustment. Specifications: Track Size 1-1/4" x 3/16" (32 mm x 5 mm) Max. Boat Length 33' (10 m) Max. Boat Weight 12000 lbs. (5455 kg) Max. Sail Area 520 sq. ft. (48 m2) Sheave Diameter 2-3/8" (60 mm) Max Line 1/2" (12 mm) Length 4" (102 mm) Width 1-9/16" (39 mm) Height 4-15/16" (126 mm) Bearing Height 2-3/8" (67 mm) SWL 2250 lbs. (1020 kg) Weight 14 oz. (397 g)

Read more less

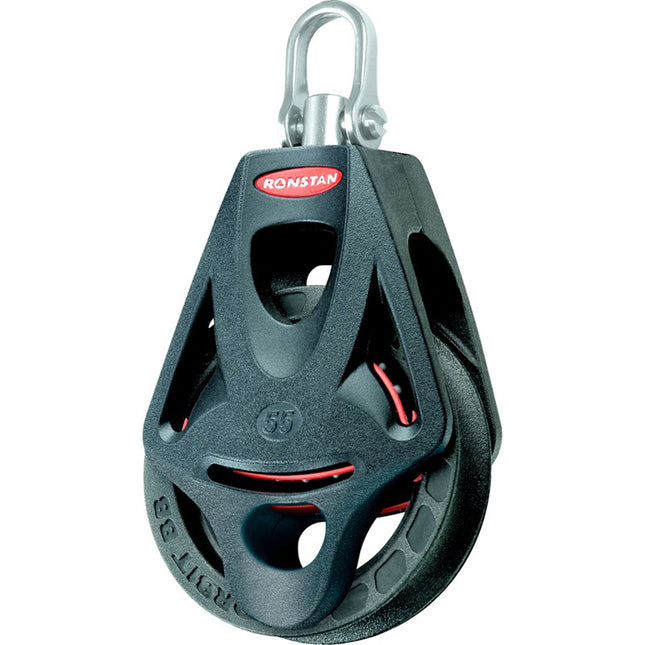

Series 55 Ball Bearing Orbit Block™ - Single - Becket - Swivel HeadLightweightKilogram for kilogram of working load, BB and RT Orbit Blocks™ are the world's lightest. The unique orbital design allows the bearing to only be in the active areas of the floating sheave. This minimises the mass of the inactive return race and hub.Weight and bulk are further reduced in the different block configurations. The ball bearing single and becket block has a through-sheave becket arrangement. The result? The lowest weight possible.Multi-sheave blocks have only single intermediate cheeks and an ultra-light and efficient head arrangement. This gives a 30% weight saving advantage over the nearest competitor. Other brands just link together their single blocks. This results in unnecessary double cheeks between each sheave, held together by a heavy steel channel across the top of the block. Highest Working Load In Its ClassThe orbital ball-bearing arrangement gives the largest possible bearing race diameter. This maximises load performance. The proven Ronstan 2-stage bearing system features high compression grade acetal ball bearings and a secondary full-contact bearing. This gives minimum friction across the full working load range. The floating sheave and bearing system is supported by a fiber-reinforced load frame. The design was computer modelled to be stress optimised. The Dyneema® Link is produced from FSE Robline SK75 fiber, which is 10 times stronger and lighter than steel, and provides the final connection from the block to the load point.Features: Ultra Lightweight Low friction 2-stage Orbital ball bearing system Highest working load in its class Low profile and compact High performance cleating Swivel shackle head for unlimited block rotation Stainless steel shackle head for ultimate durability and compatibility with harsh fixing points Ultra low profile integrated becket Applications: Mainsheet systems on dinghies, sportsboats and small keelboats to 9M(30') Spinnaker sheets on dinghies, sportsboats and small keel boats to 9M(30') Halyard, Vang and Backstay application on boats to 8M(26') Control line applications on larger yachts Ideal use for mainsheet systems and spinnaker sheets on dinghies, sportsboats and small keel boats to 9M(30') Also ideal with halyard, vang and backstay applications on boats to 8M(26') Spinnaker sheets on sportsboats and small keel boats (lateral lead blocks) Control line applications on larger yachts Materials: Ball bearings - High compression strength carbon black Acetal Stage 2 bearing - Carbon fiber reinforced, PTFE impregnated Nylon Frame/Cheeks - Toughened, glass fiber reinforced Nylon Rope Link: UV stabilized, multi-strand impregmented SK75 Dyneema® Sheave: Carbon fiber reinforced, PTFE impregnated Nylon Head fitting: Grade 316 stainless steel. Specifications:Sheave Ø:t55mm(2-5/32")Max. Rope Ø: 10mm(3/8")M.W.L.:t500kg(1,100lbs)B. L.:t1,000kg(2,200lbs)Weight:t88g(3.1oz)

Read more less

Tufnol Snatch Block for Wire & Fibreoptic CablesThe Barton wire snatch block has been developed specifically as a low maintenance static free block. The Tufnol sheave means that static cannot build up in the block and cause electrical discharge. Tufnol is a bearing-grade material so it gives a low-friction surface for the wire to run on and minimizes the number of moving components, giving it reliability and durability. The cheeks are made from marine grade 316 stainless steel as is the pin and retaining nuts. This block is ideal for commercial applications in the toughest of environments.Specifications: Safe Working Load: 350kg (770lbs) Break Load: 1500kg (3300lbs) Max Rope/Wire size: 10mm (3/8”) Weight: 78grms (2.8oz) Length: 190nn (7 ½”) Width: 115mm (4 ½”) Thickness (Maximum): 53mm (2 1/16”) Fibreoptic & Wire BendingFibreoptic cables and wire ropes require a minimum bend radius to stop failures. This block is suitable for both fibreoptics and wires up to 10mm in diameter. The large sheave means that the bend radius of the wire is not compromised and provides an additional engineered safety factor to prologue the life of wire if continual movement around the same section of wire is required. Brochure (pdf)

Read more less

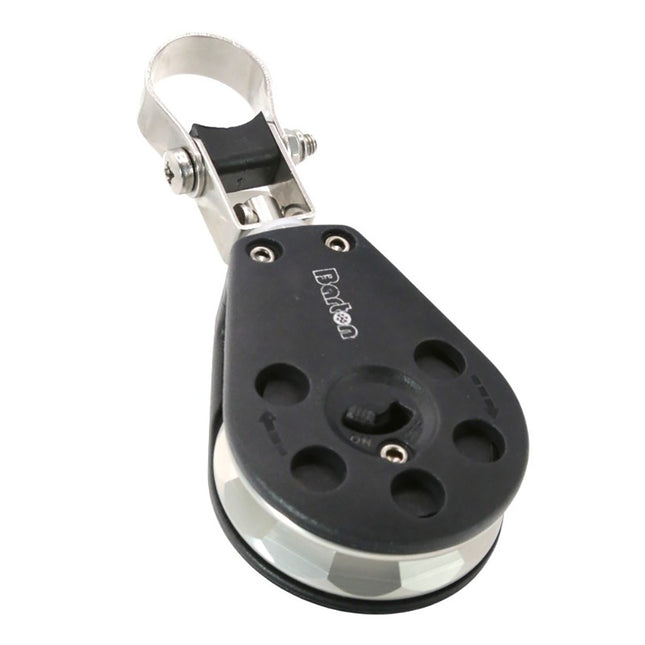

Stanchion Ratchet BlockControlling the Power in Furling lines! This Stanchion Ratchet Block is ideal for removing some of the loadings for the crew when furling in the jib. The ratchet means that the sheave can be locked in place in one direction offering a friction brake against the pull of the sail. It is quick and simple to fit onto a standard 25mm (1”) guard rail stanchion. Adjustment is easy with the stainless steel clamping ring which allows mounting of the block at any angle.The Barton ball-bearing Ratchet Block is designed to be used online up to 10mm (3/8”). The block is a high-performance 55mm (2 3/16”) ratchet block and features a stainless-steel lever that locks the swivel head if desired.Designed with ball bearings for low friction and longevity in harsh marine environments, the Ratchet Block body is manufactured from a composite of high-density nylon and glass fiber reinforced polymer with a high level of UV protection. Internal components are of marine grade 316 stainless steel and the 12-faced aluminum sheave is anodized in gunmetal silver.Specifications: Length: 120mm/4-3/4" Maximum Line: 10mm/3/8" Width: 55mm/2-3/16" Tube Size: 25mm/1" Brochure (pdf)

Read more less

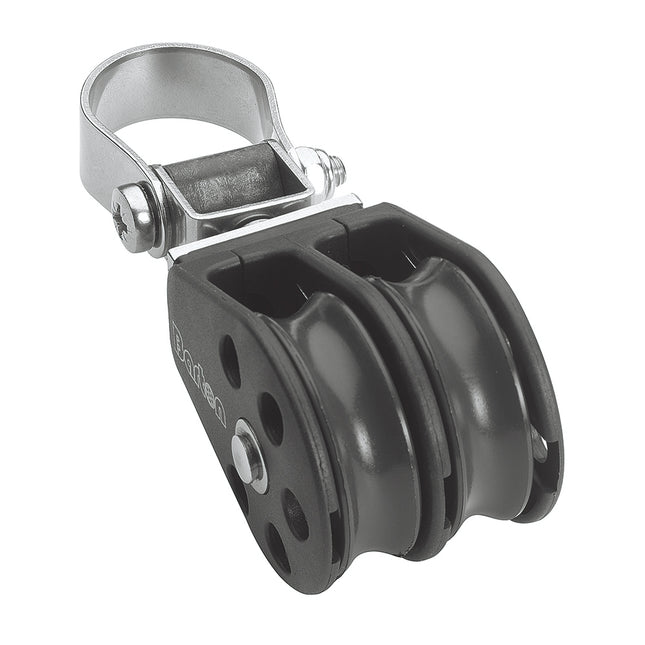

Size 2 Double Stanchion Lead BlockBarton Marine's stanchion lead blocks have proven to be popular with Cruising sailors all over the World. Mounted onto the stanchion base, the stanchion lead block enables the Genoa furling line to be led back to the cockpit for easy adjustment. Ball bearing sheaves have a precision molded acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.   The unit will fully rotate about the swivel head to match your pulling angle. Block attachment to stanchion is by means of screwing together the integral Stainless Steel strap.Technical Specifications Sheave - Double Sheave Size - 1-3/8" (35mm) Maximum Rope Diameter -  5/16" (8mm) Safe Working Load - 815 lb (370 kg) Maximum Stanchion (Tube) Size - 1" (25mm)  *Sold as an Individual Quick Guide (pdf)Brochure (pdf)

Read more less

Series 30 Ball Bearing Orbit Block™ - Single - Becket - Lashing HeadBall Bearing Orbit Blocks™ boast the highest strength-to-weight ratio available. This is achieved through all-composite reinforced polymer materials and multiple attachment options. Their precision design provides the optimum number of ball bearings for minimum friction while weight reduction is achieved through the use of fiber-reinforced composites in the block head, cleat arms and beckets.Features: Lightweight Highest working load in its class Secure, versatile and secure attachement Low profile and compact Ultra low profile thru-sheave becket RF35101 accepts RF1850S shackle in both orientations to create a conventional loop top block Self-lubricating Nylatron® sheave and full contact bearing for high dynamic loads Applications: Mainsheet systems and spinnaker sheets on dinghies to 5M(16') Halyard, vang and backstay applications on boats to 5M(16') Control line applications on larger yachts Materials: Sheave: High compression strength carbon black Acetal Ball Bearings: High compression strength Acetal Frame/Cheeks: Toughened, glass fiber reinforced Nylon Link: UV stabilized, multi-strand impregnated SK75 Dyneema® Specifications:=Sheave Ø:t30mm(1-3/16")Max. Rope Ø:t8mm(5/16")M.W.L.:t300kg(660lbs)B. L.:t600kg(1,320lbs)Weight:t22g(0.8oz) Quick Guide (pdf)

Read more less

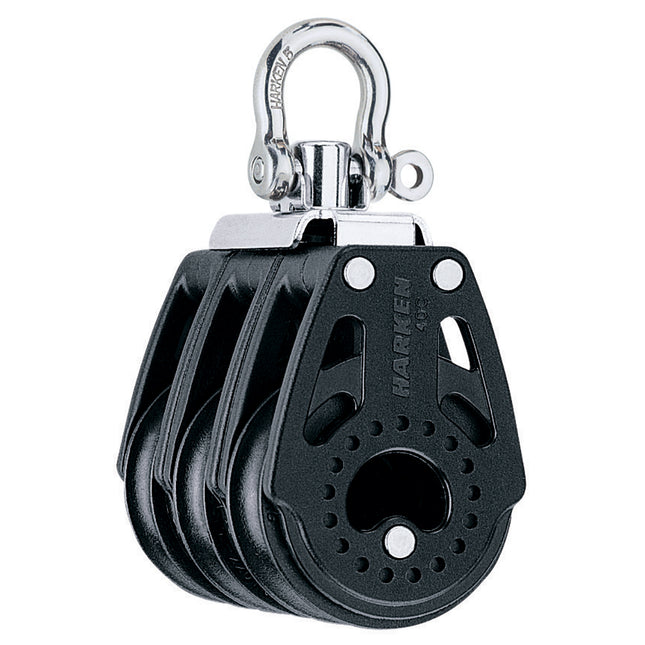

40mm Carbo Air Triple Swivel BlockLow-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to the popular Harken Black Magic block line, these small, compact blocks have very high working loads for safe, easy trimming. Specifications: Sheave Ø (mm)40 mm Sheave Ø (in)1 9/16 in Maximum line Ø (mm)10 mm Maximum line Ø (in)3/8 in Maximum working load (kg)660 kg Maximum working load (lb)1455 lb Quick Guide (pdf)

Read more less

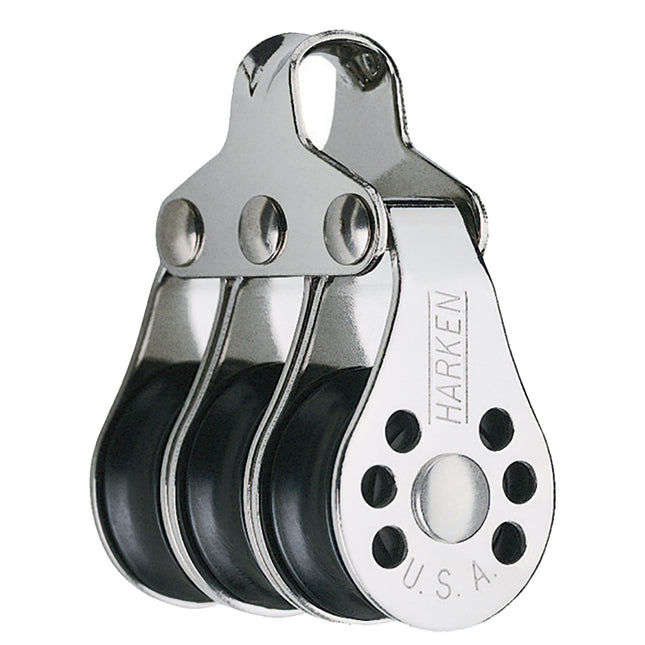

22mm Triple Micro BlockLow-friction Micro blocks are compact and lightweight. They are ideal for sailboards, smaller dinghies, and lightly loaded control lines on boats of all sizes.Specifications: Sheave: 22mm / 7/8in. Length: 51mm / 2in. Weight: 57g / 2oz. Maximum line: 6mm / 1/4in. Maximum working load: 227kg / 550lb Breaking load: 544kg/ 1200 lb

Read more less
