Sailing - Blocks

22mm Triple Micro BlockLow-friction Micro blocks are compact and lightweight. They are ideal for sailboards, smaller dinghies, and lightly loaded control lines on boats of all sizes.Specifications: Sheave: 22mm / 7/8in. Length: 51mm / 2in. Weight: 57g / 2oz. Maximum line: 6mm / 1/4in. Maximum working load: 227kg / 550lb Breaking load: 544kg/ 1200 lb

Read more less

Series 15 Ball Bearing Utility Block - Exit BlockFeatures: Smallest and lightest ball bearing block available Precision molded acetal sheave running on stainless steel ball bearings provide high performance & low friction Single loop head blocks include an O-ring to separate running line from head lashing or fixing Features a flush rivet to minimize cutout and facilitate installation. Featuring a formed single piece housing for maximum strength and minimal rope wear.Applications: Dinghy control lines Vangs, cunninghams and tweakers Shock cord tensioning systems Materials: BB sheaves: UV stabilized acetal Ball bearings: Stainless steel Cheeks: Grade 316 stainless steel

Read more less

Soft Snatch Block - 12mm Rope SizeAvailable in 4 models, the collection of soft snatch blocks will quickly become an essential piece of kit: flying sail furling, Furler terminals, rigging deviation, and barber-haulers.Made from anodized aluminum, these are both lightweight and robust. The Dyneema loop ensures easy installation. They are easy to open and close too, thanks to the Velcro strip.Applications: Terminals for flying sail furlers 2/1 mainsail halyard Rigging deviation Barber-hauler Specifications: Materials -Anodized aluminum - Dyneema loop  Rope size -12mm Loop diameter - 6mm Working load (lb) 6610 Breaking load (lb) 13220 Weight (lb) 0.311 Dimensions: A (inch) 15/32" B (inch) 2 33/64" C (inch) 1 13/16" D diameter (inch) 15/64"

Read more less

60mm Single Aluminum Element Block with Swivel & BecketElement blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks.Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.Features: Sheave Ø (mm): 60 mm Sheave Ø (in): 2-3/8 in Maximum line Ø (mm): 14 mm Maximum line Ø (in): 9/16 in Maximum working load (kg): 1100 kg Maximum working load (lb): 2425 lb

Read more less

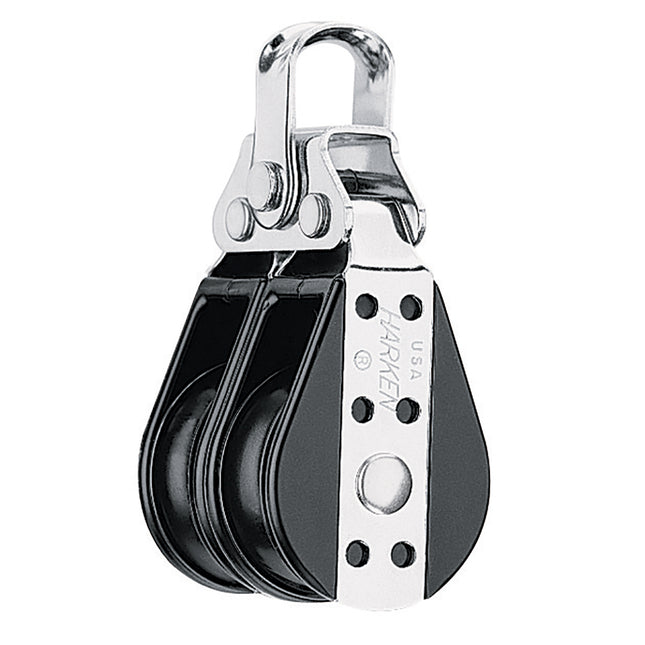

29mm Double Carbo Air BlockLow-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to the popular Harken Black Magic block line, these small, compact blocks have very high working loads for safe, easy trimming.Specifications: Sheave: 29mm / 1-1/8in. Length: 54mm / 2-1/8in. Weight: 34g / 1.2oz Maximum line: 8mm / 5/16in Maximum working load: 299kg/ 660lb Breaking load: 737kg / 1625lb

Read more less

Size 5 54mm Plain Bearing Pulley Block Single Block Fixed EyeThe Size 5 Barton range of blocks has a 54mm 2 1/8" sheave. They are a rugged construction, featuring high-grade molded side plates that are through-bolted and riveted for added strength and security. All load-carrying components and interior frame are from marine grade 316 stainless steel and both plain and ball bearing sheaves are available. This sleek and versatile range is engineered for use on larger cruising and racing yachts and is compatible with our ball-bearing mainsheet traveler system.The 54mm sheave Size 4 range is of rugged construction, featuring high-grade molded side plates that are through-bolted and riveted for added strength and security. All load-carrying components and interior frame are from marine grade 316 stainless steel and both plain and ball bearing sheaves are available. This sleek and versatile range is engineered for use on larger cruising and racing yachts and is compatible with our ball bearing mainsheet traveller system.Suitable for up to 1 to 2mm 7/16" rope. Quick Guide (pdf)

Read more less

Size 5 54mm Plain Bearing Pulley Block Single Block SwivelThe Size 5 Barton range of blocks has a 54mm 2 1/8" sheave. They are rugged construction, featuring high-grade molded side plates that are through-bolted and riveted for added strength and security. All load-carrying components and interior frame are from marine grade 316 stainless steel and both plain and ball bearing sheaves are available. This sleek and versatile range is engineered for use on larger cruising and racing yachts and is compatible with our ball-bearing mainsheet traveler system.The 54mm sheave Size 4 range is of rugged construction, featuring high-grade molded side plates that are through-bolted and riveted for added strength and security. All load-carrying components and interior frame are from marine grade 316 stainless steel and both plain and ball bearing sheaves are available. This sleek and versatile range is engineered for use on larger cruising and racing yachts and is compatible with our ball bearing mainsheet traveller system.Suitable for up to 12mm 7/16" rope. Quick Guide (pdf)

Read more less

Size 7 70mm Plain Bearing Pulley Block Single SwivelThe size 7 Barton high-load cruising block range is engineered for superior strength and performance and offers both plain and ball-bearing sheave assemblies. The range features high-grade glass fiber nylon reinforced molded side plates with an internal 316 stainless steel frame that is through-bolted and riveted for added strength and durability. This well-designed and versatile range is engineered for use on larger cruising and racing yachts and is compatible with our ball-bearing mainsheet traveler system.The 70mm sheave Size 7 high load cruising block range is engineered for superior strength and performance and offers both plain and ball-bearing sheave assemblies. The range features high-grade glass fiber nylon reinforced molded side plates with an internal 316 stainless steel frame that is through-bolted and riveted for added strength and durability. This well designed and versatile range is engineered for use on larger cruising and racing yachts and is compatible with our ball bearing mainsheet traveller system.Built with 70mm (2 13/16") sheaves and designed for a maximum rope size of 14mm – 9/16" rope.

Read more less

Size 5 54mm Plain Bearing Pulley Block Reverse ShackleThe Size 5 Barton range of blocks has a 54mm 2 1/8" sheave. They are rugged construction, featuring high-grade molded side plates that are through-bolted and riveted for added strength and security. All load-carrying components and interior frame are from marine grade 316 stainless steel and both plain and ball bearing sheaves are available. This sleek and versatile range is engineered for use on larger cruising and racing yachts and is compatible with our ball-bearing mainsheet traveler system.The 54mm sheave Size 4 range is of rugged construction, featuring high-grade molded side plates that are through-bolted and riveted for added strength and security. All load-carrying components and interior frame are from marine grade 316 stainless steel and both plain and ball bearing sheaves are available. This sleek and versatile range is engineered for use on larger cruising and racing yachts and is compatible with our ball bearing mainsheet traveller system.Suitable for up to 12mm 7/16" rope. Quick Guide (pdf)

Read more less

Size 6 64mm Plain Bearing Pulley Single Block Fixed EyeThe Size 6 Barton blocks are designed as our high-load cruiser block range and are of rugged construction. It features high-grade injection molded side plates, with all load-carrying components from 316-grade stainless steel. Side plates are through-bolted and riveted for added strength and security. This good-looking and versatile range is designed for use on larger cruising and racing yachts. All are designed for ease of use with our ball-bearing mainsheet traveler system.The 64mm sheave Size 6 high load cruiser block range is of rugged construction, featuring high-grade injection molded side plates, with all load-carrying components from 316-grade stainless steel. Side plates are through-bolted and riveted for added strength and security. This good looking and versatile range is designed for use on larger cruising and racing yachts. All are designed for ease of use with our ball bearing mainsheet traveller system.Designed around a 64mm (2 1/2") sheave and to work with 14mm (9/16") ropes.

Read more less

Size 0 20mm Plain Bearing Pulley Block Single SwivelThe Barton Size 0 Plain bearing block has 20mm (3/4″) sheaves and is also available in ball bearing sheaves. Designed for high strength and performance but lightweight with the range starting at only 13gms (0.5oz).Suitable for up to 6mm (1/4″) rope Ideal for use on dinghies, day boats, and smaller craft or lead blocks, flag pennants, etc. on larger yachts. Quick Guide (pdf)

Read more less

Size 0 20mm Plain Bearing Pulley Block Single Swivel without ShackleThe Barton Size 0 Plain bearing block has 20mm (3/4″) sheaves and is also available in ball bearing sheaves. They are designed for high strength and performance but lightweight with the range starting at only 13gms (0.5oz).Suitable for up to 6mm (1/4″) rope Ideal for use on dinghies, day boats smaller craft or lead blocks, flag pennants, etc. on larger yachts. Quick Guide (pdf)

Read more less
