Sailing - Blocks

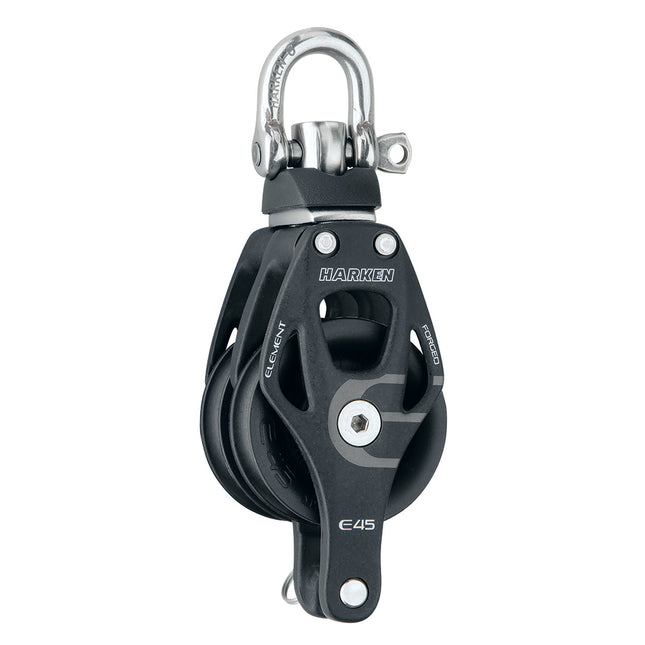

45mm Double Element Block with Swivel & BecketElement blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks.Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.Specifications: Sheave: 45mm / 1-3/4in Length: 127mm / 5in Weight: 195g / 6.8oz Shackle pin: 6mm / 1/4in Maximum line: 12mm / 1/2in Maximum working load: 875kg / 1929lb Breaking load: 1750kg / 3858lb

Read more less

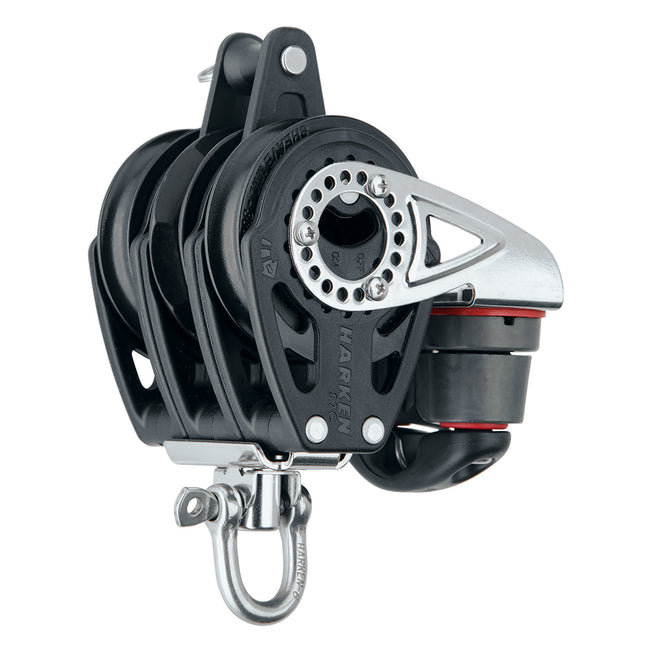

57mm Triple Carbo Block - Swivel, Becket, Cam CleatCarbo Ratchets allow sailors to hand-hold loaded lines and offer a balance between holding power and controlled easing.Features: Sheave Ø (mm) 57 mm Sheave Ø (in) 2 1/4 in Maximum line Ø (mm) 10 mm Maximum line Ø (in) 3/8 in Maximum working load (kg) 816 kg Maximum working load (lb) 1800 lb

Read more less

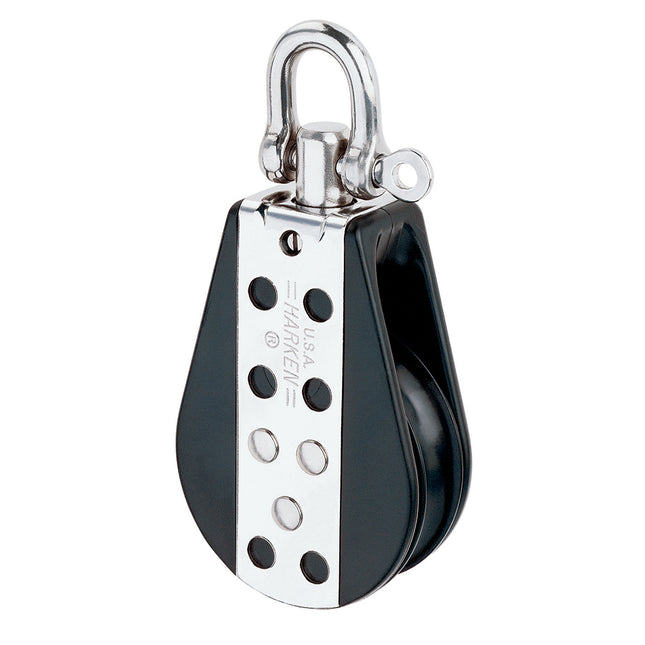

Midrange Single with Aluminum Sheave BlockMidrange blocks’ robust construction makes them ideal to handle the high loads found on medium and large offshore boats. Sheave runs exclusively on a ball bearing system for fast trim and release under any load.Features:  Sheave: 76mm/3" Maximum Line: 14mm/9/16" Max Working Load: 1270kg/2800lbs

Read more less

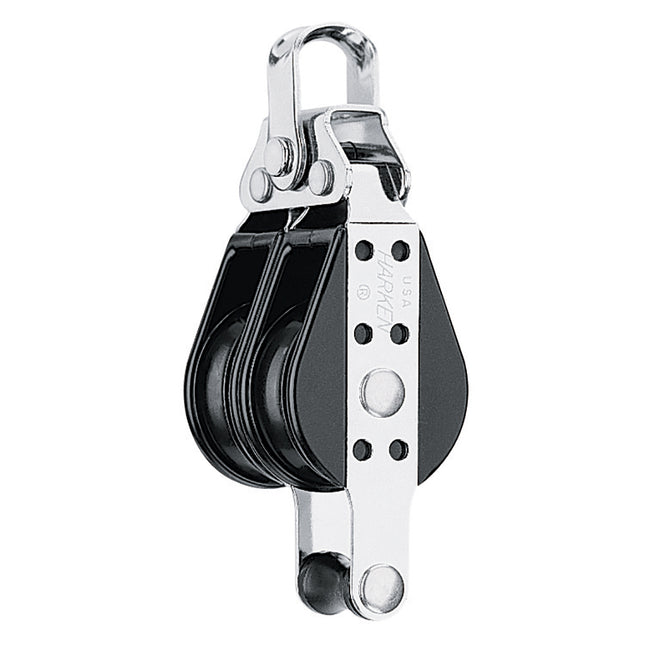

29mm Double Bullet Block with BecketLow-friction Bullet blocks lead control lines aft. They are compact and lightweight, with fast trim and release under high or low loads. A range of styles lets these blocks adapt to almost all control line applications. Features: Sheave: 29mm (1-1/8") Maximum Line: 8mm (5/16") Maximum Working Load: 181kg (400lb)

Read more less

38mm Double Big Bullet Block with BecketLow-friction Bullet blocks lead control lines aft. They are compact and lightweight, with fast trim and release under high or low loads. A range of styles lets these blocks adapt to almost all control line applications. Features: Sheave: 38mm (1-1/2") Maximum Line: 10mm (3/8") Maximum Working Load: 272kg (600lb)

Read more less

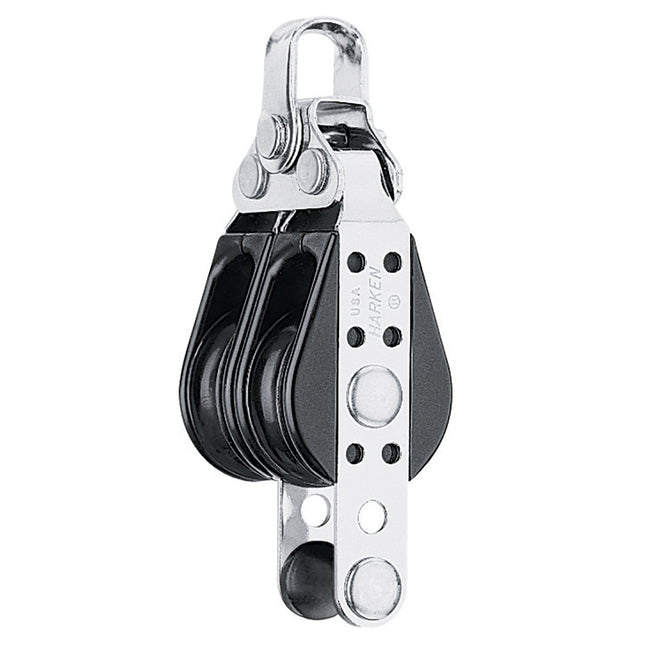

29mm Double Bullet BlockLow-friction Bullet blocks lead control lines aft. They are compact and lightweight, with fast trim and release under high or low loads. A range of styles lets these blocks adapt to almost all control line applications. Features: Sheave: 29mm (1-1/8") Maximum Line: 8mm (5/16") Maximum Working Load: 181kg (400lb)

Read more less

38mm Single Big Bullet BlockLow-friction Bullet blocks lead control lines aft. They are compact and lightweight, with fast trim and release under high or low loads. A range of styles lets these blocks adapt to almost all control line applications. Features: Sheave: 38mm (1-1/2") Maximum Line: 10mm (3/8") Maximum Working Load: 136kg (300lb)

Read more less

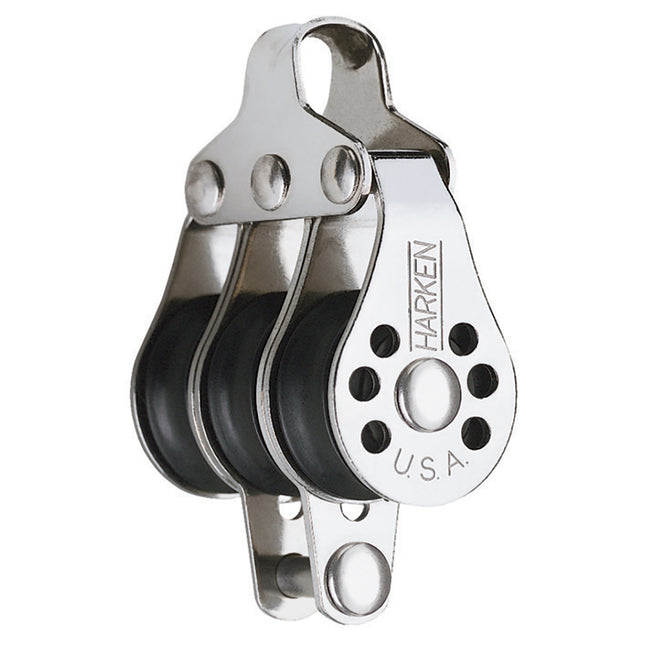

22mm Triple Micro Block with BecketLow-friction Micro blocks are compact and lightweight. They are ideal for sailboards, smaller dinghies, and lightly loaded control lines on boats of all sizes.Specifications: Sheave: 22mm / 7/8in. Length: 64mm / 2.5in. Weight: 64g / 2.25oz. Maximum line: 6mm / 1/4in. Maximum working load: 227kg / 500lb Breaking load: 544kg/ 1200 lb

Read more less

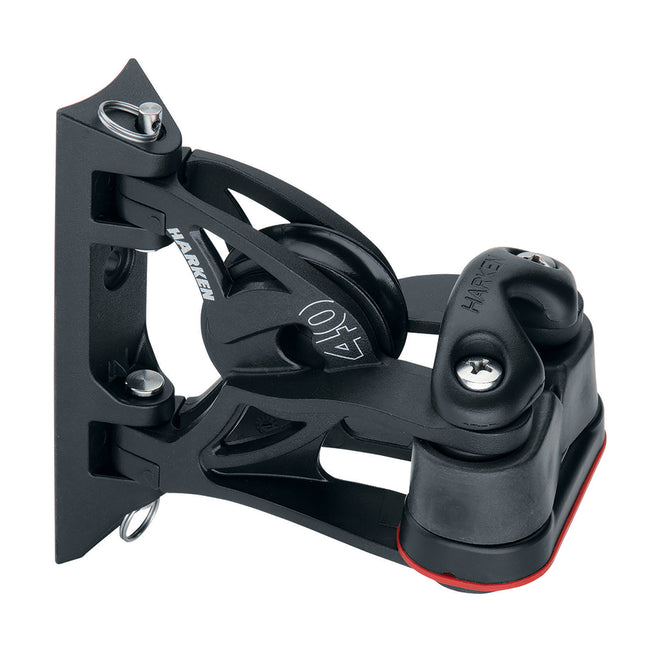

40mm Pivoting Lead Block - Carbo-Cam® CleatHigh-strength pivoting lead blocks with cams are used for halyard controls on larger keelboats and as “headknockers” on dinghies and beachcats for sheeting directly from the boom. Hole spacing and rivet size are the same as Classic models, making upgrades easy. Cam reverses for either up or down cleating.Can be used as becket block.Specifications: Sheave Ø (mm)40 mm Sheave Ø (in)1 9/16 in Maximum line Ø (mm)10 mm Maximum line Ø (in)3/8 in Maximum working load (kg)91 kg Maximum working load (lb)200 lb

Read more less

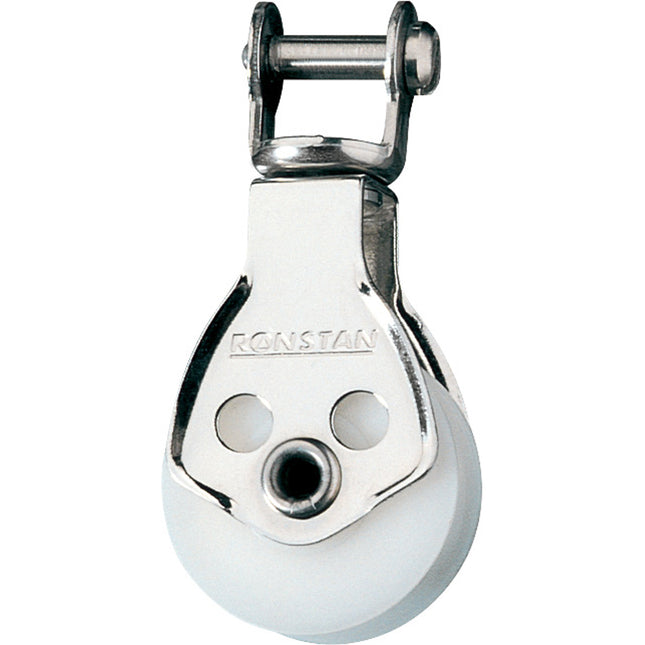

Series 25 Utility Block™ - Single - Swivel Shackle HeadStainless steel cheeks and Acetal sheaves ensure a long service life with virtually no maintenance. Hollow rivets in the block heads can be fitted with shackles, which can also be used to add a becket for extra purchase. Features: Lightweight durable construction Economical Maintenance free Applications: Vang, cunningham and trapeze retriever systems on dinghies Leech line tackles, bunk adjusters, etc on larger boats Materials: U.V. stabilized acetal sheaves Grade 316 Stainless Steel cheeks Specifications:Sheave Ø:t25mm(1")Max. Rope Ø: 6mm(1/4")Pin Ø: 4mm(5/32")M.W.L.:t150kg(330lbs)B. L.:t300kg(660lbs)Weight:t20g(0.7oz)

Read more less

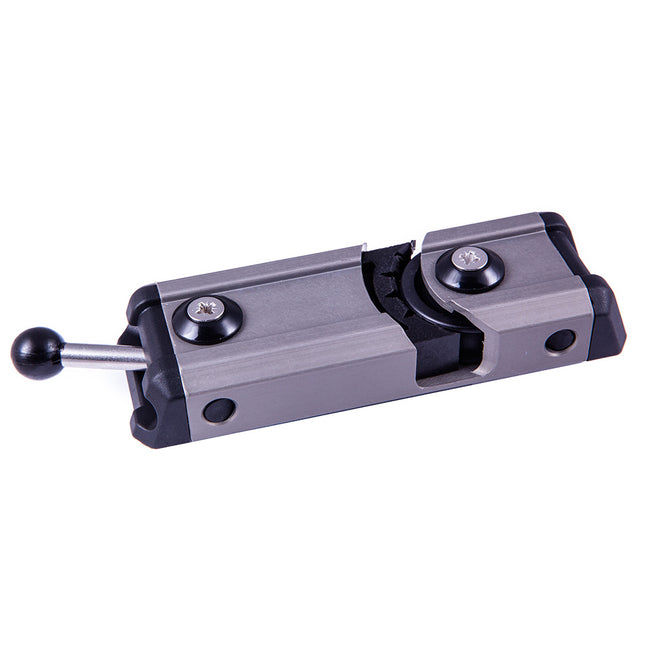

Tiller Lock Gun - GreyThis tiller lock maintains the rugged reliability of the original and brings the design fully up to date. Design suitable for any tiller-steered yacht or sports boat A simple mechanism allows the tiller to be set and adjusted, which is indispensable for short-handed sailing The innovative design incorporates a snubber, which holds a far better course than simply lashing the tiller A variety of methods for fixing or locking the tiller have been used over the years, and many have only been adequate. Improvements in performance involving short keels and dagger rudders are often transom-hung and suffer from an unfortunate handicap. With no skeg and no shelf, but with a sensitive rudder, a boat will fall off her elegant balancing act if the helmsman lets go of the tiller. The increased sensitivity and faster response of newer boat designs call for a better system. Such a system should:1. Allow precise locking of the tiller with minimum difficulty.2. Be quick and simple to operate when locking and particularly when releasing.3. If possible, the system should be able to be detached instantly from the tiller in the event of any emergency.This Tiller Lock rope lock was designed to meet these points. The device consists of a sheave and lever cam with a toothed slider mounted in a block that is fitted beneath the tiller. The rope is fitted across the back part of the cockpit as a means of keeping it under tension. When locked onto the rope, the toothed slider prevents the tiller from moving in either direction.Features: Releasing the lock (by turning the lever to port) immediately frees the tiller and allows the rope to ride freely over the sheave for manual steering In an emergency or when the device is not required, the rope can easily be snapped out of the block by a downward pull, clearing the tiller Specifications: Weight: 0.2kg Color: Grey

Read more less

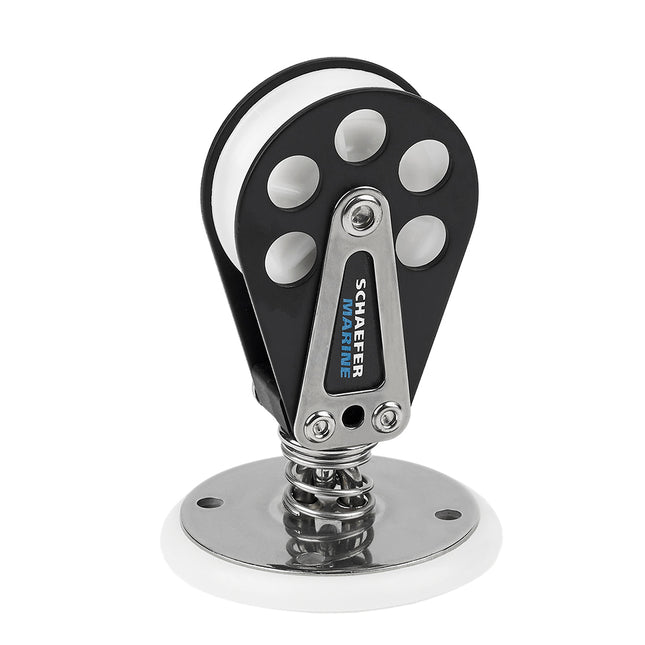

Stand-Up Swivel - Aluminum BlockSpecifications: Sheave Dia. 2-2/8" (60 mm) Max Line 1/2" (13 mm) Diameter includes urethane base 3-3/8" (86 mm) Height 4-25/32" (120 mm) H2 2-15/32" (63 mm) Fastener Size (4),1/4" RH (6 mm) C/C 1-11/16" (43 mm) SWL 2250 lbs (1020 kg) Weight Alum. 11.7 oz. (332 g)
