Sailing - Blocks

Series 55 Ratchet Orbit Block™ - Single - Swivel Head - Auto & ManualAutomatic Ratchet BlockNow you can enjoy the flexibility of setting up your ratchet blocks to suit yourself. Ronstan is the only company that offers a ratchet block with both auto and manual engagement modes. In the auto mode of the ratchet mechanism engages when load is applied, but switches off when it's released. This lets the sheet run out smoothly and freely-great for rapid easing of the sheet and for gybing asymmetric spinnakers. In manual mode, the ratchet mechanism can be switched on or off as required. This is the preferred mainsheet set-up for may top sailors. Try the block in both modes and see which you prefer - you really can't go wrong. Awesome Ratchet Block Holding PowerQuite simply, Ronstan Ratchet Orbit Blocks™ have the highest holding power available. The sophisticated NC-machined sheave features Generation 2 of our sheave cross-hole geometry. Its holding power is up to 21:1, almost double that of our nearest competitior. The unique sheave design has 12 gripping faces which directly resist loaded line movement. Traditional designes have only 8 faces with an angled resistance to line movement. Our Generation 2 design has straight resistance faces which both distribute the load and minimise rope wear. These faces are offset from the radial line, to draw the rope down into the gripping area when under load. Features: Up to 20:1 holding power Smooth easing of sheets High performance cleating Swivel shackle head for unlimited block rotation. Stainless steel shackle head for ultimate durability and compatibility with harsh fixing points. Automatic & manual ratchet block Applications: Mainsheet systems and spinnaker sheets on dinghies, sportsboats and small keel boats to 8M(26') Halyard, vang and backstay applications on boats to 8M(26') Spinnaker sheets on sportsboats and small keel boats (lateral lead blocks) Materials: Sheave: Hard anodised Aluminium Ball Bearings: High compression strength carbon black Aceetal Frame/Cheeks: Toughened, glass fiber reinforced Nylon Rope Link: UV stabilized, multi-strand impregnated SK75 Dyneema® Head fitting: grade 316 stainless steel Specifications:Sheave Ø: 55mm(2")Max. Rope Ø: 10mm(1/2")M.W.L.: 250kg(550lbs)B. L.: 650kg(1,430lbs)Weight: 82g(2.9oz)

Read more less

Size 3 Single Plain Bearing Block with SwivelBarton plain bearing blocks have a precision molded acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.Features: Fully swiveling head with removable shackle For use on dinghies, day boats, and light cruising yachts Specifications & Dimensions: Length: (mm) 100 / (inch) 3-15/16" Weight (grams): 73 g. Single (mm) 45 x 13 / (inch) 1-3/4" x 1/2" Max Rope Diameter: (mm) 10 / (inch) 3/8" SWL: (kg) 400 / (lbs.) 881 Break Load: (kg) 800 / (lbs.) 1763 Note: break loads where break and safe working loads are stated, it is assumed that all sheaves are evenly loaded as in a purchase tackle

Read more less

Series 30 Ball Bearing Orbit Block™ - TripleBall Bearing Orbit Blocks™ boast the highest strength-to-weight ratio available. This is achieved through all-composite reinforced polymer materials and multiple attachment options. Their precision design provides the optimum number of ball bearings for minimum friction while weight reduction is achieved through the use of fiber-reinforced composites in the block head, cleat arms and beckets.Features: Lightweight Highest working load in its class Secure, versatile and secure attachement Low profile and compact Applications: Mainsheet systems and spinnaker sheets on dinghies to 5M(16') Halyard, vang and backstay applications on boats to 5M(16') Control line applications on larger yachts Materials: Sheave: High compression strength carbon black Acetal Ball Bearings: High compression strength Acetal Frame/Cheeks: Toughened, glass fiber reinforced Nylon Link: UV stabilized, multi-strand impregnated SK75 Dyneema® Specifications:Sheave Ø: 30mm(1-3/16")Max. Rope Ø: 8mm(5/16")M.W.L.: 550kg(1,210lbs)B. L.: 1,100kg(2,430lbs)Weight: 73g(2.6oz) Quick Guide (pdf)

Read more less

Series 40 Ball Bearing Block - Single - Universal HeadSheaves running on Acetal or Torlon® ball bearings provide high performance & low friction. The 2-stage ball bearing system provides consistent performance over the full load range.Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required.Features: Low friction Acetal or Torlon® bearing system Lightweight Cheek cut-outs for easy bearing maintenance Captive Lock™ universal head Slotted pin shackle eliminates fouled lines Applications: Mainsheet Halyard Vang Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8M(26') Materials: U.V. Stabilized Acetal sheaves Acetal ball bearings Impact and U.V. resistant, fiber reinforced Nylon cheeks Grade 316 stainless steel load strap and head fitting Specifications:Sheave Ø: 40mm(1-9/16")Max. Rope Ø: 10mm(7/16")Pin Ø: 5mm(3/16")M.W.L.: 350kg(770lbs)B. L.: 1,000kg(2,200lbs)Weight: 70g(2.5oz)

Read more less

Single Stainless Steel Block - 60mm SheaveDelrin™ sheave ensures low-friction and high safe working load. Swivel head may be locked in place to eliminate line twist. Specifications: Sheave Dia. 2 3/8" (60mm) Thickness 1 3/32" (28mm) Width 2 1/2" (64mm) Length 5 1/32" (128mm) SWL 2250 lbs. (1020kg) Weight 10.2oz (289g) Max. Line 1/2" (13mm)

Read more less

Size 2 35mm Plain Bearing Pulley Block Single Swivel & BecketThe Barton Size 2 Plain Bearing Block has a 35mm (1 3/8") sheave. This block range size provides high performance and load values in a variety of assemblies & configurations. The range has an internal stainless steel frame and precision components. Also available in ball bearing sheave options. The lightweight design makes this range perfect for a multitude of uses on every yacht.Suitable for up to 8mm (5/16") rope.Specifications: Weight: 60 g Dimensions: 93 × 38 × 24 mm Size: 2 (35MM) Block Type: Swivel + Becket No. of Sheaves: Single Bearing Type: Plain Sheave Size: 35mm x 11mm (1 3/8" x 15/32") Max rope diameter: 8mm (5/16") SWL: 370kg (815lbs) Break load: 740kg (1630lbs) Max rolling load (ball bearing blocks): 260kg (573lbs) Quick Guide (pdf)

Read more less

Size 5 54mm Plain Bearing Pulley Block Single Swivel & BecketThe Size 5 Barton range of blocks has a 54mm 2 1/8" sheave. They are a rugged construction, featuring high-grade moulded side plates that are through-bolted and riveted for added strength and security. All load-carrying components and interior frame are from marine-grade 316 stainless steel, and both plain and ball bearing sheaves are available. This sleek and versatile range is engineered for use on larger cruising and racing yachts and is compatible with our ball bearing mainsheet traveller system.Suitable for up to 12mm 7/16" rope.Specifications: Weight: 220 g Dimensions: 150 × 58 × 37 mm Size: 5 (54MM) Block Type: Swivel + Becket No. of Sheaves: Single Bearing Type: Plain Sheave Size: 54mm x 17mm (2 1/8" x 5/8") Max rope diameter: 12mm (7/16") SWL: 750kg (1650lbs) Break load: 1500kg (3300lbs) Max rolling load (ball bearing blocks): 525kg (1157lbs) Quick Guide (pdf)

Read more less

Size 1 30mm Plain Bearing Pulley Block Single Swivel & BecketThe Size 1 Plain Bearing Blocks have a 30mm (1 3/16") sheave. The range is designed with an internal steel frame for added strength and durability. Also available in ball bearing sheave options, the lightweight modern design is available in variations that allow for a multitude of uses on every size craft.Suitable for up to 8mm (5/16") rope.Specifications: Weight: 51 g Dimensions: 85 × 32 × 25 mm Size: 1 (30MM) Block Type: Swivel + Becket No. of Sheaves: Single Bearing Type: Plain Sheave Size: 30mm x 12mm (1 3/16" x 15/32") Max rope diameter: 8mm (5/16") SWL: 355kg (782lbs) Break load: 710kg (1565lbs) Max rolling load (ball bearing blocks): 245kg (540lbs) Quick Guide (pdf)

Read more less

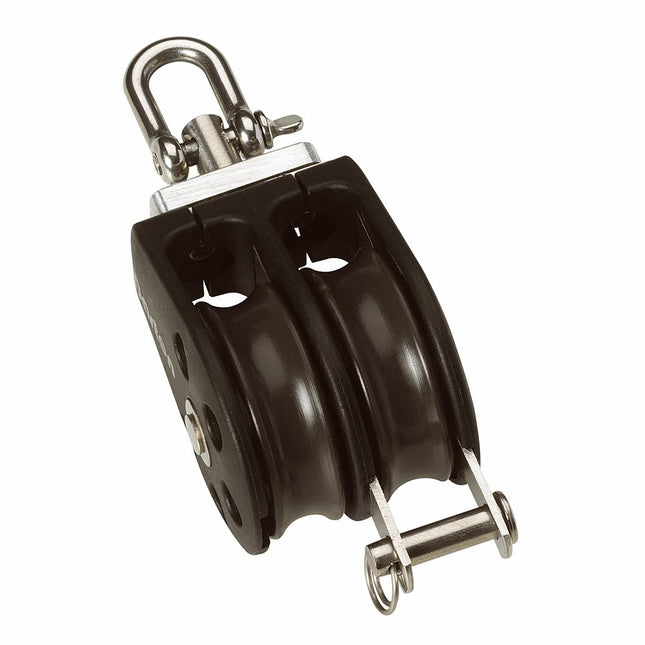

Size 1 30mm Plain Bearing Pulley Block Double Swivel & BecketThe Size 1 Plain Bearing Blocks have a 30mm (1 3/16") sheave. The range is designed with an internal steel frame for added strength and durability. Also available in ball bearing sheave options, the lightweight modern design is available in variations that allow for a multitude of uses on every size craft.Suitable for up to 8mm (5/16")rope.Specifications: Weight: 88g Dimensions: 93 × 40 × 32 mm Size: 1 (30MM) Block Type: Swivel + Becket No. of Sheaves: Double Bearing Type: Plain Sheave Size: 30mm x 12mm (1 3/16" x 15/32") Max rope diameter: 8mm (5/16") SWL: 355kg (782lbs) Break load: 710kg (1565lbs) Max rolling load (ball bearing blocks): 245kg (540lbs) Quick Guide (pdf)

Read more less

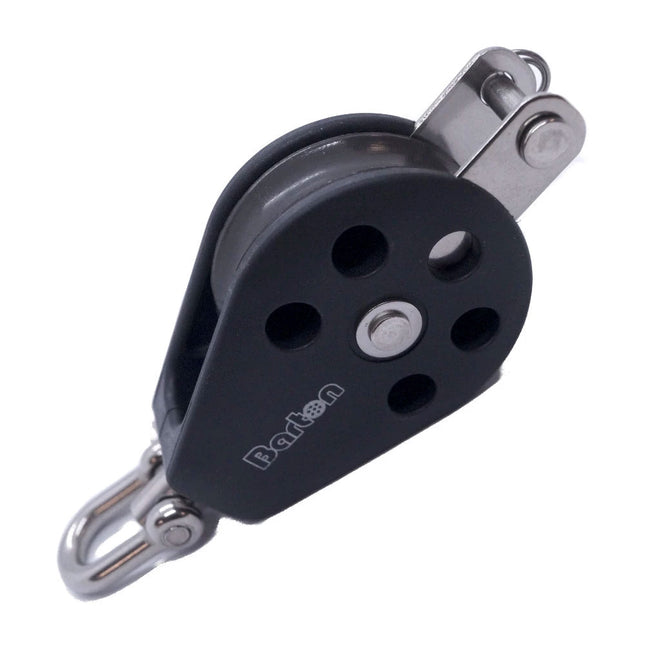

Size 3 45mm Plain Bearing Pulley Block Single Swivel & BecketThe size 3 Barton plain bearing blocks have 45mm (1 3/4" sheave size 3 block range incorporates modern design with stainless steel frames and the latest advanced materials, using 30% fibre glass-filled nylon and Acetal sheaves to maximise their strength whilst keeping weight to a minimum. Suitable for use as mainsheet, vangs, lead blocks, or wherever a powerful and compact purchase system is required on dinghies, dayboats, and lightweight cruisers.Suitable for up to 10mm (3/8") rope.Specifications: Weight: 91 g Dimensions: 114 × 47 × 28 mm Size: 3 (45MM) Block Type: Swivel + Becket No. of Sheaves: Single Bearing Type: Plain Sheave Size: 45mm x 13mm (1 3/4" x 35/64") Max rope diameter: 10mm (3/8") SWL: 400kg (881lbs) Break load: 800kg (1763lbs) Max rolling load (ball bearing blocks): 270kg (595lbs) Quick Guide (pdf)

Read more less

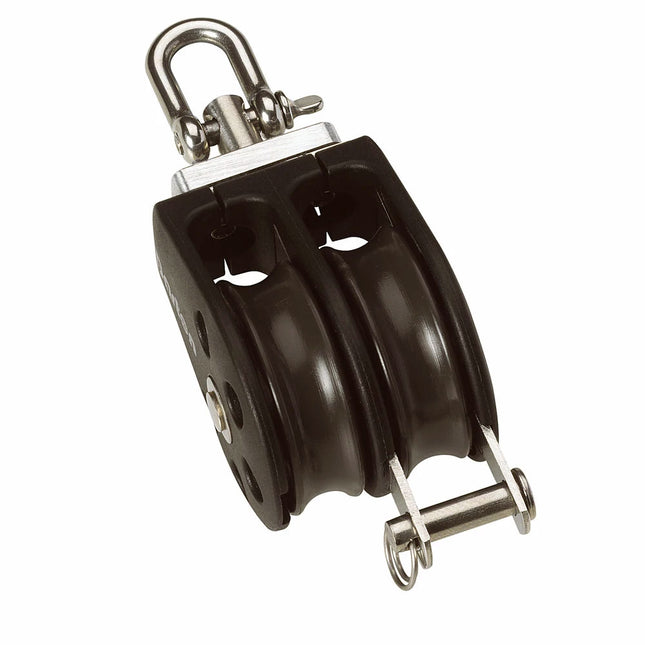

Size 2 35mm Plain Bearing Pulley Block Double Swivel & BecketThe Barton Size 2 Plain Bearing Block has a 35mm (1 3/8") sheave. This block range size provides high performance and load values in a variety of assemblies & configurations. The range has an internal stainless steel frame and precision components. Also available in ball bearing sheave options. The lightweight design makes this range perfect for a multitude of uses on every yacht.Suitable for up to 8mm (5/16") rope.Specifications: Weight: 99g Dimensions: 100 × 39 × 38 mm Size: 2 (35MM) Block Type: Fixed Eye + Becket No. of Sheaves: Double Bearing Type: Plain Sheave Size: 35mm x 11mm (1 3/8" x 15/32") Max rope diameter: 8mm (5/16") SWL: 370kg (815lbs) Break load: 740kg (1630lbs) Max rolling load (ball bearing blocks): 260kg (573lbs) Quick Guide (pdf)

Read more less

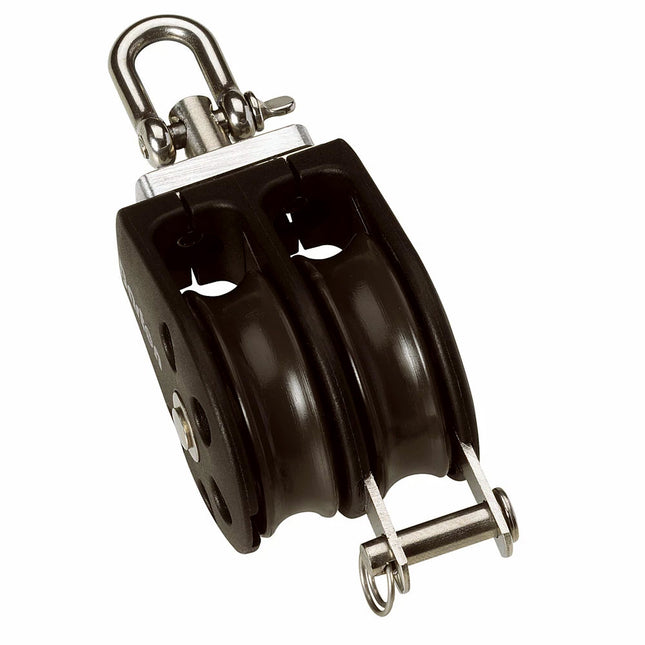

Size 5 54mm Plain Bearing Pulley Block Double Swivel & BecketThe Size 5 Barton range of blocks has a 54mm 2 1/8" sheave. They are a rugged construction, featuring high-grade moulded side plates that are through-bolted and riveted for added strength and security. All load-carrying components and interior frame are from marine-grade 316 stainless steel, and both plain and ball bearing sheaves are available. This sleek and versatile range is engineered for use on larger cruising and racing yachts and is compatible with our ball bearing mainsheet traveller system.Suitable for up to 12mm 7/16" rope.Specifications: Weight: 312 g Dimensions: 155 × 59 × 58 mm Size: 5 (54MM) Block Type: Swivel + Becket No. of Sheaves: Double Bearing Type: Plain Sheave Size: 54mm x 17mm (2 1/8" x 5/8") Max rope diameter: 12mm (7/16") SWL: 750kg (1650lbs) Break load: 1500kg (3300lbs) Max rolling load (ball bearing blocks): 525kg (1157lbs) Quick Guide (pdf)

Read more less
