FRX25 Friction Ring - 25mm (63/64")Features: Efficient and light FRX Wichard thimbles are efficient, light, and reliable Very strong and can be used for heavy loads and semi-static lines FRX thimbles are designed to make your lines run smoothly with minimum wear They are hard anodized (50 microns) for a longer lifespan Applications:Mast-foot block, barber-hauler, inhauler, loop, thimble, lazy jack, running backstay, tackle, and moreSpecifications: Materials: Anodized aluminium Working load: (lb) 11020 / (kg) 5000 Weight: (lb) 0.126 / (g) 57 A: (inch) 43/64" / (mm) 17 B: (inch) 63/64" / (mm) 25 C: (inch) 63/64" / (mm) 25 D diameter: (inch) 2 23/64" / (mm) 60 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 Quick Guide (pdf)

Read more less

Boom Hanger - 80mm(3-1/8") Internal Width125mm(5") long x 80mm(3-1/8") wideMaterial Diameter: 7.9mm(5/16"). Fixing Holes Diameter: 2 x 8.1mm(5/16")Applications:Typically used on dinghies, catamarans and small keelboatsMaterials:Grade 316 stainless steel Specifications: Color: Stainless Box Dimensions: 1"H x 4"W x 5"L WT: 0.3 lbs UPC: 9316800104260

Read more less

V-Cleat Open - Small - 3-6mm(1/8" - 1/4") Rope DiameterV-Cleats are a simple solution to cleating lines under moderate loads.Features: Lightweight and corrosion proof Greater abrasion resistance than traditional plastic cleats Low, snag free profile Base profile suits mounting on flat and curved surfaces Applications:Control lines on dinghies and catamaransMaterial:PTFE impregnated, glass and carbon fiber composite cleats Specifications: Color: Black Box Dimensions: 1"H x 2"W x 4"L WT: 0.1 lbs UPC: 9316800212972

Read more less

FRX6 Friction Ring - 7mm (9/32")Features: Efficient and light FRX Wichard thimbles are efficient, light, and reliable Very strong and can be used for heavy loads and semi-static lines FRX thimbles are designed to make your lines run smoothly with minimum wear They are hard anodized (50 microns) for a longer lifespan Applications:Mast-foot block, barber-hauler, inhauler, loop, thimble, lazy jack, running backstay, tackle, and moreSpecifications: Materials: Anodized aluminium Working load: (lb) 880 / (kg) 400 Weight: (lb) 0.004 / (g) 2 A: (inch) 7/32" / (mm) 5.5 B: (inch) 9/32" / (mm) 7 C: (inch) 23/64" / (mm) 9 D diameter: (inch) 45/64" / (mm) 18 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

25mm T-Track Genoa CarBarton Marine introduces its sleek range of Genoa Cars designed to run on 25mm (1 ”) T-Track. All GT cars are manufactured from high-grade aluminum with our unique Spectro anodized finish for superior protection in marine environments. A black anodized finish is also available. Designed over 18 months to meet the requirements of OEMs, riggers, and sailing enthusiasts who want high performance and longevity captured in contemporary design. The range is a class above the norm and features moulded nylon inserts to fight corrosion prevent damage to the low friction anodise finish and ensure smooth running in all marine environments.Features: Spectro anodized finish or black anodized The stainless steel plunger stops with positive action Moulded nylon slide inserts ensure free running Large, easy-grip plunger knobs Twist and Lock up plunger facility Brochure (pdf)

Read more less

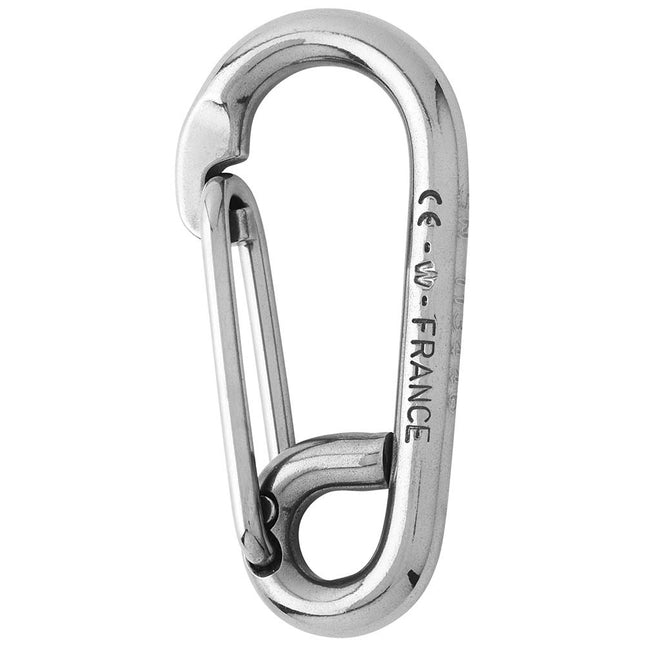

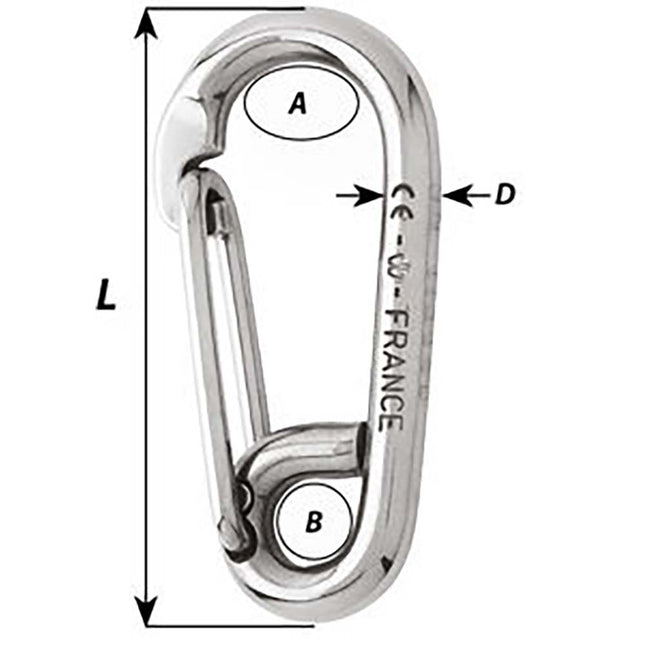

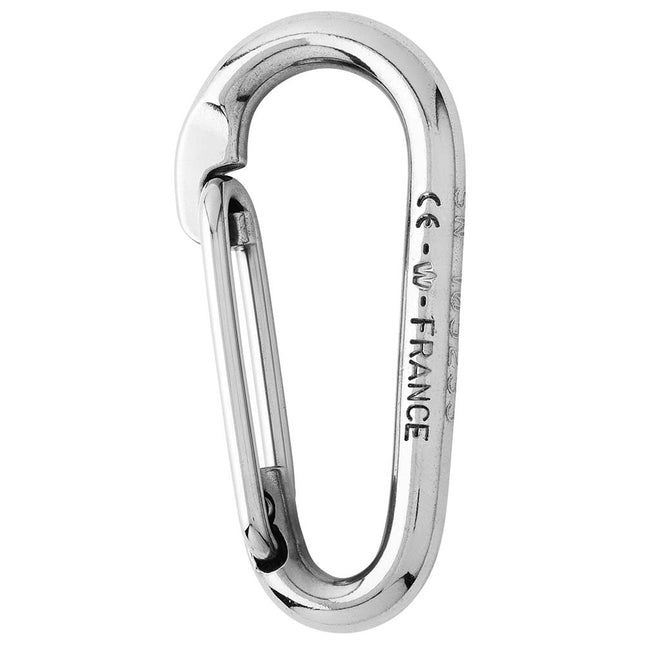

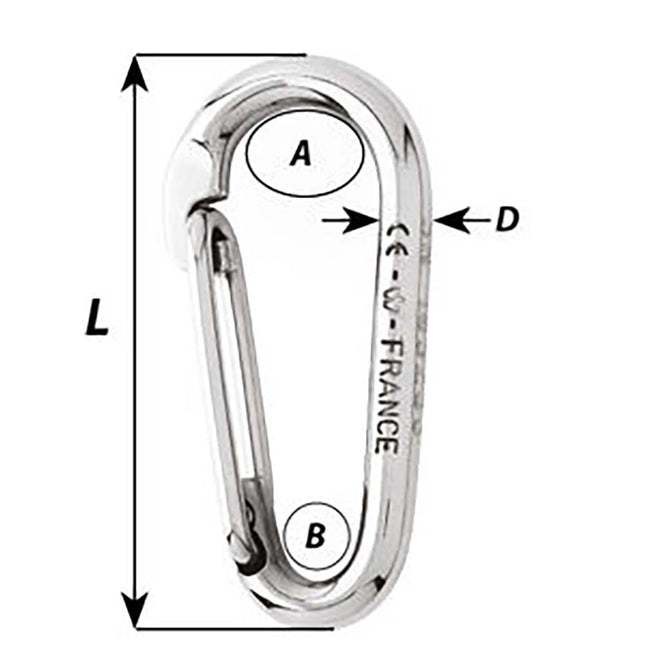

Symmetric Carbine Hook - Length 60mm - 1/4"Features: Grade 316L stainless steel carbine hooks Symmetrical shape With eye to attach a webbing or a splicing Applications:For fastening applications Specifications: Materials 316L stainless steel grade Length (inch) 2-23/64" Working load (lb) 790 WLL (lb) 260 Breaking load (lb) 1320 Weight (lb) 0.066 Dimensions (see 2nd image): A (inch) 25/64" B (inch) 9/32" D diameter (inch) 15/64"

Read more less

Low Friction Ring Strap Eye - Stainless SteelFor the concerning dinghy sailor. Barton has offered stainless steel deck eyes for a long while, but as performance on boats improves, the desire to reduce friction on deck fixings and turning points of lines becomes more important. By adding the low friction ring that is pressed into the stainless steel strap, it gives a low profile and low friction rope guide for small lines.This can be used with a range of lines for sailing boats using small-diameter ropes. The HV500 anodized coating on the Low Friction Rings produced by Barton gives the ultimate performance and durability. The hard anodizing feature means there is only 15% load-bearing friction on this fitting.Specifications: Height: 13mm/1/2" Base Width: 38mm/1-1/2" Fastenings: 4.0mm/3/16" Whole Centres: 30mm/1-3/16" Maximum Rope: 4mm/3/16" Brochure (pdf)

Read more less

High Load Eye 12mm BoreErgonomically designed to maximize the strength and efficiency of the eye. With HV500 hard anodizing and the profile of the curved surfaces, these have been developed to keep friction as low as possible. The range has amazing strength-to-weight ratios, making them ideal for use as kickers, tweakers, genoa barber haulers, and anywhere where weight saving and strength are important.Wear ResistanceThe hard anodizing HV500 has amazing low friction properties. After over 300 hours on an abrasion test machine, no visual signs of wear on the anodized coating could be found.Features: High load eye compared to a standard plain bearing block on average across the range Friction increased by only 15% Strength increased by 272% Weight reduced by 51% Data based on using 4mm D12 SK75 Dyneema core Available in six sizes. Manufactured in marine grade aluminium with a hard anodised finish. These lightweight high load eyes are suitable for a variety of uses on board, from lazy jacks, barber haulers, mast base tidies to stanchion lead eyes. The smallest size can be attached using a 3mm line with a bullseye diameter of 6mm. The largest size can be attached using a 16mm line with a bullseye diameter of 28mm. Quick Guide (pdf)

Read more less

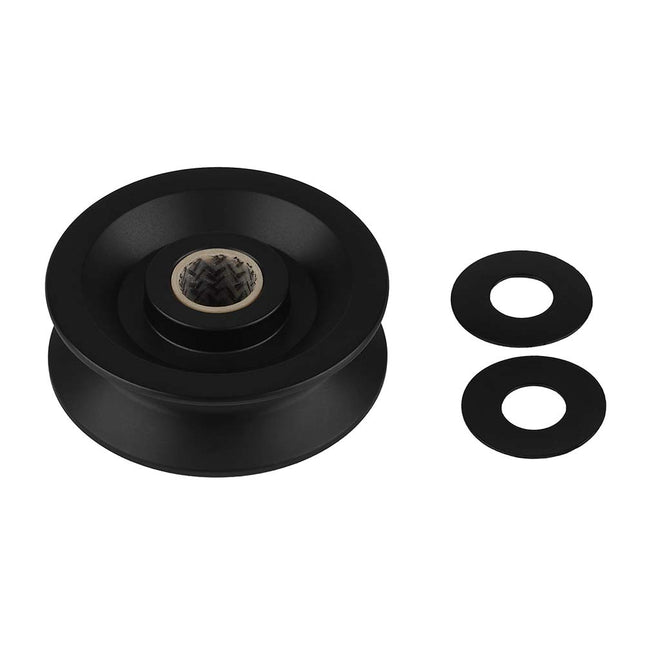

64mm Diameter Ball Bearing Rope SheaveA replacement all-purpose rope sheave. Used throughout the complete Barton block range. Molded from UV-resistant acetal resin, the Barton sheave is made to survive the harsh marine environment. The unique, super-low friction ball race system features Delrin balls running on a large diameter center boss, which ensures an extremely low friction performance.  Technical Specifications: Overall Diameter: 2-6/10" (64mm) Hub Width: 0.71" (18mm) Bore: 0.24" (6mm) *Sold as an Individual

Read more less

Narrow Saddle - 11.4mm(7/16") ClearanceGrade 316 Stainless Steel 37.3mm(1-7/16") screw to screw length Specifications: Color: Stainless Box Dimensions: 1"H x 1"W x 2"L WT: 0.1 lbs UPC: 9316800013623

Read more less

Hinged Mini Pad Eye - 3/16"This pad eye is a smaller version of our popular #48-580 pad eye. This unit is suitable for awnings and many other tie-down applications. The working load should not exceed 400 lbs. The material is all T-316 stainless. Fastens with (2) 1/4″ bolts (not supplied).

Read more less

Webbing Snap Hook - 30mm - Length 60mmFeatures: Grade 316L forged webbing snap hook Various applications onboard Outstanding working and breaking loads Modern design Applications:Various uses onboard: canopy installation fastening applications…Specifications: Materials 316L stainless steel grade Length (inch) 2-23/64" Working load (lb) 440 Breaking load (lb) 660 Weight (lb) 0.077 Dimensions (see 2nd image): A (inch) 5/16" B (inch) 1-3/16"
