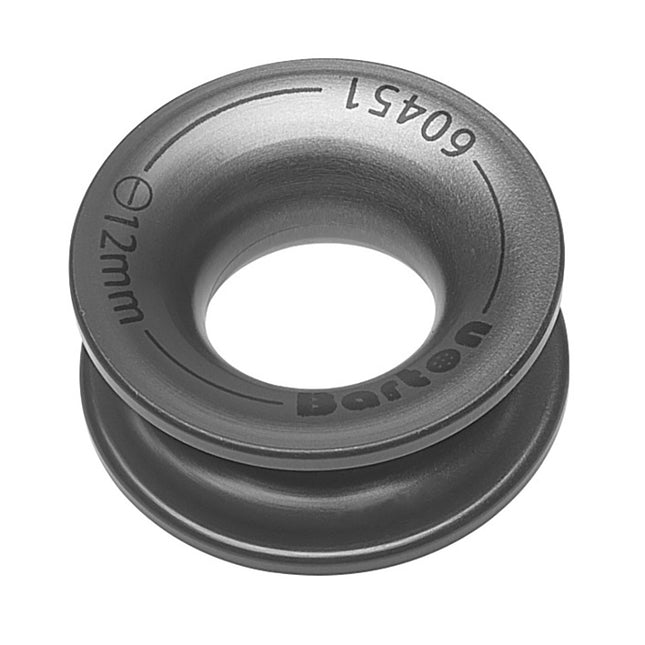

High Load Eye 12mm BoreErgonomically designed to maximize the strength and efficiency of the eye. With HV500 hard anodizing and the profile of the curved surfaces, these have been developed to keep friction as low as possible. The range has amazing strength-to-weight ratios, making them ideal for use as kickers, tweakers, genoa barber haulers, and anywhere where weight saving and strength are important.Wear ResistanceThe hard anodizing HV500 has amazing low friction properties. After over 300 hours on an abrasion test machine, no visual signs of wear on the anodized coating could be found.Features: High load eye compared to a standard plain bearing block on average across the range Friction increased by only 15% Strength increased by 272% Weight reduced by 51% Data based on using 4mm D12 SK75 Dyneema core Available in six sizes. Manufactured in marine grade aluminium with a hard anodised finish. These lightweight high load eyes are suitable for a variety of uses on board, from lazy jacks, barber haulers, mast base tidies to stanchion lead eyes. The smallest size can be attached using a 3mm line with a bullseye diameter of 6mm. The largest size can be attached using a 16mm line with a bullseye diameter of 28mm. Quick Guide (pdf)

Read more less

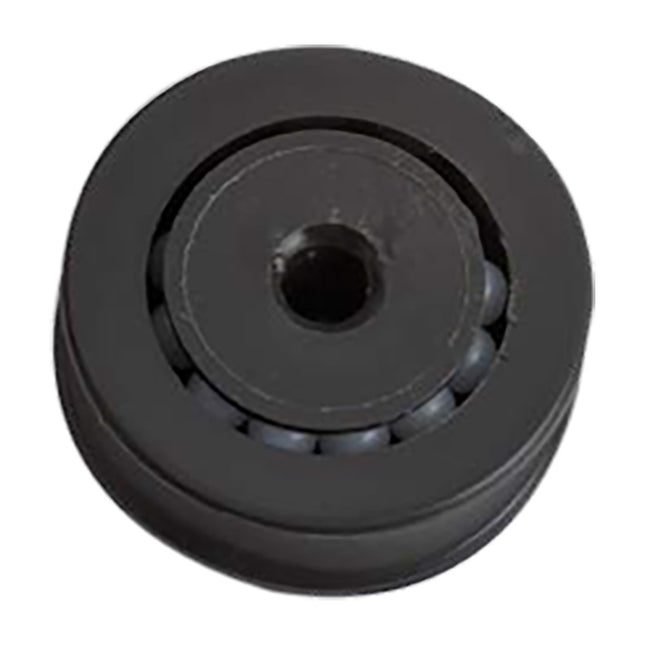

64mm Diameter Ball Bearing Rope SheaveA replacement all-purpose rope sheave. Used throughout the complete Barton block range. Molded from UV-resistant acetal resin, the Barton sheave is made to survive the harsh marine environment. The unique, super-low friction ball race system features Delrin balls running on a large diameter center boss, which ensures an extremely low friction performance.  Technical Specifications: Overall Diameter: 2-6/10" (64mm) Hub Width: 0.71" (18mm) Bore: 0.24" (6mm) *Sold as an Individual

Read more less

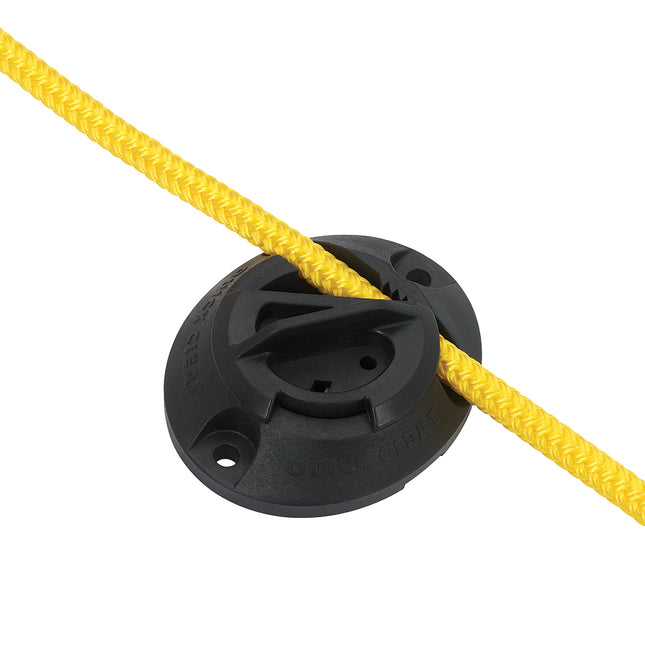

Quick Cleat - 5/16" - Black The Barton Marine Quick Cleat range is perfect for novices and seasoned mariners and takes the place of tying and releasing knots. Made of nylon reinforced composite and secures braided lines up to 5/16" (10 mm) with a working load limit of 154 lb (70 kg.)  The Barton Marine Quick Cleat offers exceptional value. From securing fenders, gear, painter lines, buckets, boat gears or other gear, the Quick Cleat is designed to alter rope tension in one direction, but grips the rope firmly and securely in the other.Quick Cleats are easy to use.  Simply rotate the lever on top of the cleat, insert the line and release the lever which secures the rope.  Features: Dupont Zytel Construction Easy to install Technical Specifications: Color - Black Material - Zytel nylon Working Load - 154 lb (70 kg) Maximum Rope Diameter - 5/16" (10 mm) Height - 1-1/16" (2.7 cm) Weight - 2 oz (55 g) *Sold as an Individual  Brochure (pdf)

Read more less

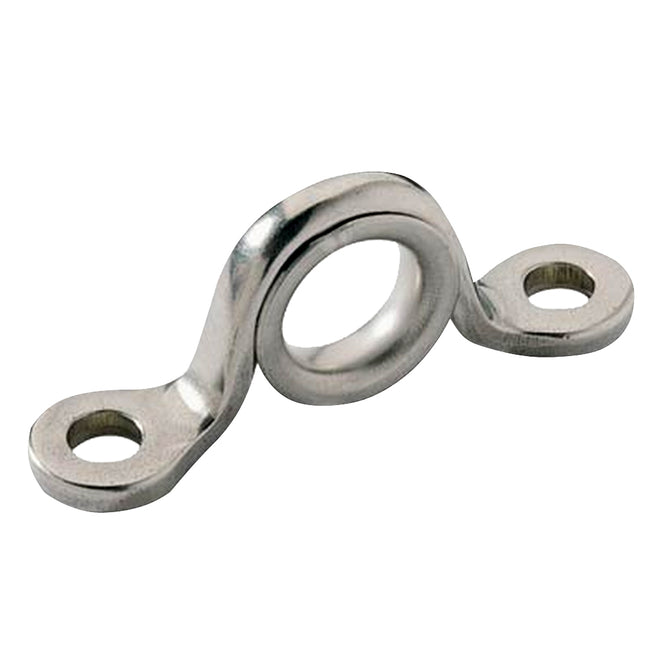

Narrow Saddle - 11.4mm(7/16") ClearanceGrade 316 Stainless Steel 37.3mm(1-7/16") screw to screw length Specifications: Color: Stainless Box Dimensions: 1"H x 1"W x 2"L WT: 0.1 lbs UPC: 9316800013623

Read more less

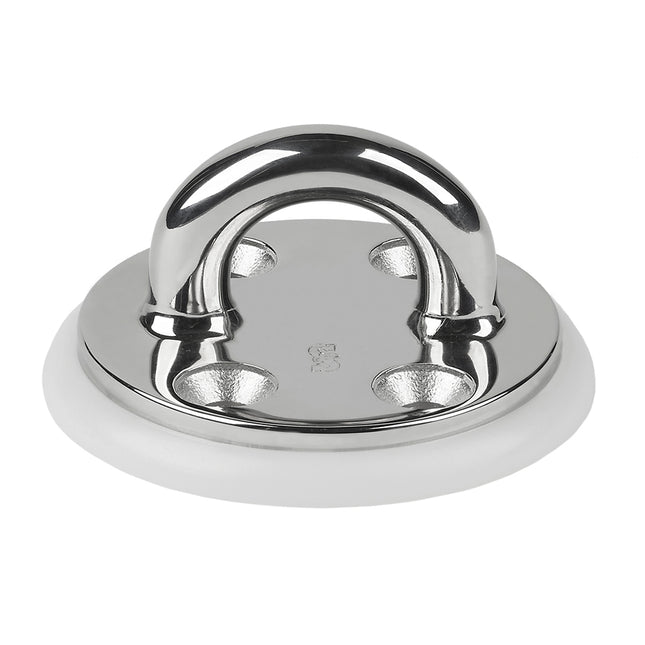

Investment Cast Pad Eye - 2-1/2" OD Base316 Stainless Steel includes delrin(tm) base. Order Backing Plate 97-53 separately. Specifications: Eye Width 1" (25 mm) Eye Height 13/16" (21 mm) Eye Stock 3/8" (10 mm) Length 2-1/2" (64 mm) Width 2-1/2" (64 mm) Fasteners (4), 1/4" FH (6 mm) C/C A 1" (25 mm) C/C B 1-1/2" (38 mm) SWL 4000 lbs. (1800 kg)  Specifications: Color: Stainless Box Dimensions: 2"H x 3"W x 4"L WT: 0.5 lbs UPC: 740507007828

Read more less

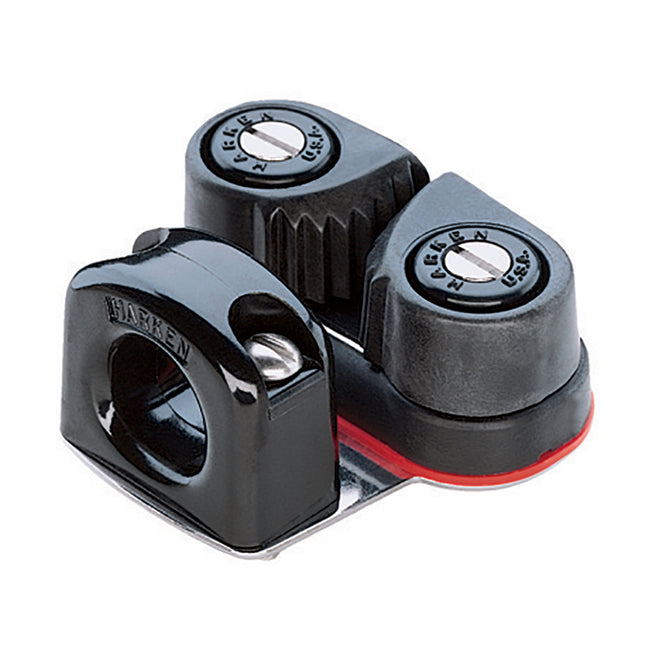

Micro Carbo-Cam Base with BullseyeMicro Carbo-Cam® with bullseye keeps line fair. Mounts on stainless steel base.Specifications: Height: 22mm / 7/8in. Weight: 50g / 1.75oz Minimum line: 3mm / 1/8in Maximum line: 6mm / 1/4in Fastener spacing: 27mm / 1-1/16in Fasteners: 4 FH mm / #8 FH in Maximum working load: 68kg/ 150lb

Read more less

Hinged Mini Pad Eye - 3/16"This pad eye is a smaller version of our popular #48-580 pad eye. This unit is suitable for awnings and many other tie-down applications. The working load should not exceed 400 lbs. The material is all T-316 stainless. Fastens with (2) 1/4″ bolts (not supplied).

Read more less

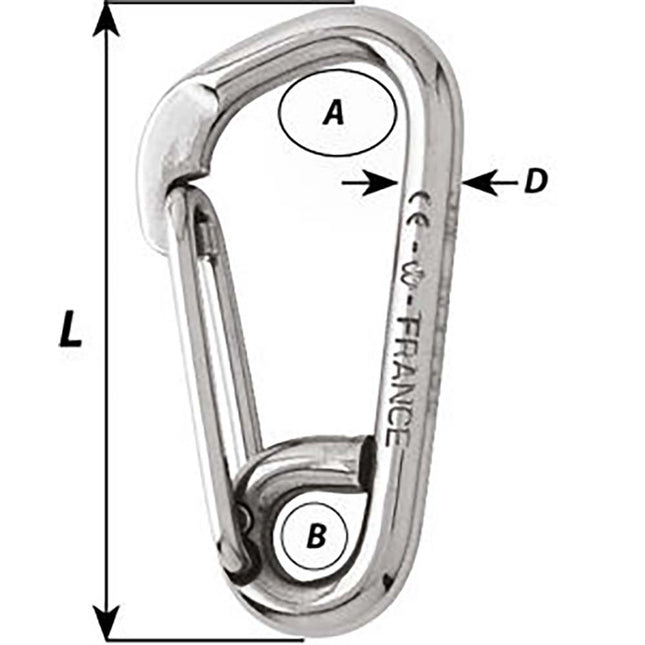

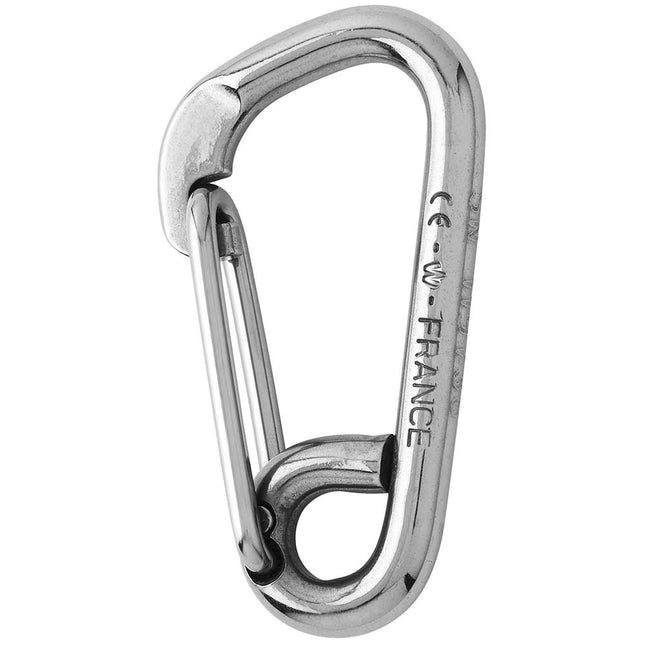

Asymmetric Carbine Hook - Length 80mm - 5/16"Features: Grade 316L stainless steel carbine hooks Asymmetrical shape to support higher loads With eye to attach a webbing Applications: For fastening applications Integrated on Wichard tethers Specifications: Materials 316L stainless steel grade Length (inch) 3-5/32" Working load (lb) 2110 WLL (lb) 660 Breaking load (lb) 3300 Weight (lb) 0.161 Dimensions (see 2nd image): A (inch) 19/32" B (inch) 7/16" D diameter (inch) 5/16"

Read more less

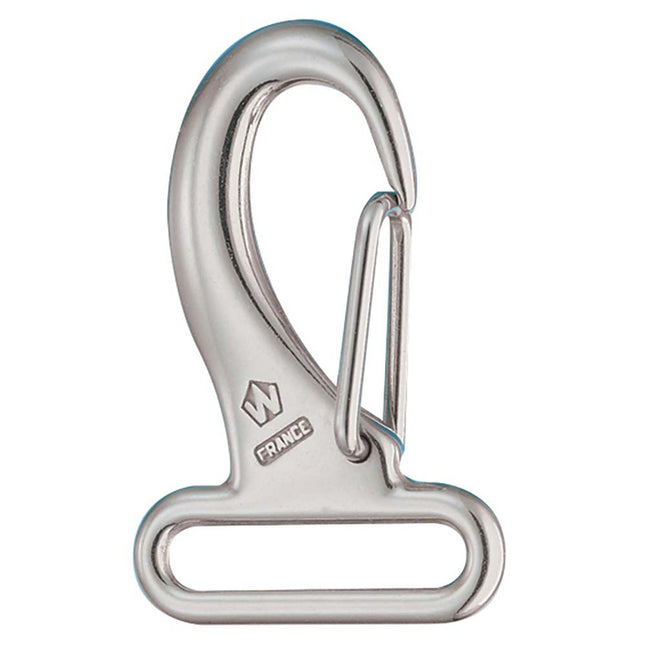

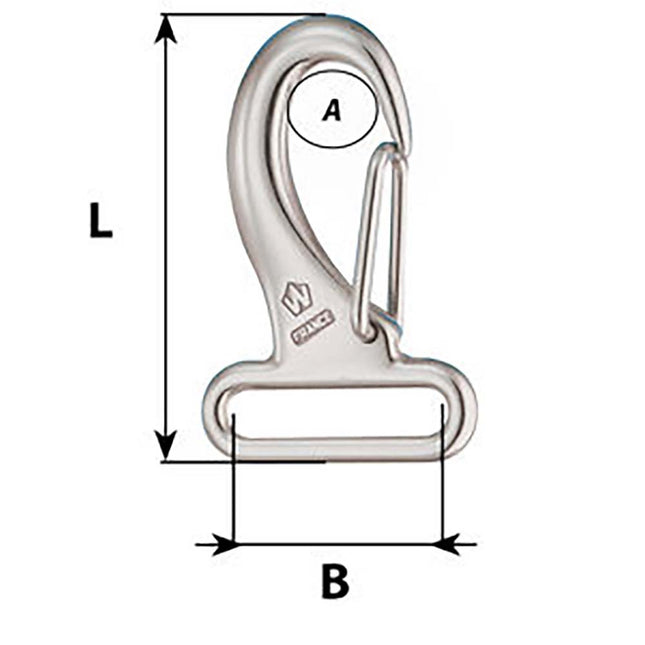

Webbing Snap Hook - 30mm - Length 60mmFeatures: Grade 316L forged webbing snap hook Various applications onboard Outstanding working and breaking loads Modern design Applications:Various uses onboard: canopy installation fastening applications…Specifications: Materials 316L stainless steel grade Length (inch) 2-23/64" Working load (lb) 440 Breaking load (lb) 660 Weight (lb) 0.077 Dimensions (see 2nd image): A (inch) 5/16" B (inch) 1-3/16"

Read more less

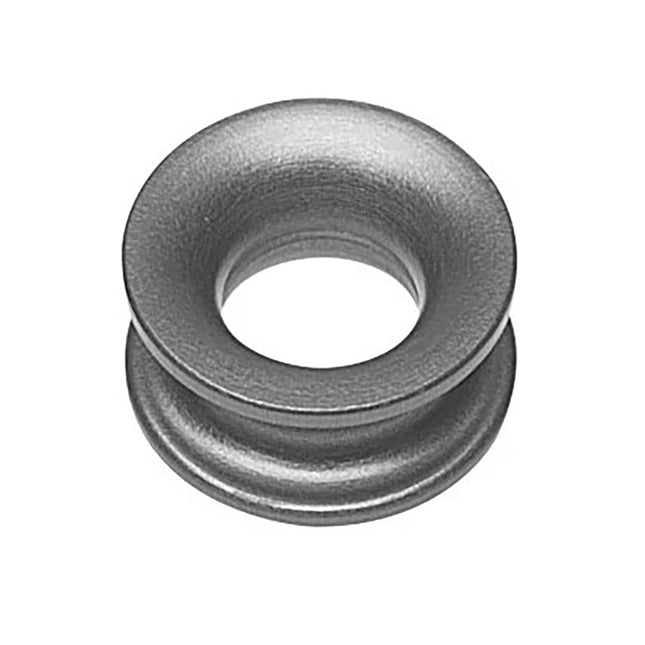

High Load Eye 6mm BoreAvailable in six sizes. Manufactured in marine-grade aluminum with a hard anodized finish. These lightweight high-load eyes are suitable for a variety of uses on board, from lazy jacks, barber haulers, and ast base tidies to stanchion lead eyes. The smallest size can be attached using a 3mm line with a bullseye diameter of 6mm. The largest size can be attached using a 16mm line with a bullseye diameter of 28mm.Ergonomically designed to maximize the strength and efficiency of the eye. With HV500 hard anodizing and the profile of the curved surfaces, these have been developed to keep friction as low as possible. The range has amazing strength-to-weight ratios, making them ideal for use as kickers, tweakers, genoa barber haulers, and anywhere where weight saving and strength are important.Wear ResistanceThe hard anodizing HV500 has amazing low friction properties. After over 300 hours on an abrasion test machine, no visual signs of wear on the anodized coating could be found.Features: High load eye compared to a standard plain bearing block on average across the range Friction increased by only 15% Strength increased by 272% Weight reduced by 51% Data based on using 4mm D12 SK75 Dyneema core

Read more less

Size 5 54mm Plain Bearing Pulley Block Single Block Fixed EyeThe Size 5 Barton range of blocks has a 54mm 2 1/8" sheave. They are a rugged construction, featuring high-grade molded side plates that are through-bolted and riveted for added strength and security. All load-carrying components and interior frame are from marine grade 316 stainless steel and both plain and ball bearing sheaves are available. This sleek and versatile range is engineered for use on larger cruising and racing yachts and is compatible with our ball-bearing mainsheet traveler system.The 54mm sheave Size 4 range is of rugged construction, featuring high-grade molded side plates that are through-bolted and riveted for added strength and security. All load-carrying components and interior frame are from marine grade 316 stainless steel and both plain and ball bearing sheaves are available. This sleek and versatile range is engineered for use on larger cruising and racing yachts and is compatible with our ball bearing mainsheet traveller system.Suitable for up to 1 to 2mm 7/16" rope. Quick Guide (pdf)

Read more less

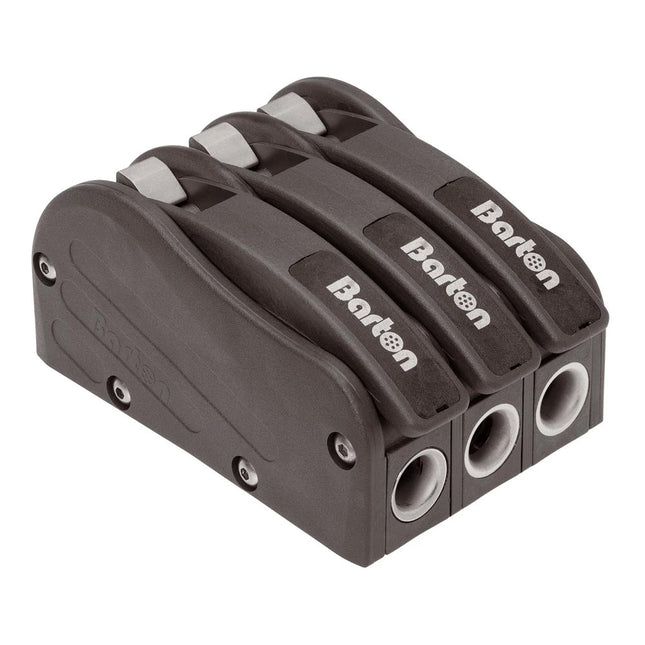

Triple DO 550 Rope ClutchModern, high-performance materials. Manufactured from modern lightweight materials, the DO 550 molded parts are from high-grade plastics that are strong, light, and impact-resistant. Cams and bases are from marine grade aluminum, anodized for long life in the harsh marine environment.True clutch mechanismThis true clutch mechanism allows lines to be adjusted through the unit in the closed, locked position with minimal slippage. Release under load is positive and requires little effort. The mechanism’s opening and closing action is precise and easy to operate, even with cold, wet hands. A positive handle lock in the closed position is also featured.Kind to linesThe clutch’s cam and base, manufactured from high grade extruded aluminium, feature a specially tempered tooth design which allows for maximum grip with minimal slippage, whilst being kind to your lines.Stainless steel rope fairleads are fitted to both line entry and exit points; a feature which helps to prevent wear to both clutch and lines.Bolt-together construction for straightforward servicingThe DO 550 clutch range features the advantage of a bolt together construction which allows for ease of servicing and replacement of parts. A full range of components is available from our Barton stockist.Important fitting notes: rope clutchesWhen fitting ensure a fair lead straight through the clutch to prevent wear to side plates and/or reducedload capabilities.For best performance site clutch approximately 1ft (300mm) forward of the winch to ensure a fair leadboth vertically and horizontally.Use Barton deck organisers forward of the clutch to gain perfect alignment.Always use a bolt-through fastening with a suitable sealant.A drilling template is provided on our packaging for your convenience.Ergonomically designed handleThe handle is strong and easy to grip, with a positive smooth lock and unlock action.A unique feature of this new design is the removable insert on the top face of the handle.These inserts are available packaged separately with a selection for both cruising and racing yachts.
