Sailing - Shackles/Rings/Pins

HR Quick Release Snap Shackle With Large Bail - 90mm Length - 3-35/64"Features: HR forged (17.4 PH) quick-release snap shackle with large bail The opening is made by pulling the lanyard Perfect to attach several lines (spinnaker sheets...) Outstanding working and breaking loads Free rotation of the snap shackle thanks to the swivel Applications: For spinnaker operations Perfect to attach several lines: spinnaker sheets... Specifications: Materials: HR 17.4 PH stainless steel grade Working load: (lb) 2820 / (kg) 1280  Breaking load: (lb) 4400 / (kg) 2000  Weight: (lb) 0.22 / (g) 100 Dimensions: A; (inch) 5/8" / (mm) 16  B: (inch) 29/32" / (mm) 23  Length: (inch) 3 35/64" / (mm) 90  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)

Read more less

Softlink 4.0 Soft Shackle - 4mm Diameter - 5/32" - 80mm Length - 3-5/32"Features:  SoftLink is a soft shackle developed by Wichard for recreational sailors looking for performance and ease of use. For the same strength, SoftLink is 4 or 5 times lighter than a 316L stainless steel shackle. No knowledge of ropework required Replaces shackles and snap hooks Easy to fit and easy to open Remarkably light and strong Re-usable 3 sizes available Applications: Fastenings Replaces shackles and snap hooks  Specifications: Materials: 316L stainless steel grade Dyneema SK78Dimensions: Loop diameter: (inch) 5/32" / (mm) 4  Loop length: (inch) 3 5/32" / (mm) 80  Working load: (lb) 5070 / (kg) 2300  Breaking load: (lb) 6610 / (kg) 3000  Weight: (lb) 0.051 / (g) 23  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

20mm Lead RingLead Rings are simple, weight-saving devices used to route line for jib in-haulers, twings, barberhaulers, lazy jacks, cascading backstays and other applications requiring minimal fine-tune adjustments. Rings are Hard Lube-anodized 6061-T6 aluminum for a smooth, slippery surface, and with no moving parts, wear is minimal.Features: Center Hole: 20mm (9/16") Outer groove width: 14mm (9/16")

Read more less

Brass Snap Shackle - Fixed Bail - 41.5mm(1-5/8") LengthFeatures: Brass body and plunger pin Full release arm Heavy duty stainless steel plunger spring and precision components ensure dependable service Split ring on plunger pin for pull-line attachment

Read more less

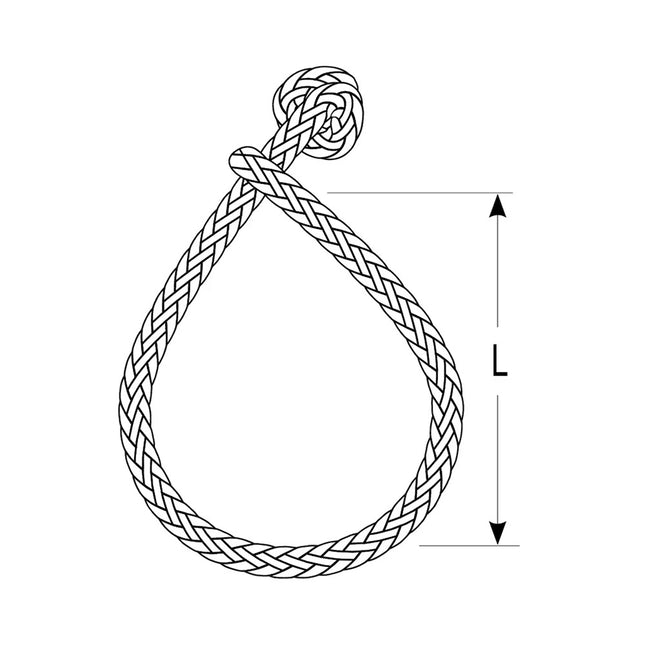

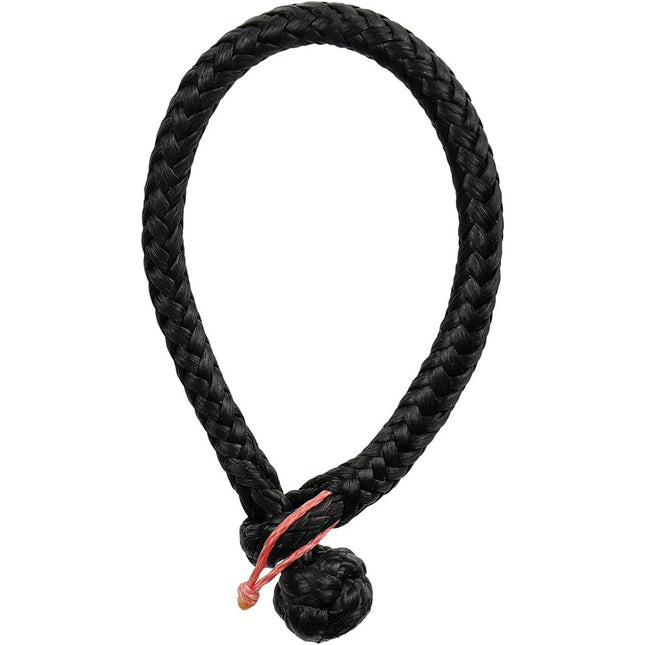

Soft Shackle - Size XS - 2.5mm x 50mm with Robline LineFeatures: Small-diameter puller line allows for easy removal after the soft shackle has been loaded Lightweight and easy on the boat Alternative to traditional metal shackles SK98 Dyneema® Soft Links UHMWPE Soft Shackles XG coating for UV stability and resistance to abrasion Quick Guide (pdf)

Read more less

Drop Nose Pin 6mm x 50mmThis drop-nose pin is manufactured from 316 stainless steel and barrel-finished for a smooth, high-shine surface finish. It has a spring-loaded mechanism that positively locks the pin in either the open or closed position. The standard head features an annular groove for attachment of a retaining wire if required for larger bespoke pins and retaining wires.Specifications: Working Length: 50mm Pin Diameter: 6mm Weight: 0.03kg

Read more less

FLO Tell Tale - 6 PackThe telltale is a product that has not evolved, been updated, or been improved since it was designed, despite major flaws, until now.SeaSure’s "FLO" tell tales are shaped like an aerofoiled teardrop and manufactured from glass-filled nylon. The rounded top surface of the teardrop allows the wool to stand 6mm off the sail so that the wool never gets stuck to the sail when it is wet. This means that whether it is raining or you have just recovered from a capsize, you will be able to carry on sailing and get the feedback you need from the sail right away.FLO has been designed by former America's Cup designer and current coach of the British Olympic Team, Derek Clark. FLO has been tested and used around the world by world champions.Specifications: Package Includes: 3 red and 3 green telltales Weight: 0.02kg

Read more less

Quick Release Pin - 1/4" x 1" GripQuick Release Pin, 1/4" x 1.0" Grip. 316 Stainless Steel. Safe Working Load 3000 lbs.

Read more less

HR Quick Release Snap Shackle With Swivel Eye - 80mm Length - 3-5/32"Features: HR forged (17.4 PH) quick-release snap shackle with swivel eye The opening is made by pulling the lanyard Perfect to attach one sheet or halyard Outstanding working and breaking loads Free rotation of the snap shackle thanks to the swivel Applications: For spinnaker operations Perfect for spinnaker sheets and halyards Specifications: Materials: HR 17.4 PH stainless steel grade Working load: (lb) 2820 / (kg) 1280  Breaking load: (lb) 5070 / (kg) 2300  Weight: (lb) 0.194 / (g) 88  Dimensions: A: (inch) 5/8" / (mm) 16  B: (inch) 15/32" / (mm) 12  Length: (inch) 3 5/32" / (mm) 80  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)

Read more less

HR Snap Shackle - Large Bail - Length 80mmFeatures: HR Forged snap shackle (Grade 17.4 PH stainless steel)  with large eye The large eye allows attaching several ropes Free rotation of the snap shackle thanks to the swivel eye The plunger pin is set captive into the hook and cannot become detached Excellent working and breaking loads Easy to open by pulling the plunger pin (possibility to attach a lanyard) Applications: Snap shackle applications Applications requiring a free rotation of the snap shackle (for a better sail orientation) Specifications: Materials HR 17.4 PH stainless steel grade Length (inch) 3-5/32" Working load (lb) 2110 Breaking load (lb) 4400 Weight (lb) 0.154 Dimensions (see 2nd image): A (inch) 5/8" B (inch) 3/4"

Read more less

Self-Locking D Shackle - Diameter 5mm - 3/16"Features: Self-locking D shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking and batch number Applications: Standard applications of the shackle Attachment applications: blocks, head… Specifications: Materials 316 stainless steel grade Working load (lb) 700 WLL (lb) 300 Breaking load (lb) 1540 Weight (lb) 0.015 Dimensions (see 2nd image): A (inch) 33/64" B (inch) 5/16" C (inch) 5/32" D (inch) 5/16" D diameter (inch) 5/32" E (inch) 1/8" F (inch) 29/32" G (inch) 25/32"

Read more less

Stamped "D" Shackle - 1/4"Pin Dia. 1/4" (6 mm), Depth 13/16" (21 mm), Width 1/2" (13 mm), SWL 1750 lbs. (795 kg), Weight 0.6 oz. (17 g)

Read more less
