Sailing - Shackles/Rings/Pins

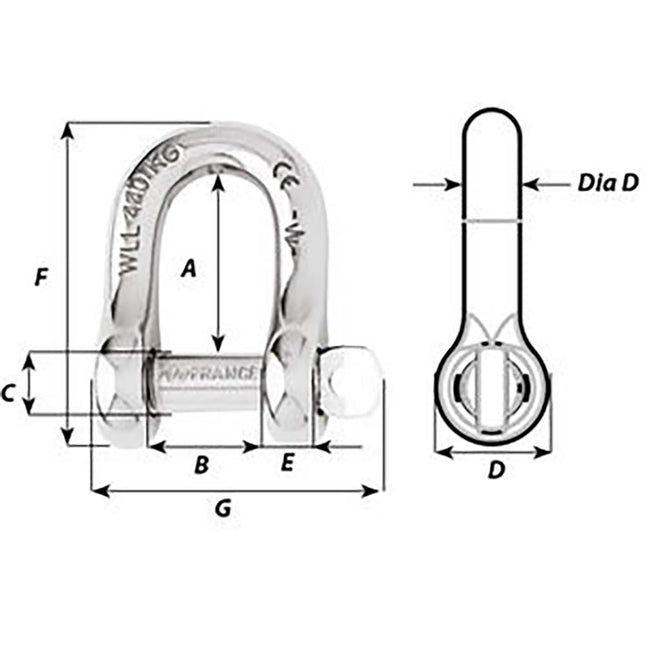

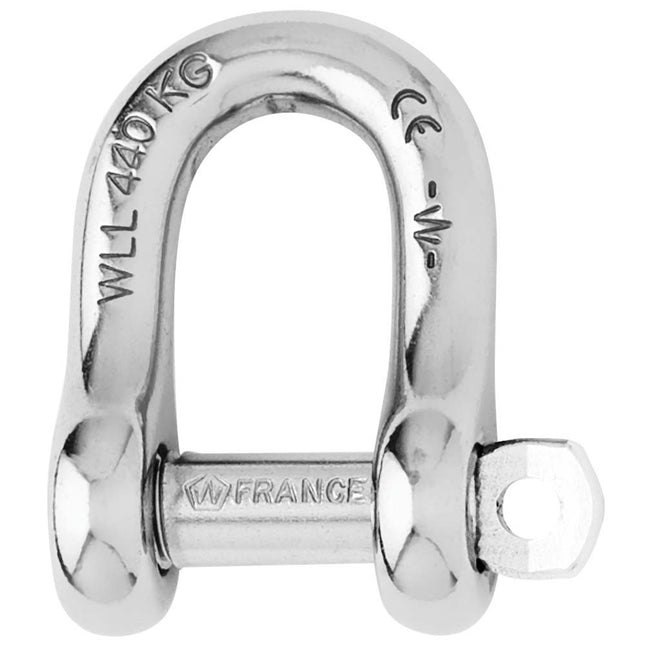

Self-Locking Allen Head Pin D Shackle - 6mm Diameter - 1/4"Features: Self-locking shackle with allen head pin D forged in grade 316L stainless steel The pin is locked into one of the indentations The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking Applications: Ideal to link chains and anchor On the halyard, avoids damaging the sails To be used when the clutter is reduced  Specifications: Materials: 316 stainless steel grade  Working load: (lb) 1320 / (kg) 600  WLL: (lb) 700 / (kg) 320  Breaking load: (lb) 3520 / (kg) 1600  Weight: (lb) 0.049 / (g) 22  Dimensions: A: (inch) 3/4" / (mm) 19  B: (inch) 15/32" / (mm) 12  C: (inch) 15/64" / (mm) 6  D: (inch) 15/32" / (mm) 12  D diameter: (inch) 15/64" / (mm) 6  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

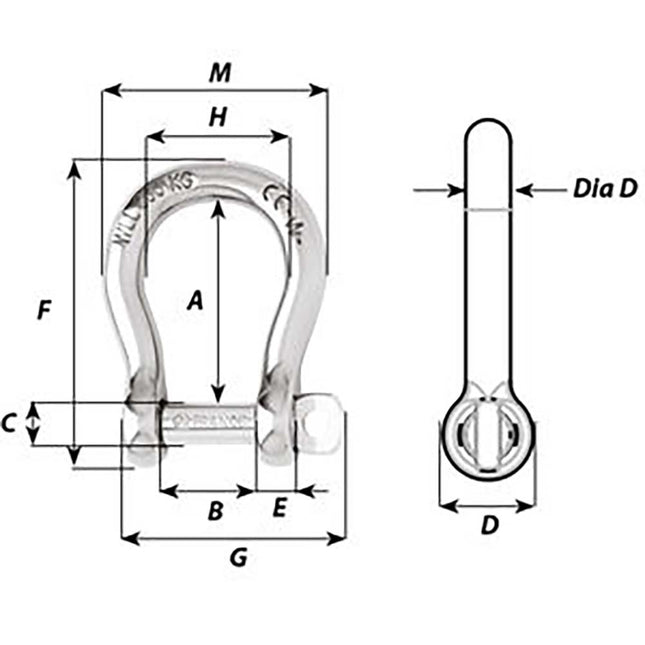

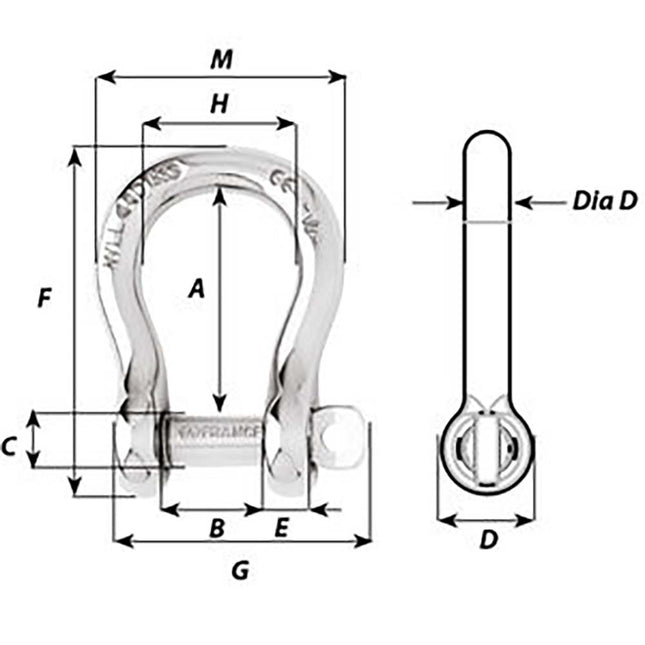

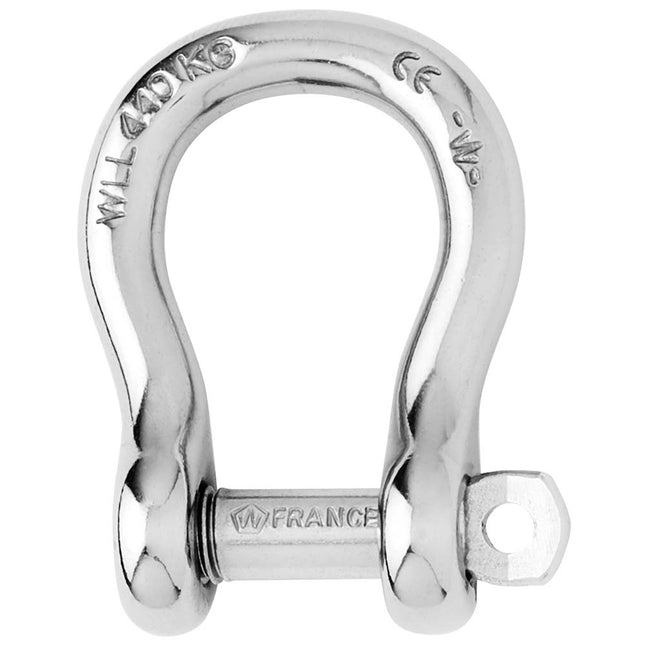

Self-Locking Bow Shackle - Diameter 6mm - 1/4"Features: Self-locking bow shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking and batch number Applications: To be used when ample room is required Possibility to attach several lines or cables Specifications: Materials 316 stainless steel grade Working load (lb) 1320 WLL (lb) 660 Breaking load (lb) 3300 Weight (lb) 0.066 Dimensions (see 2nd image): A (inch) 1-7/64" B (inch) 15/32" C (inch) 15/64" D (inch) 15/32" D diameter (inch) 15/64" E (inch) 13/64" M (inch) 1-17/64"

Read more less

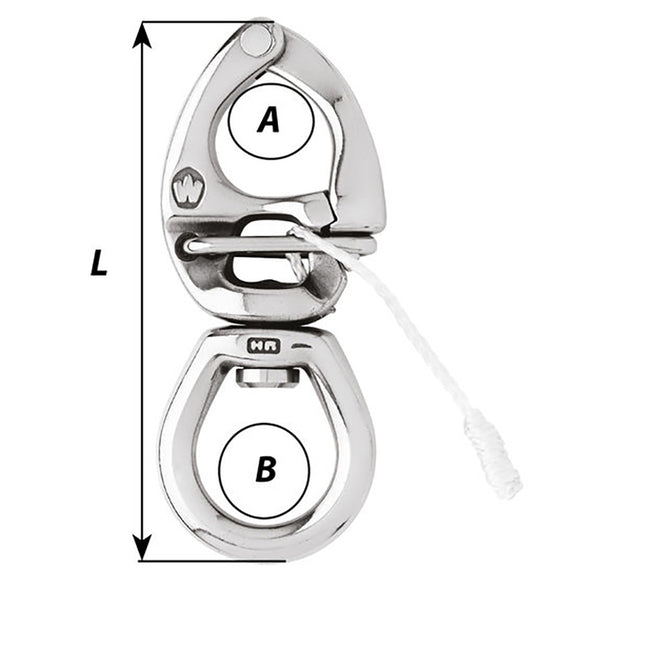

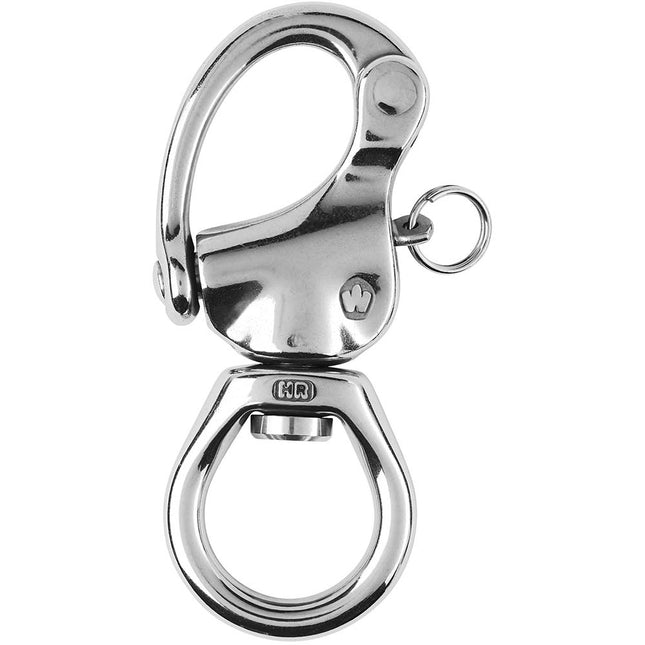

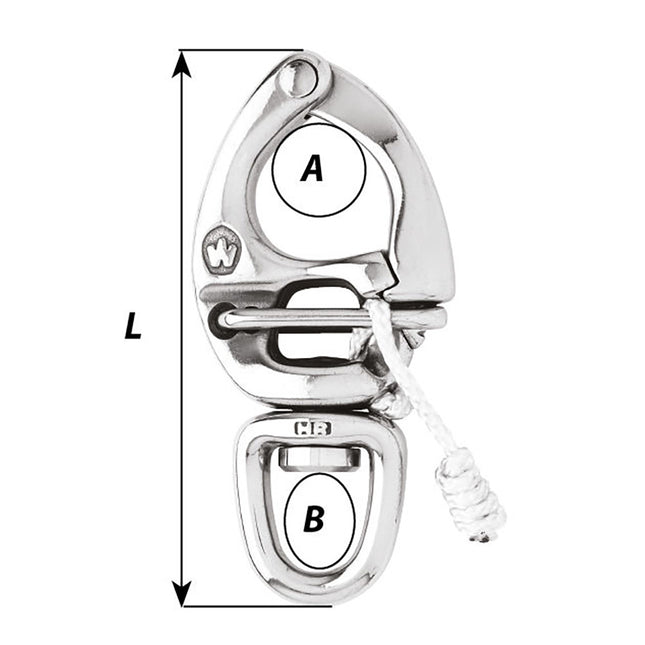

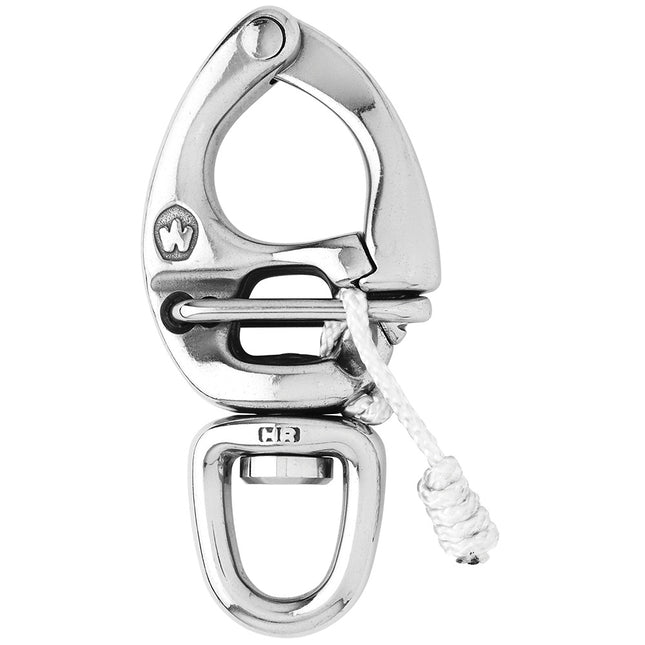

HR Quick Release Snap Shackle w/Large Bail - Length 4-3/4"Features: HR forged (17.4 PH) quick release snap shackle with large bail The opening is made by pulling the lanyard Perfect to attach several lines (spinnaker sheets...) Outstanding working and breaking loads Free rotation of the snap shackle thanks to the swivel Applications: For spinnaker operations Perfect to attach several lines: spinnaker sheets Specifications: Materials HR 17.4 PH stainless steel grade Length (inch) 4-3/4" Working load (lb) 5290 Breaking load (lb) 8810 Weight (lb) 0.597 A (inch) 63/64" B (inch) 1 7/32"

Read more less

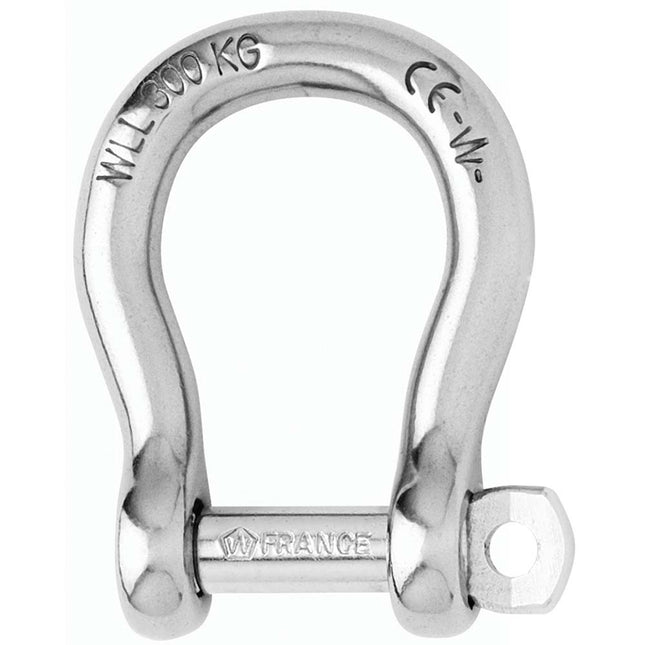

Self-Locking Bow Shackle - Diameter 4mm - 5/32"Features: Self-locking bow shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking and batch number Applications: To be used when ample room is required Possibility to attach several lines or cables Specifications: Materials 316 stainless steel grade Working load (lb) 700 WLL (lb) 300 Breaking load (lb) 1540 Weight (lb) 0.02 Dimensions (see 2nd image): A (inch) 45/64" B (inch) 5/16" C (inch) 5/32" D (inch) 5/16" D diameter (inch) 5/32" M (inch) 53/64"

Read more less

Self-Locking Bow Shackle - Diameter 10mm - 13/32"Features: Self-locking bow shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking and batch number Applications: To be used when ample room is required Possibility to attach several lines or cables Specifications: Materials 316 stainless steel grade Working load (lb) 3350 WLL (lb) 1890 Breaking load (lb) 9470 Weight (lb) 0.302 Dimensions: A (inch) 1-27/32" B (inch) 25/32" C (inch) 25/64" D (inch) 25/32" D diameter (inch) 25/64" E (inch) 23/64" M (inch) 2-3/64"

Read more less

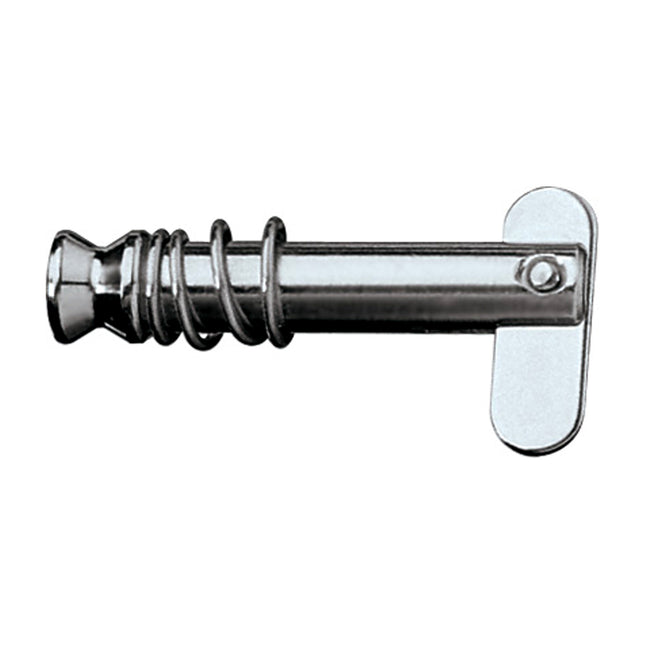

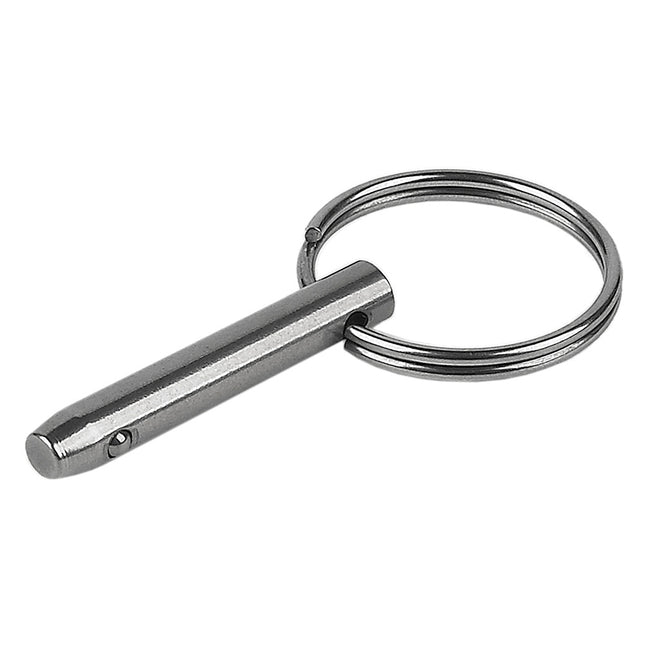

Quick Release Pin - 5/16" x 1" GripQuick Release Pin, 5/16" x 1.0" Grip. 316 Stainless Steel. Safe Working Load 3000 lbs.

Read more less

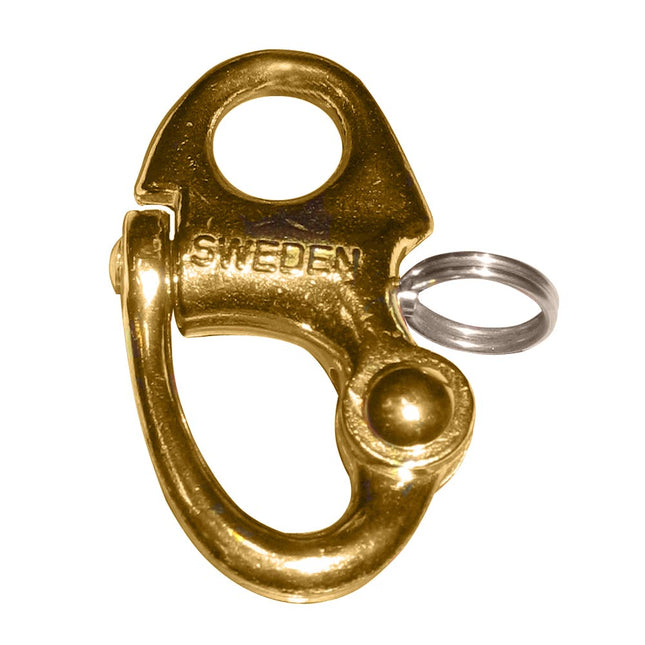

Brass Snap Shackle - Fixed Bail - 59.3mm(2-5/16") LengthFeatures: Brass body and plunger pin Full release arm Heavy duty stainless steel plunger spring and precision components ensure dependable service Split ring on plunger pin for pull-line attachment

Read more less

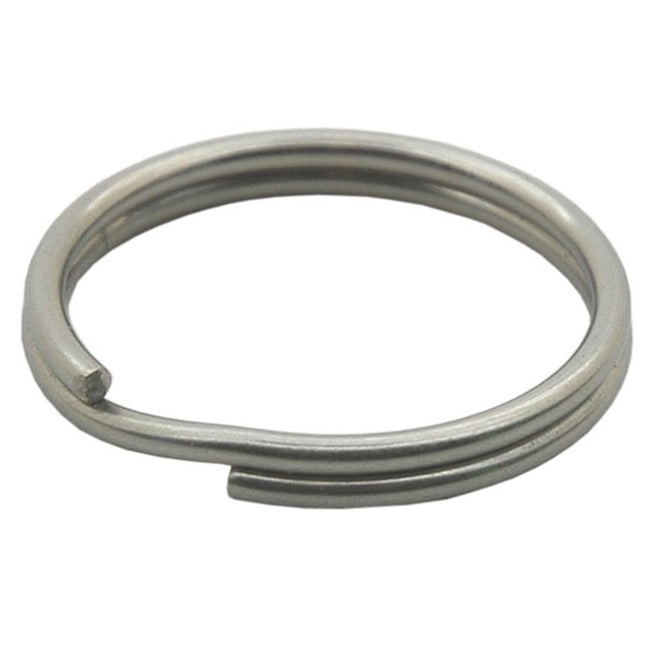

Split Cotter Ring - 25mm(1") IDSuits clevis pins RF267 - RF278Grade 316 Stainless Steel

Read more less

Split Cotter Ring - 18.8mm(3/4") IDSuits clevis pins RF260 - RF274Grade 316 Stainless Steel

Read more less

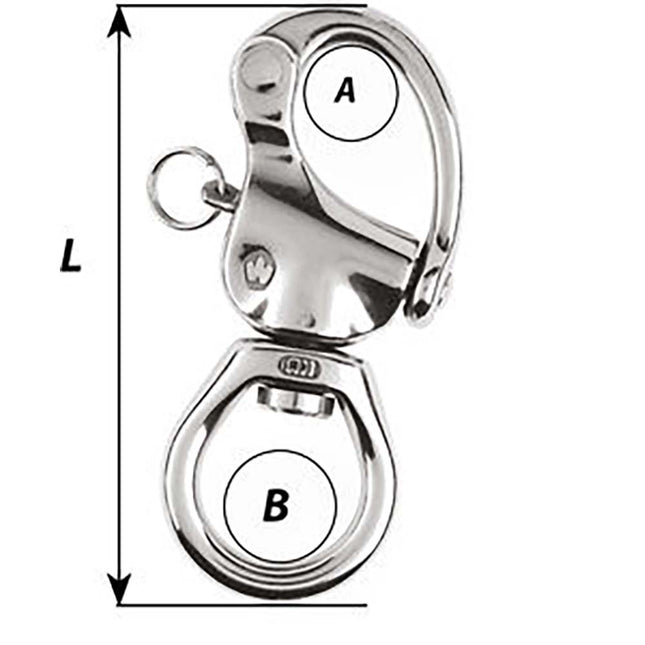

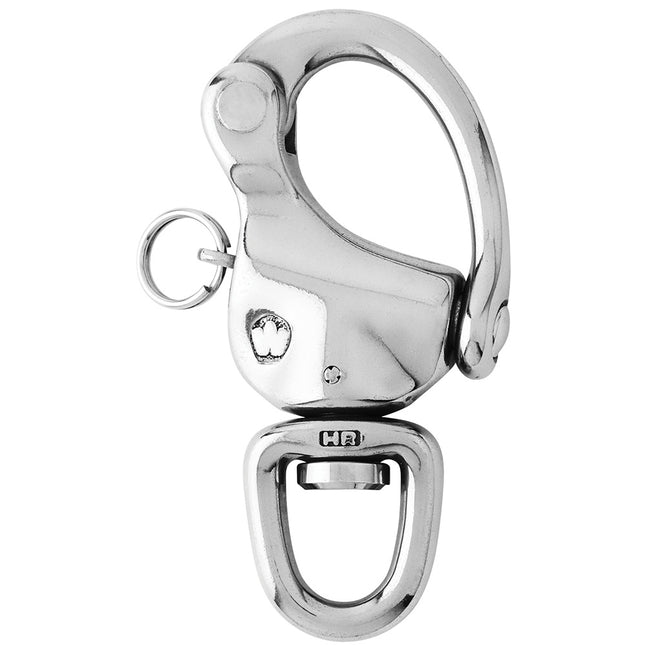

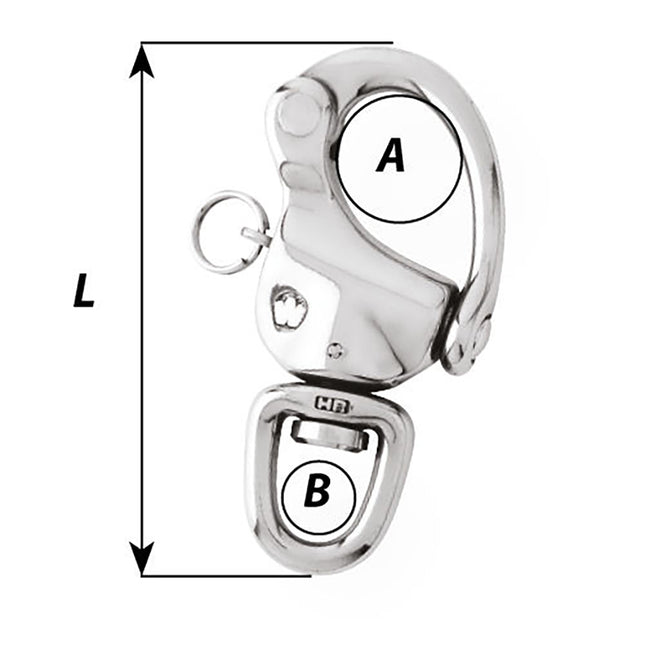

HR Quick Release Snap Shackle with Swivel Eye - Length 2-3/4"Features: HR forged (17.4 PH) quick release snap shackle with swivel eye The opening is made by pulling the lanyard Perfect to attach one sheet or halyard Outstanding working and breaking loads Free rotation of the snap shackle thanks to the swivel Applications: For spinnaker operations Perfect for spinnaker sheets and halyards Specifications: Materials HR 17.4 PH stainless steel grade Length (inch) 2 3/4" Working load (lb) 1940 Breaking load (lb) 3300 Weight (lb) 0.13 A (inch) 35/64" B (inch) 7/16"

Read more less

Halyard Shackle - 4.8mm(3/16") PinHalyard Shackles have a lever action for easy opening and closing, with a keyed pin for positive lockingFeatures: High strength to weight ratio Grade 316 stainless steel bodies and pins

Read more less

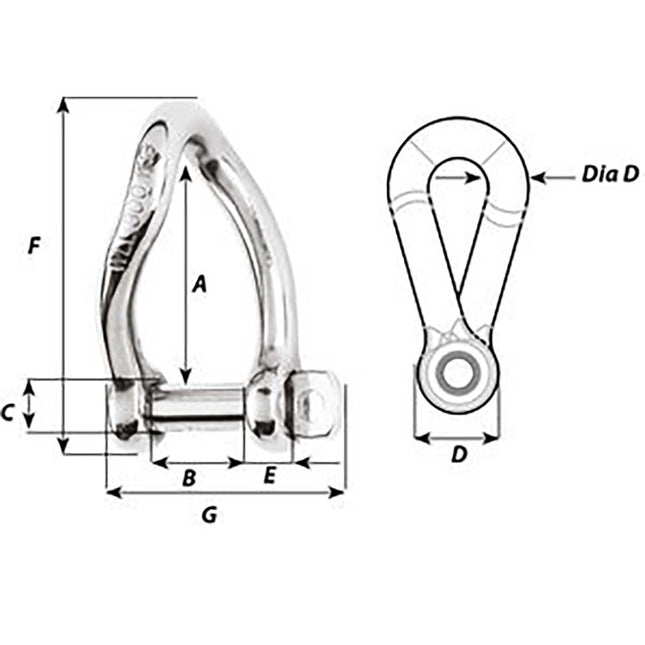

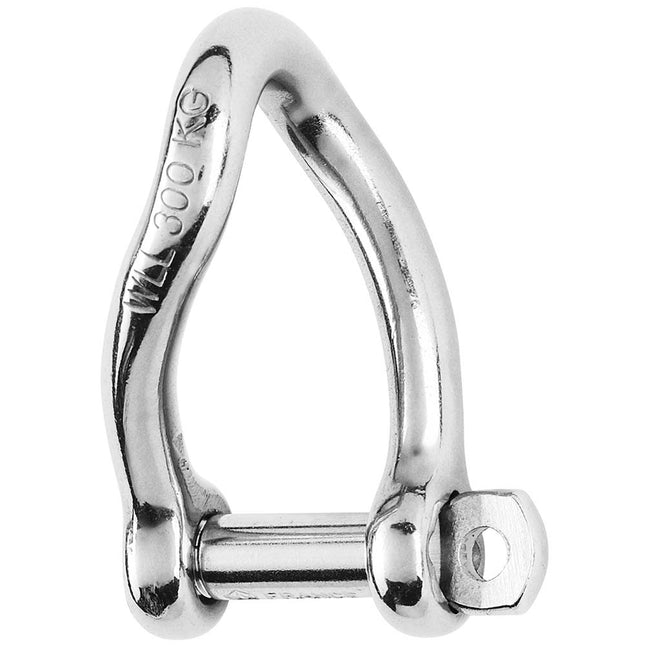

Self-Locking Long D Shackle - Diameter 6mm - 1/4"Features: Self-locking long shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications CE Marking and batch number Applications: Standard applications of shackle requiring more length Attachment applications: blocks, head... Specifications: Materials 316 stainless steel grade Working load (lb) 1320 WLL (lb) 700 Breaking load (lb) 3520 Weight (lb) 0.06 Dimensions (see 2nd image): A (inch) 1-19/64" B (inch) 15/32" C (inch) 15/64" D (inch) 15/32" D diameter (inch) 15/64" E (inch) 13/64" F (inch) 1-27/32" G (inch) 1-7/32"
