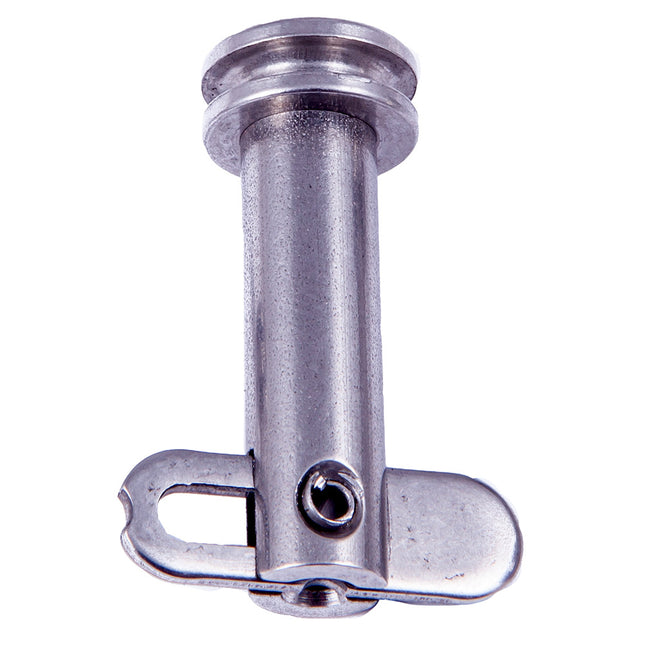

Drop Nose Pin 8mm x 40mmThis drop-nose pin is manufactured from 316 stainless steel and barrel-finished for a smooth, high-shine surface finish. It has a spring-loaded mechanism that positively locks the pin in either the open or closed position. The standard head features an annular groove for attachment of a retaining wire if required for larger bespoke pins and retaining wires.Specifications: Working Length: 40mm Pin Diameter: 8mm Weight: 0.016kg

Read more less

Drop Nose Pin 8mm x 30mmThis drop-nose pin is manufactured from 316 stainless steel and barrel-finished for a smooth, high-shine surface finish. It has a spring-loaded mechanism that positively locks the pin in either the open or closed position. The standard head features an annular groove for attachment of a retaining wire if required for larger bespoke pins and retaining wires.Specifications: Working Length: 30mm Pin Diameter: 8mm Weight: 0.014kg

Read more less

Drop Nose Pin 5mm x 25mmThis drop-nose pin is manufactured from 316 stainless steel and barrel-finished for a smooth, high-shine surface finish. It has a spring-loaded mechanism that positively locks the pin in either the open or closed position. The standard head features an annular groove for attachment of a retaining wire if required for larger bespoke pins and retaining wires.Specifications: Working Length: 25mm Pin Diameter: 5mm Weight: 0.014kg

Read more less

Drop Nose Pin 8mm x 20mmThis drop-nose pin is manufactured from 316 stainless steel and barrel-finished for a smooth, high-shine surface finish. It has a spring-loaded mechanism that positively locks the pin in either the open or closed position. The standard head features an annular groove for attachment of a retaining wire if required for larger bespoke pins and retaining wires.Specifications: Working Length: 20mm Pin Diameter: 8mm Weight: 0.01kg

Read more less

Drop Nose Pin 5mm x 40mmThis drop-nose pin is manufactured from 316 stainless steel and barrel-finished for a smooth, high-shine surface finish. It has a spring-loaded mechanism that positively locks the pin in either the open or closed position. The standard head features an annular groove for attachment of a retaining wire if required for larger bespoke pins and retaining wires.Specifications: Working Length: 40mm Pin Diameter: 5mm Weight: 0.018kg

Read more less

Drop Nose Pin 6mm x 50mmThis drop-nose pin is manufactured from 316 stainless steel and barrel-finished for a smooth, high-shine surface finish. It has a spring-loaded mechanism that positively locks the pin in either the open or closed position. The standard head features an annular groove for attachment of a retaining wire if required for larger bespoke pins and retaining wires.Specifications: Working Length: 50mm Pin Diameter: 6mm Weight: 0.03kg

Read more less

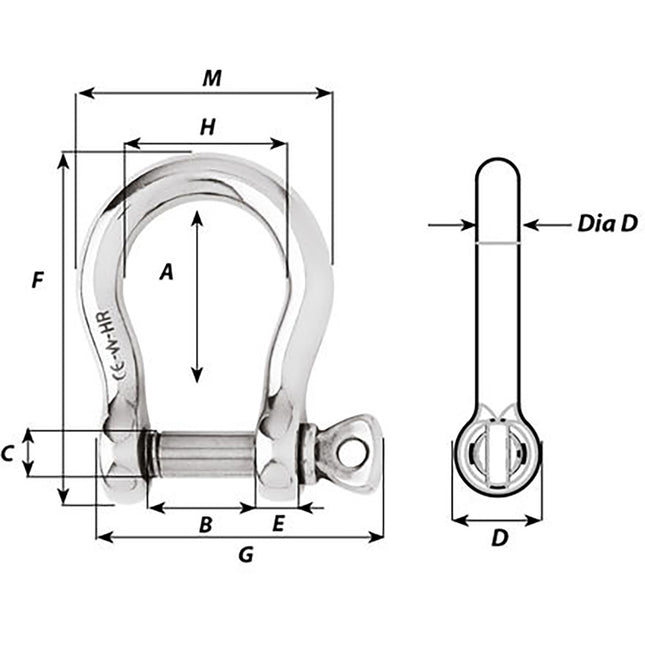

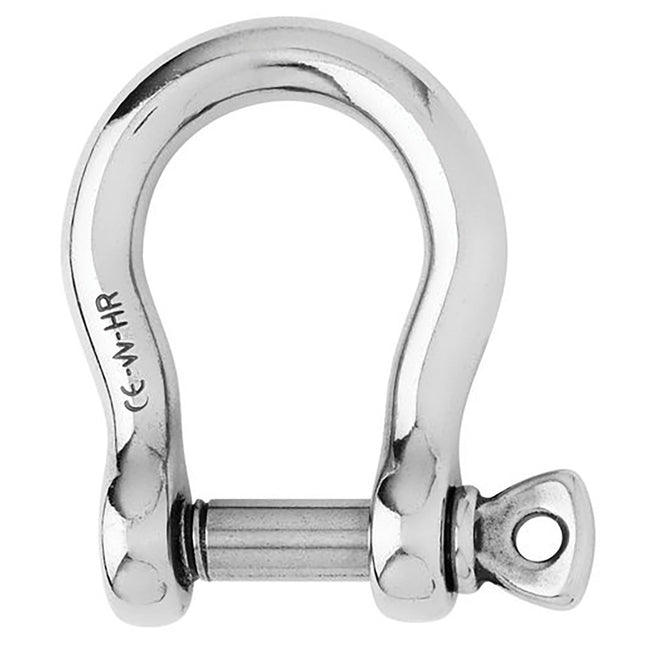

HR Bow Shackle - 16mm Diameter - 5/8"Features:  Forged bow shackle in HR stainless steel grade (17,4 PH) Outstanding working and breaking load An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel WLL: only for industrial applications (lifting i.e…) CE marking Applications: Applications requesting high loads To be used when ample room is required Possibility to attach several lines or cables Do not use it for mooring applications Specifications:  Materials: HR 17.4 PH stainless steel grade Working load: (lb) 14990 / (kg) 6800  WLL: (lb) 8370 / (kg) 3800  Breaking load: (lb) 41880 / (kg) 19000  Weight: (lb) 1.16 / (g) 526  Dimensions: A: (inch) 2 3/4" / (mm) 70  B: (inch) 1 17/64" / (mm) 32  C: (inch) 5/8" / (mm) 16  D: (inch) 1 17/64" / (mm) 32  D diameter: (inch) 5/8" / (mm) 16  E: (inch) 19/32" / (mm) 15  M: (inch) 3 17/64" / (mm) 83  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)

Read more less

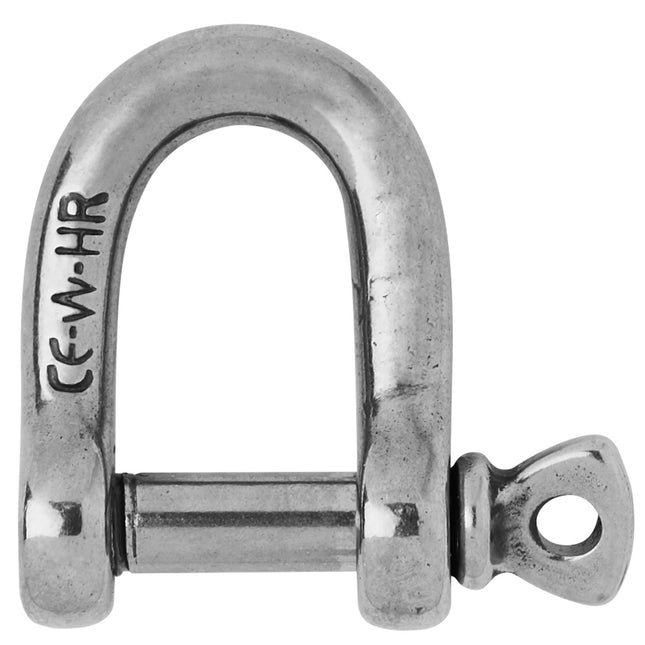

HR D Shackle - Diameter 25/64"Features: Forged D shackle in HR stainless steel grade (17,4 PH) Outstanding working and breaking load An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel WLL: only for industrial applications (lifting i.e…) CE marking and batch number Applications Applications requesting high loads Standard applications of the shackle Attachment applications: blocks, head Do not use it for mooring applications Specifications: Materials HR 17.4 PH stainless steel grade Working load (lb) 5820 WLL (lb) 2640 Breaking load (lb) 13220 Weight (lb) 0.225 A (inch) 1 19/64" B (inch) 25/32" D diameter (inch) 25/64"

Read more less

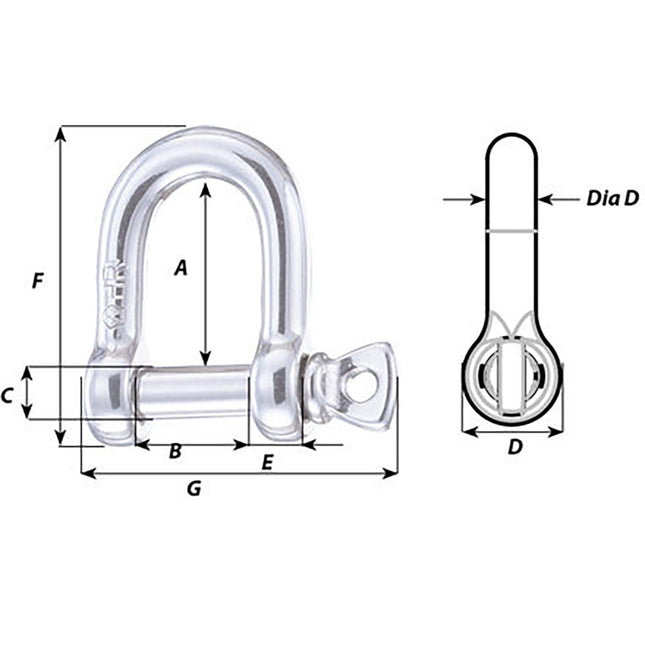

HR D Shackle - Diameter 15/64"Features: Forged D shackle in HR stainless steel grade (17,4 PH) Outstanding working and breaking load An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel WLL: only for industrial applications (lifting i.e…) CE marking and batch number Applications Applications requesting high loads Standard applications of the shackle Attachment applications: blocks, head Do not use it for mooring applications Specifications: Materials HR 17.4 PH stainless steel grade Working load (lb) 2290 WLL (lb) 1010 Breaking load (lb) 5070 Weight (lb) 0.053 A (inch) 25/32" B (inch) 15/32" C (inch) 15/64" D (inch) 5/8" D diameter (inch) 15/64" E (inch) 9/32" F (inch) 1 13/16" G (inch) 1 13/16"

Read more less

HR D Shackle - Diameter 15/64"Features: Forged D shackle in HR stainless steel grade (17,4 PH) Outstanding working and breaking load An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel WLL: only for industrial applications (lifting i.e…) CE marking and batch number Applications Applications requesting high loads Standard applications of the shackle Attachment applications: blocks, head Do not use it for mooring applications Specifications: Materials HR 17.4 PH stainless steel grade Working load (lb) 2290 WLL (lb) 1010 Breaking load (lb) 5070 Weight (lb) 0.053 A (inch) 25/32" B (inch) 15/32" C (inch) 15/64" D (inch) 5/8" D diameter (inch) 15/64" E (inch) 9/32" F (inch) 1 13/16" G (inch) 1 13/16"

Read more less

HR D Shackle - Diameter 15/32"Features: Forged D shackle in HR stainless steel grade (17,4 PH) Outstanding working and breaking load An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel WLL: only for industrial applications (lifting i.e…) CE marking and batch number Applications Applications requesting high loads Standard applications of the shackle Attachment applications: blocks, head Do not use it for mooring applications Specifications: Materials HR 17.4 PH stainless steel grade Working load (lb) 7930 WLL (lb) 4400 Breaking load (lb) 22040 Weight (lb) 0.423 A (inch) 1 17/32" B (inch) 15/16" D diameter (inch) 15/32"

Read more less

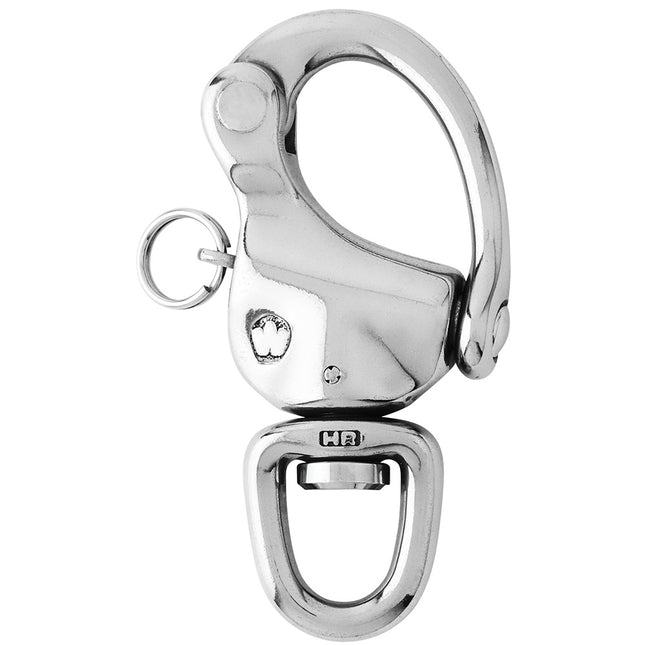

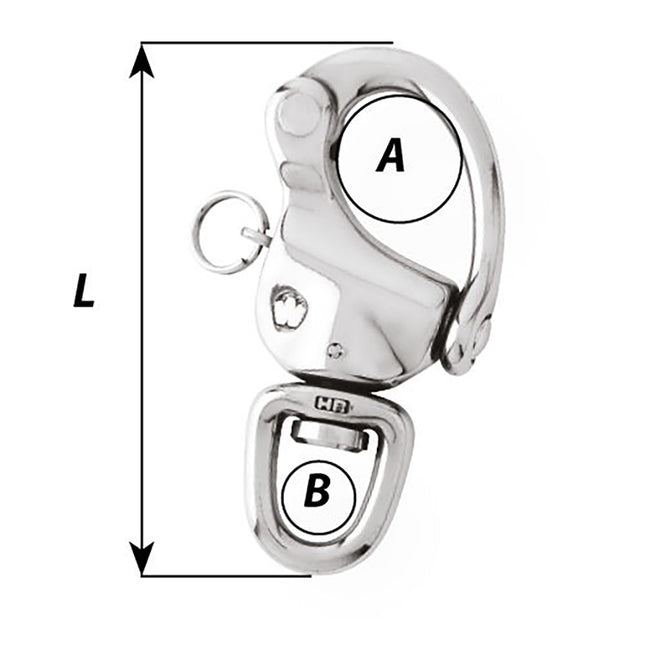

3-7/8" Snap Shackle with Swivel & Clevis PinFeatures: HR Forged snap shackle (Grade 17.4 PH stainless steel) with clevis pin swivel Free rotation of the snap shackle thanks to the swivel eye The plunger pin is set captive into the hook and cannot become detached Excellent working and breaking loads Easy to open by pulling the plunger pin (possibility to attach a lanyard) Applications:Snap shackle applications
