Sailing - Shackles/Rings/Pins

HR Quick Release Snap Shackle With Large Bail - 80mm Length - 3-5/32"Features: HR forged (17.4 PH) quick-release snap shackle with large bail The opening is made by pulling the lanyard Perfect to attach several lines (spinnaker sheets...) Outstanding working and breaking loads Free rotation of the snap shackle thanks to the swivel Applications: For spinnaker operations Perfect to attach several lines: spinnaker sheets... Specifications: Materials: HR 17.4 PH stainless steel grade Working load: (lb) 1940 / (kg) 880  Breaking load: (lb) 2860 / (kg) 1300  Weight: (lb) 0.119 / (g) 54  Dimensions: A: (inch) 35/64" / (mm) 14  B: (inch) 3/4" / (mm) 19  Length: (inch) 3 5/32" / (mm) 80  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)

Read more less

HR Quick Release Snap Shackle with Swivel Eye - Length 2-3/4"Features: HR forged (17.4 PH) quick release snap shackle with swivel eye The opening is made by pulling the lanyard Perfect to attach one sheet or halyard Outstanding working and breaking loads Free rotation of the snap shackle thanks to the swivel Applications: For spinnaker operations Perfect for spinnaker sheets and halyards Specifications: Materials HR 17.4 PH stainless steel grade Length (inch) 2 3/4" Working load (lb) 1940 Breaking load (lb) 3300 Weight (lb) 0.13 A (inch) 35/64" B (inch) 7/16"

Read more less

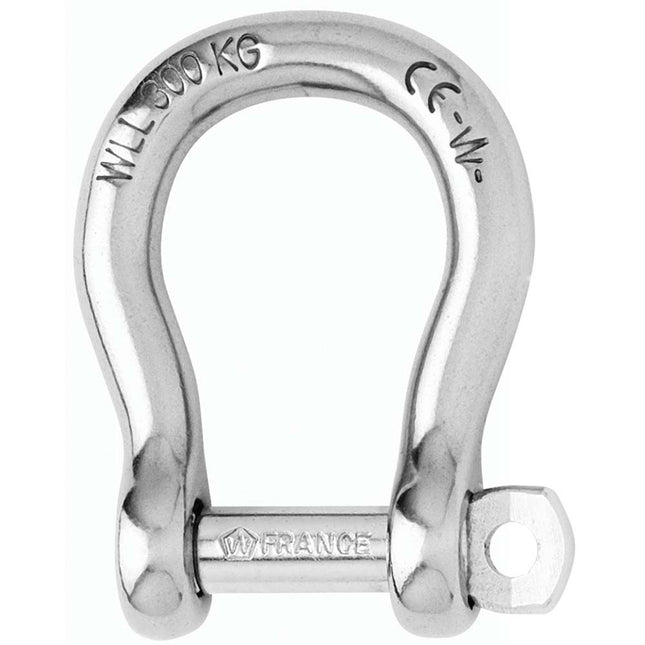

Self-Locking Bow Shackle - Diameter 4mm - 5/32"Features: Self-locking bow shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking and batch number Applications: To be used when ample room is required Possibility to attach several lines or cables Specifications: Materials 316 stainless steel grade Working load (lb) 700 WLL (lb) 300 Breaking load (lb) 1540 Weight (lb) 0.02 Dimensions (see 2nd image): A (inch) 45/64" B (inch) 5/16" C (inch) 5/32" D (inch) 5/16" D diameter (inch) 5/32" M (inch) 53/64"

Read more less

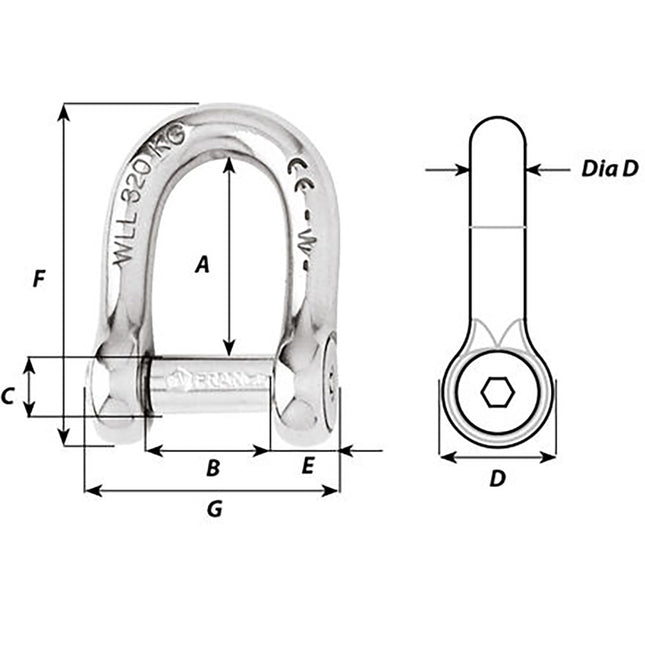

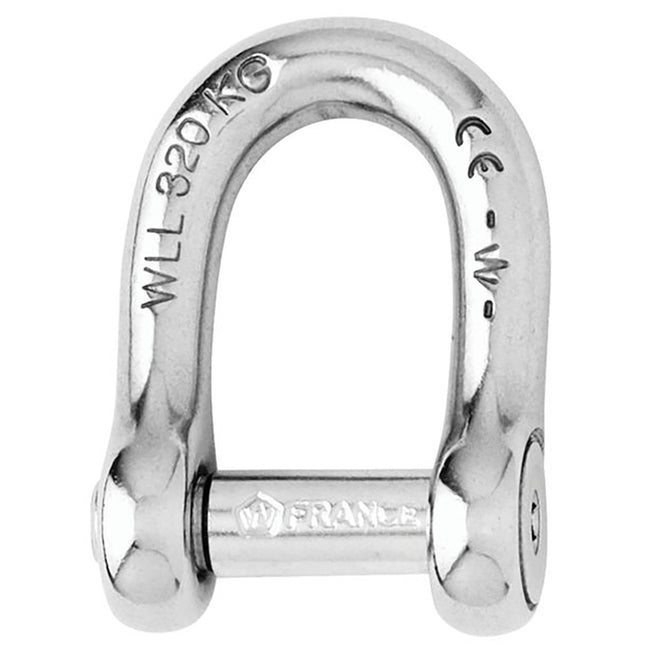

Self-Locking D Shackle - Diameter 8mm - 5/16"Features: Self-locking D shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking and batch number Applications: Standard applications of the shackle Attachment applications: blocks, head… Specifications: Materials 316 stainless steel grade Working load (lb) 2200 WLL (lb) 1190 Breaking load (lb) 5950 Weight (lb) 0.121 Dimensions (see 2nd image): A (inch) 1-1/32" B (inch) 5/8" C (inch) 5/16" D (inch) 5/8" D diameter (inch) 5/16" E (inch) 9/32" F (inch) 1-49/64" G (inch) 1-39/64"

Read more less

Captive Pin Long D Shackle - Diameter 8mm - 5/16"Features: Captive pin long "D" shackle forged in grade 316L stainless steel The pin is connected to the body at all times even when opened The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads Applications: Standard applications of shackle requiring more length Attachment applications: blocks, head... Specifications: Materials 316 stainless steel grade Working load (lb) 2200 WLL (lb) 1580 Breaking load (lb) 7930 Weight (lb) 0.203 Dimensions (see 2nd image): A (inch) 2-7/16" B (inch) 5/8" C (inch) 23/64" D (inch) 43/64" D diameter (inch) 5/16" E (inch) 5/16" F (inch) 3-15/64" G (inch) 1-11/16"

Read more less

Brass Snap Shackle - Fixed Bail - 59.3mm(2-5/16") LengthFeatures: Brass body and plunger pin Full release arm Heavy duty stainless steel plunger spring and precision components ensure dependable service Split ring on plunger pin for pull-line attachment

Read more less

Halyard Shackle - 4.8mm(3/16") PinHalyard Shackles have a lever action for easy opening and closing, with a keyed pin for positive lockingFeatures: High strength to weight ratio Grade 316 stainless steel bodies and pins

Read more less

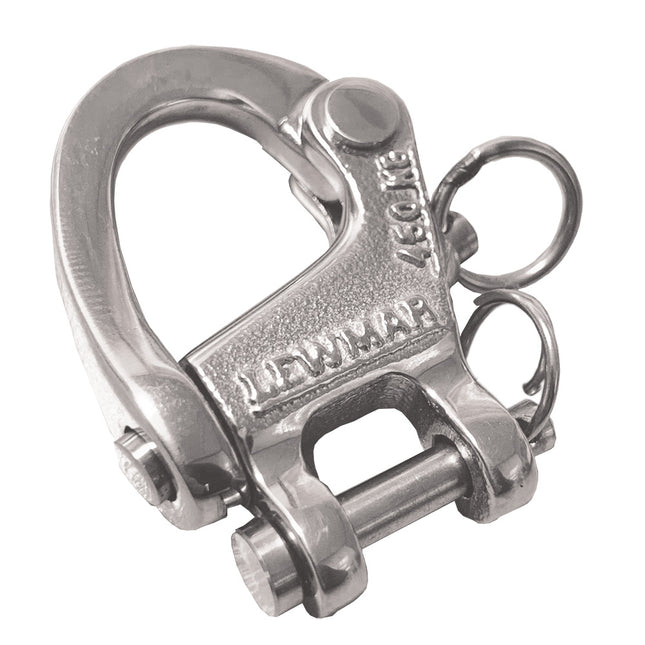

Snap Shackle - Small Swivel Bail - 92mm(3-5/8") LengthHeavy duty plunger springs and precision components ensure dependable service. Body and hasp profiles are designed for easy clearance of lines and fittings when released. High strength to weight ratio. Split ring on plunger pin is spot welded for security. A lanyard can be attached to the plunger pin for easy opening.Materials: Grade 15-5PH investment cast stainless steel body and hasp Grade 316 stainless steel plunger pin and spring

Read more less

Soft Shackle - Size M - 6mm x 90mm with Robline LineFeatures: Small-diameter puller line allows for easy removal after the soft shackle has been loaded Lightweight and easy on the boat Alternative to traditional metal shackles SK98 Dyneema® Soft Links UHMWPE Soft Shackles XG coating for UV stability and resistance to abrasion Quick Guide (pdf)

Read more less

Stamped "D" Shackle - 1/4"Pin Dia. 1/4" (6 mm), Depth 1" (25 mm), Width 11/16" (17 mm), SWL 1750 lbs. (795 kg), Weight 1.1 oz. (31 g)

Read more less

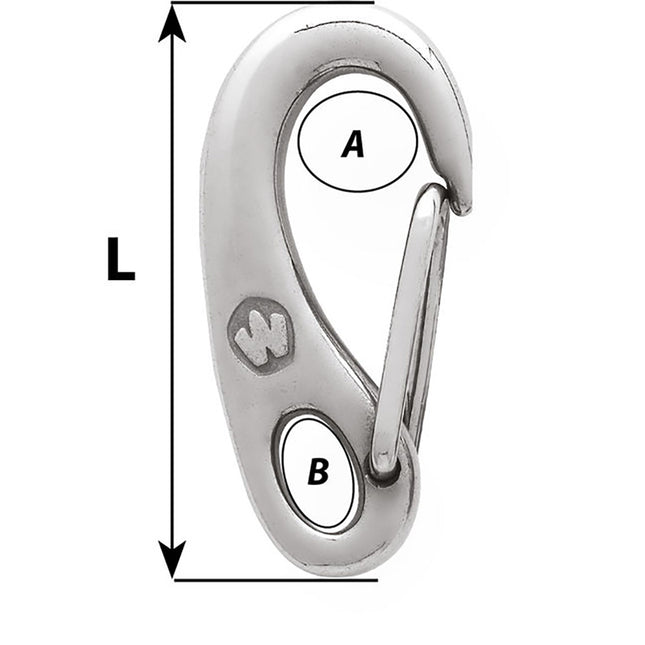

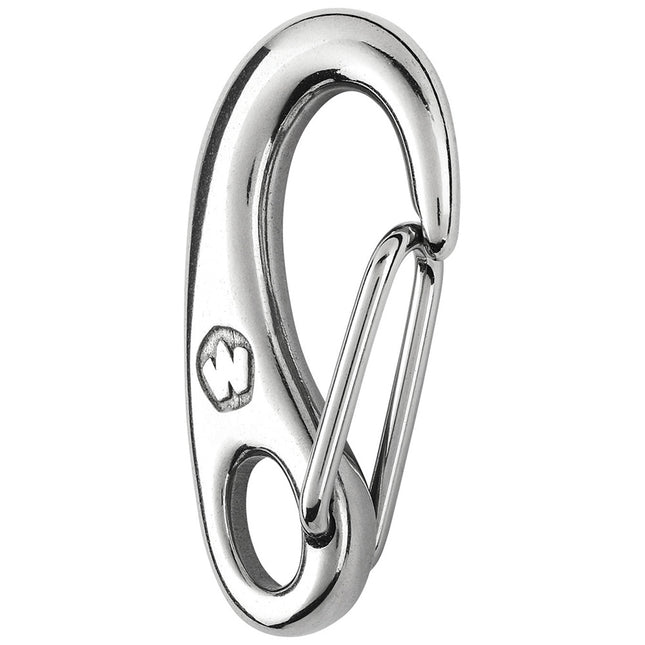

Safety Snap Hook - 75mmFeatures: Grade 316L forged snap hook Various applications onboard Outstanding working and breaking loads Modern design Applications:Various uses onboard: fastening applications

Read more less

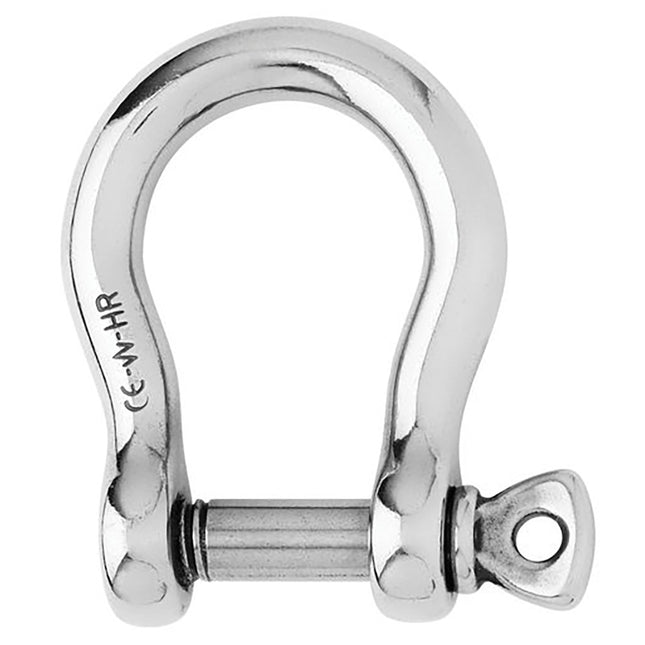

HR Bow Shackle - 16mm Diameter - 5/8"Features:  Forged bow shackle in HR stainless steel grade (17,4 PH) Outstanding working and breaking load An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel WLL: only for industrial applications (lifting i.e…) CE marking Applications: Applications requesting high loads To be used when ample room is required Possibility to attach several lines or cables Do not use it for mooring applications Specifications:  Materials: HR 17.4 PH stainless steel grade Working load: (lb) 14990 / (kg) 6800  WLL: (lb) 8370 / (kg) 3800  Breaking load: (lb) 41880 / (kg) 19000  Weight: (lb) 1.16 / (g) 526  Dimensions: A: (inch) 2 3/4" / (mm) 70  B: (inch) 1 17/64" / (mm) 32  C: (inch) 5/8" / (mm) 16  D: (inch) 1 17/64" / (mm) 32  D diameter: (inch) 5/8" / (mm) 16  E: (inch) 19/32" / (mm) 15  M: (inch) 3 17/64" / (mm) 83  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)

Read more less
