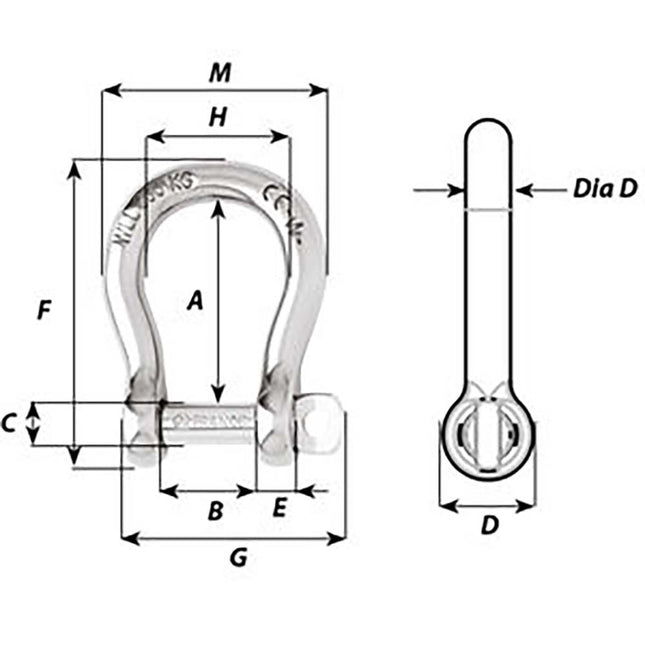

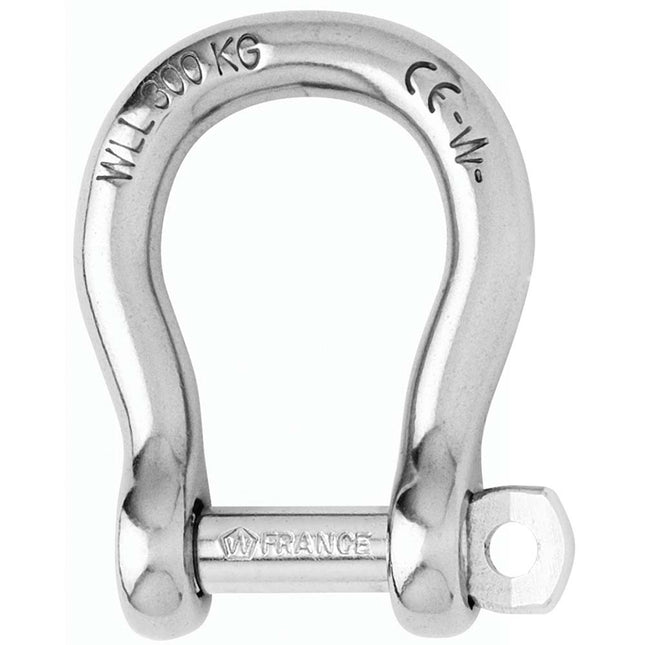

Self-Locking Bow Shackle - Diameter 8mm - 5/16"Features: Self-locking bow shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking and batch number Applications: To be used when ample room is required Possibility to attach several lines or cables Specifications: Materials 316 stainless steel grade Working load (lb) 2200 WLL (lb) 1190 Breaking load (lb) 5950 Weight (lb) 0.15 Dimensions (see 2nd image): A (inch) 1-29/64" B (inch) 5/8" C (inch) 5/16" D (inch) 5/8" D diameter (inch) 5/16" E (inch) 9/32" M (inch) 1-17/32"

Read more less

Stainless Steel Welded Pad Eye - 1-7/8"L x 5/8"WSpecifications: Eye Width 3/8" (10 mm) Eye Height 3/8" (10 mm) Eye Stock 3/16" (5 mm) Length 1-7/8" (48 mm) Width 5/8" (16 mm) Fasteners (2), #10 RH (5 mm) C/C 1-5/16" (33 mm) SWL 250 lbs (115 kg) Weight .5 oz. (14 g) Specifications: Color: Stainless Box Dimensions: 1"H x 2"W x 4"L WT: 0.05 lbs UPC: 740507007774

Read more less

Waxed Whipping Twine - 1.0mm x 46M - WhiteExcellent for whipping line ends, this twine is pre-waxed with a round construction and will not open because of the flat, strong seem.  The special wax formula makes this whipping twine particularly easy to use with the high quality of the twisted PES (polyester) twine.Technical Specifications: Color - White Material - Polyester (PES) Thickness -  .04" (1.0mm) Length -  150' (46 M) *Sold as an Individual Brochure (pdf)

Read more less

Series 40 All Purpose Block - Fiddle - Becket - CleatFeatures: Exceptionally high working loads Low maintenance, long service life Self-lubricating sheave Captive Lock™ universal head Slotted pin shackle eliminates fouled lines Snap fit removable becket pin Multi-position cleat arm Spare parts - RF41010 Replacement Becket Pin, RF150 Shackle All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required. Quick adjusting cleat arms require no tools to adjust and fix securely in position. Becket pin is removable so line can be spliced prior to fitting.Applications: Mainsheet Halyard Vang Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8m (26ft) Ideal for fine-tune mainsheet tackles, cunninghams, backstays and other control line purchase systems. Materials: U.V. stabilised Acetal sheaves Impact and U.V. resistant, fibre reinforced Nylon cheeks Grade 316 stainless steel bearing race Grade 316 stainless steel load strap and head fitting Impact and UV resistant, fiber reinforced Nylon cheeks

Read more less

Series 30 Utility Block- Double, Tube RivetFeatures: Lightweight durable construction Economical Maintenance free Product Information:Stainless steel cheeks and Acetal sheaves ensure a long service life with virtually no maintenance.Hollow rivets accept fixing screws, shackles or can be used as a becket for extra purchase.Applications: Vang, cunningham and trapeze retriever systems on dinghies Leech line tackles, bunk adjusters etc on larger yachts Materials: U.V. stabilized Acetal sheaves Grade 316 stainless steel cheeks

Read more less

Series 30 Ball Bearing Orbit Block™ - DoubleBall Bearing Orbit Blocks™ boast the highest strength-to-weight ratio available. This is achieved through all-composite reinforced polymer materials and multiple attachment options. Their precision design provides the optimum number of ball bearings for minimum friction while weight reduction is achieved through the use of fiber-reinforced composites in the block head, cleat arms and beckets.Features: Lightweight Highest working load in its class Secure, versatile and secure attachement Low profile and compact Applications: Mainsheet systems and spinnaker sheets on dinghies to 5M(16') Halyard, vang and backstay applications on boats to 5M(16') Control line applications on larger yachts Materials: Sheave: High compression strength carbon black Acetal Ball Bearings: High compression strength Acetal Frame/Cheeks: Toughened, glass fiber reinforced Nylon Link: UV stabilized, multi-strand impregnated SK75 Dyneema® Specifications:Sheave Ø:t30mm(1-3/16")Max. Rope Ø:t8mm(5/16")M.W.L.:t450kg(990lbs)B. L.:t900kg(1,980lbs)Weight:t50g(1.7oz) Quick Guide (pdf)

Read more less

57mm Aluminum Low Load Black Magic Block with SwivelBlack Magic Air blocks are a top favorite of Big Boat performance racers and cruisers. These lightweight, free-running, powerful performers are used for sail controls that see lots of action: mainsheet, runner, halyard, and spinnaker systems. A center cage keeps Torlon® roller bearings separated and parallel to reduce friction. Shackle blocks lock in two directions or swivel to keep the line from twisting. Low-load blocks have red isolators. They use Torlon® rollers and 316 stainless steel shackles. Standard blocks have 17-4 PH stainless head posts. Torlon is a registered trademark of Solvay Advanced Polymers L.L.C. Specifications: Sheave: 57mm/2-1/4in Length: 119mm/4-11/16in Weight: 154g/5.44oz Shackle Pin: 6mm/1/4in Maximum Line: 12mm / 7/16in Maximum Working Load: 7/16kg / 1655lbs Breaking Load: 1500kg / 3300lb

Read more less

40mm Carbo Single Ratchet Block with Swivel Becket & Cam CleatCarbo Ratchets allow sailors to hand-hold loaded lines and offer balance between holding power and controlled easing. Features: Sheave Ø (mm): 40 mm Sheave Ø (in): 1-9/16 in Maximum line Ø (mm): 6 mm Maximum line Ø (in): 1/4 in Maximum working load (kg): 68 kg Maximum working load (lb): 150 lb

Read more less

40mm Carbo Air Double Swivel Block with BecketLow-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to the popular Harken Black Magic block line, these small, compact blocks have very high working loads for safe, easy trimming. Specifications: Sheave Ø (mm)40 mm Sheave Ø (in)1 9/16 in Maximum line Ø (mm)10 mm Maximum line Ø (in)3/8 in Maximum working load (kg)440 kg Maximum working load (lb)970 lb Quick Guide (pdf)

Read more less

16mm Triple Block with BecketThe 16 mm is Harken’s smallest block. It is perfect for small synthetic control lines found on high-tech dinghies. The patented bearing system uses stainless steel balls in a captive grooved race.Specifications: Sheave: 16mm / 5/8in. Length: 57mm / 2-1/4in. Weight: 43g / 1.5oz Maximum line: 5mm / 7/32in Maximum working load: 318kg/ 700lb Breaking load: 544kg / 1200lb

Read more less

Winch Handle PocketMountable anywhere in a vertical position and fits 10" standard winch handles.  Features: Will not mar or scratch winch handles UV stabilized Easy to install Technical Specifications: Material - Soft PVC Color - White Dimensions (H x Base width x Top width) - 10" x 2.36" x 3.54" *Sold as an Individual

Read more less

2-3/8" Aluminum SheaveFeatures: Material: Aluminum Max Line 5/8" (16 mm) Max Wire 3/16" (5 mm) Outside Diameter 2-3/8" (60 mm) Inside Diameter 1/2" (13 mm) Width 3/4" (19 mm)
