Sailing

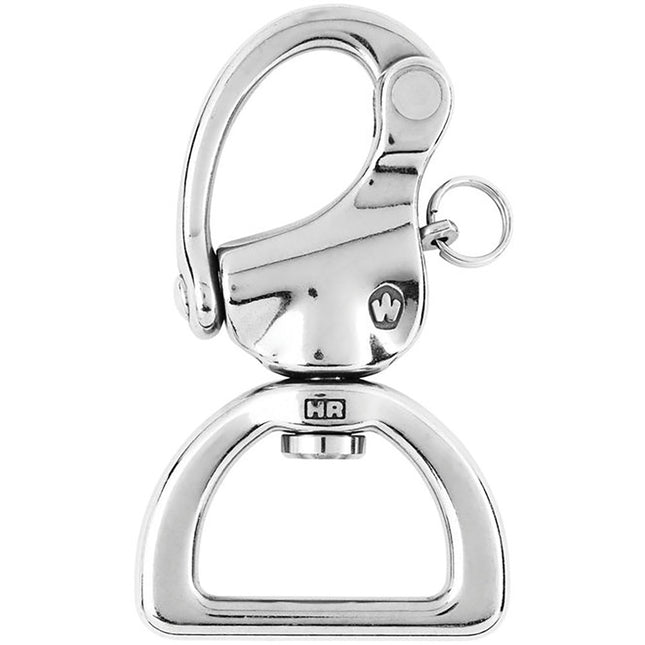

Web Snap Shackle - 3-1/8"Features: HR Forged snap shackle (Grade 17.4 PH stainless steel) with webbing swivel. Its flat design allows attaching a webbing Free rotation of the snap shackle thanks to the swivel eye The plunger pin is set captive into the hook and cannot become detached Excellent working and breaking loads Easy to open by pulling the plunger pin (possible to attach a lanyard) Applications: Snap shackle applications Applications requiring a free rotation of the snap shackle (for a better sail orientation) Specifications: Materials: HR 17.4 PH stainless steel grade Working load: (lb) 2110 / (kg) 960  Breaking load: (lb) 4400 / (kg) 2000  Weight: (lb) 0.187 / (g) 85  Dimensions: A: (inch) 5/8" / (mm) 16  B: (inch) 1 3/16" / (mm) 30  Length: (inch) 3 5/32" / (mm) 80  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)

Read more less

HR Snap Shackle Webbing Swivel - 100mm Length - 3-15/16"Features: HR Forged snap shackle (Grade 17.4 PH stainless steel) with webbing swivel. Its flat design allows attaching a webbing Free rotation of the snap shackle thanks to the swivel eye The plunger pin is set captive into the hook and cannot become detached Excellent working and breaking loads Easy to open by pulling the plunger pin (possible to attach a lanyard) Applications: Snap shackle applications Applications requiring a free rotation of the snap shackle (for a better sail orientation) Specifications: Materials: HR 17.4 PH stainless steel grade Working load: (lb) 2820 / (kg) 1280  Breaking load: (lb) 8480 / (kg) 3850  Dimensions: A: (inch) 53/64" / (mm) 21  B: (inch) 1 37/64" / (mm) 40  Length: (inch) 3 15/16" / (mm) 100  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.  WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)

Read more less

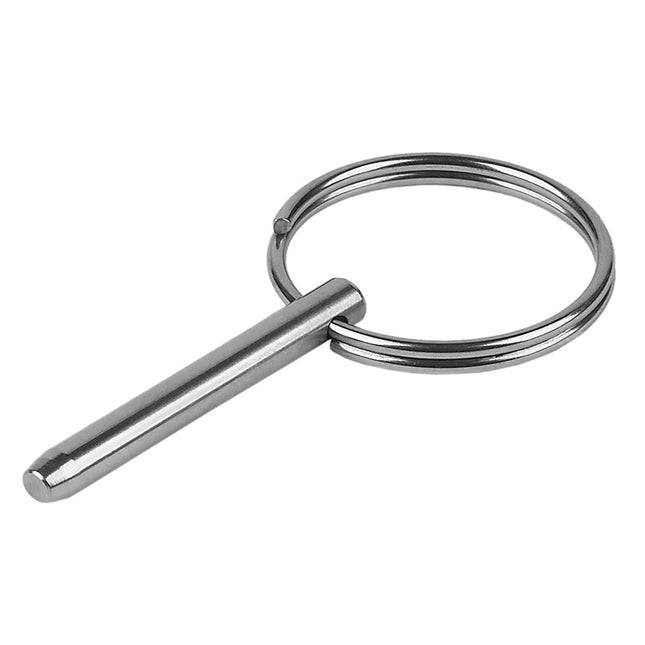

Quick Release Pin - 3/16" x .5" Grip3/16" x .5" Grip Quick Release Pin. 316 S.S. Safe Working Load 1700 lbs.

Read more less

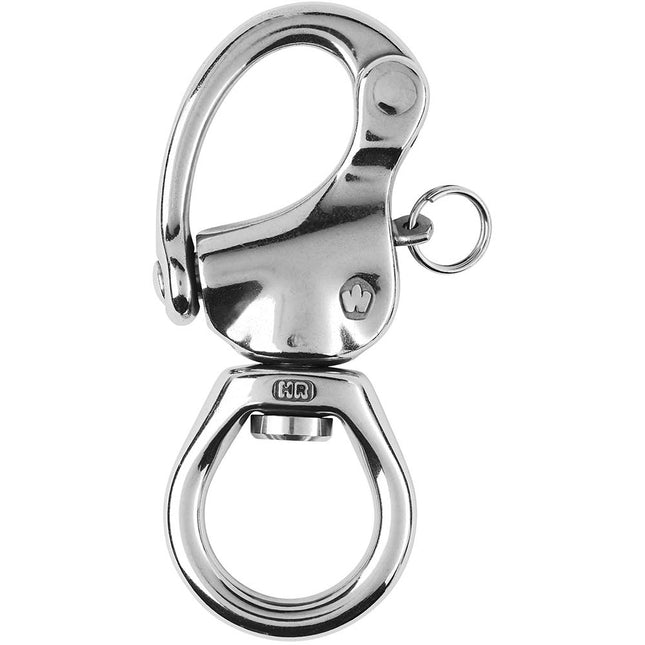

HR Snap Shackle - Large Bail - Length 105mmFeatures: HR Forged snap shackle (Grade 17.4 PH stainless steel) with large eye The large eye allows attaching several ropes Free rotation of the snap shackle thanks to the swivel eye The plunger pin is set captive into the hook and cannot become detached Excellent working and breaking loads Easy to open by pulling the plunger pin (possibility to attach a lanyard) Applications: Snap shackle applications Applications requiring a free rotation of the snap shackle (for a better sail orientation) Specifications: Materials HR 17.4 PH stainless steel grade Length (inch) 4-9/64" Working load (lb) 2820 Breaking load (lb) 7930 Weight (lb) 0.353 Dimensions (see 2nd image): A (inch) 53/64" B (inch) 1-1/32"

Read more less

Hawk Race for Single Handed Racing DinghiesThe Hawk Race brings all the benefits of the Hawk Wind indicator with it's "V" jewel bearing and balanced vane arm. Mounts in a secure manor at gooseneck height in front of the mast. Designed primarily for larger single-handed Dinghies, the Hawk Race allows quick and accurate reference to wind direction without having to look at the top of the mast. Ideal for both upwind and downwind reference. The Hawk Race is easily mounted and removed with a secure adjustable bracket. The aluminum support rod is easily bent to any angle required, but easily straightened if accidentally knocked. Specifications: Vane Arm length 27cm (10.6") Weight 32 grams Specifications: Type: Wind Indicator Instrument Function: Wind Box Dimensions: 2"H x 5"W x 17"L WT: 0.35 lbs UPC: 652773100229

Read more less

Symmetric Carbine Hook Without Eye - Length 80mm - 5/16"Features: Grade 316L stainless steel carbine hooks Symmetrical shape without eye                                           Applications:For fastening applicationsSpecifications: Materials 316L stainless steel grade Length (inch) 3-5/32" Working load (lb) 1940 WLL (lb) 700 Breaking load (lb) 3520 Weight (lb) 0.137 Dimensions (see 2nd image): A (inch) 33/64" B (inch) 33/64" D diameter (inch) 5/16"

Read more less

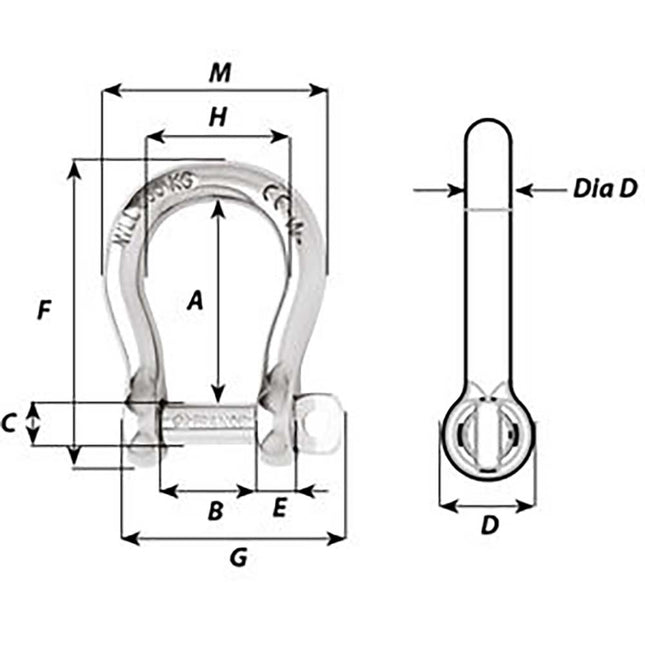

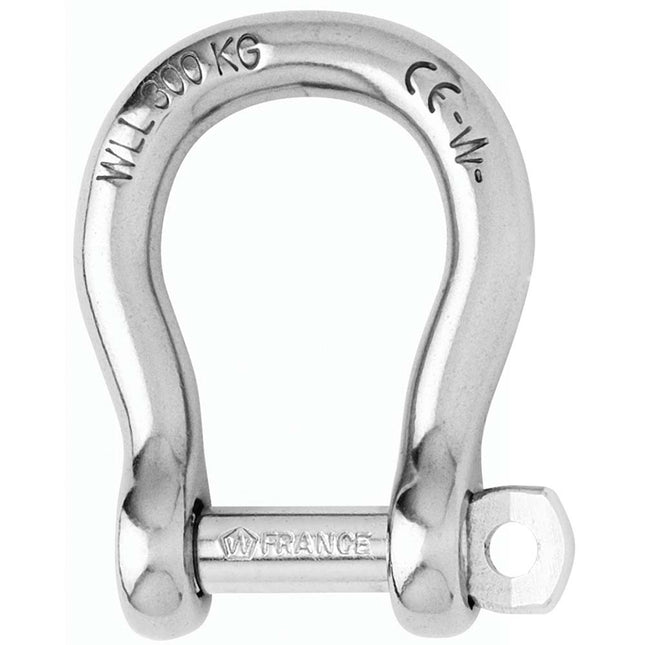

Self-Locking Bow Shackle - Diameter 12mm - 15/32"Features: Self-locking bow shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking and batch number Applications: To be used when ample room is required Possibility to attach several lines or cables Specifications: Materials 316 stainless steel grade Working load (lb) 4580 WLL (lb) 2640 Breaking load (lb) 13220 Weight (lb) 0.514 Dimensions (see 2nd image): A (inch) 2-11/64" B (inch) 15/16" C (inch) 15/32" D (inch) 15/16" D diameter (inch) 15/32" E (inch) 25/64" M (inch) 2-31/64"

Read more less

Symmetric Carbine Hook - Length 80mm - 5/16"Features: Grade 316L stainless steel carbine hooks Symmetrical shape With eye to attach a webbing or a splicing Applications:For fastening applications Specifications: Materials 316L stainless steel grade Length (inch) 3-5/32" Working load (lb) 1940 WLL (lb) 570 Breaking load (lb) 2860 Weight (lb) 0.159 Dimensions (see 2nd image): A (inch) 33/64" B (inch) 7/16" D diameter (inch) 5/16"

Read more less

Self-Locking Bow Shackle - Diameter 8mm - 5/16"Features: Self-locking bow shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking and batch number Applications: To be used when ample room is required Possibility to attach several lines or cables Specifications: Materials 316 stainless steel grade Working load (lb) 2200 WLL (lb) 1190 Breaking load (lb) 5950 Weight (lb) 0.15 Dimensions (see 2nd image): A (inch) 1-29/64" B (inch) 5/8" C (inch) 5/16" D (inch) 5/8" D diameter (inch) 5/16" E (inch) 9/32" M (inch) 1-17/32"

Read more less

Stainless Steel Welded Pad Eye - 1-7/8"L x 5/8"WSpecifications: Eye Width 3/8" (10 mm) Eye Height 3/8" (10 mm) Eye Stock 3/16" (5 mm) Length 1-7/8" (48 mm) Width 5/8" (16 mm) Fasteners (2), #10 RH (5 mm) C/C 1-5/16" (33 mm) SWL 250 lbs (115 kg) Weight .5 oz. (14 g) Specifications: Color: Stainless Box Dimensions: 1"H x 2"W x 4"L WT: 0.05 lbs UPC: 740507007774

Read more less

Waxed Whipping Twine - 1.0mm x 46M - WhiteExcellent for whipping line ends, this twine is pre-waxed with a round construction and will not open because of the flat, strong seem.  The special wax formula makes this whipping twine particularly easy to use with the high quality of the twisted PES (polyester) twine.Technical Specifications: Color - White Material - Polyester (PES) Thickness -  .04" (1.0mm) Length -  150' (46 M) *Sold as an Individual Brochure (pdf)

Read more less

Series 40 All Purpose Block - Fiddle - Becket - CleatFeatures: Exceptionally high working loads Low maintenance, long service life Self-lubricating sheave Captive Lock™ universal head Slotted pin shackle eliminates fouled lines Snap fit removable becket pin Multi-position cleat arm Spare parts - RF41010 Replacement Becket Pin, RF150 Shackle All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required. Quick adjusting cleat arms require no tools to adjust and fix securely in position. Becket pin is removable so line can be spliced prior to fitting.Applications: Mainsheet Halyard Vang Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8m (26ft) Ideal for fine-tune mainsheet tackles, cunninghams, backstays and other control line purchase systems. Materials: U.V. stabilised Acetal sheaves Impact and U.V. resistant, fibre reinforced Nylon cheeks Grade 316 stainless steel bearing race Grade 316 stainless steel load strap and head fitting Impact and UV resistant, fiber reinforced Nylon cheeks

Read more less
