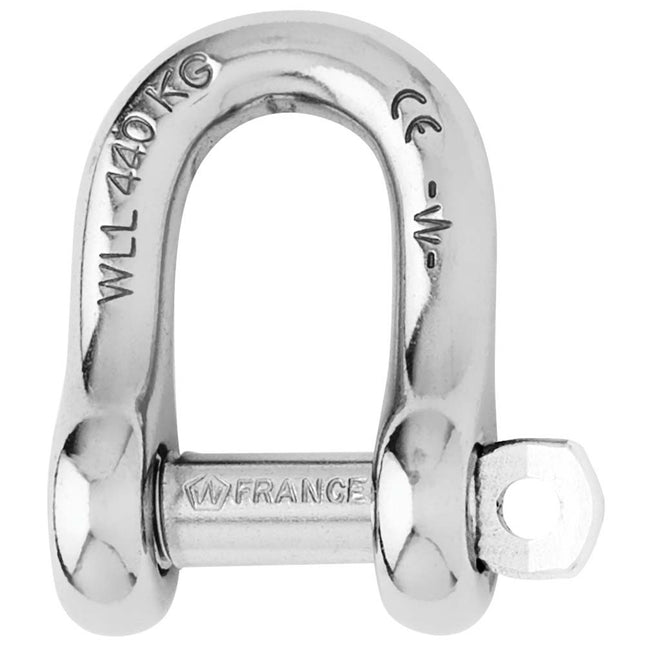

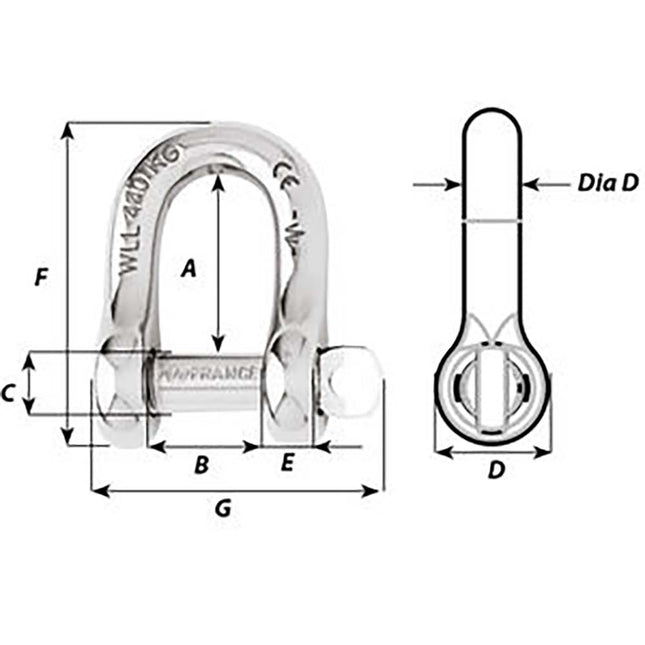

Captive Pin D Shackle - Diameter 8mm - 5/16"Features: Captive pin "D" shackle forged in grade 316L stainless steel The pin is connected to the body at all times even when opened The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads Applications: Standard applications of shackle Attachment applications: blocks, head... Specifications: Materials 316 stainless steel grade Working load (lb) 2200 WLL (lb) 1580 Breaking load (lb) 7930 Weight (lb) 0.134 Dimensions (see 2nd image): A (inch) 1-1/32" B (inch) 5/8" C (inch) 23/64" D (inch) 45/64" D diameter (inch) 5/16" E (inch) 5/16" F (inch) 1-27/32" G (inch) 1-21/32"

Read more less

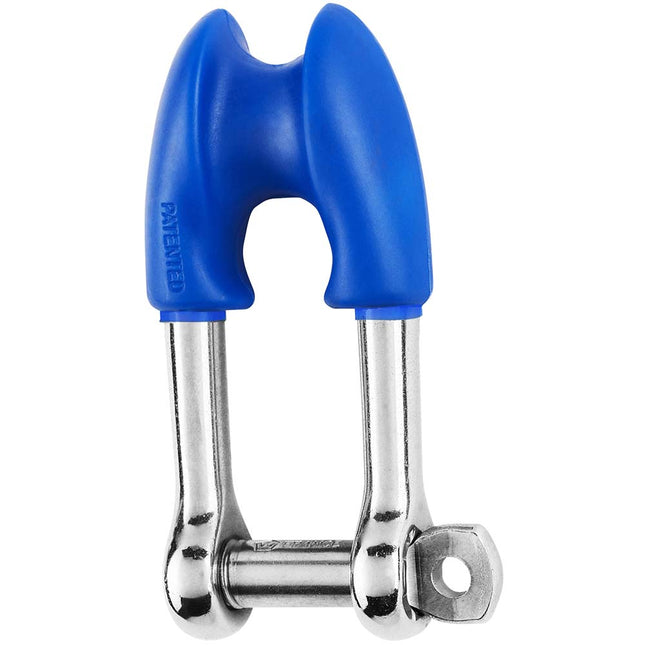

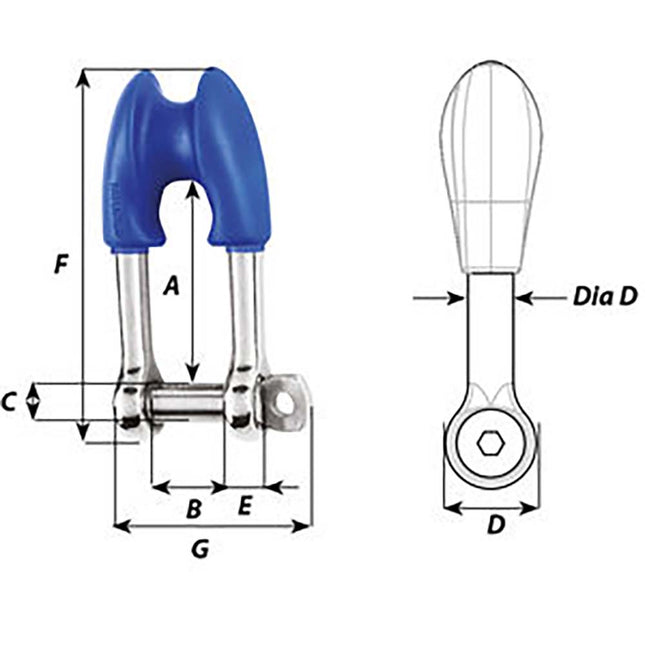

Thimble Shackle - Captive Pin - Diameter 8mm - 5/16"Features: Thimble shackle with captive pin forged in grade 316L stainless steel Allows to spliced a rope without adding an additional thimble With the captive pin, no risk to lose the pin Outstanding working and breaking loads Applications: Mainsheet halyards Max rope size: 12mm Specifications: Materials 316 stainless steel grade Working load (lb) 2200 Breaking load (lb) 6610 Weight (lb) 0.172 Dimensions (see 2nd image): A (inch) 1-39/64" B (inch) 5/8" C (inch) 5/16" D (inch) 5/8" D diameter (inch) 5/16" E (inch) 9/32" F (inch) 2-63/64" G (inch) 1-21/32"

Read more less

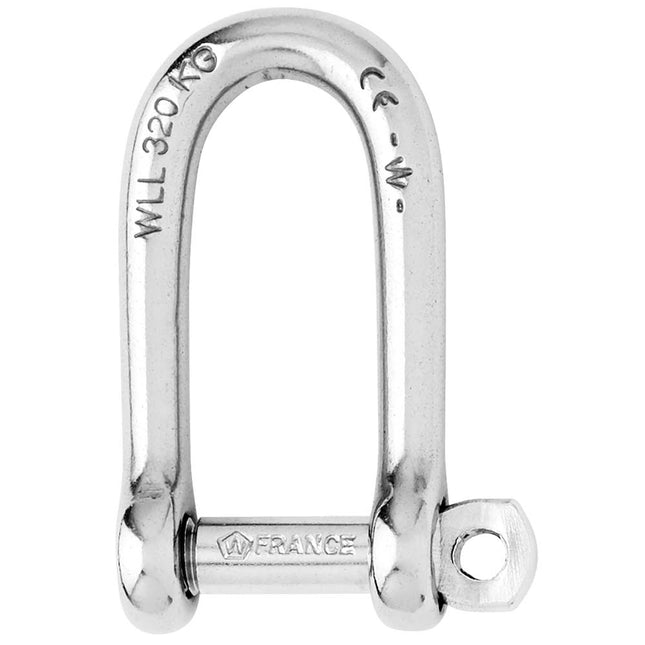

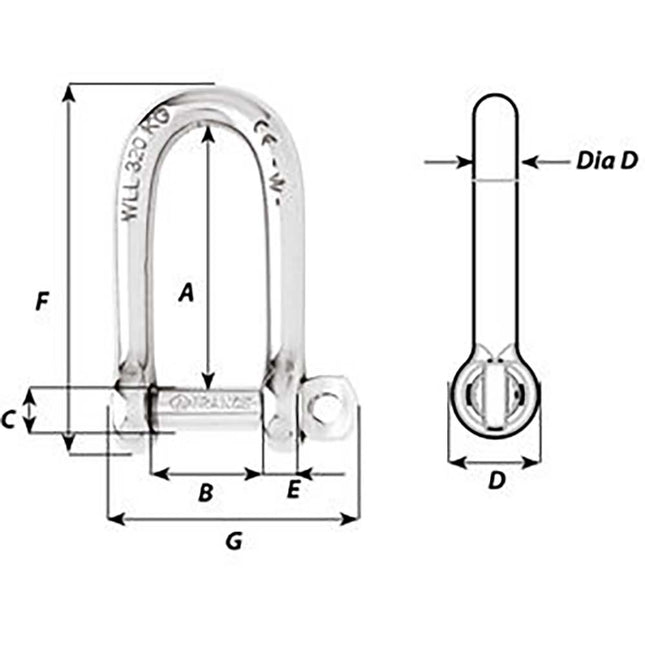

Self-Locking Long D Shackle - Diameter 6mm - 1/4"Features: Self-locking long shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications CE Marking and batch number Applications: Standard applications of shackle requiring more length Attachment applications: blocks, head... Specifications: Materials 316 stainless steel grade Working load (lb) 1320 WLL (lb) 700 Breaking load (lb) 3520 Weight (lb) 0.06 Dimensions (see 2nd image): A (inch) 1-19/64" B (inch) 15/32" C (inch) 15/64" D (inch) 15/32" D diameter (inch) 15/64" E (inch) 13/64" F (inch) 1-27/32" G (inch) 1-7/32"

Read more less

Captive Pin D Shackle - Diameter 6mm - 1/4"Features: Captive pin "D" shackle forged in grade 316L stainless steel The pin is connected to the body at all times even when opened The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads Applications: Standard applications of shackle Attachment applications: blocks, head... Specifications: Materials 316 stainless steel grade Working load (lb) 1490 WLL (lb) 970 Breaking load (lb) 4850 Weight (lb) 0.062 Dimensions (see 2nd image): A (inch) 25/32" B (inch) 15/32" C (inch) 9/32" D (inch) 35/64" D diameter (inch) 15/64" E (inch) 15/64" F (inch) 1-27/64" G (inch) 1-17/64"

Read more less

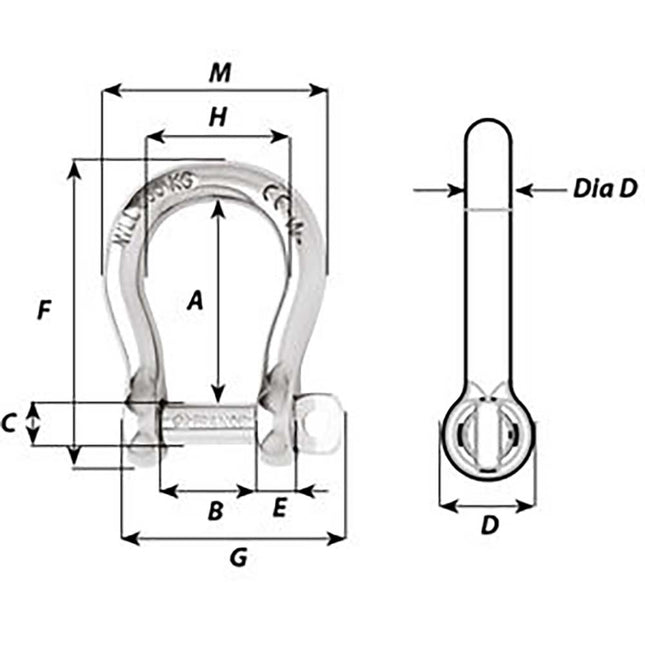

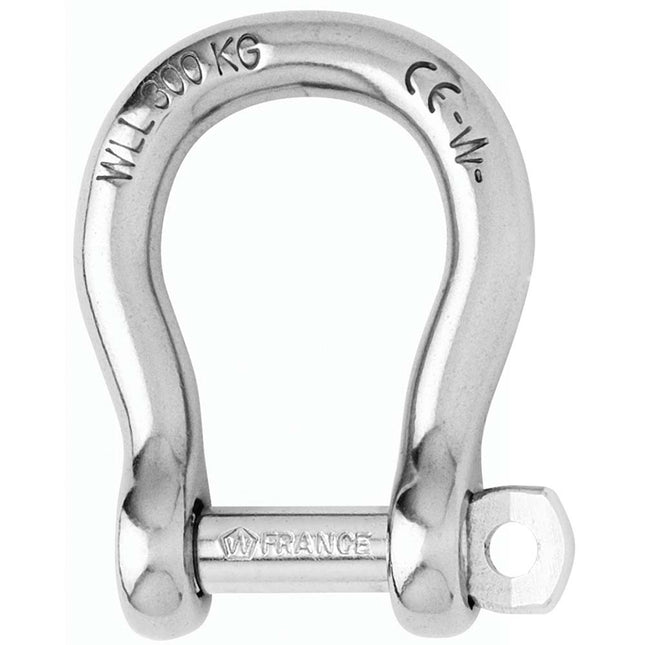

Self-Locking Bow Shackle - Diameter 10mm - 13/32"Features: Self-locking bow shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking and batch number Applications: To be used when ample room is required Possibility to attach several lines or cables Specifications: Materials 316 stainless steel grade Working load (lb) 3350 WLL (lb) 1890 Breaking load (lb) 9470 Weight (lb) 0.302 Dimensions: A (inch) 1-27/32" B (inch) 25/32" C (inch) 25/64" D (inch) 25/32" D diameter (inch) 25/64" E (inch) 23/64" M (inch) 2-3/64"

Read more less

Self-Locking Bow Shackle - Diameter 4mm - 5/32"Features: Self-locking bow shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking and batch number Applications: To be used when ample room is required Possibility to attach several lines or cables Specifications: Materials 316 stainless steel grade Working load (lb) 700 WLL (lb) 300 Breaking load (lb) 1540 Weight (lb) 0.02 Dimensions (see 2nd image): A (inch) 45/64" B (inch) 5/16" C (inch) 5/32" D (inch) 5/16" D diameter (inch) 5/32" M (inch) 53/64"

Read more less

Series 40 Orbit BB Quin Block with Swivel ShackleThe Series 40 ball-bearing Orbit Blocks™ provides the perfect balance of strength, performance, and reliability. They offer class-leading dynamic and static load ratings, the highest available in this size of performance blocks. Lightweight and strong toughened glass fiber reinforced nylon cheeks replace stainless steel straps used in traditional utility blocks - the perfect balance of performance and reliability.As well as traditional single swivel blocks, the range includes single and double sheave lashing or soft attachment options through to multiple sheave blocks including those with quad and quin sheaves. The range is highly versatile allowing a multitude of possible systems right up to a 12:1 purchase mainsheet system for off-the-beach performance catamarans.Series 40 Orbit Blocks™ are fitted with our carbon-reinforced C-Cleat™ for secure rope holding with low entry and exit efforts, and fairleads for fast action from any angle. Cleat arms are made from stainless steel and adjustable for setting your preferred cleating angle.Ball Bearing versions incorporate our 2-stage bearing system using ball bearings to minimize friction and a secondary full-contact bearing to maintain low friction across the full working load range.High Load versions are designed specifically for any application where high dynamic or static loads are expected. They feature a high-strength grade 2205 stainless steel sheave & hub together with a triple bearing race to maintain low friction at very high loads.Features: Class-leading dynamic and static load ratings Lightweight, yet strong. Toughened, glass fiber reinforced nylon replaces stainless steel straps used in our traditional utility blocks Low friction 2-stage ball bearing system for efficient and effortless trimming Soft attachment, lashing and traditional swivel shackle head options Low profile and compact High performance cleating Applications Mainsheet systems and spinnaker sheets on dinghies, off-the-beach catamarans and sportsboats to 8m (26ft) Halyard, vang and backstay applications on boats to 9m (30ft) Control line applications on larger yachts Specifications: Sheave Ø: 1-9/16 in. Max. Rope Ø: 3/8 in. Pin Ø: 5/32" M.W.L.: 1320 lb. B. L.: 2650 lb. Weight: 8.5 oz.

Read more less

Sticky Race Gloves - 3-Finger - Black - XXLFeatures: Synthetic leather for maximum durability, minimum stretch and shrinkage Double aramid stitched in high wear areas Double thickness palm and fingers for protection and grip Hook-and-loop wrist closure/adjustment Low cut wrist band for free movement and ClearStart™ watch visibility and operation Mesh panels for flexibility and comfort Mesh panels for flexibility, comfort and quick drying - now available in Grey Sticky gloves reduce fatigue by minimising the physical effort required to hold rope Applications:Used for hand protection and gripMaterials: 'Amara’ synthetic leather Double Aramid stitching Brochure (pdf)

Read more less

Series 30 Ball Bearing Block Single Becket Option LashingBall Bearing Blocks™ boast the highest strength-to-weight ratio available.  This is achieved through all-composite reinforced polymer materials and multiple attachment options. Their precision design provides the optimum number of ball bearings for minimum friction while weight reduction is achieved through the use of fibre-reinforced composites in the block head, cleat arms and beckets. Highest Working Load in its ClassThe proven Ronstan 2-stage bearing system (Series 30 and larger) features high compression grade Acetal ball bearings and a secondary full-contact bearing. This gives minimum friction across the full working load range.The sheave and bearing system is supported by a fibre-reinforced load frame, computer modelled and optimised using advanced stress analysis methods. The Dyneema® Link, used in multi-sheave blocks, is produced from high spec SK75 fibre, which is 10 times stronger and lighter than steel, and provides the final connection from the block to the load point. Simple, Versatile & Secure AttachmentThe single block is easily lashed to an attachment point, and can also accept Dyneema® Links and shackles for a variety of efficient attachment alternatives. The Dyneema® Link used in multi-sheave blocks is easily fitted and secured by a removable pin. The Dyneema® Link can also be removed and replaced by a shackle, custom lashing or strop.These blocks are far more compatible with Dyneema®/Spectra® lines, carbon laminate connection points and webbing than traditional blocks with steel loop tops or shackles.Low Profile & CompactThe two way head in the single lashing block allows for alignment at 0° or 90° orientation, while the single swivel block allows for full articulation.The flexible Dyneema® Link used in multi-sheave blocks provides 0° or 90° orientation. It connects directly to the head of the block rather than to an intermediate head post. This reduces weight and gives the lowest possible profile while allowing full articulation. Beckets have been carefully designed to minimise height.Features: Lightweight Highest working load in its class Secure, versatile and secure attachement Low profile and compact Ultra low profile thru-sheave becket Self-lubricating Nylatron® sheave and full contact bearing for high dynamic loads Applications: Mainsheet systems and spinnaker sheets on dinghies to 5M(16') Halyard, vang and backstay applications on boats to 5M(16') Control line applications on larger yachts

Read more less

Series 30 Utility Block - Single, Becket, Loop HeadFeatures: Lightweight durable construction Economical Maintenance free Product Information:Stainless steel cheeks and Acetal sheaves ensure a long service life with virtually no maintenance. Hollow rivets in the block heads can be fitted with shackles, which can also be used to add a becket for extra purchase.Applications: Vang, cunningham and trapeze retriever systems on dinghies Leech line tackles, bunk adjusters etc on larger yachts Materials: U.V. stabilized Acetal sheaves Grade 316 stainless steel cheeks

Read more less

Series 15 Ball Bearing Utility Block - Pivoting Lead BlockFeatures: Smallest and lightest ball bearing block available Precision molded acetal sheave running on stainless steel ball bearings provide high performance & low friction Single loop head blocks include an O-ring to separate running line from head lashing or fixing Featuring a 4-point fastening for load distribution and low profile. Can be mounted without disassembly.Applications: Dinghy control lines Vangs, cunninghams and tweakers Shock cord tensioning systems Materials: BB sheaves: UV stabilized acetal Ball bearings: Stainless steel Cheeks: Grade 316 stainless steel

Read more less

Series 40 Ball Bearing Orbit Block - CheekFeatures: Ultra Lightweight Low friction 2-stage Orbital ball bearing system Highest working load in its class Low profile and compact High performance cleating Base suits curved mounting surface Low mounting points for maximum strength LightweightKilogram for kilogram of working load, BB and RT Orbit Blocks™ are the world’s lightest. The unique orbital design allows the bearing to only be in the active areas of the floating sheave. This minimizes the mass of the inactive return race and hub.Weight and bulk are further reduced in the different block configurations. The ball bearing single and becket block has a through-sheave becket arrangement. The result? The lowest weight possible.Multi-sheave blocks have only single intermediate cheeks and an ultra-light and efficient head arrangement. This gives a 30% weight saving advantage over the nearest competitor. Other brands just link together their single blocks. This results in unnecessary double cheeks between each sheave, held together by a heavy steel channel across the top of the block.Highest Working Load In It's ClassThe orbital ball-bearing arrangement gives the largest possible bearing race diameter. This maximizes load performance. The proven Ronstan 2-stage bearing system features high compression grade acetal ball bearings and a secondary full-contact bearing. This gives minimum friction across the full working load range.The floating sheave and bearing system is supported by a fiber-reinforced load frame. The design was computer modeled to be stress optimized.Recommended fasteners - 3 x 4mm (5/32") countersunk head screwsApplications: Mainsheet systems on spinnaker sheet on dinghies to 5m (16ft) Spinnaker sheets on dinghies, sportsboats and small keel boats to 5m (16ft) Halyard, vang and backstay applications on boats to 8m (26ft) Control line applications on larger yachts Materials: Ball Bearings - High compression strength carbon black Acetal. Stage 2 Bearing - Glass fibre reinforced, MoS2 impregnated Nylon Frame/Cheeks - Toughened, glass fibre reinforced Nylon Sheave - Carbon fiber reinforced, PTFE impregnated Nylon
