HR Key Pin Shackle With Bar - 6mm Pin DiameterFeatures:  Forged D shackle in HR stainless steel grade (17,4 PH) Outstanding working and breaking load An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel WLL: only for industrial applications (lifting i.e…) CE marking Applications: Applications requesting high loads Perfect product for halyards or applications requiring opening/closing the shackle often Do not use it for mooring applications Specifications:  Materials: HR 17.4 PH stainless steel grade Working load: (lb) 1320 / (kg) 600  Breaking load: (lb) 4850 / (kg) 2200  Weight: (lb) 0.117 / (g) 53  Dimensions: A: (inch) 1 49/64" / (mm) 45  B: (inch) 5/8" / (mm) 16  C: (inch) 15/64" / (mm) 6  D: (inch) 33/64" / (mm) 13  E: (inch) 5/32" / (mm) 4  F: (inch) 2 23/64" / (mm) 60  G: (inch) 1 29/64" / (mm) 37  L: (inch) 19/32" / (mm) 15  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)

Read more less

10mm Eye Nut - Thread M10 x 150mm Features: A complete range of single-piece forged products for fastenings applications Outstanding breaking loads Available in different sizes Applications: Various fastening applications Towing application Waterskiing lines attachment Specifications: Materials: 316L stainless steel grade Breaking load: (lb) 10580 / (kg) 4800 Weight: (lb) 0.218 / (g) 99 Dimensions: A: (mm) M10 x 150 B: (inch) 55/64" / (mm) 22 C: (inch) 1 13/16" / (mm) 46 D: (inch) 25/64" / (mm) 10 E: (inch) 1 7/64" / (mm) 28 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

8mm Eye Nut - Thread M10 x 150mmFeatures: A complete range of single-piece forged products for fastenings applications Outstanding breaking loads Available in different sizes Applications: Various fastening applications Towing application Waterskiing lines attachment Specifications: Materials: 316L stainless steel grade Breaking load: (lb) 9920 / (kg) 4500 Weight: (lb) 0.108 / (g) 49 Dimensions: A: (mm) M10 x 150 B: (inch) 43/64" / (mm) 17 C: (inch) 1 27/64" / (mm) 36 D: (inch) 5/16" / (mm) 8 E: (inch) 55/64" / (mm) 22 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

Symmetric Carbine Hook - Length 100mm - 13/32"Features: Grade 316L stainless steel carbine hooks Symmetrical shape With eye to attach a webbing or a splicing Applications:For fastening applications Specifications: Materials 316L stainless steel grade Length (inch) 3-15/16" Working load (lb) 2640 WLL (lb) 1100 Breaking load (lb) 5510 Weight (lb) 0.291 Dimensions (see 2nd image): A (inch) 19/32" B (inch) 33/64" D diameter (inch) 25/64"

Read more less

Self-Locking D Shackle - Diameter 10mm - 13/32"Features: Self-locking D shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking and batch number Applications: Standard applications of the shackle Attachment applications: blocks, head… Specifications: Materials 316 stainless steel grade Working load (lb) 3350 WLL (lb) 1890 Breaking load (lb) 9470 Weight (lb) 0.216 Dimensions (see 2nd image): A (inch) 1-19/64" B (inch) 25/32" C (inch) 25/64" D (inch) 3/4" D diameter (inch) 25/64" E (inch) 23/64" F (inch) 2-1/4" G (inch) 2-3/64"

Read more less

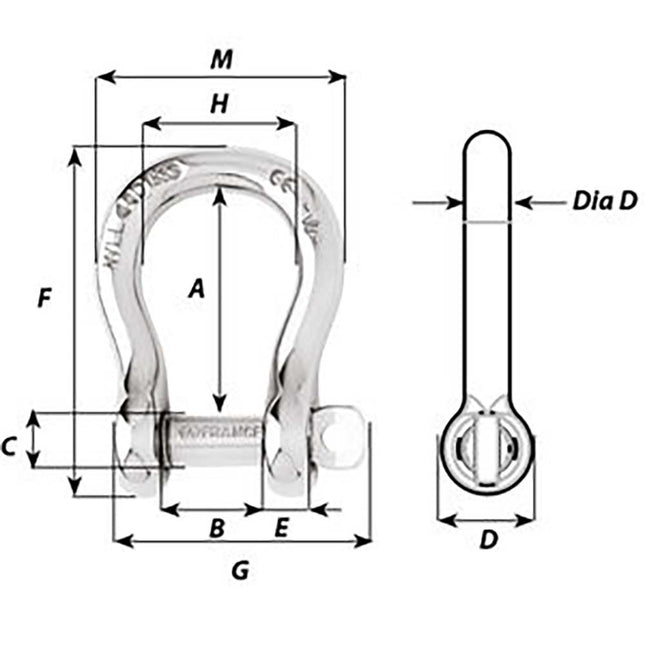

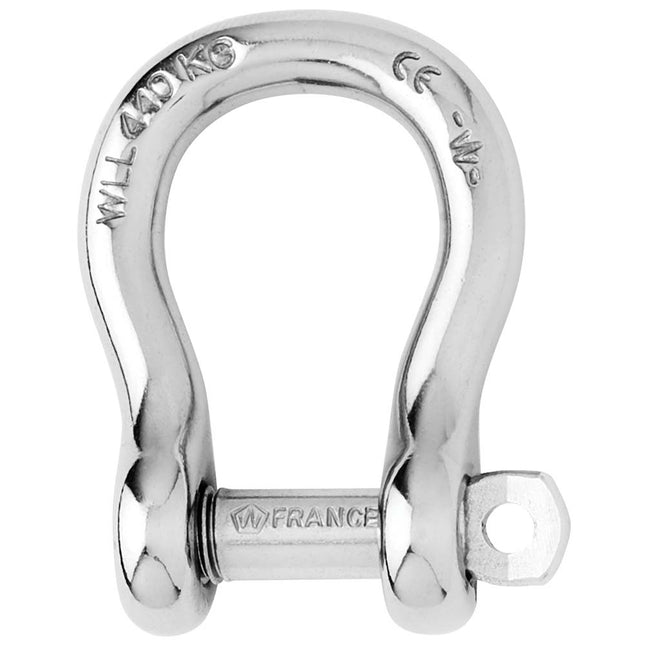

HR Bow Shackle - 20mm Diameter - 25/32"Features:  Forged bow shackle in HR stainless steel grade (17,4 PH) Outstanding working and breaking load An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel WLL: only for industrial applications (lifting i.e…) CE marking Applications: Applications requesting high loads To be used when ample room is required Possibility to attach several lines or cables Do not use it for mooring applications Specifications:  Materials: HR 17.4 PH stainless steel grade Working load: (lb) 19400 / (kg) 8800  WLL: (lb) 12340 / (kg) 5600  Breaking load: (lb) 61720 / (kg) 28000  Weight: (lb) 2.229 / (kg) 1.011  Dimensions: A: (inch) 3 5/32" / (mm) 80  B: (inch) 1 37/64" / (mm) 40  C: (inch) 25/32" / (mm) 20  D: (inch) 1 37/64" / (mm) 40  D diameter: (inch) 25/32" / (mm) 20  E: (inch) 45/64" / (mm) 18  M: (inch) 3 15/16" / (mm) 100  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)

Read more less

1/2 Eye Nut - 1-1/16" DiameterFeatures: A complete range of single piece forged products for fastenings applications Outstanding breaking loads Available in different sizes Applications: Various fastening applications Towing application Waterskiing lines attachment Specifications: 1-1/16" Diameter 1/2 Eye Nut

Read more less

Series 50 Ball Bearing Block - Single Loop TopSheaves running on Acetal or Torlon® ball bearings provide high performance & low friction. The 2-stage ball bearing system provides consistent performance over the full load range.Features: Low friction, 2-stage ball bearing system High static and dynamic load capacity Lightweight Cheek cut-outs for easy bearing maintenance Specifications: Max. Rope diameter (in): 1/2" M.W.L. (lb): 1100lbs Sheave diameter (in): 2" B.L. (lb): 3310lbs Weight (oz): 3.4oz Materials: Acetal ball bearings UV-stabilized acetal sheave Grade 316 stainless steel load strap and head fitting Impact and UV-resistant, fiber-reinforced nylon cheeks

Read more less

38mm Double Big Bullet BlockLow-friction Bullet blocks lead control lines aft. They are compact and lightweight, with fast trim and release under high or low loads. A range of styles lets these blocks adapt to almost all control line applications. Features: Sheave: 38mm (1-1/2") Maximum Line: 10mm (3/8") Maximum Working Load: 272kg (600lb)

Read more less

Sea Rail Bag - MediumThis handy Blue Performance sea rail bag is perfect for letting you store your gear.Features: Integrated Raincover Attach to the wire/rail using a Velcro flap and fix upright with two webbing straps on the lower wire/rail Inner pocket with closure Mesh side panels Waterproof, mildew, and UV-resistant material Ripstop lining An integrated pocket in the base contains a waterproof cover manufactured from UV-resistant Ripstop Specifications (L x W):Medium: (inch) 13.8 x 9.8 x 2.8 / (mm) 350 x 250 x 70*Sold as an Individual Specifications: Type: Bags Box Dimensions: 2"H x 12"W x 16"L WT: 1.9 lbs UPC: 8717933038339

Read more less

16mm Block with BecketThe 16 mm is Harken’s smallest block. It is perfect for small synthetic control lines found on high-tech dinghies. The patented bearing system uses stainless steel balls in a captive grooved race and has a 250 lb (113 kg) maximum working load.Specifications: Sheave: 16mm / 5/8in. Length: 38mm / 1-1/2in. Weight: 12g / .44oz Maximum line: 5mm / 7/32in Maximum working load: 113kg/ 250lb Breaking load: 544kg / 1200lb

Read more less

Standard Cam-Matic® Aluminum Kit with Wire FairleadWire fairleads maintain a low profile while holding the line close to the cleat. Kit includes hardcoat-anodized 150 aluminum Cam-Matic® and 298 wire fairlead.Specifications: Weight: 85g / 3 oz. Maximum working load: 136kg / 300lb.
