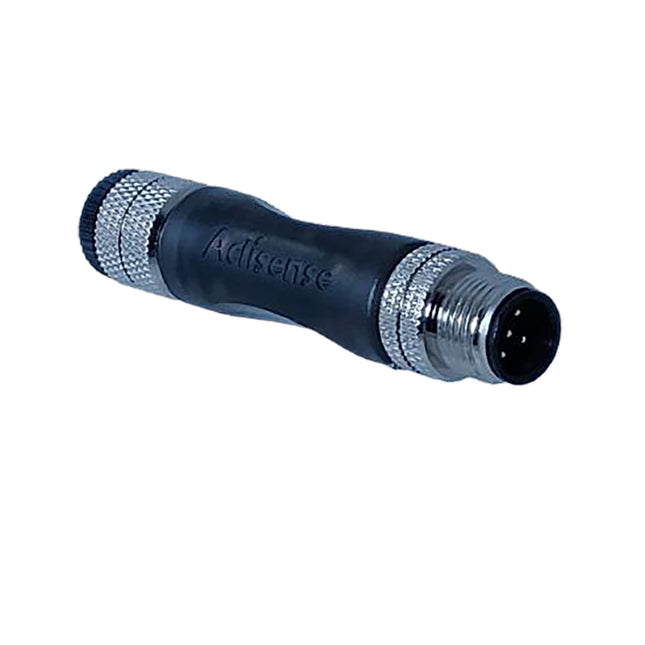

NMEA2000 Smart Universal Micro TerminatorTerminate your NMEA 2000 network – regardless of whether a male or female connection is required – and use the TER-U’s smart functionality to easily diagnose any power or voltage issues on your NMEA 2000 bus.The TER-U can be fitted directly at the end of your network or used as an in-line terminator in difficult-to-access locations.The TER-U acts as an intelligent diagnostic terminator, providing instant feedback on the state of the NMEA 2000 bus onboard. It is also a universal terminator which can be used as an inline terminator or else as either a Male or Female terminator, as it comes supplied with blanking caps.It has a built-in high-accuracy voltage monitoring circuit, which continuously monitors the bus voltage, and will illuminate its internal LEDs when it detects that the bus voltage is of the correct polarity. If it detects that the voltage is within the minimum required range, it will indicate ‘GREEN’ immediately, providing continuous, valuable feedback as to the state of the bus.If the voltage falls below the minimum required level of 9.0V, then the LEDs will illuminate ‘RED’, showing there is a potential problem with the NMEA 2000 bus power. Similarly, if the LEDs do not illuminate at all, this would indicate that there was no power or that the polarity was incorrect. This monitoring function happens continuously and remains permanent.Because these terminators are illuminated, they instantly provide feedback that the terminator is actually present (i.e., able to identify that there are two terminators present) – especially helpful in difficult-to-reach locations.This smart universal micro-terminator can be used as either a male or female terminator or even as a feed-through terminator for applications at the top of masts, making it truly universal.Technical Specifications:Electrical Rated Current - 4A Rated Voltage - 36VDC Terminator Resistance - 120Ω 1% Features Green LED - NET-S ≥ 9.05V ±  1% Red LED - NET-S < 9.05V ± 1% Mechanical Male Contact - Brass, gold plated Female Contact - Phosphor bronze, gold plated Male Contact Carrier - PA66 (30% Glass-filled), black Female Contact Carrier - PA66 (30% Glass-filled), black Male Contact Polarization - Standard M12 -“A”- polarization Female Contact Polarization - Standard M12 -“A”- polarization Male Mating Thread - M12 Female Mating Thread - M12 Male Screw Cap - Brass, nickel plated Female Screw Cap - Brass, nickel plated Housing - PVC black Weight - 23.6g Flammability Rating - UL94 V0  Approvals and Certifications Protection - IP67 (when mated) Operating Temperature - -20°C to +70°C Storage Temperature - -40°C to +85°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 NMEA 2000 Connectors: Terminators Box Dimensions: 1"H x 1"W x 3"L WT: 0.2 lbs UPC: 5060998710317 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

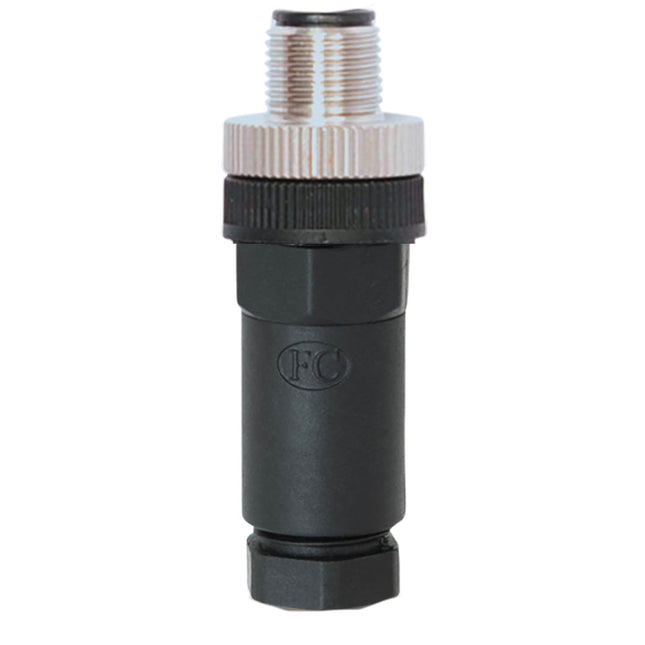

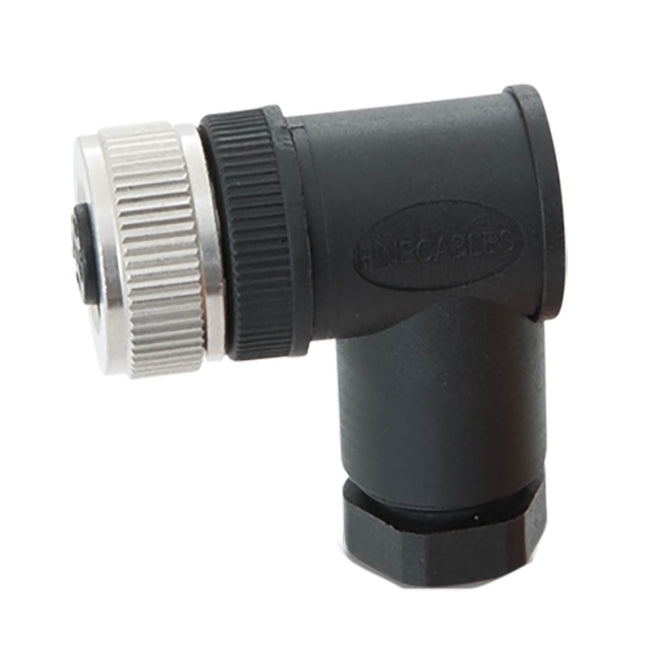

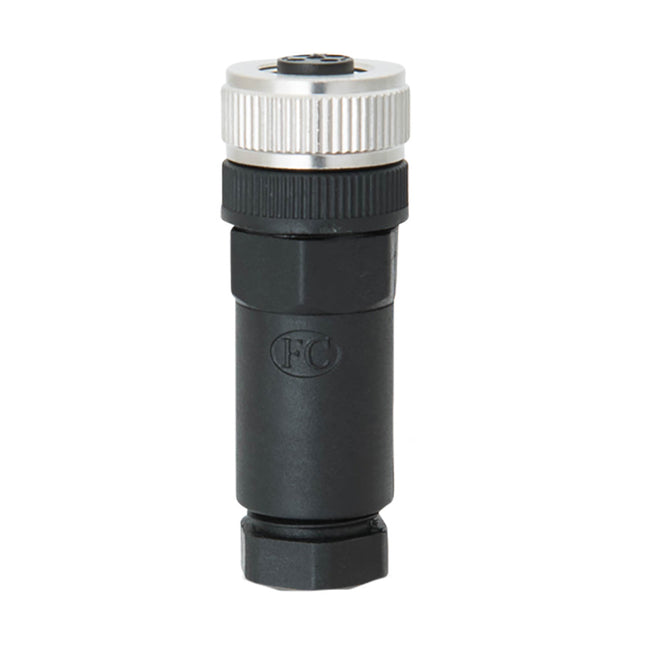

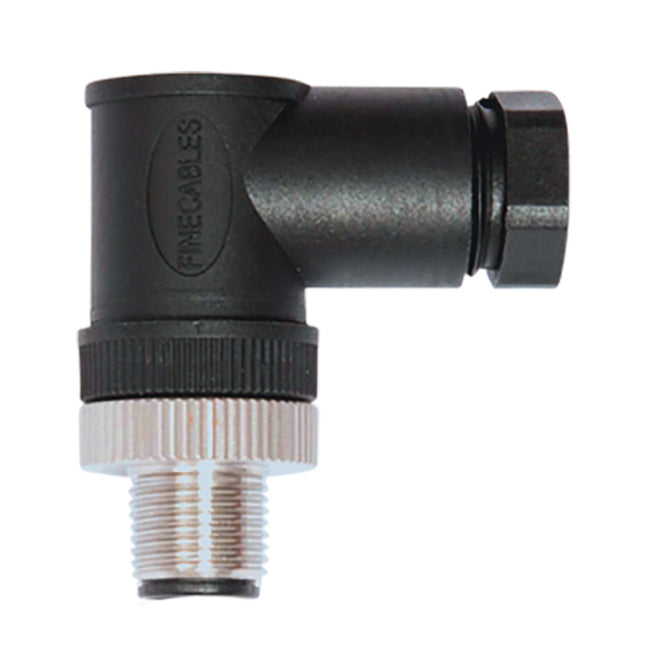

NMEA2000 Straight Micro Field Fit Connector - MaleField-fit connectors allow full customization of your NMEA 2000 network cabling.Male and female variants, as well as right-angle options for each, provide full flexibility and make it easy to install cable around tight bends, meaning your network can be fully customized. Actisense Field Fit Connectors allow for secure, reliable connections in any NMEA 2000 installation using Lite cable. The glands inside the connectors tighten around the cable as they are screwed together to maintain watertight integrity.The Field Fit Connectors allow cables to be cut to any length, resulting in less excess. Right-angle options mean cables can be fitted at any angle to allow ease of installation from the desired entry point. The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.Technical Specifications:Electrical Rated Current - 4A Rated Voltage - 60VDC Mechanical Connector Contact - Brass, gold plated Wire Gauge/Size - 22 AWG/0.34mm Contact Resistance - ≤ 5 mΩ Contact Polarization - Standard M12 -“A”- polarization Mating Thread - M12 Connector Screw - Stainless Steel Sealing Gland Size - PG9/6-8mm Cable O-Ring Seal - Rubber, black Connector Insert - TPU Connector Body - PA+GF, black Insulation Resistance - ≥ 100 MΩ Weight - 21.1g Approvals and Certifications Protection - IP67 (in locked condition) Ambient Temperature - -25°C to +90°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Connection Gender: Male Data Interface: NMEA 2000 NMEA 2000 Connectors: Field Connectors Box Dimensions: 1"H x 1"W x 3"L WT: 0.1 lbs UPC: 5060998710065 Owner's Manual (pdf)Brochure (pdf)

Read more less

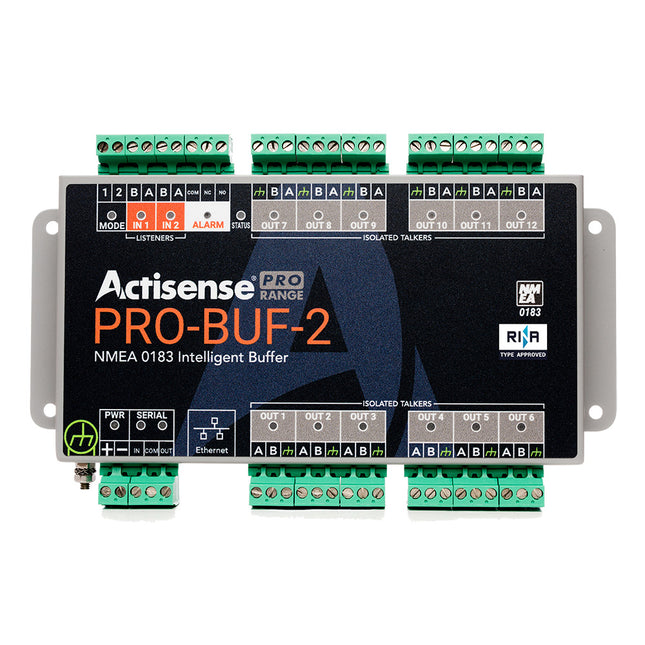

PRO NMEA 0183 Buffer - 2 OPTO Inputs, 12 ISO-Drive Outputs, Serial Port, Ethernet Port, Pluggable Screw TerminalTwo OPTO-isolated inputs and twelve ISO-Drive™ isolated outputs. Offering device protection and excellent flexibility, all in one product - the Actisense® PRO-BUF-2, the intelligent, type-approved PRO range buffer.The PRO-BUF-2 is rugged, with a stainless steel housing, and provides isolation on all inputs and outputs. With two NMEA 0183 inputs, twelve NMEA 0183 outputs, a bi-directional serial port, and an Ethernet port, the PRO-BUF-2 is a perfect solution for larger leisure vessels, commercial shipping, and is a great addition for systems that require type-approved devices.The PRO-BUF-2 is designed to suit the majority of NMEA 0183 systems and is ready to go ‘out of the box’ by simply hard-wiring the two-mode inputs as required.The Intelligent NMEA 0183 Buffer's manually configurable basic modes of operation include variations of buffer modes, intelligent auto-switch, and combine modes.For all other configurations, leaving the mode inputs floating selects the ‘User Configuration Mode’. The web-based configuration tool allows full customisation of the PRO-BUF-2, and is compatible across all popular Operating Systems. Using the web-based configuration tool allows for fine-tuning of the data available on each output.To make installation quick and simple, the PRO-BUF-2 features 2-part pluggable connectors that allow the use of screw terminals*, and a professional DIN Rail mounting system (DIN Rail not included). The device can also be mounted directly to the bulkhead.Helpful LEDs indicate power, data in, data out, and the alarm status to aid diagnostics.Data statistics and load indication via the web tool provide a real-time view of data.Features: 2 Opto-Isolated inputs 12 ISO-Drive NMEA 0183 outputs Ethernet Port Flexible operating modes Automatic Baud Rate matching on inputs Alarm output options Web-based configuration tool Diagnostic LEDs Advanced Data Filtering and Routing 2 virtual Autoswitch modules Data statistics and load indication via a web tool Designed for a 12 / 24 Volt supply Future-proofing with easily upgradable firmware 2-part pluggable connector system Stainless Steel Housing with DIN rail mount option Type Approved Flexible configuration options to buffer autoswitch or combine NMEA data ISO-Drive separates the Listener from the Talker to protect both the PRO-BUF and each connected device. Fast bi-directional data connection to a monitor and control software application PRO-BUF can be configured using any web browser on any Operating system Works out-of-the-box without configuration for basic installations, or can be easily user-configured as required Relay output is compatible with on-board alarm systems, and the NMEA Alarm sentence can be displayed and actioned on an MFD Easy to access via network, doesn’t require the device to be moved or have a serial connection to the PC. A quick visual check gives the user confidence that each input and output is passing data Features can be utilised to fine-tune data, avoiding data overloads on the outputs and connected listeners Allows automatic data priority selection between two devices of the same type of data (e.g., GPS) Shows the NMEA 0183 on each I/O Port, and how frequently it arrives, great for low-level diagnostics Allows use on large vessel 24V DC power supply systems Additional features in future firmware revisions are accessed using a simple update process via Actisense Toolkit over Ethernet Fast installations and supports both screw and screwless terminal types. Ideal for quick diagnostic swapping Increased durability, ease of installation, and high performance Can be installed on vessels governed by Class Society Rules Type Approved (RINA) Technical Specifications:Power Supply Input Supply Voltage - 9 to 35 V DC Input Supply Current - 325mA max @ 12V DC (all outputs @ full drive into 100 ohm loads) Input Protection - Continuous reverse polarity, transient overvoltage, and ESD protection Power Indicator - LED, Blue – indicates unit is functioning correctly Input Supply Connector - Pluggable 2-way screw terminal, 5.08mm pitch NMEA 0183 Port – Listener & Talker Number of Listener / Input Ports - 2 isolated NMEA 0183 Listeners Number of Talker / Output Ports - 12 isolated NMEA 0183 Talkers Compatibility - Fully NMEA 0183, RS422 & RS232 compatible. RS-485 Listener compatible Speed/baud rate - 4800 to 38400 bps Talker Output Voltage Drive - >= 2.2V (differential) into 100 ohm Talker Output Current Drive - 20 mA maximum per output Talker Output Protection - Short circuit and ESD Talker Data Indicator - LED, Orange (Flashes at data rate) Listener Input Voltage Tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second) Listener Input Protection - Current limited, overdrive protection to 40 VDC, and ESD protection Listener Data Indicator - LED, Green (Flashes to indicate valid input) Connectors - Pluggable 2/3-way screw terminals, 5.08mm pitch Serial Port Compatibility - RS422 & RS232 compatible. RS-485 Listener compatible Speed/baud rate - 4800 to 115200 bps Output Voltage Drive - >= 2.1V (differential) into 100 ohms Output Current Drive - 20 mA max. Output Protection - Short circuit and ESD Input Voltage Tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second) Input Protection - Current limited, overdrive protection to 40 VDC, and ESD protection Data Indicators - LED’s: Green = Receive, Orange = Transmit Connectors - Pluggable 3-way screw terminals, 5.08mm pitch Ethernet Port Host Interface - 10/100BaseT, automatic polarity detection Supported Protocols - TCP/IP for configuration and firmware updating, TCP/IP and UDP for NMEA 0183 comms Indicators - Green = Link/Activity, Yellow = 100 Mbps Connector - RJ45 Isolation NMEA 0183 Listener - OPTO-Isolated, Hi-Pot tested to 1000V NMEA 0183 Talker - Uses IsoDriveTM, Hi-Pot tested to 1000V Serial Port - Uses IsoDriveTM, Hi-Pot tested to 1000V Alarm Relay - Hi-Pot tested to 1000V Ethernet Port - 2kV for 60s Mode Inputs Input Voltage Range - 0 to 35V DC Protection - Transient overvoltage and ESD protection Connectors - Pluggable 2-way screw terminals, 5.08mm pitch Alarm Output Contacts - Common, Normally Open and Normally Closed Alarm Indicator - LED, Red indicates a valid alarm condition Contact Ratings - 35VAC / 50VDC Connectors - Pluggable 3-way screw terminals, 5.08mm pitch Mechanical Housing Material - 316 Stainless Steel Dimensions - 210mm (W) x 128mm (H) x 27mm (D) Weight - 530g Mounting - Bulkhead mount or DIN rail mount (DIN kit 1) Approvals and Certifications EMC - IEC 60945:2002-08, DNVGL-CG-0339:2019 & IACS UR E10 Rev7 Compass Safe Distance - 750mm Type Approval Certificate - RINA Operating Temperature - -25 to +70°C Storage Temperature - -40 to +85°C Relative Humidity (RH) - 95% @ 55°C Environmental Protection - IP40 Guarantee - 5 Years This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Data Interface: NMEA 0183 Box Dimensions: 2"H x 6"W x 10"L WT: 1.5 lbs UPC: 5060998710522 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

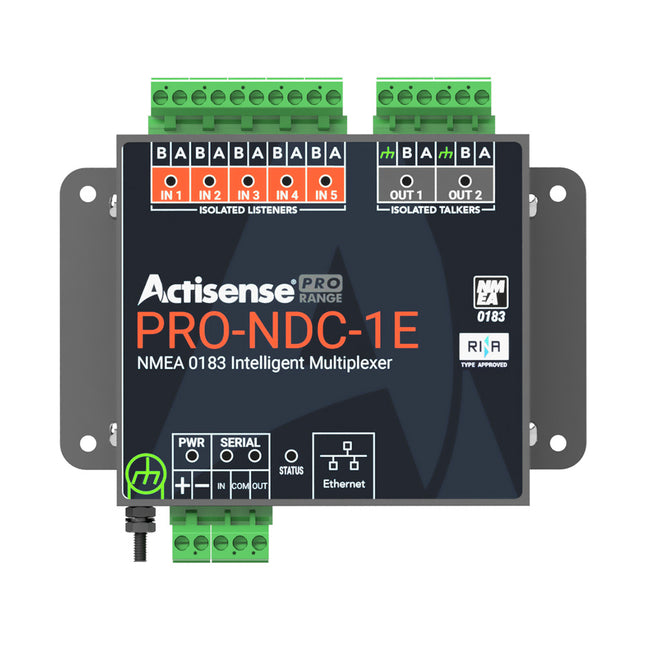

PRO NMEA 0183 Multiplexer - 5 Inputs & 2 ISO-Drive Outputs, Ethernet & Serial ConnectionsThe PRO-NDC-1E is more than just an NMEA 0183 Multiplexer…Rugged, Robust, type-approved multiplexer with powerful, advanced features enables baud rate adjustments, auto-switching, and sentence-level filtering.Features: Auto-switching between inputs to allow for a primary, secondary, and tertiary priority input. Configurable baud rates to allow 38400 and 4800 baud devices to operate through the same multiplexer. Sentence filtering to block unwanted sentences from specific outputs helps to limit bandwidth consumption. Easy to configure using the web-based UI, no need to manually enter and edit strings of text. RINA type-approved device means the multiplexer is fit for leisure, commercial, and class/type installations. Multiple LEDs allow for ‘quick glance’ diagnostics to ensure everything is operating correctly. NMEA 0183 data streaming over Ethernet enables connectivity to existing Ethernet devices and systems. 5 OPTO-Isolated NMEA 0183 inputs and 2 ISO-Drive NMEA 0183 outputs provide protection for all connected instruments. Dedicated bi-directional Serial port (fully isolated utilising ISO-Drive technology) A serial port can be used as an additional input/output Ethernet port supports direct and network connections NMEA 0183 streaming via Ethernet Configurable input and output baud rates Allows Data combining and rate conversion 2 independent Autoswitch virtual inputs with priority Isolation from battery supply Diagnostic LED’s Optional DIN rail mount Type Approved Quick and easy to install Configuration using a standard web browser, no PC operating system compatibility issues Advanced features solve NMEA 0183 data routing problems Fully isolated with ISO-Drive technology for peace of mind Easy firmware updates make the device future-proof Technical Specifications:Power Supply Input supply voltage - 9 to 35 V DC     Input supply current - 150mA max @ 12V DC (all outputs @ full drive into 100 ohm loads)     Input protection - Continuous reverse polarity, transient overvoltage, and ESD protection     Power indicator - LED, Blue – indicates unit is functioning correctly     Input Supply connector - Pluggable 2-way screw terminal, 5.08mm pitch (12 to 30 AWG) NMEA 0183 Port – Listener & Talker Number of Listener / Input Ports - 5 isolated NMEA 0183 Listeners     Number of Talker / Output Ports - 2 isolated NMEA 0183 Talkers     Compatibility - Fully NMEA 0183, RS422 & RS232 compatible. RS-485 Listener compatible     Speed/baud rate - 4800 to 38400 bps     Talker Output Voltage Drive - >= 2.2V (differential) into 100 ohm     Talker Output Current Drive - 20 mA maximum per output     Talker Output Protection - Short circuit and ESD     Talker Data Indicator - LED, Orange (Flashes with data rate)     Listener Input Voltage Tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second)     Listener Input Protection - Current limited, overdrive protection to 40 VDC, and ESD protection     Listener Data Indicator - LED, Green (Flashes with data rate)     Connectors - Pluggable 2/3 way screw terminals, 5.08mm pitch (12 to 30 AWG) Serial Port Compatibility - RS422 & RS232 compatible. RS-485 Listener compatible     Speed/baud rate - 115200 bps     Output voltage drive - >= 2.1V (differential) into 100 ohms     Output current drive - 20 mA max     Output protection - Short circuit and ESD     Input voltage tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second)     Input protection - Current limited, overdrive protection to 40 VDC, and ESD protection     Data Indicators - LED’s: Green = Receive, Orange = Transmit     Connectors - Pluggable 3-way screw terminals, 5.08mm pitch (12 to 30 AWG) Ethernet Port Host interface - 10/100BaseT, automatic polarity detection     Supported protocols - TCP/IP for configuration and firmware updating, TCP/IP and UDP for NMEA 0183 comms     Connector - RJ45     Indicators - Green – Link, Yellow – 100 Mbps Isolation NMEA 0183 Listener - Uses IsoDriveTM, Hi-Pot tested to 1000V     NMEA 0183 Talker - Uses IsoDriveTM, Hi-Pot tested to 1000V     Serial Port - Uses IsoDriveTM, Hi-Pot tested to 1000V     Ethernet Port - 2kv for 60s Mechanical Housing Material - 316 Stainless Steel     Dimensions - 139mm (W) x 98mm (H) x 26mm (D)     Weight - 360g     Mounting - Bulkhead mount or DIN rail mount (DIN kit 1) Approvals and Certifications EMC - IEC 60945:2002-08, DNVGL-CG-0339:2019 & IACS UR E10 Rev7     Compass Safe Distance - 300mm     Type Approval Certificate - RINA     Operating Temperature - -25 to +70°C     Storage Temperature - -40 to +85°C     Relative Humidity (RH) - 95% @ 55°C     Environmental Protection - IP40     Guarantee - 3 years (5 Years if registered) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Data Interface: NMEA 0183 Box Dimensions: 2"H x 6"W x 10"L WT: 1 lbs UPC: 5060998710577 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

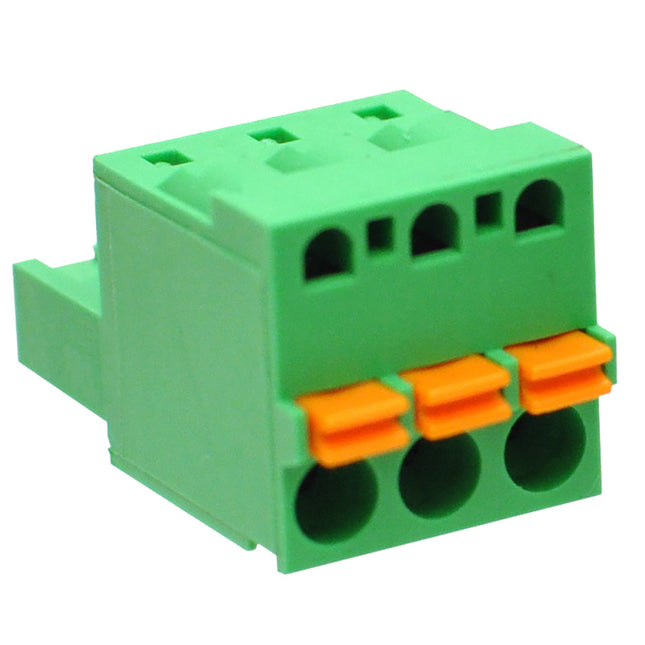

PRO NMEA 0183 MultiplexerEight OPTO-isolated inputs and six ISO-Drive™isolated outputs. Offering device protection and excellent flexibility, all in one product.Introducing the Actisense® PRO-MUX-2, the intelligent, type-approved PRO range multiplexer.The PRO-MUX-2 is rugged, with a stainless steel housing, and provides isolation on all inputs and outputs. With eight NMEA 0183 inputs, six NMEA 0183 outputs, a bi-directional serial port and an Ethernet port, the PRO-MUX-2 is a perfect solution for larger leisure vessels, commercial shipping and is a great addition for systems that require type-approved devices.The PRO-MUX-2 is designed to suit the majority of NMEA 0183 systems, from leisure through to class vessels.Features: 8 OPTO-isolated NMEA 0183 inputs 6 ISO-Drive NMEA 0183 outputs Bi-directional isolated serial port (can be used for additional NMEA 0183 input/ output) 0183 streaming via Ethernet Alarm output (N/O and N/C contacts) Designed for 12- and 24-Volt supply Isolation to battery supply Configurable input and output baud rates for rate conversion Data combining from any input to any output 2 independent Autoswitch virtual inputs with priority Advanced sentence-based filtering / routing Diagnostic LEDs on all inputs and outputs Alarm, mode and Bi-colour Status LED’s 2-part pluggable connector system supports both screw and screwless terminals DIN rail or Panel mountable Advanced statistics are available via a Web Browser Quick and easy to install Configuration using standard web browser, no PC operating system compatibility issues Advanced features solve NMEA 0183 data routing problems Fully isolated with ISO-Drive technology for peace of mind Easy firmware updates makes the device future-proof Technical Specifications:Power Supply Input Supply Voltage - 9 to 35 V DC Input Supply Current - 220mA max @ 12V DC (all outputs @ full drive into 100 ohm loads) Input Protection - Continuous reverse polarity, transient overvoltage and ESD protection Power Indicator - LED, Blue – indicates unit is functioning correctly Input Supply Connector - Pluggable 2-way screw terminal, 5.08mm pitch (12 to 30 AWG) NMEA 0183 Port – Listener & Talker Number of Listener / Input Ports - 8 isolated NMEA 0183 Listeners Number of Talker / Output Ports - 6 isolated NMEA 0183 Talkers Compatibility - Fully NMEA 0183, RS422 & RS232 compatible. RS485 Listener compatible Speed / baud rate - 4800 to 38400 bps Talker Output Voltage Drive - >= 2.2V (differential) into 100 ohm Talker Output Current Drive - 20 mA maximum per output Talker Output Protection - Short circuit and ESD Talker Data Indicator - LED, Orange (Flashes at data rate) Listener Input Voltage Tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second) Listener Input Protection - Current limited, overdrive protection to 40 VDC and ESD protection Listener Data Indicator - LED, Green (Flashes to indicate valid input) Connectors - Pluggable 2/3-way screw terminals, 5.08mm pitch (12 to 30 AWG) Serial Port Compatibility - RS422 & RS232 compatible. RS485 Listener compatible Speed / baud rate - 4800 to 115200 bps Output Voltage Drive - >= 2.1V (differential) into 100 ohm Output Current Drive - 20 mA max. Output Protection - Short circuit and ESD Input Voltage Tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second) Input Protection - Current limited, overdrive protection to 40 VDC and ESD protection Data Indicators - LED’s: Green = Receive, Orange = Transmit Connectors - Pluggable 3-way screw terminals, 5.08mm pitch (12 to 30 AWG) Ethernet Port Host Interface - 10/100BaseT, automatic polarity detection Supported Protocols - TCP/IP for configuration and firmware updating, TCP/IP and UDP for NMEA 0183 comms Indicators - Green = Link/Activity, Yellow = 100 Mbps Connector - RJ45 Isolation NMEA 0183 Listener - OPTO-Isolated, Hi-Pot tested to 1000V NMEA 0183 Talker - Uses IsoDrive™, Hi-Pot tested to 1000V Serial Port - Uses IsoDrive™, Hi-Pot tested to 1000V Alarm Relay - Hi-Pot tested to 1000V Ethernet Port - 2kV for 60s Mode Inputs Input Voltage Range - 0 to 35V DC Protection - Transient overvoltage and ESD protection Connectors - Pluggable 2-way screw terminals, 5.08mm pitch (12 to 30 AWG) Alarm Output Contacts - Common, Normally Open and Normally Closed Alarm Indicator - LED, Red indicates a valid alarm condition Contact Ratings - 35VAC / 50VDC Connectors - Pluggable 3-way screw terminals, 5.08mm pitch (12 to 30 AWG) Mechanical Housing Material - 316 Stainless Steel Dimensions - 210mm (W) x 128mm (H) x 27mm (D) Weight - 540g Mounting - Bulkhead mount or DIN rail mount (DIN kit 1) Approvals and Certifications Compass Safe Distance - 175mm Type Approval Certificate - RINA Operating Temperature - -25 to +70°C Storage Temperature - -40 to +85°C Relative Humidity (RH) - 95% @ 55°C Environmental Protection - IP40 Guarantee - 5 Years This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Data Interface: NMEA 0183 Box Dimensions: 2"H x 6"W x 10"L WT: 1.5 lbs UPC: 5060998710584 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)
