NMEA 2000 Engine Monitoring Unit - Analog to NMEA2000 Engine GatewayShare engine information on the NMEA 2000 bus.The Actisense EMU-1 is a specialized analogue to NMEA 2000 Gateway which converts data from analogue engine gauges/senders into NMEA 2000 data. The EMU-1 enables the sharing of engine data throughout the NMEA 2000 bus. It digitizes analogue engine sensors, enabling NMEA 2000 display devices to monitor the connected engine(s) on a vessel.The EMU-1 can monitor vital engine parameters such as temperature, pressure RPM and fluid levels from up to two engines.The EMU-1 has a PC-based configuration tool that allows the settings inside the EMU-1 to be changed to best suit the engine it is working with, making it a flexible solution for many engine makes and models.An Actisense PC to NMEA 2000 Gateway (NGX-1/NGT-1) is required to configure the EMU-1.The NGX-1 or NGT-1 must be used to update the firmware, connect the Toolkit and display data on a PC for diagnostic and information purposes, using NMEA Reader. Please visit the NGX-1 page and/or NGT-1 page for product details.Features: Enables analogue signals to be converted to NMEA 2000 messages Convert signals from up to two engines (that share a common ground) with a single EMU-1 6 gauge / parameter inputs 4 alarm inputs 2 additional auxiliary inputs 2 Tacho inputs Customized IP65 case Diagnostic LED’s Wide power compatibility of 9 to 35VDC No need to change an existing engine Easy installation Easy to configure to suit the connected engine Connect signals from fluid level gauges (that share a common ground with the engine) to NMEA 2000® Optional DIN rail mounting kit available Total engine hours are logged by the monitoring of engine Tach (RPM) input Technical Specifications:Power Supply Supply Voltage - 9 to 35VDC Supply Current - Typically < 25mA @ 12VDC Supply Protection - Continuous reverse polarity protection and load dump protection (meets SAE J1113) Supply Connector - Pluggable 2-way screw terminal, 3.5mm pitch Supply Voltage (NMEA 2000 Port) - 9 to 29VDC Supply Current (NMEA 2000 Port) - < 20mA @ 12VDC from NMEA 2000 bus Load Equivalent Number (LEN) - 1 Supply Protection (NMEA 2000 Port) - Continuous reverse polarity protection and overvoltage protection to 40V NMEA 2000 Port – In/Out Compatibility - Fully NMEA 2000 certified Galvanic Isolation - 2500V input to ground, 1500V output to ground using ISO-Drive Speed / Baud Rate - 250kbps NMEA 2000 Connector - M12 male (A coded) connector Gauge Inputs Voltage Range - 0 to 35VDC Input Impedance - > 50kΩ Sender Feed - 0, 4 or 18mA Accuracy - <= 2% Input Connector - Pluggable 6-way screw terminal, 3.5mm pitch Input Protection - Overvoltage protection to ±40V Alarm Inputs Voltage Range - 0 to 37VDC Input Impedance - > 50kΩ Threshold Voltage - Configurable, default is 5V Alarm Polarity - Configurable, default is alarm on low input Accuracy - <= 2% Input Connector - Pluggable 4-way screw terminal, 3.5mm pitch Input Protection - Overvoltage protection to ±40V Tacho Inputs Voltage Range - ±3 to ±60V Input Impedance - > 100kΩ to ground Input Pulse Range - 4 to 50,000Hz Accuracy - <= 1% Sender Compatibility - Ignition coil, alternator (“W”, “R” or “AC”) terminal, hall effect, VR or inductive sender Threshold - Automatically adjusts to signal level Input Connector - Pluggable 4-way screw terminal, 3.5mm pitch Input Protection - Can withstand an ignition pulse to ±500V Engine LogEngine Hours - 2 separate engine hour logs internally connected to the tacho Inputs. Hours are logged when RPM is present, stored in non-volatile memoryMechanical Housing Material - Polycarbonate Protective Lid Material - Polycarbonate Sealing Materials - Expanded silicone foam gasket, closed cell polyurethane splash guard and ePTFE waterproof vent Dimensions - 127mm (L) x 112mm (W) x 48mm (H) Weight - 250g Mounting - 4 x 3.5mm lugs to allow panel mount with self tapping s/s screws (included), optional DIN Rail mount available on request Approvals and Certifications EMC - EN 60945 (sections 9 & 10) Environmental Protection - IP66 (PCB housing) Operating Temperature - -20°C to +55°C Storage Temperature - -30°C to +70°C Recommended Humidity - 0 – 93% RH Guarantee - 3 years This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Data Interface: NMEA 2000 Box Dimensions: 3"H x 6"W x 9"L WT: 1 lbs UPC: 5060998710331 Owner's Manual (pdf)Brochure (pdf)

Read more less

NMEA2000 Micro 4-Way DropReduce your NMEA 2000 cabling requirements, saving time, space and money.The Actisense 4-way drop makes it easier to reach up to four devices with a single cable.Typically, when four devices need to be connected to an NMEA 2000 backbone, a T-piece and individual cable is required for each one. This can either mean excessive cabling demands or moving the backbone closer to your devices.The 4-way drop makes it possible to shorten the length of each cable needed before reaching a T-piece.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Data Interface: NMEA 2000 NMEA 2000 Connectors: Tee Connectors Box Dimensions: 1"H x 7"W x 7"L WT: 0.55 lbs UPC: 5060998710003

Read more less

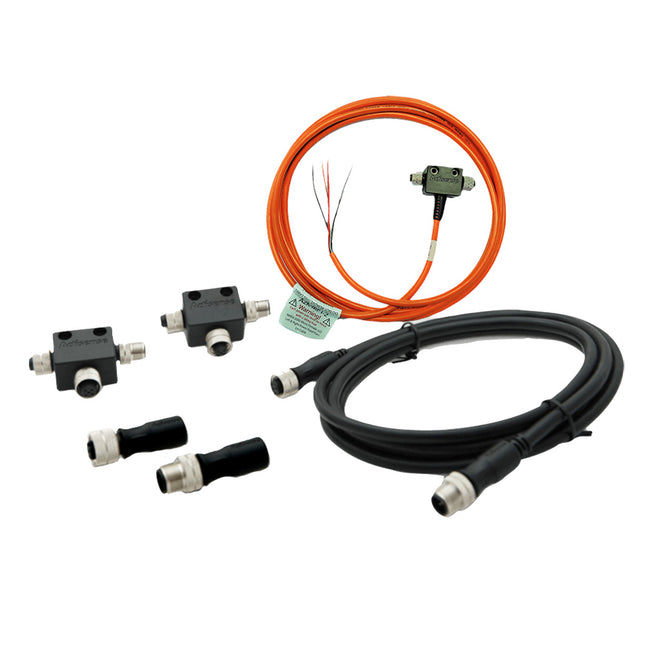

NMEA2000 Micro Starter Kit with MPT-2, TER-M (x2), T-MFF (x2) & TDC-2MThe NMEA 2000 Starter Kit from Actisense provides everything that is required to start an NMEA 2000 installation.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.Read the overview below to discover the contents of this useful NMEA 2000 Starter Kit.In the Box: A2K-MPT-2 - Micro Power T- to power the network 2x A2K-TER-M - NMEA 2000 micro terminator male – to terminate the ends of the network A2K-T-MFF - 2x Micro T-piece – to allow two NMEA 2000 devices to connect to the network A2K-TDC-2M - NMEA 2000 Lite cable assembly 2 meter – to extend the distance between any two network pieces This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Data Interface: NMEA 2000 NMEA 2000 Connectors: Starter Kits Box Dimensions: 1"H x 1"W x 2"L WT: 1.5 lbs UPC: 5060998710096

Read more less

NMEA2000 Micro Starter Kit with MPT-2, TER-M (x2), T-MFF (x2) & TDC-6MThe NMEA 2000 Starter Kit 2a from Actisense provides everything that is required to start an NMEA 2000 installation.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.In the Box: A2K-MPT-2 - Micro Power T- to power the network. 2x A2K-TER-M - NMEA 2000 micro terminator male – to terminate the ends of the network A2K-T-MFF - 2x Micro T-piece – to allow two NMEA 2000 devices to connect to the network. A2K-TDC-6M - NMEA 2000 Lite cable assembly 6 meter – to extend the distance between any two network pieces. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Data Interface: NMEA 2000 NMEA 2000 Connectors: Starter Kits Box Dimensions: 1"H x 1"W x 2"L WT: 2.05 lbs UPC: 5060998710102

Read more less

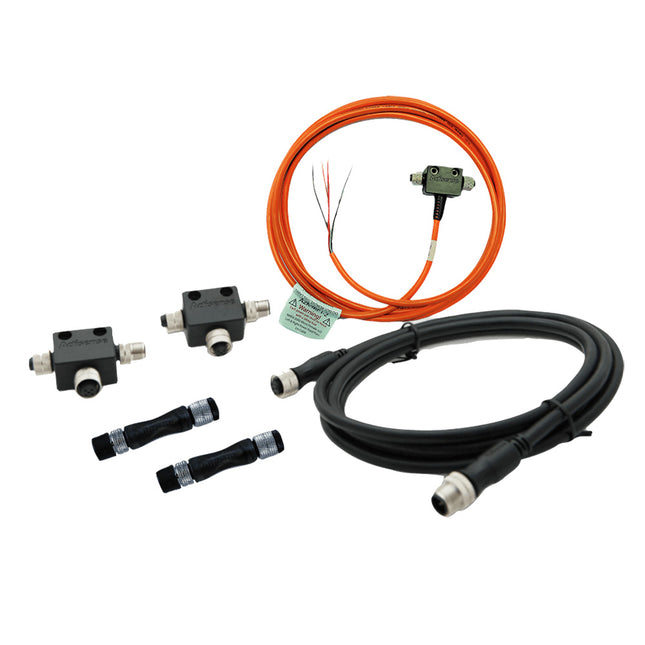

NMEA2000 Micro Starter Kit with MPT-2, TER-U (x2), T-MFF (x2) & TDC-4MThe NMEA 2000 Micro Smart Starter Kit from Actisense provides everything that is required to start an NMEA 2000 installation.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge. This kit is also the first to feature our breakthrough Smart Universal Terminators to help you easily identify any potential voltage issues on your network.In the Box: A2K-MPT-2 - Micro Power T - to power the network A2K-TER-U - 2x NMEA 2000 micro Smart Universal Terminator – to terminate each end of the network and monitor network voltage A2K-T-MFF - 2x Micro T-piece – to allow two NMEA 2000 devices to connect to the network A2K-TDC-4M - NMEA 2000 Lite cable assembly 4 meter – to extend the distance between any two network pieces. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Data Interface: NMEA 2000 NMEA 2000 Connectors: Starter Kits Box Dimensions: 1"H x 1"W x 3"L WT: 2 lbs UPC: 5060998710126

Read more less

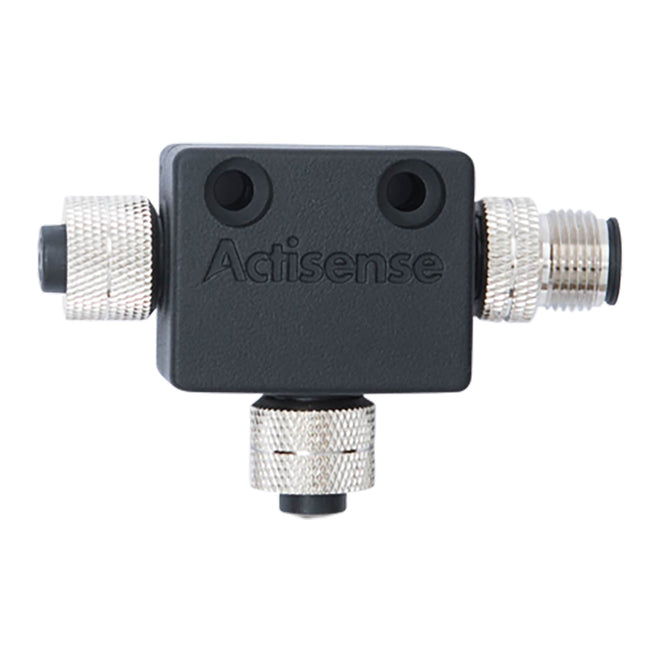

NMEA2000 Micro T ConnectorQuality-engineered connectors are shaped to allow easy and secure connections.Two female and one male connector allow easy connection to Actisense NMEA lite cable assemblies, even when field-fit connectors are used, making it a unique T-piece.The Actisense NMEA 2000 T-Piece is for use where a drop or ‘port’ is required from the NMEA 2000 backbone to connect another device.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.Technical Specifications: Rated Current - 4A Rated Voltage - 60VDC Male Contact - Brass, gold-plated Female Contact - Phosphor bronze, gold plated Contact Carrier - PA66 (30% Glass filled), black Contact Polarization - Standard M12 -“A”- polarization Mating Thread - M12 Screw Cap - Brass, nickel plated O-Ring Seal - Rubber, black Housing - PVC, black Weight - 47g Protection - IP67 (when mated) Operating Temperature - -25°C to +70°C Storage Temperature - -40°C to +85°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 NMEA 2000 Connectors: Tee Connectors Box Dimensions: 1"H x 2"W x 2"L WT: 0.15 lbs UPC: 5060998710324 Owner's Manual (pdf)Brochure (pdf)

Read more less

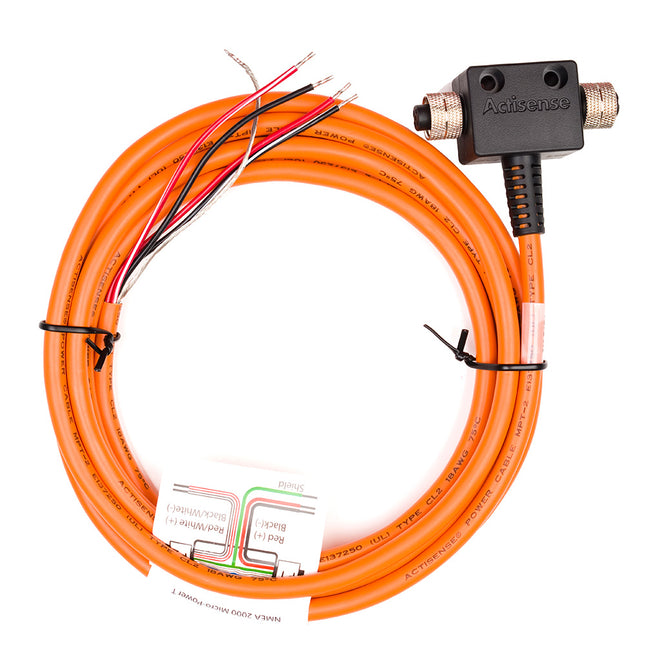

NMEA2000 Micro T-Piece with Female Connectors & 3M UL Certified CableThe A2K-MPT-2 is a simple, safe, and efficient method of powering an NMEA 2000 network.Now with improved strain relief!The Micro Power T can easily provide power to the NMEA 2000 bus with micro-fit connectors to enable ‘plug and play’ connectivity.The Actisense-designed connectors are quality-engineered and shaped to allow easy and secure connections, using our specialist interconnect and NMEA knowledge. With its two female connectors, this power T is also fully Devicenet compatible.The Actisense specified cable is UL certified, and the three-meter cable length ensures that the A2K-MPT-2 offers complete flexibility when installing.Technical Specifications:Electrical Rated Current - 4A (each feed) Rated Voltage - 60VDC Mechanical Female Contact - Phosphor bronze, gold plated Contact Carrier - PA66 (30% Glass Filled), Black Contact Polarization - Standard M12 -“A”- polarization Mating Thread - M12 Screw Cap - Brass, nickel plated O-Ring Seal - Rubber, black Housing - PVC, black Cable Jacket Material - 0.8mm Nom. PVC, orange Cable Outer Diameter - 6.7mm ±0.254mm Cable Length - 3M Wire Length - 100mm (7mm stripped) Wire Jacket - PVC Wires - 18 AWG (stripped and tinned) Drain - 18 AWG (34-strand tinned copper) Shield - Al-mylar Weight - 290g Approvals and Certifications Protection - IP67 (when mated) Operating Temperature - -20°C to +70°C Storage Temperature - -40°C to +85°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Connection Gender: Female-Female Data Interface: NMEA 2000 Cable Length (Meters): 3m NMEA 2000 Connectors: Tee Connectors Box Dimensions: 1"H x 6"W x 7"L WT: 0.65 lbs UPC: 5060998710140 Owner's Manual (pdf)Brochure (pdf)

Read more less

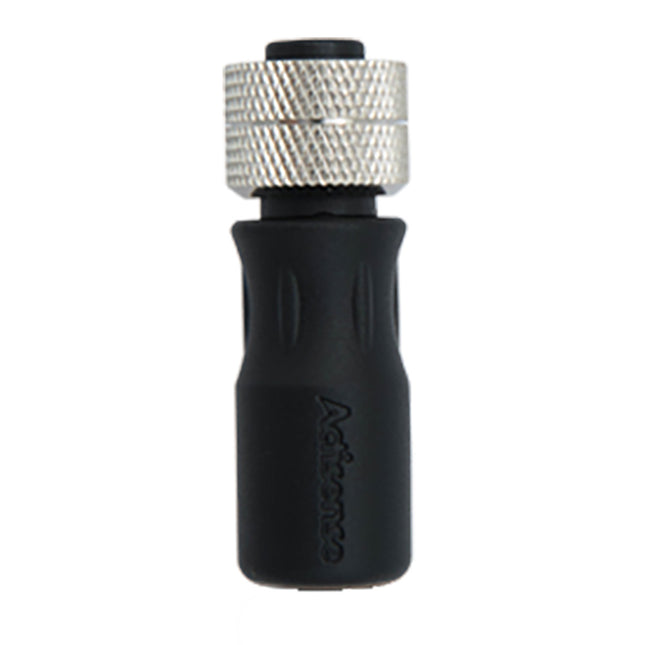

NMEA2000 Micro Terminator - FemaleActisense terminators are exceptionally robust, designed to withstand the harsh conditions of the marine environment, and are easy to install.Each NMEA 2000 installation must have precisely two termination resistors installed, one at each end of the backbone, to ensure proper operation and signal integrity.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledgeTechnical Specifications:Electrical Rated Voltage (power pair) - 60VDC Rated Current - 4A Internal Termination Resistors - 120 Ω ± 1% 500mW Mechanical Female Contact - Phosphor bronze, gold plated Contact Carrier - PA66 (30% Glass filled), black Contact Polarization - Standard M12 -“A”- polarization Mating Thread - M12 Screw Cap - Brass, nickel plated O-Ring Seal - Rubber, Black Housing - PVC, black Weight - 15g Approvals and Certifications Protection - IP67 (when mated) Operating Temperature - -25°C to +70°C Storage Temperature - -40°C to +85°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Connection Gender: Female Data Interface: NMEA 2000 NMEA 2000 Connectors: Terminators Box Dimensions: 1"H x 1"W x 2"L WT: 0.1 lbs UPC: 5060998710294 Owner's Manual (pdf)Brochure (pdf)

Read more less

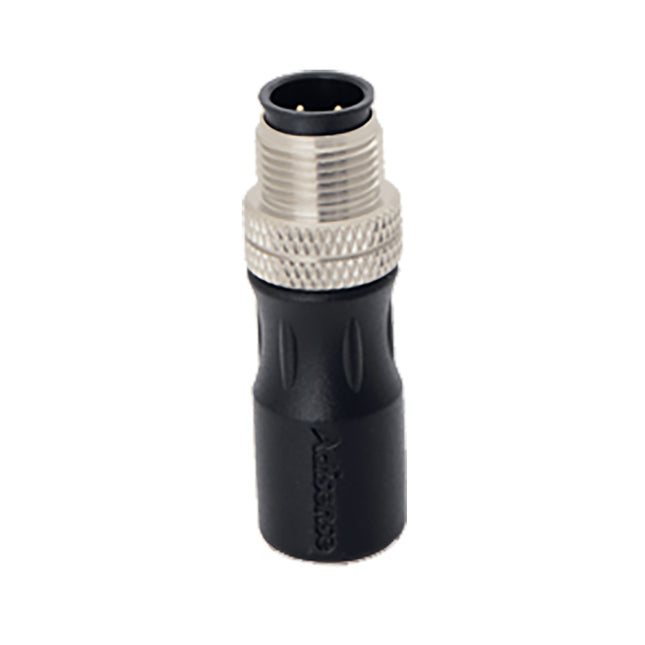

NMEA2000 Micro Terminator - MaleActisense terminators are exceptionally robust, designed to withstand the harsh conditions of the marine environment, and are easy to install.Each NMEA 2000 installation must have precisely two termination resistors installed, one at each end of the backbone, to ensure proper operation and signal integrity.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledgeTechnical Specifications:Electrical Rated Voltage (power pair) - 60VDC Rated Current - 4A Internal Termination Resistors - 120 Ω ± 1% 500mW Mechanical Male Contact - Brass, gold plated Contact Carrier - PA66 (30% Glass filled), black Contact Polarization - Standard M12 -“A”- polarization Mating Thread - M12 Screw Cap - Brass, nickel plated O-Ring Seal - Rubber, Black Housing - PVC, black Weight - 15g Approvals and Certifications Protection - IP67 (when mated) Operating Temperature - -25°C to +70°C Storage Temperature - -40°C to +85°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Connection Gender: Male Data Interface: NMEA 2000 NMEA 2000 Connectors: Terminators Box Dimensions: 1"H x 1"W x 2"L WT: 0.1 lbs UPC: 5060998710300 Owner's Manual (pdf)Brochure (pdf)

Read more less

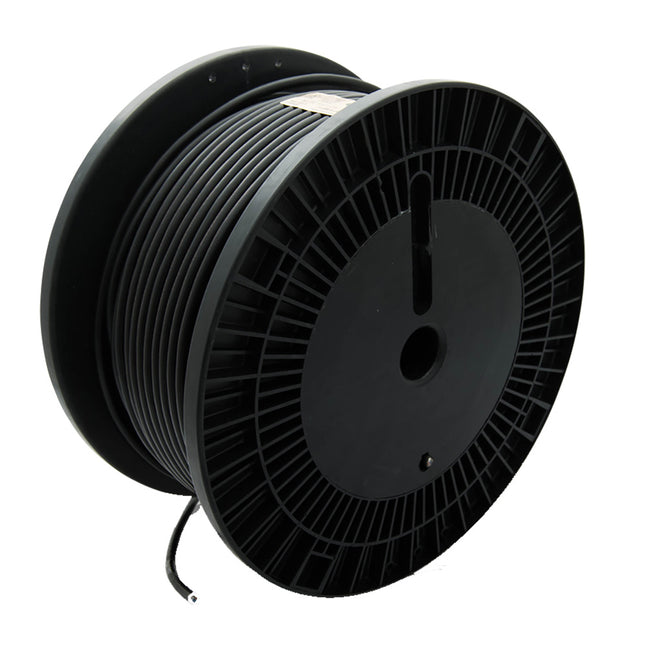

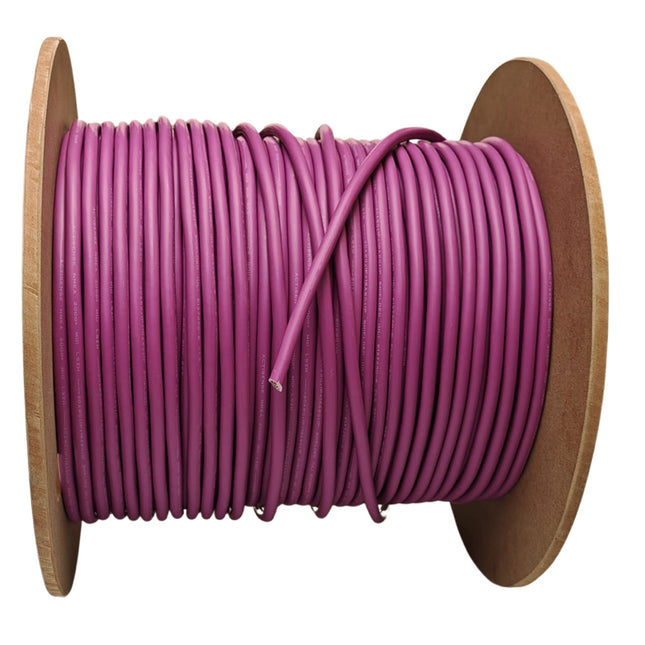

NMEA2000 Mid Bulk Cable Reel - 100MThis cable can be used to create or extend an NMEA 2000® network of flexible lengths to suit any installation. The cable is ideal for use with any of the Actisense A2K Product range for building networks.The cable is LSZH certified to give installers and end users maximum peace of mind and an extra layer of safety.The Actisense range of NMEA 2000® connectors and cables has been designed using our specialist interconnectivity and NMEA knowledge. All Actisense cables and connectors are NMEA 2000® approved.The NMEA 2000® cable includes five wires within a single waterproof cable: power and ground wires, two signal wires, and a drain wire. The drain wire connects to the cable shield, which protects the signal, power, and ground wires from external Radio Frequency Interference (RFI) and helps reduce RFI emission from the cable.NMEA 2000® Mid cable can be used to create a backbone up to 250 meters in length, and offers a current capacity of 4A with Micro connectors, or 8A with Mini connectors.Technical Specifications:Cable Rated Voltage - 60V DC Rated Current - 8A Braid Material - 37 AWG tinned copper Braid Coverage - 65% Nom. Jacket Material - LSZH Purple (RAL4008) Jacket Outer Diameter - 8.2mm Overall DCR (braid + tape + drain) - 3.2Ω / 1000ft (10.5mΩ/M) Reel Length - 100m Reel Weight - 13-14kg Power Pair Conductor - 16 AWG (19-strand tinned copper) Insulation - 0.17 mm Nom. LSZH Diameter - 1.85mm Nom. Colors - Red & Black Shield - AL Mylar tape over pair DC Resistance - 4.26Ω / 1000ft (14mΩ/M) Data Pair Conductor - 20 AWG (19-strand tinned copper) Insulation - 0.79 mm Nom. Foam PE Diameter - 2.49mm Nom Colors - Blue & White Shield - AL Mylar tape over pair Impedance - 120Ω ±10% @ 1MHz DC Resistance - 10.9Ω / 1000 ft (35.8mΩ/M) Attenuation @ 125 kHz - 0.29dB / 100ft Attenuation @ 500 kHz - 0.50dB / 100ft Attenuation @ 1 MHz - 0.70dB / 100ft Drain Conductor - 20 AWG (19-strand tinned copper) DC Resistance - 10.9Ω / 1000ft (35.8mΩ/M) Approvals and Certifications Operating Temperature - -20°C to +70°C Storage Temperature - -40°C to +85°C NMEA 2000 Approved RoHS Compliant UL Certified (E137250), (UL13) LSZH to IEC 60754-1/2 & IEC 61034-1/2 This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Data Interface: NMEA 2000 NMEA 2000 Connectors: Backbone/Drop Cables Box Dimensions: 12"H x 14"W x 14"L WT: 30 lbs UPC: 5060998710812 Brochure (pdf)
