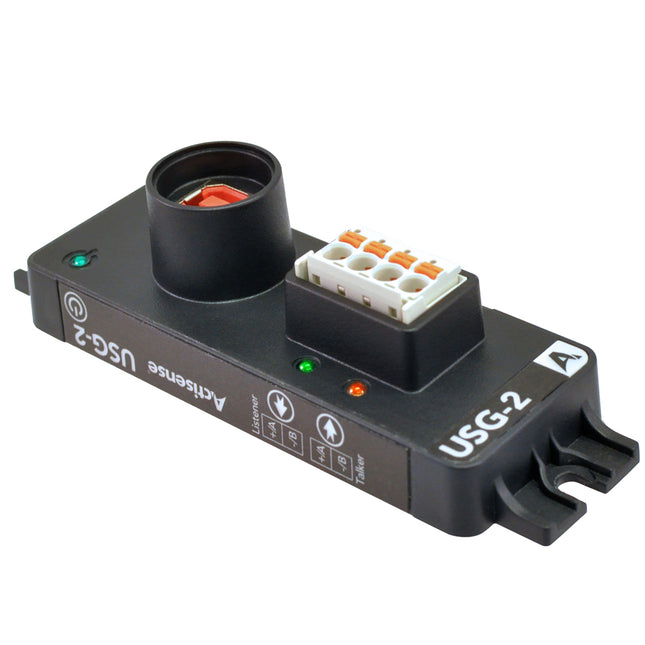

USG-2 Isolated USB To Serial Gateway For Use w/NMEA0183, RS422 And RS232The USG-2 ensures safety and reliability when connecting a PC to your NMEA 0183 network.The USG-2 converts a USB port into a bi-directional serial port suitable for connecting to a marine standard NMEA 0183 data bus.It provides a far safer connection when compared to standard USB to serial converters.Electrical isolation is provided by the ISO-Drive™ output and OPTO-isolated input making installation simple and free from ground loops.The input uses the Actisense OPTO-isolation circuitry to protect any connected equipment from the most common system faults. The input can receive very low-level signals that are often too small to be received by a PC serial port.The USG-2 is the safest way to connect a boat’s data network to an on-board PC.Features: NMEA 0183, RS422 & RS232 compatible ISO-Drive™ technology Pluggable screwless connector with locking latch & strain relief Encapsulated electronics High retention USB socket Diagnostic & power LEDs Baud rates from 300 to 230400 bps Bulkhead mount, with optional DIN rail mount kit Pluggable screwless connector Inputs & outputs protected against over voltage, ESD & short circuits Simple installation Protects PC from damage Eliminates ground loops Technical Specifications:Power Supply (USB) Power Source - Bus powered Maximum Bus Current - 50mA NMEA 0183 Port – Talker & Listener     Number of Listener/Input Ports - One isolated NMEA 0183 Listener Number of Talker/Output ports - One isolated NMEA 0183 Talker Compatibility - Fully NMEA 0183, RS422 & RS232 compatible. RS485 Listener compatible Galvanic Isolation - NMEA 0183 Talker and Listener Isolation Speed/ Baud Rate - 4800 to 230400 bps / baud Connectivity - Pluggable screwless connector with locking latch and integrated push-button. Utilizes cage clamp for 12 to 24 AWG wires (both solid and stranded) Talker output voltage drive - >2.0V (differential) into 100Ω Talker output current drive - 20mA max. Talker output protection - Short circuit and ESD Listener input voltage tolerance - -15V to +15V continuous Listener input protection - Current limited, overdrive protection to 40V DC and ESD protection USB Port     Compatibility - USB 1.1, 2.0 and 3.0 Speed/ Baud Rate - 300 to 230400 Baud Connectivity - High retention type-B receptacle (supplied cable includes a custom USB Type-B sealing plug) Withdrawal Force - 1.5Kg Drivers (Latest OS) - Windows XP, Vista, 7, 8, 10,11 & MAC OS X supplied on CD & Actisense website Mechanical Materials - Housing – ABS (PA-765), flame retardant to UL94 V-0, PCB encapsulant – polyurethane, flame retardant to UL94 V-0, Pluggable screwless connector – PPA-GF with CrNi spring and tin plated Ecu contacts Mounting - Bulkhead mount (s/s self tapping screws included) or optional DIN rail mount kit available Weight - Main body 65g, USB cable 70g USB cable length - 2.0m shielded USB Type-A to Type-B cable including custom USB Type-B sealing plug Approval & Certifications     EMC - EN 60945 (sections 9 & 10) Environmental protection - IP67 (Encapsulated electronics) Operating temperature - -25°C to +70°C Storage temperature - -40°C to +85°C Relative Humidity (RH) - 0 to 93% RH Guarantee - 3 years (5 Years if registered) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Data Interface: NMEA 0183 Box Dimensions: 2"H x 6"W x 7"L WT: 0.4 lbs UPC: 5060998710485 Owner's Manual (pdf)Brochure (pdf)

Read more less

Multi-WAN 7 Source Gigabit Router (Rackmountable) GB Ethernet 110/220VAC PowerAigean’s Multi-WAN routers enable networks to switch between multiple internet sources without adversely affecting the onboard local network. Coupled with advanced features such as failover and smart switching, a vessel’s connection to the internet is more robust, secure, and faster than with a single-source configuration.Most modern vessels are equipped with multiple means of connecting to the internet, via ship-to-shore Wi-Fi, cellular, and satellite providers. Aigean’s Multi-WAN routers couple these sources together, creating a seamless experience, ensuring you are always connected.Aigean’s MFR models are extremely easy to use and get started with. Forget tinkering with networking settings to get your system online, no networking knowledge is required.Features: Program alerts and limits on incoming sources to prevent airtime overages Easily switch between mulitple internet sources Simple failover capability to ensure the nework is always online Full Gigabit transfer speeds on all ports Intel x86 hardware for maximum performance and longevity Desk or Rack Mount capable 1 year warranty from the date of purchase for parts and labor.   Specifications: Speed - Max: 2.9 GHz Wireless: Yes Box Dimensions: 6"H x 14"W x 21"L WT: 11 lbs Quick Guide (pdf)Brochure (pdf)

Read more less

117WR-1 Crows Foot Transducer WrenchTransducer wrenches are available for all bronze low profile transducers. They are used to facilitate holding of the transducer and tightening of the hull nut. Wrenches are constructed of 3/16" thick mild steel. They can easily be bent or modified to accommodate challenging installation locations. For use with: B117 B150 B744V B744VL B765C SS555 Specifications: Type: Tools Box Dimensions: 1"H x 4"W x 5"L WT: 0.45 lbs

Read more less

117WR-2 Transducer Hull Nut WrenchA single-handed wrench to tighten the hull nut on 2" bronze and stainless steel housings.You can use wrench 117WR-4 to brace the housing when using this wrench.For use with: B117 B150 B744V B744VL B765C SS555 Specifications: Type: Tools Box Dimensions: 1"H x 4"W x 9"L WT: 0.6 lbs

Read more less

117WR-3 Double Handle Transducer WrenchTransducer wrenches are available for all bronze low profile transducers. They are used to facilitate holding of the transducer and tightening of the hull nut. Wrenches are constructed of 3/16" thick mild steel. They can easily be bent or modified to accommodate challenging installation locations. For use with: B117 B150 B744V B744VL B765C SS555 Specifications: Type: Tools Box Dimensions: 4"H x 5"W x 6"L WT: 0.85 lbs

Read more less

117WR-4 Transducer Housing WrenchA single-handed wrench that holds the main thru-hull housing via the 'wrench flats' on the side of the housing to facilitate tightening of the hull nut. For 2" bronze and stainless steel housings (P617V, B617V, SS617V).Use wrench 117WR-2 or 117WR-3 for the hull nut.*Note that this wrench will not fit on the CA500 camera housing. Specifications: Type: Tools Box Dimensions: 1"H x 3"W x 8"L WT: 0.45 lbs

Read more less

164WR-1 Crows Foot Transducer WrenchTransducer wrenches are available for all bronze low profile transducers. They are used to facilitate holding of the transducer and tightening of the hull nut. Wrenches are constructed of 3/16" thick mild steel. They can easily be bent or modified to accommodate challenging installation locations. For use with: B164 SS164 B175C SS164 Specifications: Type: Tools Box Dimensions: 1"H x 6"W x 7"L WT: 0.95 lbs

Read more less

164WR-3 Double Handle Transducer WrenchTransducer wrenches are available for all bronze low profile transducers. They are used to facilitate holding of the transducer and tightening of the hull nut. Wrenches are constructed of 3/16" thick mild steel. They can easily be bent or modified to accommodate challenging installation locations. For use with: B164 SS164 B175C SS264 Specifications: Type: Tools Box Dimensions: 5"H x 6"W x 7"L WT: 1.1 lbs

Read more less

175WR-4 Transducer Housing WrenchA single-handed wrench that holds the main thru-hull housing via the 'wrench flats' on the top of the housing to facilitate tightening of the hull nut. Use wrench 164WR-2 or 164WR-3 for the hull nut.For use with: B164 B175 SS164 SS264 IMPORTANT: the design of the housing for these transducers changed slightly in June 2012. This wrench is for the newer design and has an internal width of 2-3/4". If you need a wrench for the older designs then use the 164WR-4 instead, with an internal width of 2-7/16". Specifications: Type: Tools Box Dimensions: 1"H x 5"W x 10"L WT: 0.6 lbs

Read more less
