Products

Eye Bolt - Diameter 15/32" - Length 2-3/8"Features: A complete range of single piece forged products for fastenings applications Outstanding working and breaking loads Available in different sizes Max tightening torque: 7,5 Nm Applications: Various fastening applications Towing application Waterskiing lines attachment Specifications:Materials 316L stainless steel grade Working load (lb) 1230 Breaking load (lb) 1980 Weight (lb) 0.06 A (inch) M6 x 100 B (inch) 15/32" C (inch) 63/64" D (inch) 13/64" E (inch) 43/64" F (inch) 2 23/64" G (inch) 2 1/8"

Read more less

Eye Bolt - Diameter 5/32" - Length 4"Features: A complete range of single piece forged products for fastenings applications Outstanding working and breaking loads Available in different sizes Max tightening torque: 18 Nm Applications: Various fastening applications Towing application Waterskiing lines attachment Specifications:Materials 316L stainless steel grade Working load (lb) 2110 Breaking load (lb) 3300 Weight (lb) 0.134 A (inch) M8 x125 B (inch) 35/64" C (inch) 1 3/16" D (inch) 15/64" E (inch) 25/32" F (inch) 3 15/16" G (inch) 3 35/64"

Read more less

Eye Bolt - Diameter 9/16" - Length 3-5/32"Features: A complete range of single piece forged products for fastenings applications Outstanding working and breaking loads Available in different sizes Max tightening torque: 18 Nm Applications: Various fastening applications Towing application Waterskiing lines attachment Specifications:Materials 316L stainless steel grade Working load (lb) 2110 Breaking load (lb) 3300 Weight (lb) 0.123 A (inch) M8 x125 B (inch) 35/64" C (inch) 1 3/16" D (inch) 15/64" E (inch) 25/32" F (inch) 3 5/32" G (inch) 2 3/4"

Read more less

Eye Bolt - M10 x 150mm - Length 100mmFeatures: A complete range of single piece forged products for fastenings applications Outstanding working and breaking loads Available in different sizes Max tightening torque: 36 Nm  Applications: Various fastening applications Towing application Waterskiing lines attachment Specifications: Materials: 316L stainless steel grade Working load: (lb) 3520 / (kg) 1600 Breaking load: (lb) 5950 / (kg) 2700 Weight: (lb) 0.216 / (g) 98 Dimensions: A: (mm) M10 x 150 B: (inch) 5/8" / (mm) 16 C: (inch) 1 27/64" / (mm) 36 D: (inch) 9/32" / (mm) 7 E: (inch) 63/64" / (mm) 25 F: (inch) 3 15/16" / (mm) 100 G: (inch) 3 15/32" / (mm) 88 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

Eye Bolt - M12 x 175mm - Length 120mmFeatures: A complete range of single piece forged products for fastenings applications Outstanding working and breaking loads Available in different sizes Max tightening torque: 60 Nm Applications: Various fastening applications Towing application Waterskiing lines attachment Specifications: Materials: 316L stainless steel grade Working load: (lb) 5290 / (kg) 2400 Breaking load: (lb) 7710 / (kg) 3500 Weight: (lb) 0.359 / (g) 163 Dimensions: A: (mm) M12 x 175 B: (inch) 45/64" / (mm) 18 C: (inch) 1 39/64" / (mm) 41 D: (inch) 5/16" / (mm) 8 E: (inch) 1 7/64" / (mm) 28 F: (inch) 4 23/32" / (mm) 120 G: (inch) 4 9/64" / (mm) 105 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

Eye strap - 10mm Diameter - 25/64" - 78mm Spacing - 3-5/64"Features: Complete range of drop-forged saddles with high-quality stainless steel (316L) Outstanding strength The round shape reduces the wear of the components connected to them (straps, ropes...) Applications: Fastening applications  Attachment of straps & cordage Specifications: Materials: 316L stainless steel grade Breaking load: (lb) 15430 / (kg) 7000  Weight: (lb) 0.165 / (g) 75  Dimensions: A: (inch) 25/32" / (mm) 20  B: (inch) 1 1/32" / (mm) 26  D diameter: (inch) 25/64" / (mm) 10  E: (inch) 3 5/64" / (mm) 78  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

Eye Strap - 4mm Diameter - 5/32" - 30mm Spacing - 1-17/64"Features: Complete range of drop-forged saddles with high-quality stainless steel (316L) Outstanding strength The round shape reduces the wear of the components connected to them (straps, ropes...) Applications: Fastening applications  Attachment of straps & cordage Specifications: Materials: 316L stainless steel grade Breaking load: (lb) 1430 / (kg) 650  Weight: (lb) 0.009 / (g) 4  Dimensions: A: (inch) 5/16" / (mm) 8  B: (inch) 7/16" / (mm) 11  D diameter: (inch) 5/32" / (mm) 4  E: (inch) 1 17/64" / (mm) 32  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

Eye Strap - 5mm Diameter - 13/64" - 37.5mm Spacing - 1-15/32"Features: Complete range of drop-forged saddles with high-quality stainless steel (316L) Outstanding strength The round shape reduces the wear of the components connected to them (straps, ropes...) Applications: Fastening applications  Attachment of straps & cordage Specifications: Materials: 316L stainless steel grade Breaking load: (lb) 3960 / (kg) 1800  Weight: (lb) 0.02 / (g) 9  Dimensions: A: (inch) 25/64" / (mm) 10  B: (inch) 35/64" / (mm) 14  D diameter: (inch) 13/64" / (mm) 5  E: (inch) 1 15/32" / (mm) 37.5  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

Eye Strap - 6mm Diameter - 15/64"- 45mm Spacing - 1-49/64"Features: Complete range of drop-forged saddles with high-quality stainless steel (316L) Outstanding strength The round shape reduces the wear of the components connected to them (straps, ropes...)  Applications: Fastening applications  Attachment of straps & cordage Specifications: Materials: 316L stainless steel grade Breaking load: (lb) 5290 / (kg) 2400  Weight: (lb) 0.035 / (g) 16  Dimensions: A: (inch) 15/32" / (mm) 12  B: (inch) 5/8" / (mm) 16  D diameter: (inch) 15/64" / (mm) 6  E: (inch) 1 49/64" / (mm) 45  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

Eye Strap - 8mm Diameter - 5/16" - 60mm Spacing - 2-23/64"Features: Complete range of drop-forged saddles with high-quality stainless steel (316L) Outstanding strength The round shape reduces the wear of the components connected to them (straps, ropes...) Applications: Fastening applications  Attachment of straps & cordage Specifications: Materials: 316L stainless steel grade Breaking load: (lb) 7710 / (kg) 3500  Weight: (lb) 0.084 / (g) 38  Dimensions: A: (inch) 5/8" / (mm) 16  B: (inch) 53/64" / (mm) 21  D diameter: (inch) 5/16" / (mm) 8  E: (inch) 2 23/64" / (mm) 60  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

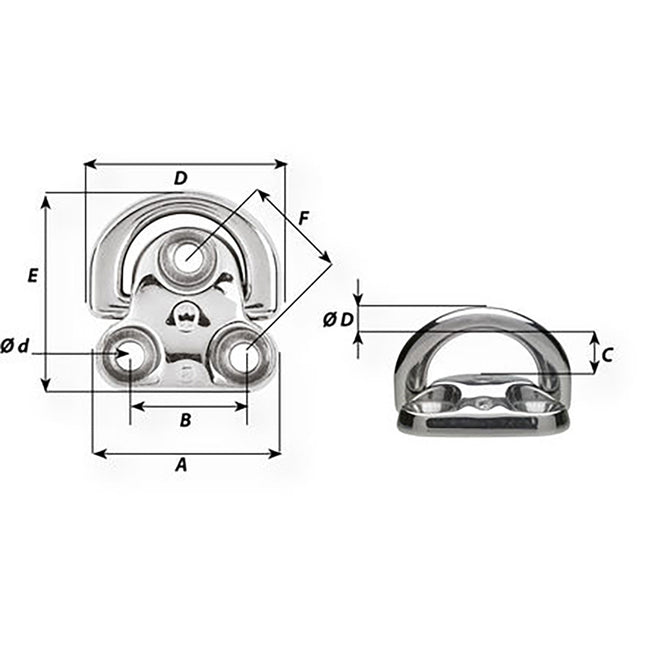

Folding Pad Eye - 6mm Diameter (15/64") - 2 Fixed HolesFeatures: They are 100% safe and highly resistant to corrosion Fully drop-forged product with outstanding working and breaking loads regardless of the angle of the load Modern and optimized design to suit the aesthetics of modern boats They can be folded down to minimize the risk of injuries The silicon pad eliminates moist and unpleasant vibrations Modern design Applications:Fastening applications (stay, blocks, jib tack point, lifeline, etc...)Specifications: Materials: 316L stainless steel grade Working Load: (lb) 1650 / (kg) 750 Breaking Load: (lb) 3520 / (kg) 1600 Weight: (lb) 0.123 / (g) 56 Dimensions: A: (inch) 1 37/64" / (mm) 40 B: (inch) 59/64" / (mm) 23.4 C: (inch) 19/32" / (mm) 15 d diameter: (inch) 9/32" / (mm) 7 D diameter: (inch) 15/64" / (mm) 6 E: (inch) 1 37/64" / (mm) 40 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less
