Folding Pad Eye - Diameter 25/64"Features: Perfect solution for fastening applications (stay, blocks, jib tack point, lifeline, tether, etc...) Fully drop-forged product with outstanding working and breaking loads regardless of the angle of the load Modern and optimized design to suit the aesthetics of modern boats They can be folded down to minimize the risk of injuries The silicon pad eliminates noise and unpleasant vibrations Modern design Applications:For any fastening/attachment application: shroud, stay, blocks, lifeline, jib tack point, etc…)Specifications: Materials 17.4 pH stainless steel/316L stainless steel grade Working load (lb) 8990 Breaking load (lb) 19840 Weight (lb) 0.783 A (inch) 2 61/64" B (inch) 1 49/64" C (inch) 63/64" D (inch) 3 5/32" d diameter (inch) 25/64" D diameter (inch) 25/64" E (inch) 2 43/64" F (inch) 1 49/64"

Read more less

Folding Pad Eye - Diameter 5/16"Features: Perfect solution for fastening applications (stay, blocks, jib tack point, lifeline, tether, etc...) Fully drop-forged product with outstanding working and breaking loads regardless of the angle of the load Modern and optimized design to suit the aesthetics of modern boats They can be folded down to minimize the risk of injuries The silicon pad eliminates noise and unpleasant vibrations Modern design Applications:For any fastening/attachment application: shroud, stay, blocks, lifeline, jib tack point, etc…)Specifications: Materials 17.4 pH stainless steel/316L stainless steel grade Working load (lb) 5290 Breaking load (lb) 11020 Weight (lb) 0.364 A (inch) 2 1/4" B (inch) 1 3/8" C (inch) 45/64" D (inch) 2 21/64" d diameter (inch) 5/16" D diameter (inch) 5/16" E (inch) 2 1/64" F (inch) 1 3/8"

Read more less

FRX10 Friction Ring - 10mm (25/64")Features: Efficient and light FRX Wichard thimbles are efficient, light, and reliable Very strong and can be used for heavy loads and semi-static lines FRX thimbles are designed to make your lines run smoothly with minimum wear They are hard anodized (50 microns) for a longer lifespan Applications:Mast-foot block, barber-hauler, inhauler, loop, thimble, lazy jack, running backstay, tackle, and moreSpecifications: Materials: Anodized aluminium Working load: (lb) 1760 / (kg) 800 Weight: (lb) 0.011/ (g) 5 A: (inch) 5/16" / (mm) 8 B: (inch) 25/64" / (mm) 10 C: (inch) 15/32" / (mm) 12 D diameter: (inch) 63/64" / (mm) 25 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

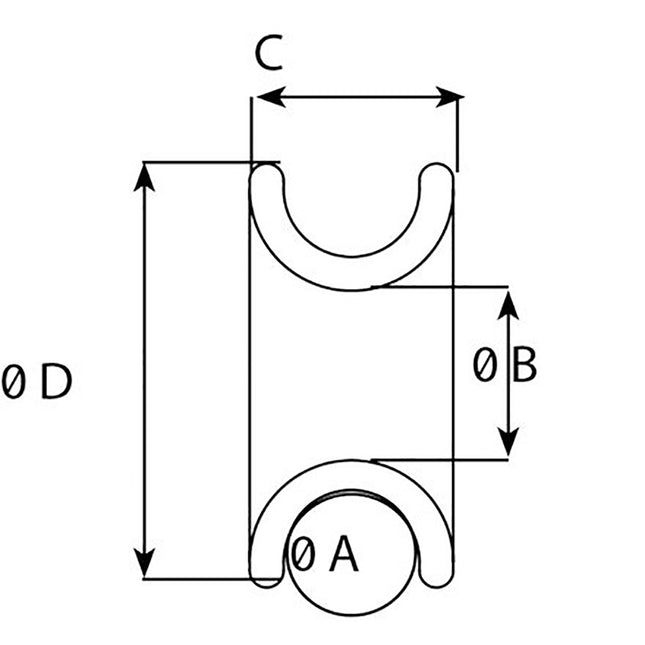

FRX15 Friction Ring - 15mm (19/32")Features: Efficient and light FRX Wichard thimbles are efficient, light, and reliable Very strong and can be used for heavy loads and semi-static lines FRX thimbles are designed to make your lines run smoothly with minimum wear They are hard anodized (50 microns) for a longer lifespan Applications:Mast-foot block, barber-hauler, inhauler, loop, thimble, lazy jack, running backstay, tackle, and moreSpecifications: Materials: Anodized aluminium Working load: (lb) 3520 / (kg) 1600 Weight: (lb) 0.026 / (g) 12 A: (inch) 25/64" / (mm) 10 B: (inch) 19/32" / (mm) 15 C: (inch) 19/32" / (mm) 15 D diameter: (inch) 1 3/8" / (mm) 35 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

FRX20 Friction Ring - 20mm (25/32")Features: Efficient and light FRX Wichard thimbles are efficient, light, and reliable Very strong and can be used for heavy loads and semi-static lines FRX thimbles are designed to make your lines run smoothly with minimum wear They are hard anodized (50 microns) for a longer lifespan Applications:Mast-foot block, barber-hauler, inhauler, loop, thimble, lazy jack, running backstay, tackle, and moreSpecifications: Materials: Anodized aluminium Working load: (lb) 7050 / (kg) 3200 Weight: (lb) 0.068 / (g) 31 A: (inch) 35/64" / (mm) 14 B: (inch) 25/32" / (mm) 20 C: (inch) 53/64" / (mm) 21 D diameter: (inch) 1 27/32" / (mm) 47 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 Quick Guide (pdf)

Read more less

FRX25 Friction Ring - 25mm (63/64")Features: Efficient and light FRX Wichard thimbles are efficient, light, and reliable Very strong and can be used for heavy loads and semi-static lines FRX thimbles are designed to make your lines run smoothly with minimum wear They are hard anodized (50 microns) for a longer lifespan Applications:Mast-foot block, barber-hauler, inhauler, loop, thimble, lazy jack, running backstay, tackle, and moreSpecifications: Materials: Anodized aluminium Working load: (lb) 11020 / (kg) 5000 Weight: (lb) 0.126 / (g) 57 A: (inch) 43/64" / (mm) 17 B: (inch) 63/64" / (mm) 25 C: (inch) 63/64" / (mm) 25 D diameter: (inch) 2 23/64" / (mm) 60 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 Quick Guide (pdf)

Read more less

FRX6 Friction Ring - 7mm (9/32")Features: Efficient and light FRX Wichard thimbles are efficient, light, and reliable Very strong and can be used for heavy loads and semi-static lines FRX thimbles are designed to make your lines run smoothly with minimum wear They are hard anodized (50 microns) for a longer lifespan Applications:Mast-foot block, barber-hauler, inhauler, loop, thimble, lazy jack, running backstay, tackle, and moreSpecifications: Materials: Anodized aluminium Working load: (lb) 880 / (kg) 400 Weight: (lb) 0.004 / (g) 2 A: (inch) 7/32" / (mm) 5.5 B: (inch) 9/32" / (mm) 7 C: (inch) 23/64" / (mm) 9 D diameter: (inch) 45/64" / (mm) 18 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

Gyb'Easy Boom BrakeGybe safely with Gyb'Easy, the Wichard boom brake. Why a boom brake? Gybing remains one of the most challenging operations on a sailing boat even for experienced sailors and can possibly generate injuries and material damage. Gyb'Easy is an efficient and safe solution to reduce such risks.Concept: Thanks to the frictions of the specific line called Gyb'Flex passing over the boom brake, the boom is allowed to gybe smoothly and without jerks. The more the line passes over the openings, the more the friction is increased and hence the brake efficiency.Settings of the Gyb'Easy: The adjustment is made thanks to the tension of the line. 3 different positions exist for a better adaptation of the mainsail and wind conditions.Easy installation: It takes a few minutes to install it on an eye strap of the boom. Two different fittings can be implemented to fit with all the deck configurations.Technical Data: Can be used on mainsail areas below 40 sqm Gyb'Flex line supplied (part#: 7148): Length: 16 m / Diameter: 11 mm Weight (g/lbs): 600g/1.323lbs Materials: Anodized Aluminum Applications:Gybing operations

Read more less

HR Bow Shackle - 10mm Pin DiameterFeatures: Forged bow shackle in HR stainless steel grade (17,4 PH) Outstanding working and breaking load A HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel WLL: only for industrial applications (lifting i.e…) CE marking Applications: Applications requesting high loads To be used when ample room is required Possibility to attach several lines or cables Do not use for mooring applications Specifications: Materials: HR 17.4 PH stainless steel grade Working load: (lb) 5820 / (kg) 2640  WLL: (lb) 2640 / (kg) 1200  Breaking load: (lb) 13220 / (kg) 6000  Weight: (lb) 0.3 / (g) 136  Dimensions: A: (inch) 1 27/32" / (mm) 47  B: (inch) 55/64" / (mm) 22  C: (inch) 25/64" / (mm) 10  D: (inch) 25/32" / (mm) 20  D diameter: (inch) 15/32" / (mm) 12  E: (inch) 23/64" / (mm) 9  M: (inch) 2 3/64" / (mm) 52  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)

Read more less

HR Bow Shackle - 12mm Pin DiameterFeatures:  Forged bow shackle in HR stainless steel grade (17,4 PH) Outstanding working and breaking load A HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel WLL: only for industrial applications (lifting i.e…) CE marking Applications: Applications requesting high loads To be used when ample room is required Possibility to attach several lines or cables Do not use for mooring applications Specifications:  Materials: HR 17.4 PH stainless steel grade Working load: (lb) 7930 / (kg) 3600  WLL: (lb) 4400 / (kg) 2000  Breaking load: (lb) 22040 / (kg) 10000  Weight: (lb) 0.494 / (g) 224  Dimensions: A: (inch) 2 11/64" / (mm) 55  B: (inch) 15/16" / (mm) 24  C: (inch) 15/32" / (mm) 12  D: (inch) 15/16" / (mm) 24  D diameter: (inch) 35/64" / (mm) 14  E: (inch) 25/64" / (mm) 10  M: (inch) 2 31/64" / (mm) 63  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) Quick Guide (pdf)

Read more less

HR Bow Shackle - 14mm Diameter - 35/64"Features: Forged bow shackle in HR stainless steel grade (17,4 PH) Outstanding working and breaking load An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel WLL: only for industrial applications (lifting i.e…) CE marking and batch number Applications: Applications requesting high loads To be used when ample room is required Possibility to attach several lines or cables Do not use it for mooring applications Specifications: Materials: HR 17.4 PH stainless steel grade Working load: (lb) 11280 / (kg) 5120  WLL: (lb) 5290 / (kg) 2400  Breaking load: (lb) 26450 / (kg) 12000  Weight: (lb) 0.802 / (g) 364  Dimensions: A: (inch) 2 31/64" / (mm) 63  B: (inch) 1 7/64" / (mm) 28  C: (inch) 35/64" / (mm) 14  D: (inch) 1 7/64" / (mm) 28  D diameter: (inch) 35/64" / (mm) 14  E: (inch) 33/64" / (mm) 13  M: (inch) 2 53/64" / (mm) 72  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)

Read more less

HR Bow Shackle - 16mm Diameter - 5/8"Features:  Forged bow shackle in HR stainless steel grade (17,4 PH) Outstanding working and breaking load An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel WLL: only for industrial applications (lifting i.e…) CE marking Applications: Applications requesting high loads To be used when ample room is required Possibility to attach several lines or cables Do not use it for mooring applications Specifications:  Materials: HR 17.4 PH stainless steel grade Working load: (lb) 14990 / (kg) 6800  WLL: (lb) 8370 / (kg) 3800  Breaking load: (lb) 41880 / (kg) 19000  Weight: (lb) 1.16 / (g) 526  Dimensions: A: (inch) 2 3/4" / (mm) 70  B: (inch) 1 17/64" / (mm) 32  C: (inch) 5/8" / (mm) 16  D: (inch) 1 17/64" / (mm) 32  D diameter: (inch) 5/8" / (mm) 16  E: (inch) 19/32" / (mm) 15  M: (inch) 3 17/64" / (mm) 83  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)
