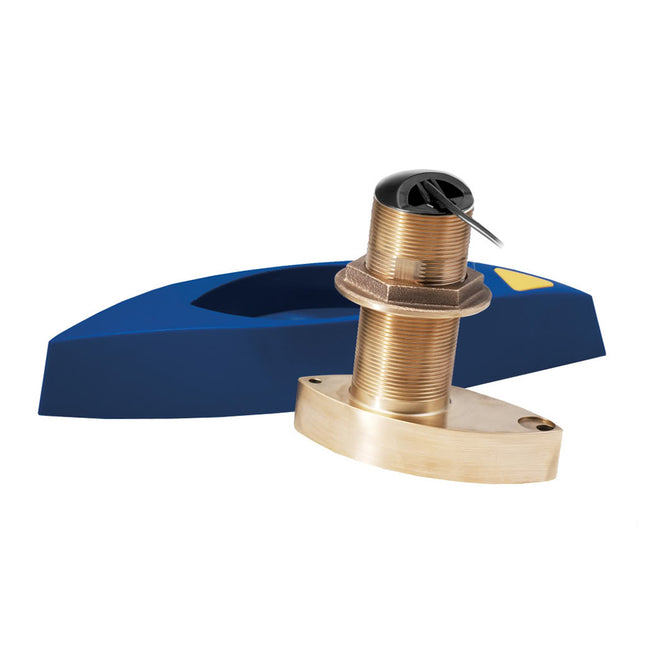

B175M Bronze Thru Hull 20° Tilt - 1kWRely on Airmar’s new broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.Requires Mix and Match CableFeatures: Medium—CHIRPS from 85 kHz to 135 kHz, 24° to 16° beamwidth 20° tilted version, 1KW 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Depth & fast-response water-temperature sensor Bronze transducer housing Boat Size: Up to 11 m (36’) Hull Type: Fiberglass or wood Exclusive Xducer ID® technology This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Mounting Style: Thru-Hull Chirp: Medium Box Dimensions: 8"H x 10"W x 11"L WT: 10.7 lbs UPC: 801769001891

Read more less

B175MW Med Ultra Wide 1kW, 20° Chirp Thru-Hull 12-Pin Transducer for Furuno TZTouch3The B175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.Airmar’s Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.The B175MW Tilted Element Thru-hull is a 1 kW transducer housed in one of AIRMAR’s most popular Tilted Element housings which includes a ceramic element fixed at a 20° angle. Because the transducer is installed almost flush with the hull, the tilted element corrects for the hull deadrise and orients the ceramic element vertically to ensure maximum echo returns to the transducer.Features: Fixed 20° tilted version for 16° to 24° hull deadrise 12 Pin Connector for Furuno TZTouch3 12" and 16" Displays Depth and fast-response water-temperature sensor 1 kW with depth tracking down to 400 m (1,300#39;) Medium frequency: 60-100 kHz 57° to 73° beamwidth (port/starboard) 16° average fore/aft 40 kHz of total bandwidth from one transducer Medium frequency for superior mid-depth performance and excellent fish-target separation Bronze housing for use on stepped, planing, or displacement hull Low-profile, thru-hull housing yields good resolution at speed when installed properly Exclusive Xducer ID® technology Specifications: Brand: Airmar Technology Acoustic Window: Urethane Cable-Length: 9 m (30'), 10 m (33') Common Use: Fishing Connector: Furuno 12 Pin Country of Origin: USA Display Connector: 12 Pin Functions: Depth, Temperature Hole Size: 95 mm (3-3/4") Hull Material: Fiberglass or wood Material: Bronze Max Deadrise Angle: 24° Max Depth: 400 m (1300') Max Vessel LOA: Up to 11 m (36') Medium Frequency: 60-100 kHz Medium Frequency Beamwidth: 57° to 73° (Port/Starboard) X 16° average (Fore/Aft) Medium-Wide Beamwidth: 57° to 73° beam p/s 16° average f/a Mounting Style: Tilted Element Thru-Hull Power Rating: 1 kW Single or Dual Frequency: Single Tilt Angle: 20° Tilted Element: Yes Water Temperature: -10° to 40°C (14° to 104°F) Weight: 2.7 kg (6 lbs.) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

B175MW Med Ultra Wide 1kW, 20° Chirp Thru-Hull Transducer f/12-Pin Garmin175MW Med Ultra Wide 20 Degree, 1KW Chirp Thru-hull Transducer with 12 Pin Connector for Garmin Airmar's innovative transducer designs have revolutionized the fishing world, and they continue to do so with the Chirp-ready B175 Medium Ultra-Wide (MW) Tilted Element™ Thru-hull transducer. The B175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.Airmar’s Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.The B175MW Tilted Element Thru-hull is a 1 kW transducer housed in one of AIRMAR’s most popular Tilted Element housings which includes a ceramic element fixed at a 20° angle. Because the transducer is installed almost flush with the hull, the tilted element corrects for the hull deadrise and orients the ceramic element vertically to ensure maximum echo returns to the transducer.Features: Fixed 20° tilted version for 16° to 24° hull deadrise 12 Pin Connector for Garmin FishFinders Depth and fast-response water-temperature sensor 1 kW with depth tracking down to 400 m (1,300#39;) Medium frequency: 60-100 kHz 57° to 73° beamwidth (port/starboard) 16° average fore/aft 40 kHz of total bandwidth from one transducer Medium frequency for superior mid-depth performance and excellent fish-target separation Bronze housing for use on stepped, planing, or displacement hull Low-profile, thru-hull housing yields good resolution at speed when installed properly Exclusive Xducer ID® technology Specifications: Brand: Airmar Technology Acoustic Window: Urethane Cable-Length: 9 m (30'), 10 m (33') Common Use: Fishing Connector: Garmin 12-Pin Country of Origin: USA Display Connector: 12G Functions: Depth, Temperature Hole Size: 95 mm (3-3/4") Hull Material: Fiberglass or wood Material: Bronze Max Deadrise Angle: 24° Max Depth: 400 m (1300') Max Vessel LOA: Up to 11 m (36') Medium Frequency: 60-100 kHz Medium Frequency Beamwidth: 57° to 73° (Port/Starboard) X 16° average (Fore/Aft) Medium-Wide Beamwidth: 57° to 73° beam p/s 16° average f/a Mounting Style: Tilted Element Thru-Hull Power Rating: 1 kW Single or Dual Frequency: Single Tilt Angle: 20° Tilted Element: Yes Water Temperature: -10° to 40°C (14° to 104°F) Weight: 2.7 kg (6 lbs.) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

B175MW Med Ultra Wide 20°, 1KW Chirp Thru-Hull Transducer with 8-Pin Connector for Garmin Airmar’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the Chirp-ready B175 Medium Ultra-Wide (MW) Tilted Element™ Thru-hull transducer. The B175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.Airmar’s Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.The B175MW Tilted Element Thru-hull is a 1 kW transducer housed in one of AIRMAR’s most popular Tilted Element housings which includes a ceramic element fixed at a 20° angle. Because the transducer is installed almost flush with the hull, the tilted element corrects for the hull deadrise and orients the ceramic element vertically to ensure maximum echo returns to the transducer.Features: Fixed 20° tilted version for 16° to 24° hull deadrise 8 Pin Connector for Garmin FishFinders Depth and fast-response water-temperature sensor 1 kW with depth tracking down to 400 m (1,300#39;) Medium frequency: 60-100 kHz 57° to 73° beamwidth (port/starboard) 16° average fore/aft 40 kHz of total bandwidth from one transducer Medium frequency for superior mid-depth performance and excellent fish-target separation Bronze housing for use on stepped, planing, or displacement hull Low-profile, thru-hull housing yields good resolution at speed when installed properly Exclusive Xducer ID® technology Specifications: Brand: Airmar Technology Acoustic Window: Urethane Cable-Length: 9 m (30'), 10 m (33') Common Use: Fishing Connector: Garmin 8-Pin Country of Origin: USA Display Connector: 8G Functions: Depth, Temperature Hole Size: 95 mm (3-3/4") Hull Material: Fiberglass or wood Material: Bronze Max Deadrise Angle: 24° Max Depth: 400 m (1300') Max Vessel LOA: Up to 11 m (36') Medium Frequency: 60-100 kHz Medium Frequency Beamwidth: 57° to 73° (Port/Starboard) X 16° average (Fore/Aft) Medium-Wide Beamwidth: 57° to 73° beam p/s 16° average f/a Mounting Style: Tilted Element Thru-Hull Power Rating: 1 kW Single or Dual Frequency: Single Tilt Angle: 20° Tilted Element: Yes Water Temperature: -10° to 40°C (14° to 104°F) Weight: 2.7 kg (6 lbs.) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

B175MW Medium Ultra-Wide 20-Degree 1kW CHIRP Transducer Requires Mix & Match CableAirmar’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the Chirp-ready B175 Medium Ultra-Wide (MW) Tilted Element™ Thru-hull transducer. The B175MW takes transducer design and performance to a level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.Airmar’s Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.The B175MW Tilted Element Thru-hull is a 1 kW transducer housed in one of AIRMAR’s most popular Tilted Element housings which includes a ceramic element fixed at a 20°, 12° or 0° angle. Because the transducer is installed almost flush with the hull, the tilted element corrects for the hull deadrise and orients the ceramic element vertically to ensure maximum echo returns to the transducer.Features: Depth and fast-response water-temperature sensor 1 kW with depth tracking down to 400 m (1,300') Medium frequency: 60-100 kHz 57° to 73° beamwidth (port/starboard) 16° average fore/aft 40 kHz of total bandwidth from one transducer Medium frequency for superior mid-depth performance and excellent fish-target separation Bronze housing for use on stepped, planing, or displacement hull Low-profile, thru-hull housing yields good resolution at speed when installed properly Exclusive Xducer ID® technology Specifications: Power Rating: 1 kW Max Deadrise Angle: 24° Housing: Bronze Functions: Depth, Temperature Hull Material: Fiberglass or wood Max Vessel LOA: Up to 11 m (36') Hole Size: 95 mm (3-3/4") Mounting Style: Tilted Element Thru-Hull Acoustic Window: Urethane Cable-Length: 9 m (30') Common Use: Fishing Max Depth: 400 m (1300') Medium Frequency: 60-100 kHz Medium Frequency Beamwidth: 57° to 73° (Port/Starboard) X 16° average (Fore/Aft) Medium-Wide Beamwidth: 57° to 73° beam p/s 16° average f/a Power Rating: 1 kW Single or Dual Frequency: CHIRP-Ready Single-Band Tilted Element: Yes Water Temperature: -10° to 40°C (14° to 104°F) Weight: 2.7 kg (6 lbs) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Quick Guide (pdf)Brochure (pdf)

Read more less

B265LH Bronze Chirp Thru Hull 1kW with Fairing BlockRequires Mix and Match CableImagine knowing what exact frequencies work the best at detecting specific fish species: Bluefin Tuna—60 kHz, Squid—133 kHz, and Cod—175 kHz. Now imagine tuning your fish finder to these frequencies, marking the fish precisely on the screen, then catching them! With the B265 transducer connected to a tunable fish finder, you too can have a log book like a commercial fisherman. This powerhouse transducer delivers extreme target detail, bottom discrimination, and bait and game fish separation at all depths. The B265LH is packed with a seven-element, low-frequency array that operates at anywhere between 42 kHz and 65 kHz. It has a wide, 25° beam that will adjust by several degrees as the frequency is tuned up or down the band. The single, high-frequency ceramic operates at any frequency between 130 kHz and 210 kHz and has a narrow, 6° beam that is adjustable by several degrees. The included High-Performance Fairing will give you broadband performance at speeds over 30 knots (34 MPH). We will leave it up to you to discover the rest of the secrets that can be unlocked with tunable, Chirp Broadband Transducer Technology.Features: Depth & fast-response water-temperature sensor Low—CHIRPS from 42 kHz to 65 kHz 25° to 16° port-starboard beamwidth High—CHIRPS from 130 kHz to 210 kHz 10° to 6° beamwidth 103 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth Fishing Profile: Commercial and recreational inshore and offshore fishing (deep-water canyon and sea-mount tracking) Bronze transducer housing with High-Performance Fairing Boat Size: 8 m (25’) and above Hull Type: Fiberglass or wood Exclusive Xducer ID® technology This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Mounting Style: Thru-Hull Chirp: Low/High Box Dimensions: 7"H x 18"W x 26"L WT: 23.2 lbs UPC: 801769001419

Read more less

B265LH CHIRP Thru Hull w/12-Pin GarminImagine knowing what exact frequencies work the best at detecting specific fish species: Bluefin Tuna—60 kHz, Squid—133 kHz, and Cod—175 kHz. Now imagine tuning your fish finder to these frequencies, marking the fish precisely on the screen, then catching them! With the B265 transducer connected to a tunable fish finder, you too can have a log book like a commercial fisherman. This powerhouse transducer delivers extreme target detail, bottom discrimination, and bait and game fish separation at all depths. The B265LH is packed with a seven-element, low-frequency array that operates at anywhere between 42 kHz and 65 kHz. It has a wide, 25° beam that will adjust by several degrees as the frequency is tuned up or down the band. The single, high-frequency ceramic operates at any frequency between 130 kHz and 210 kHz and has a narrow, 6° beam that is adjustable by several degrees. The included High-Performance Fairing will give you broadband performance at speeds over 30 knots (34 MPH). We will leave it up to you to discover the rest of the secrets that can be unlocked with tunable, Chirp Broadband Transducer Technology.Features Depth & fast-response water-temperature sensor 12 Pin connector for Garmin Units Low—CHIRPS from 42 kHz to 65 kHz 25° to 16° port-starboard beamwidth High—CHIRPS from 130 kHz to 210 kHz 10° to 6° beamwidth 103 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth Fishing Profile: Commercial and recreational inshore and offshore fishing (deep-water canyon and sea-mount tracking) Bronze transducer housing with High-Performance Fairing Boat Size: 8 m (25’) and above Hull Type: Fiberglass or wood Exclusive Xducer ID® technology Hull Deadrise: Up to 20° with fairing Acoustic Window: Urethane Weight: 7.3 kg (16 lb) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Owner's Manual (pdf)Brochure (pdf)

Read more less

B275C-LHW Bronze Thru-Hull - Low & High Wide FrequencyRequires Mix & Match CableGet more coverage under the boat with Airmar's wide beam CHIRP product line. Offering a high frequency range of 150-250 kHz and a constant 25° beam width, these transducers are truly broadband at its best. In addition to improving the performance of CHIRP-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency CHIRP transducers.A unique property of the high frequency transducers is that the beambwidth is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's wide beam format also creates crisper and larger return images on the display. We've got you covered!Features: Depth & Temperature 42-65 kHz L Frequency 150-250 kHz H Frequency Bronze 1 kW Wide 25° Beam This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Mounting Style: Thru-Hull Chirp: Low/High Wide Box Dimensions: 7"H x 18"W x 25"L WT: 24.1 lbs UPC: 801769001952 Quick Guide (pdf)

Read more less

B275LH-W Bronze Thru-Hull for Garmin with 12-Pin ConnectorGet more coverage under your boat with Airmar’s unique wide-beam, low and high-frequency, Chirp-ready B275LHW. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies, which results in superior resolution. The constantly wide beam provides twice the coverage and clear fish arches on the display compared to most high-frequency, narrow-beam transducers.The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 152 m (500'). The low-frequency band and 1 kW of power also support great deep-water performance. Get the best of both worlds with Airmar’s Chirp-ready transducers with wide-beam coverage.The included High-performance Fairing improves broadband results at speeds over 30 knots (34 MPH).Features: Garmin 12-Pin Mix & Match Cable for Chirp Transducers Depth and fast-response water-temperature sensing 1KW of power for great deep-water performance from the low frequency Low frequency: 42 to 65 kHz 25° to 16° beamwidth Maximum depth of 914 m (3000') High frequency: 150 to 250 kHz 25° constant beamwidth Maximum depth of 152 m (500') 123 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50 and 200 kHz, plus everything else in the bandwidth High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation High wide beamwidth yields more coverage for detecting fish in the upper water column Bronze housing with High-performance Fairing for optimal performance at higher speeds Also available as transom (TM275LHW) and pocket (PM275LHW) mounts Patented Xducer ID® technology Specifications Brand: Airmar Technology Acoustic Window: Urethane Cable-Length: 10 m (33') Common Use: Fishing, Commercial Fishing Connector: Garmin 12-Pin Country of Origin: USA Cross Reference: 010-12183-20 Deadrise Range: Up to 28° with fairing Display Connector: 12G Frequency Band: Low-High Wide High Frequency: 150-250 kHz High-Wide Beamwidth: 25° Low Frequency: 42-65 kHz Low Frequency Beamwidth: 25°-16° Material: Bronze Max Deadrise: Up to 20° with fairing Max Depth: Low frequency- 914 m (3000'), High wide frequency- 152 m (500') Mix and Match Series: 12-Pin Chirp Sensor Connector: MMC Single or Dual Frequency: CHIRP-Ready Dual-Band Tilted Element: No Weight: 7.3 kg (16 lbs.) Power Rating: 1 kW Max Deadrise Angle: 20° Functions: Depth, Temperature Hull Material: Fiberglass or wood Mounting Style: Thru-Hull with Fairing Max Vessel LOA: 8 m (25') and above Hole Size: 30 mm (1-3/16") Usable Shaft Length: 121 mm (4.75") This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

B285HW Bronze 1kW Wide Beam Chirp Thru-Hull TransducerRequires Mix and Match CableGet more coverage under the boat with Airmar's wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25° Beamwidth, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the single band, wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducersA unique property of the high frequency transducers is that the Beamwidth is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.Features: Depth & temperature 150-250 kHz High frequency Bronze housing 1 kW Wide 25° beam Exclusive Xducer ID® technology Boat Size: Up to 9M (30') Specifications: Hull Deadrise: Up to 24° Acoustic Window: Urethane This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Mounting Style: Thru-Hull Chirp: High Wide Box Dimensions: 7"H x 18"W x 25"L WT: 18.8 lbs UPC: 801769002263 Brochure (pdf)

Read more less
