B45-DT-HB 600W Thru-Hull Transducer w/Fairing Block & Humminbird #9 ConnectorThe B45 is our smallest and most economical, dual-frequency, bronze, stem transducer. Its streamlined shape and High Performance fairing block deflects aerated water from the transducer's face for strong return echoes and clear display images. Features: Bronze housing Depth and Temperature Recommended for planing-hull powerboats and cruising sailboats up to 9 m (30’) Good sensitivity in a compact housing Fast-response water-temperature sensor provides ±0.2°C (±0.1°F) High-Performance Fairing included Usable Shaft Length: 92 mm (3.62”) Standard fairing block  Frequency: 50/200 kHz Maximum Depth Range: 50 kHz—235 m to 353 m (800’ to 1,200’) 200 kHz—118 m to 206 m (400’ to 700’) Cone: 50 kHz—45°, 200 kHz—12° RMS Power: 600 W This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Mounting Style: Thru-Hull Box Dimensions: 4"H x 12"W x 16"L WT: 4.6 lbs UPC: 801769000177 Brochure (pdf)

Read more less

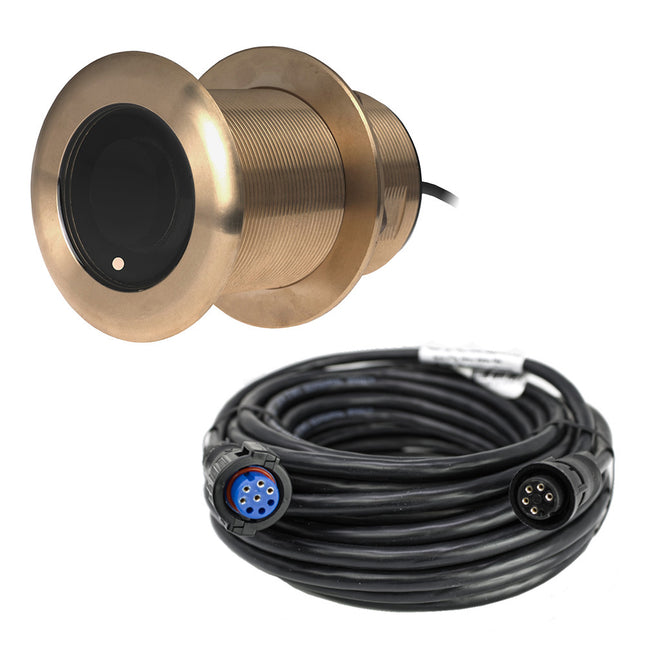

B60 12 Degree Tilt Thru Hull Req Mix & Match CableThe B60 is a 600 W, 50/200 kHz transducer that integrates Airmar’s popular Tilted Element™ feature. This Tilted Element transducer has the ceramic element fixed at either a 20° or 12° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise angle. By orienting the beam directly down, it ensures maximum echo returns to the transducer for more-accurate depth readings.Features: Depth and fast-response water temperature sensing 600W of power Dual-frequency element: 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200') 200 kHz with a 12° beamwidth for depth performance to 206 m (700') Perfect for center-console or trailered boats Low-profile bronze housing extends only 5 mm (3/16") outside the hull No effect on your boat’s running performance Bronze housing for fiberglass or wood hull Also available in a stainless steel housing (SS60) for use with all hull materials Specifications: Power Rating: 600W Max Deadrise Angle: 24° Housing: Bronze Functions: Depth, Temperature Hull Material: Fiberglass or wood Max Vessel LOA: Up to 8 m (26') Hole Size: 60 mm (2-3/8") Usable Shaft Length: 68.5 mm (2.70") Acoustic Window: Urethane Common Use: Leisure/Yachting, Fishing Conventional Beam: 45°/12° Max Deadrise: Up to 24° Max Depth: Low frequency- 366 m (1200'), High frequency- 206 m (700') Mounting Style: Tilted Element Thru-Hull Retractable housing: No Single or Dual Frequency: Conventional Dual Frequency Tilted Element: Yes Weight: 1.4 kg (3 lbs.) Specifications: Cable Length (Feet): 7FT Imagining: Standard Mounting Style: Thru-Hull Speed Included: No Temperature: Yes

Read more less

B60 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin - 12ºThe bronze B60-12º provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted for built-in, deadrise compensation. The resulting vertical beam gives excellent echo returns for more-accurate depth readings. The nearly-flush housing minimizes drag with only 5mm (3/16") extending outside of the hull.Features: Engineered for center-console and trailered boats Low-profile protrusion below the hull No affect on your boats running performance Arrow on cap points toward keel when installed Built-in temperature sensor Boat Size: Up to 8M (25') Bronze transducer housing Specifications: Weight: 1.4 kg (3 lb) Hull Deadrise: Up to 24° Acoustic Window: Urethane This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Temperature: Yes Mounting Style: Thru-Hull Pins: 7 Box Dimensions: 1"H x 5"W x 8"L WT: 0.4 lbs Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

B744VL Bronze Thru-Hull 50/200 600W with FB 8-Pin for GarminThe B744VL is a TRIDUCER® Multisensor featuring depth, speed, and temperature in a single housing. The 50/200 kHz, dual-frequency, single, ceramic element provides great target detail in shallow water at 200 kHz and good deep-water bottom tracking at 50 kHz. The B744VL’s extended stem length has the extra height needed for steep-deadrise vessels or thick, cored-fiberglass or wood hulls. The required High-performance Fairing gives excellent results at speeds up to 30 knots (34 MPH).Features: Depth, speed, and fast-response water-temperature sensing in one housing 600 W of power Dual-frequency element: 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200') 200 kHz with a 12° beamwidth for depth performance to 206 m (700') Bronze housing with a High-performance Fairing for optimal bottom tracking at higher speeds Self-closing water valve reduces water flow into the hull when the paddlewheel insert is being replaced with the blanking plug Fins on the sides of the paddlewheel cavity improve accuracy in cross-flow conditions The extra-length housing (B744VL) allows mounting in a thicker and/or high-deadrise hull Specifications: Power Rating: 600 W Max Deadrise Angle: 24° Housing: Bronze Functions: Depth, Speed, Temperature Hull Material: Fiberglass or wood Max Vessel LOA: Up to 9 m (30') Hole Size: 51 mm (2") Usable Shaft Length: 121 mm (4.75") Acoustic Window: Urethane Common Use: Leisure/Yachting, Fishing Conventional Beam: 45°/12° Max Deadrise: Up to 24° with fairing Max Depth: Low frequency- 366 m (1200'), High frequency- 206 m (700') Mounting Style: Thru-Hull with Fairing Retractable housing: Yes Single or Dual Frequency: Conventional Dual Frequency Tilted Element: No Weight: 2.5 kg (5.5 lbs.)

Read more less

B744VL Long Stem Bronze Thru-Hull D/S/T with FB 8-PinThe B744VL is a TRIDUCER® Multisensor featuring depth, speed, and temperature in a single housing. The 50/200 kHz, dual-frequency, single, ceramic element provides great target detail in shallow water at 200 kHz and good deep-water bottom tracking at 50 kHz. The B744VL’s extended stem length has the extra height needed for steep-deadrise vessels or thick, cored-fiberglass or wood hulls. The required High-performance Fairing gives excellent results at speeds up to 30 knots (34 MPH).Features: Depth, speed, and fast-response water-temperature sensing in one housing 600 W of power Dual-frequency element: 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200') 200 kHz with a 12° beamwidth for depth performance to 206 m (700') Extra-long stem for thick or steep-deadrise hull Bronze housing with a High-performance Fairing for optimal bottom tracking at higher speeds Self-closing water valve reduces water flow into the hull when the paddlewheel insert is being replaced with the blanking plug Fins on the sides of the paddlewheel cavity provide improved accuracy in cross-flow conditions Also available with a shorter stem (B744V) Specifications: Power Rating: 600 W Max Deadrise Angle: 24° Housing: Bronze Functions: Depth, Speed, Temperature Hull Material: Fiberglass or wood Max Vessel LOA: Up to 9 m (30') Hole Size: 51 mm (2") Usable Shaft Length: 140 mm (5.50") Acoustic Window: Urethane Common Use: Leisure/Yachting, Fishing Conventional Beam: 45°/12° Max Deadrise: Up to 24° with fairing Max Depth: Low frequency- 366 m (1200'), High frequency- 206 m (700') Mounting Style: Thru-Hull with Fairing Retractable housing: Yes Single or Dual Frequency: Conventional Dual Frequency Tilted Element: No Weight: 2.5 kg (5.5 lbs.)

Read more less

B75 High 12 Degree Thru-Hull Tilted Element 8-PinAirmar’s Broadband / CHIRP transducers represent the next generation of technology that will allow fishermen to unlock secrets in fishfinding. Echosounder operation away from the traditional 50 kHz and 200 kHz has proven that different fish species return better signals at various frequencies. Airmar’s Broadband Transducers are capable of operating over a wide (or “Broad”) frequency band ranging from 25 kHz to 60 kHz and from 130 kHz to 210 kHz.Traditional fishfinders transmit a pulse at a single frequency (50 kHz or 200 kHz), which is often referred to as a “tone burst”. Better deep-water and bottom detection is obtained by transmitting a longer pulse, because the fishfinder is delivering more energy to the transducer. However, the drawback of a long pulse is that it provides reduced target resolution. For example, if a fishfinder transmits a pulse that is 500 microseconds in duration, it has a pulse length of 0.7 m (2.4’). With a tone burst, no targets can be resolved that are closer to one another than the pulse length. Fish less than 0.7 m (2.4’) apart, or less than 0.7 m (2.4’) from the bottom, can not be detected. Fish schools will appear in this case as a single large mass, while fish close to the bottom will appear attached to the sea bed and will be difficult or impossible to detect.With CHIRP, the transmission pulses are typically very long and may start at 40 kHz and end at 60 kHz. By comparing the shape of the stored transmission pulse with the received echoes from the transducer, it is possible to find echoes in the noise and precisely determine their range with astounding accuracy. Using CHIRP, it is now possible to obtain: Much greater range because very long pulses can be used. Much better resolution because the sonar pulse is swept across a frequency band (from 40 kHz to 60 kHz, for example). Enables targets to be precisely located within inches on the display using pattern-matching techniques. Closely spaced fish and fish lying on the bottom can be accurately detected and displayed as distinct targets. Because weak fish and bottom echoes can be resolved within the noise (the ‘snow’ on a conventional fishfinder display), it is possible both to detect targets at far greater depths than before and track the bottom at higher boat speeds. Features: 12 m (40’) cable Depth and fast-response water-temperature sensor Same elements and performance as the B765LH/LM offered in a low-profile housing Bronze transducer housing Boat Size: Up to 8 m (25’) Hull Type: Fiberglass or wood

Read more less

B75H Bronze Chirp Thru Hull 0° Tilt - 600WRequires Mix and Match CableRely on Airmar’s broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.Features: Depth & fast-response water-temperature sensor High—CHIRPS from 130 kHz to 210 kHz, 15° to 9° beamwidth 0° tilted versions, 600w 80 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Bronze transducer housing Boat Size: Up to 8 m (25’) Hull Type: Fiberglass or wood Exclusive Xducer ID® technology This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Mounting Style: Thru-Hull Chirp: High Box Dimensions: 5"H x 8"W x 12"L WT: 5.95 lbs
