Boat Outfitting - Steering Systems

Union T-Fitting f/3/8" Tube Compression Hose FittingsUnion T-Fitting for 3/8" TubeTypical Applications: T-Fitting for 3 standard 3/8" compression thread hose fittings Specifications:3/8 COMP FITTING ALL Sides = 9/16 - 24 UNEF 2A

Read more less

Complete Boss Fitting Typical Application:Bleed fitting for all outboard cylindersSpecifications: ORB, Size #6 to 3/8 COMP FITTING Cylinder Side = 9/16 - 18 UNF 2A Hose Side = 9/16 - 24 UNEF 2A

Read more less

Hydraulic Hose Kit 2' - PairTwo high pressure flexible hoses, with pre-crimped fittings and bend restrictors on both ends.Fittings: ORFS*Not recommended for use with SilverSteer™ Series cylinders.

Read more less

Hydraulic Hose Kit 6' - PairTwo high pressure flexible hoses, with pre-crimped fittings and bend restrictors on both ends.Fittings: ORFS*Not recommended for use with SilverSteer™ Series cylinders.

Read more less

Double Paddle Trim SystemDouble paddle kit including two paddles and the brackets to attach it to a tilt or to a front mount helm.For complete control of engine trim and tilt, trim tabs, jackplates, PowerPole(R) and other on board systems, the innovative Paddle Trim system is the answer.Adaptable to existing front mount hydraulic and tilt helms, the Paddle Trim is ergonomically designed to allow the driver to make precise adjustments to the attitude of the boat or other systems without removing his hand from the steering wheel. Available both in single and dual versions (for either two equal or two different outputs) Both single or dual paddle can be positioned at various angles for the most confortable choice Equipped with one water proof “MOM.ON-OFF-MOM.ON switch ( 2 switches on dual version) Max load 5 Amp @ 12VDC For loads exceeding 5 Amp we recommend the use of the KTR - 42860S kit relay Uflex® trim tabs require the use of the KTR - 42860S kit relay Suitable for any kind of steering wheel dish. Max wheel dia. 400 mm (15.7”) Easy to install on the following Ultraflex® steering systems: - front and tilt mount hydraulic helms- tilt mount mechanical helmsWiring harness, labels and mounting hardware kit are included. The mounting plate, which differs between front and tilt mount. Installation, is ordered separately

Read more less

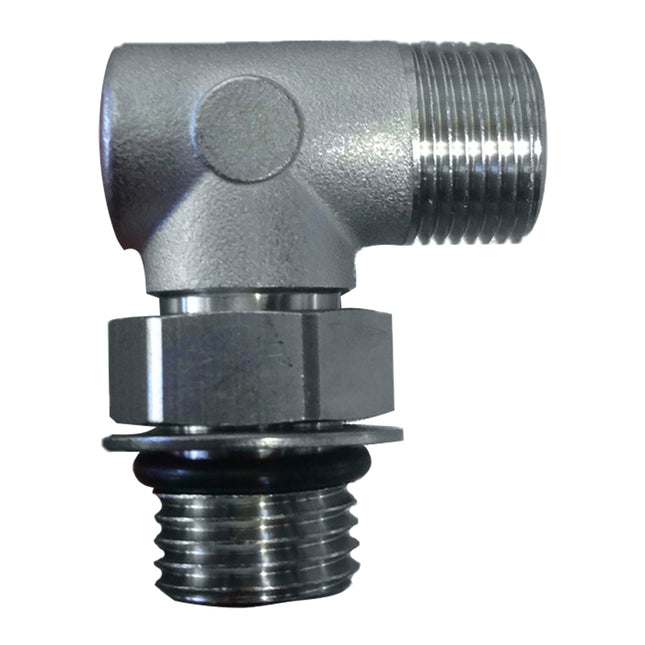

Boss Style T-Fitting - NickelTypical Application:Fitting for back of helm in a dual station installation Specifications: ORB, Size #6 to 3/8 COMP FITTING Cylinder/Helm Side = 9/16 - 18 UNF 2A Hose Side = 9/16 - 24 UNEF 2A

Read more less

Kit OB - Hose Kit for Single Station InstallationConsists of a pair of high pressure hoses supplied with preassembled fittings on both ends.Length: 12 FeetFittings: ORFS Specifications: Cable Length (Feet): 12' Box Dimensions: 5"H x 15"W x 15"L WT: 3 lbs UPC: 702755015901

Read more less

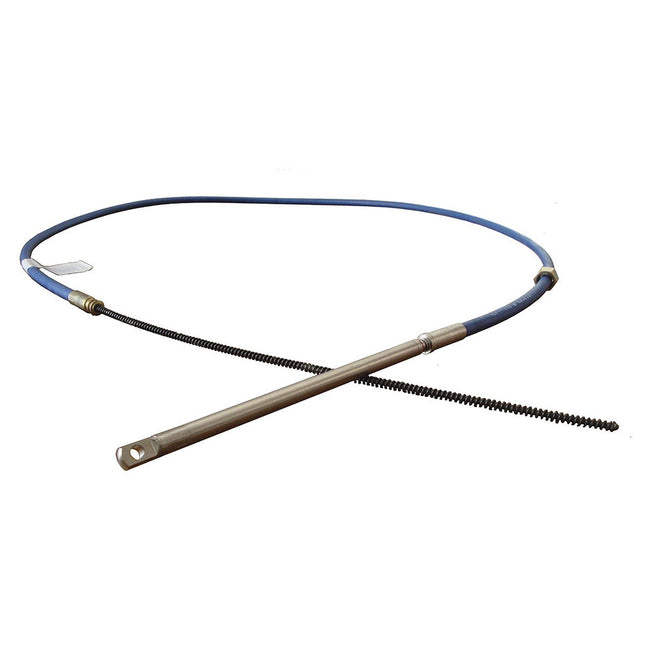

M66 Fast Connect Rotary Steering Cable - UniversalSteering Helm: Ultraflex T71FC T72FC - T73NR FC T81FC - T82FC T83NR FC Teleflex Safe Morse D290 Ultraflex Year 2001 & Prior: T71 - T72 - T73NR T74NR - T81 - T82 T83NR - T84NR *Length: 8 Feet Specifications: Cable Length (Feet): 8' Box Dimensions: 3"H x 18"W x 28"L WT: 5.3 lbs UPC: 702755017066

Read more less

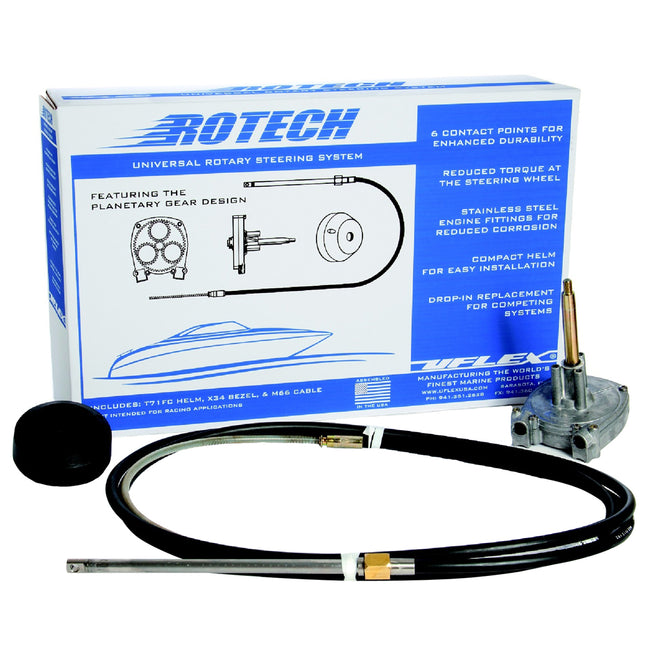

ROTECH™ STEERING SYSTEMROTECH - X08T71FC - helm X34 - 90° bezel M66 - 8' steering cable UFLEX ROTARY STEERING SYSTEMS PACKAGED IN A BOX: A convenient kit form, especially suitable as replacement steering, that includes helm, bezel and cable.FEATURES AND TECHNICAL SPECIFICATIONS: Fast connect, simple installation All stainless steel cable output ends Corrosion resistant materials Particulary suitable where clearance is limited Standard 3/4" tapered shaft Lock-to-lock steering wheel turns: approx. 3,8 Stroke: 9" (228 mm) Maximum allowable steering wheel diameter: 16" (406 mm) Minimum steering cable bend radius: 7.9" (200 mm) Minimal feedback Compact for mounting T71FC steering system is not to be used on boats quipped with engines that exceed the maximum horsepower rating of the boat For boats faster than 50 mph the twin cable steering system T72FC is recommended Exceeds EN 28848 safety standards Exceeds ABYC P17 safety standards **The wheel is not included Specifications: Cable Length (Feet): 8' Box Dimensions: 2"H x 5"W x 5"L WT: 24.6 lbs UPC: 702755019251

Read more less

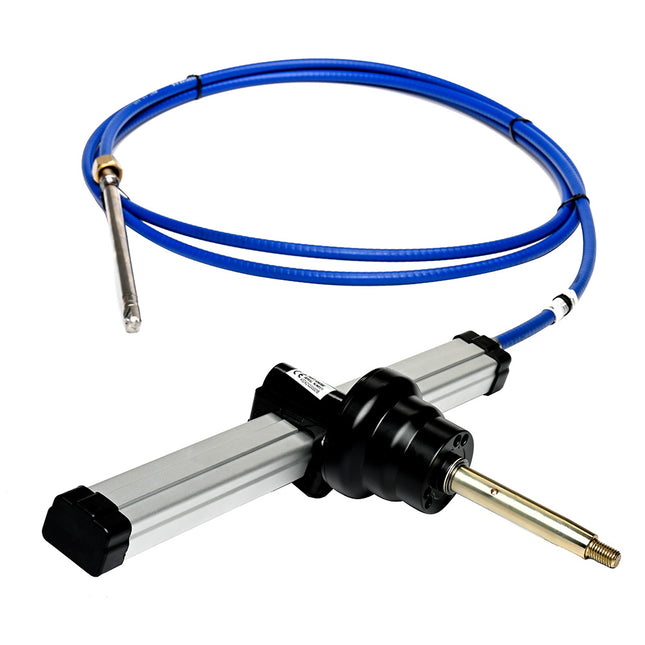

TM87 17' Rack & Pinion Steering SystemFeatures: High-Efficiency Rack & Pinion Steering System Compatible with SSC134, SSC135, and SSC154 competing cables and SH91610p helm Kit Includes: G87 Front Mount Helm TM87XLL High-Efficiency Cable X34 Mounting Bezel Performance Components: All stainless steel cable output ends Made of corrosion-resistant materials Standard 3/4" tapered shaft 3.7" cable stroke 3.3 turns lock-to-lock 7.9" cable bend radius TM87 Steering Systems are not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat. Optional Steering Wheel. Exceeds ISO 8848 safety standards. Exceeds ABYC P17 safety standards. Universal replacement steering cable for standard and non-feedback Rack & Pinion Steering Systems. No need to drill holes: X34 bezel fits the same bolt pattern as your existing helm. Use your existing steering wheel: 3/4" tapered shaft fits most steering wheels up to 16" (406mm) diameter Fast, simple, easy cable installation: Universal replacement for standard, ZTF, and no feedback rotary helms

Read more less

Aluminum Inboard Cylinder - 1.25" Bore & 7" StrokeA hydraulic steering system consists of a steering pump, a cylinder tied to the rudder or the outboard or sterndrive engine, and the connecting hoses. Under normal operating conditions, a steering wheel turn will pump the oil, which flows in through the hoses to the cylinder, according to the turn direction.With the consequent cylinder movement, the oil will flow to the pump through the hoses and, at the same time, move the engine or the helm, which are connected to the cylinder. The pumps, equipped with a valve that prevents outgoing fluid from returning along the same hose, allow the operation of the steering systems with two or more steering stations. The cylinders are double-acting and may be balanced or unbalanced. This particular cylinder is a balanced cylinder with the same number of steering wheel turns to move the helm from the center to the end stroke in two opposite directions. A well-balanced steering system needs the correct choice of pump for the cylinder.This hydraulic cylinder for the inboard engine UC 116-I has been designed and manufactured to be used as a component in the hydraulic steering systems. The cylinder with a mobile rod is installed directly to the arm of the helm through the proper ball joint on the end part of the cylinder. On the opposite side, it is fixed directly to the boat through a support with the plate.Features:Balanced (the number of turns lock-to-lock is equal to port to starboard or vice versa)Specifications: Volume: 116 cc - 7 cu.in Torque: 58 kg (5043 lbs.) Output Force: 464 kg (1023 lbs) Owner's Manual (pdf)

Read more less

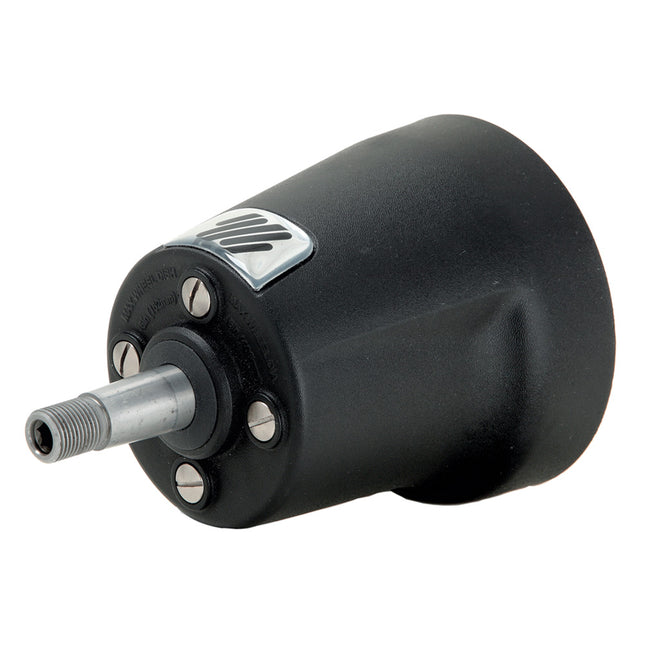

UP33FM Helm Pump 2.0 Cubic InchesFeatures: Compact design Built-in lock valve for positive rudder lock Integral relief valve for over-pressure protection Compatible with Teleflex SeaStar cylinders, hoses and oil 3/4" tapered stainless steel shaft Easily accessible lock valve and shaft seal for replacement Convenient front of dash fill Adjustable Boss Fittings compatible with Kit OB and Kit OBSVS hose kits and SeaStar hoses Relief valve pressure: 1000 PSI Specifications: Mounting: Front Mount Displacement/Revolution: 33cc-2.0 cubic inches Number of Pistons: 7 Relief Valve Setting: 70 Bar - 1,000 PSI Maximum Wheel Diameter: 710mm - 28" Weight: 5kg-11lbs

Read more less
