GRF™ 10 - Rudder Feedback SensorCompatible DevicesPair this sensor with the GHP 12™ to provide rudder position feedback and to detect and avoid rudder stops while sailing or boating.The GRF 10 uses a magnetic sensor to relay position information, eliminating friction that causes other types of sensors to wear out. The arm of the GRF 10 is connected to the rudder of the boat and relays position information through the sensor to the mariner so they know where the rudder is - giving them an added peace of mind when starting from a stopped position, docking, launching or moving at slow speeds.Additionally, the GRF 10, allows sailors to: Know where the rudder is positioned without having to look back Make smoother maneuvers and avoid over-compensating Save undue wear and stress on their autopilot system by eliminating force on the rudder when it's already stopped left or right. Specifications: 6.5" Cable Max cable length 49' Compass safe distance 3.2' WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Parts Box Dimensions: 3"H x 8"W x 12"L WT: 1.41 lbs UPC: 753759989194 Owner's Manual (pdf)

Read more less

Actuator Power Cable10" x 7" x 2" actuator power cable WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Power Cords Box Dimensions: 1"H x 7"W x 9"L WT: 0.65 lbs UPC: 753759968021

Read more less

Autopilot Pump, 12 VDC, 1.7 Cubic Inches Per Second (For Ram Sizes of 14 Cubic Inches to 25 Cubic Inches in Volume)The PUMPHRP17-12 is a reversing pumpset designed to interface the NavPilot series autopilot with a hydraulic steering system. The pump assembly incorporates a reversible gerotor gear pump, a two-piece gear housed in an eccentric ring. This allows for incredibly quiet, reliable and precise operation. A hydraulic steering system consists of a hydraulic actuator and one or more steering wheel pumps, or helm pumps. As the steering wheel (helm pump) is turned in the port direction, hydraulic oil is pumped into the port hydraulic steering line. This oil is directed into the port side of the steering cylinder. As the cylinder moves to port, oil from the starboard side of the cylinder returns to the helm pump through the starboard hydraulic lines. One end of the cylinder is fixed and the other is connected to a tiller arm, which is connected to a rudder shaft. With this connection to the tiller arm the linear movement of the cylinder to port is changed to rotary movement, which turns the rudder and steers the vessel to port. Moving the steering wheel to starboard produces the same reaction with oil being pumped out of the starboard line and returning through the port line. If more than one helm pump is used, a return/fill line must be installed to connect the cases of all helm pumps together. The output flow rate of the pumpset determines the speed of the steering cylinder. The PUMPHRP17-12 outputs 1.6 cu. in. of oil per second and requires a 12VDC input. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Type: Pumps/Drives Box Dimensions: 6"H x 6"W x 10"L WT: 10 lbs UPC: 611679305077 Owner's Manual (pdf)

Read more less

Need to replace a split connector? Our replacement split connector helps you easily route cables during installation and eliminates the need to drill large holes in your boat.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Cables Box Dimensions: 1"H x 4"W x 4"L WT: 0.1 lbs UPC: 753759095123

Read more less

Type 2 Pump 12VoltReversing hydraulic pump for use with steering systems equipped with 9.821 cubic inch (160-350cc) hydraulic steering rams. Compatible with 400 Series corepacks. Designed for boats with existing hydraulic steering systems. Specifications: Type: Pumps/Drives Box Dimensions: 4"H x 4"W x 6"L WT: 7.6 lbs UPC: 023193811215 Owner's Manual (pdf)

Read more less

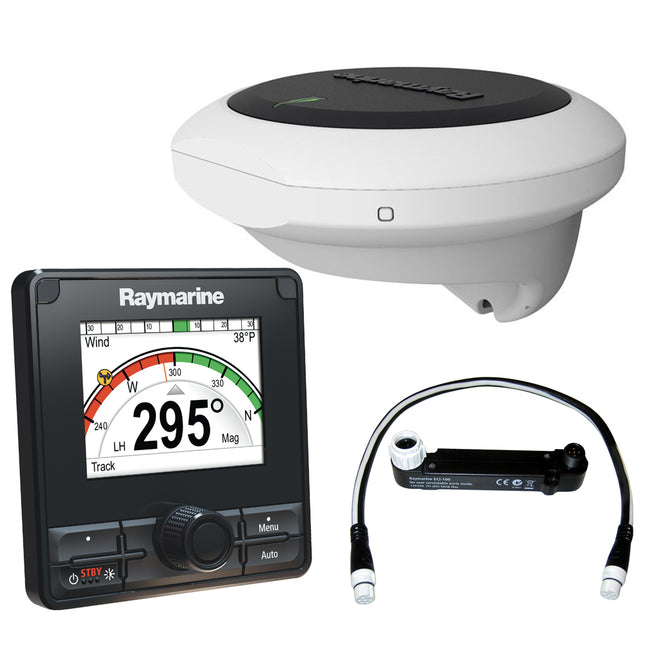

EV-DBW Evolution Autopilot for Volvo The EV-DBW Volvo has been designed for the latest drive-by-wire steering systems and connects directly to Raymarines SeaTalk ng bus. Connects to Volvo IPS using an ECI-100 interface. The Evolution autopilot systems perceive their environment and instantly calculate and evolve steering commands to maximize performance. The result is precise and confident course keeping, regardless of vessel speed or sea conditions - Evolution autopilots steer so accurately they can save fuel and get you to your destination faster. Raymarine p70Rs Autopilot Control Head 3.5” super bright oversized LCD for maximum visibility All weather, low power, optically bonded display technology delivers brighter colors, sharper contrast, and a wide viewing angle Supported autopilot modes: Auto; Standby; Pattern; Track; Wind Vane; Power Steer and Jog Steer Display the pilot information in different formats with automatic 3-step setup for leisure, cruising and performance Simple system and group dimming / illumination Easy to use Lighthouse user interface with sculpted rubber keypad for precise operation in all conditions SeaTalkng networking for seamless connectivity to Raymarine systems and NMEA2000* networks Supplied with protective suncover The EV Sensor CoreAt the center of every Evolution system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-to-install housing.Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards.EV Sensor Core Benefits Precision monitoring of heading, pitch, roll, and yaw allowing the autopilot to evolve instantly as sea conditions and vessel dynamics change. Flexible installation options. Mount above or below deck. Simple SeaTalkng connectivity to the control head and ACU. Solid state sensor technology delivers dynamic accuracy to within 2 degrees in all conditions.  Auto-compensation for on board magnetic fields and reliable heading accuracy in the northern and southern extremes. Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays. IN THE BOX p70Rs Control Unit EV2 Sensor Core ECI-100 Volvo link cable Volvo Y-Loom cable Evolution Cabling Kit

Read more less

p70s Autopilot Control HeadsThe p70s is a push-button operation controller designed primarily for sailboats.Superior ViewingAdvanced LED backlighting offers low power consumption and delivers vibrant color and contrast. Wide horizontal and vertical viewing angles ensure the display can be seen clearly from acute positions.Features: LightHouse user interface is simple and quick to use. Wide 160 viewing angles Start up wizard helps you configure the pilot quickly and easily Anti-reflective coating for improved visibility in bright sunlight Low power - typically 132mA/1.6W - 27% less than ST70 at x4 measured brightness Supported autopilot modes: Auto; Standby; Pattern; Track; Wind Vane; Power Steer and Jog Steer Simple system and group dimming/illumination Support for multiple data sources SeaTalkng/NMEA2000 and SeaTalk1 connectivity (no bridging required) Specifications: Type: Parts Box Dimensions: 3"H x 7"W x 9"L WT: 1.6 lbs UPC: 723193812303

Read more less

Autopilot Control Unit (ACU) The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus. Choose the ACU that fits your steering system type.Drive Current OutputMaximum continuous 30 Amps at supply voltageDrive Clutch Output Up to 4 Amp continuous at 12V on 12V systems Up to 4 Amp continuous at 24V on 24V systems Up to 4 Amp continuous at 12V on 24V systems Connections Includes the M81105 Rotary Rudder Reference Sleep switch Power Drive motor Drive clutch Ground Digital Input / Output (DIO) Nominal supply voltage12 V or 24 VOperating voltage range10.8V to 31.2V dcPower Consumption (standby) - Main Power Supply300 mA (12/24V)Power Consumption (standby) - SeaTalkng Power Supply20 mA (12V)SeaTalkng LEN (Load Equivalency Number)1SeaTalkng Power Out3 Amp at 12V (fuse protected at 3 Amp)Data ConnectionsSeaTalkngInstallation Environment Operating Temperature: -20°C to +55°C (-4°F to +131°F) Storage Temperature: -30°C to +70°C (-22°F to +158°F) Relative Humidity: MAX 93% Waterproof ratingDrip resistantDimensions (W x H x D)285mm x 211.5mm x 64.5mm (11.2 in x 8.3 in x 2.5 in)Weight2.2kg (4.84lbs)Conformance Europe: 2004/108/EC Australia and New Zealand: C-Tick, Compliance Level 2 Specifications: Type: Parts Box Dimensions: 7"H x 11"W x 17"L WT: 7 lbs UPC: 723193768921

Read more less

Autopilot Control Unit (ACU) The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus. Choose the ACU that fits your steering system type.Drive Current OutputMaximum continuous 7 Amps at supply voltageDrive Clutch OutputNo clutch connectionConnections Rudder reference sensor Power Drive motor Ground Nominal supply voltage12 VOperating voltage range10.8V to 15.6V dcPower Consumption (standby) - Main Power Supply300 mA (12V)Power Consumption (standby) - SeaTalkng Power Supply No power supply to SeaTalkngSeaTalkng LEN (Load Equivalency Number)1SeaTalkng Power OutNo power supply to SeaTalkngData ConnectionsSeaTalkngInstallation Environment Operating Temperature: -20°C to +55°C (-4°F to +131°F) Storage Temperature: -30°C to +70°C (-22°F to +158°F) Relative Humidity: MAX 93% Waterproof rating Connector Panel: IPX2 Drive Electronics: IPX6 Dimensions (W x H x D)180mm x 140mm x 52mm (7.1 in x 5.5 in x 2.0 in)Weight0.6 kg (1.32lbs)Conformance Europe: 2004/108/EC Australia and New Zealand: C-Tick, Compliance Level 2 Specifications: Type: Parts Box Dimensions: 4"H x 8"W x 12"L WT: 2 lbs UPC: 723193768907

Read more less

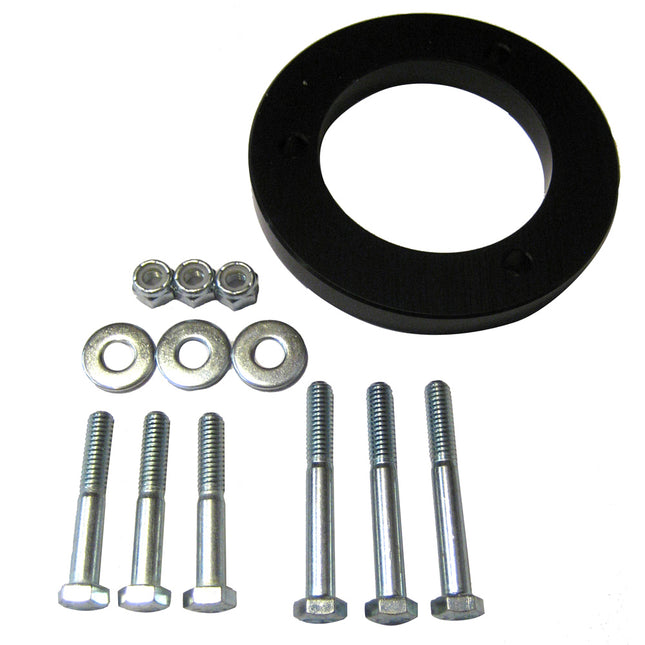

Steering Cable Adapter KitOC15SUK07f/TFX SSC72 - Uflex M47 - Morse 304415 Specifications: Type: Parts Box Dimensions: 3"H x 6"W x 6"L WT: 0.3 lbs UPC: 628309133627

Read more less

Wireless Remote For adding a second pendant, or to replace original Can be paired in field with existing receiver Includes 2x AA Batteries Specifications: Type: Parts Box Dimensions: 2"H x 6"W x 7"L WT: 0.6 lbs UPC: 628309263348 Brochure (pdf)

Read more less

ST2000 Plus Tiller PilotST2000 Plus tiller autopilot for tiller steered sailing vessels to 10,000 lbs (4,500 kg)*Note: Always take the fully laden displacement weight of the vessel into account; this is often 20% above the designed displacement.Includes: Instruction Manual Plus Tiller Pilot 12V Socket Tiller Pin (sold in packages of 5) Mounting Socket (sold in packages of 5) Specifications: Steering Type: Tiller Box Dimensions: 5"H x 8"W x 21"L WT: 5 lbs UPC: 023193100104 Owner's Manual (pdf)
