Network Bus ExtenderPart #: NBE100-01Maretron's NBE100 (Network Bus Extender) allows you to extend the maximum node count, network trunk length and cumulative drop length of any NMEA 2000 network. The NBE100 solves bus errors and other electrical issues caused by exceeding any of these limitations and makes design of large networks easier. NMEA 2000 networks have a maximum of 50 nodes allowed on a single network, a maximum network trunk length of 200m and a maximum cumulative drop length of 78m. If you have a network that exceeds any of these specifications, you can simply disconnect the network trunk in the middle and connect the ends to the NBE100, along with additional termination resistors. This will split the network into two electrical segments, each of which can have up to 50 nodes, for a total of 100 nodes on the logical network. The NBE100 will transparently route NMEA 2000 messages between the two network segments, making them work as a single logical NMEA 2000 network. Advanced priority-based message routing ensures that higher-priority messages are always prioritized over lower-priority messages, enabling predictable and reliable network operation.Features: Segments a single large NMEA 2000 network into two smaller electrical segments Allows you to exceed the 50 node limitation on a NMEA 2000 network Allows you to exceed the 200m trunk length limitation on a NMEA 2000 network Allows you to exceed the 78m cumulative drop length limitation on a NMEA 2000 network Allows all NMEA 2000 devices to operate as if they were still on a single NMEA 2000 network Priority-based message routing ensures higher-priority messages get through the bus extender first Optically isolates network segments, increasing signal integrity and network reliabilityWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Data Interface: NMEA 2000 Box Dimensions: 1"H x 4"W x 6"L WT: 0.7 lbs UPC: 873804003078 Owner's Manual (pdf)

Read more less

USB100 NMEA 2000® / USB GatewayMaretron's USB100 is a gateway for bridging USB equipment using NMEA 0183 sentences - such as an on-board computer running navigational software - with an NMEA 2000® network. The gateway automatically converts incoming NMEA 2000® messages to NMEA 0183 sentences so you can continue benefiting from navigational and charting software that you already own while enjoying the many benefits of networked NMEA 2000® instruments. The USB100 translates a multitude of NMEA 2000® messages to NMEA 0183 sentences including GPS data, Speed Over Ground (SOG), Course Over Ground (COG), vessel heading, rudder angle, depth, speed, distance log, weather, wind and more. Maretron's USB100 is engineered and manufactured to the highest standards (IEC 60945 Maritime Navigation and Radiocommunication Equipment). Its compact waterproof housing will provide years of reliable performance. Features: Bearing Orig. to Dest. (BOD) Bearing to Waypoint (BTW) Distance to Waypoint (DTW) Velocity Made Good (VMG) Est. Time of Arrival (ETA) Time to Go (TTG) Cross Track Error (XTE) Set / Drift WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Data Interface: NMEA 2000 Box Dimensions: 5"H x 9"W x 12"L WT: 1.45 lbs UPC: 873804000039 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Micro Tee - Male (Left), Female (Bottom) & Female (Right) - *Case of 6*Male (left)Female (right)Female (Bottom)A Tee is used to tap into the trunk line for adding a drop connection. The standard tee is also available with a cap for a protected diagnostic connection. Tees can be mated with all other devices on the network of the same connector style. Gold contacts for greatest reliability Keyed connectors for error-free connections

Read more less

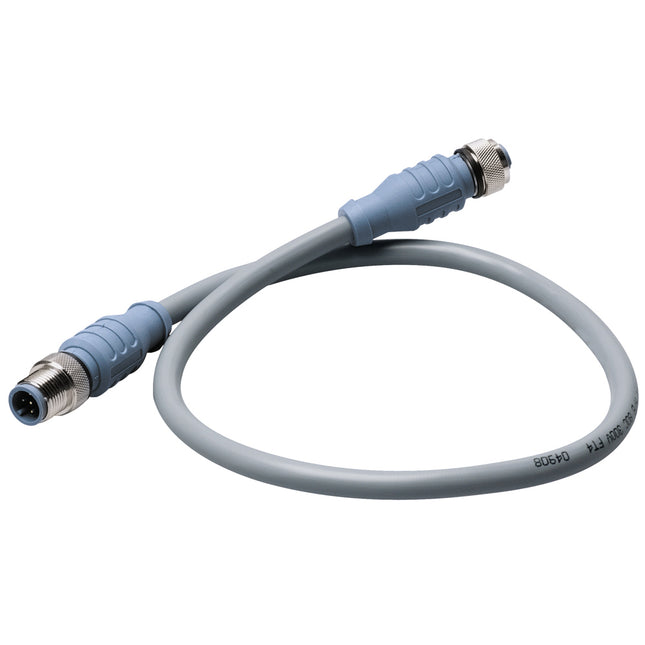

Mid Double-Ended Cordset - 1 Meter - BlueDouble-ended cordsets are used for trunk or drop lines and make for a secureconnection and simple timesaving installation. The connectors are keyed forerror-free connection and are waterproof for continued operation even whilesubmerged in the bilge.Features: Rugged, IP68 rated connectors for continued connection integrity inmarine environments Various cable lengths to match installatin requirements Optimized for voltage drop sensitive networks (long runs) because powerpair wires have half the resistance of Micro cable Color: Blue Specifications: Cable Length (Feet): 3' Box Dimensions: 1"H x 6"W x 6"L WT: 0.3 lbs UPC: 873804001906

Read more less

Maretron's DCM100 Monitor is an advanced electronic monitoring device used to measure the voltage and current of any direct current (DC) power source or load. Examples of DC power sources that can be monitored with the DCM100 include batteries, alternators, solar panelts, and wind generators. The DCM100 can also be used to monitor DC loads like inverters, windlasses, DC refrigerators, or any DC branch circuit. When the DCM100 is used to monitor batteries, sophisticated circuitry and software algorithms monitor battery temperature, load current, changing current, and terminal voltage to precisely compute battery state of charge, state of health, and time remaining. To measure current, the DCM100 uses an included state-of-the-art Hall effect current sensor which simply slips over the wire - you don't have to break connections or install connectors as you do with inline shunts used by other solutions. Best of all, the DCM100 is NMEA2000 certified so you can view any and all DC information anywhere on the vessel using a compatible NMEA 2000 display. The DCM100 is a key component of Maretron's N2KView vessel monitoring and control system. Battery Voltage Battery Current Ripple Voltage Battery Case Temperature State of Charge Time Remaining Charge Efficiency FactorWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

Read more less

J2K100 Adapter Micro Female - Deutsche 12 Pin 2TUse a Maretron J2K100 Adapter Micro Female Deutsche Cordset to attach the J2k100 directly into J1939 networks of compatible engines, transmissions, and gensets. Specifications: Connection Gender: Female Box Dimensions: 1"H x 7"W x 9"L WT: 0.55 lbs UPC: 873804001463

Read more less

Termination Resistors are required on a NMEA 2000 network and are placed at each end of a network trunk cable. Like the double-ended cordsets, the termination resistors are waterproof and continue to function even while submerged in the bilge. Diagnostic versions indicate correct polarity at a glance to ensure power connections have been made properly Screw connector for positive connnection Termination resistors are used to terminate both ends of the trunk line Specifications: Data Interface: NMEA 2000 Connection Gender: Female Box Dimensions: 1"H x 1"W x 1"L WT: 0.1 lbs UPC: 873804002354

Read more less

Micro Termination ResistorsTermination Resistors are required on a NMEA 2000® network and are placed at each end of a network trunk cable. Like the double-ended cordsets, the termination resistors are waterproof and continue to function even while submerged in the bilge.Screw terminal connector for positive connections Termination resistors are used to terminate both ends of the trunk line Specifications: Connection Gender: Male Box Dimensions: 1"H x 1"W x 2"L WT: 0.05 lbs UPC: 873804001654

Read more less

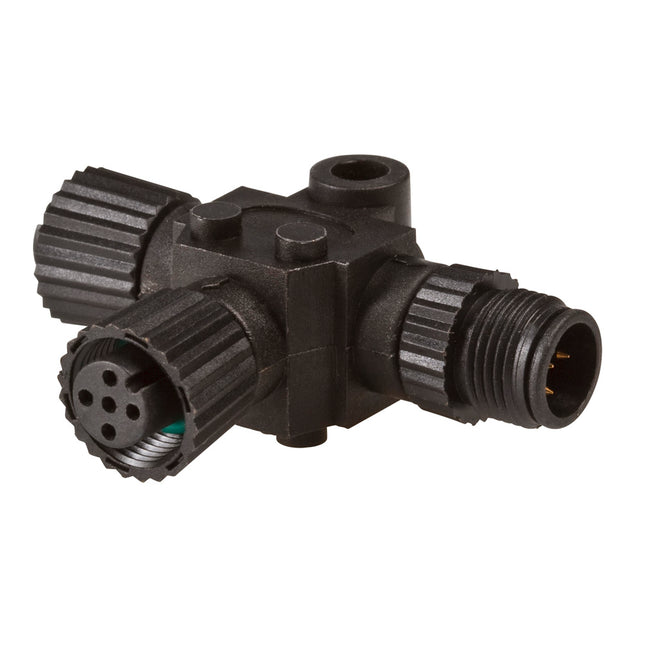

Micro TeeA Tee is used to tap into the trunk line for adding a drop connection. The standard tee is also available with a cap for a protected diagnostic connection. Tees can be mated with all other devices on the network of the same connector style.Gold contacts for greatest reliability Keyed connectors for error-free connectionsMale (left)Female (right)Female (Bottom)

Read more less

Spur CableRaymarine 400MM elbow Spur Cable for SeaTalkng Specifications: Cable Length (Feet): 1' Box Dimensions: 1"H x 1"W x 1"L WT: 0.1 lbs UPC: 723193060421

Read more less

IF-NMEA2K2The IF-NMEA2K2 is an interface to convert data from NMEA0183 format to NMEA2000 / CAN bus format and vice versa. In addition to the normal conversion mode, the High Speed mode to convert sensor data for Autopilot as well as an AIS mode dedicated to AIS data are available in one compact unit. With these three modes, you can optimize the conversion speed depending on the situational requirements. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Data Interface: NMEA 2000 Box Dimensions: 1"H x 8"W x 11"L WT: 1 lbs UPC: 611679345332 Owner's Manual (pdf)

Read more less

NMEA 2000 Cable & T Connector Connection Kit for Siren 3 ProOptimize the connectivity of your Connected Boat® system, allowing you to monitor engine data, water, fuel and waste tanks, and more! The NMEA 2000 Connection Kit includes a 2-meter connection cable and a 3-Way Connection "T" – everything you'll need to hook up to the NMEA 2000 data system 'backbone'. *Compatible with the Siren 3 Pro Only
