Marine Plumbing & Ventilation - Hose

1-1/8" x 50' VAC XHD Bilge & Live Well Hose - Hard PVC Helix - BlackTrident VAC XHD Bilge and Live Well Hose. Helical PVC reinforcement provides excellent flexibility and bend radius for live well and heavy-duty bilge applications. It has a smooth outer surface to allow for easy clamping. The excellent bend radius of this product gives you the flexibility of a rubber hose making installations a breeze.Features:149 series of hoses is extra flexible Application:Bilge and live well hoseSpecifications: Tube & Cover: Hard PVC helix Color: Black Reinforcement: PVC Helix Temperature Range: 10°F-120°F (-12°C-48°C)  Boxed: 50ft. / (15.2m) Inner Diameter: (inch) 1-1/8" / (mm) 28.6 Outer Diameter: (inch) 1.433" / (mm) 36.4 Working Pressure: (Psi Vac In./Hg) 28 / (Bar) 1.93 Weight: (Lb./ 50 ft.) 15 / (Kg/m) 6.80  Bend Radius: (inch) 3" / (mm) 76.2 *Burst Pressure is 4 x Working Pressure Specifications: Length (Feet): 50' ID Diameter (inches): 1-1/8" Box Dimensions: 8"H x 23"W x 23"L WT: 15 lbs UPC: 704917010434 Quick Guide (pdf)

Read more less

3/4" VAC XHD Bilge & Live Well Hose - Hard PVC Helix - Black - Sold by the FootTrident VAC XHD Bilge and Live Well Hose. Helical PVC reinforcement provides excellent flexibility and bend radius for live well and heavy-duty bilge applications. It has a smooth outer surface to allow for easy clamping. The excellent bend radius of this product gives you the flexibility of a rubber hose making installations a breeze.Features: Sold by the foot 149 series of hoses is extra flexible  Application:Bilge and live well hoseSpecifications: Tube & Cover: Hard PVC helix Color: Black Reinforcement: PVC Helix Temperature Range: 10°F-120°F (-12°C-48°C)  Inner Diameter: (inch) 3/4" / (mm) 19.1 Outer Diameter: (inch) .986" / (mm) 25 Working Pressure: (Psi Vac In./Hg) 28 / (Bar) 1.93 Weight: (Lb./ 50 ft.) 11 / (Kg/m) 4.99 Bend Radius: (inch) 3" / (mm) 76.2 *Burst Pressure is 4 x Working PressureThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: ID Diameter (inches): 3/4" Length (Feet): Sold By The Foot Box Dimensions: 1"H x 1"W x 6"L WT: 0.19 lbs Quick Guide (pdf)

Read more less

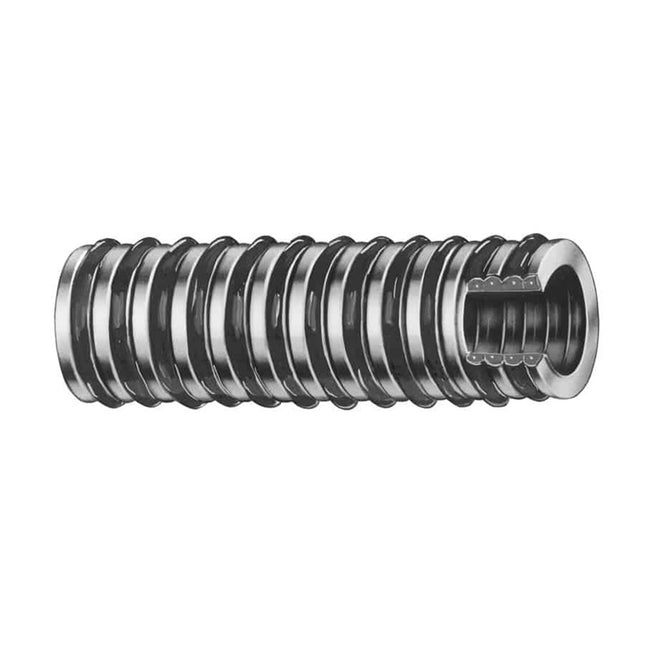

1" x 50' Box Bilge & Live Well Hose Clear with Black HelixHeavy-duty bilge, drain, and live well hose. Clear vinyl (FDA) corrugated with black hard PVC helix and smooth tube. Provides exceptional flexibility and bend radius. *NOT RECOMMENDED FOR BELOW-WATERLINE THRU-HULL CONNECTIONS. No cuffs required. Operating temperatures +10° to +140° F (-12° to +60°C). CA Prop 65 Compliant.Specifications: Sizes: 5/8" to 1-1/2", 16mm to 38mm Colors: Clear with Black Helix Packaging: 100' (30.5m) Coil, 50' (15m) Boxed Specifications: ID Diameter (inches): 1" Length (Feet): 50 Box Dimensions: 6"H x 22"W x 23"L WT: 9.2 lbs UPC: 704917017815

Read more less

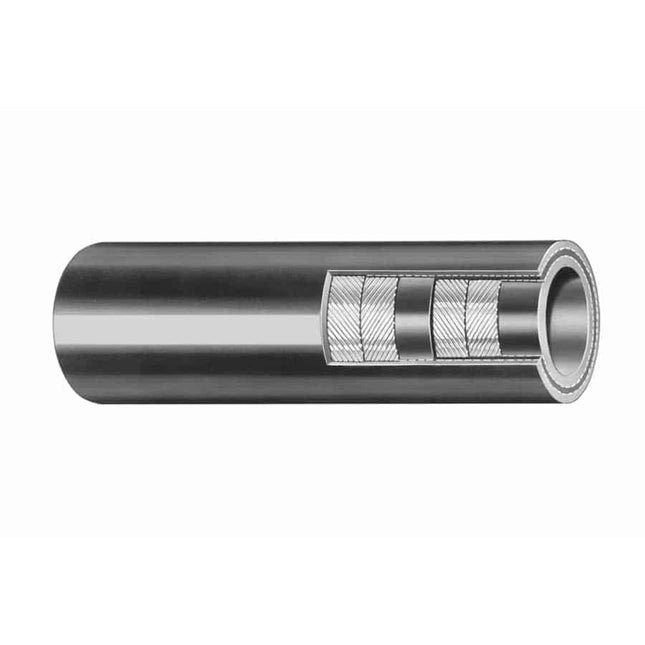

3/8" x 50' Box Black HD Water Hose 200 PSICost-effective, Hi Temp, EPDM rubber, polyester reinforced, and exceeds SAE J20R3. Both are resistant to coolants, ozone, cold & heat, and serve a variety of boat and plant pressurized applications (water & air delivery) #132 is 2 spiral, 200PSI (1.38MPa) W.P. Operating Temp. -40°F to 212°F (-40°C to 100°C).Specifications: Sizes: 1/4" to 1-1/2", 6.3mm to 25mm Colors: Black Packaging: Reels 750’-250’ (230-75m), Boxed 50’ (15m) Specifications: ID Diameter (inches): 3/8" Length (Feet): 50 Box Dimensions: 3"H x 18"W x 18"L WT: 7.5 lbs UPC: 704917005683

Read more less

1/4" x 50' Box Black HD Water Hose 200 PSICost-effective, Hi Temp, EPDM rubber, polyester reinforced, and exceeds SAE J20R3. Both are resistant to coolants, ozone, cold & heat, and serve a variety of boat and plant pressurized applications (water & air delivery) #132 is 2 spiral, 200PSI (1.38MPa) W.P. Operating Temp. -40°F to 212°F (-40°C to 100°C).Specifications: Sizes: 1/4" to 1-1/2", 6.3mm to 25mm Colors: Black Packaging: Reels 750’-250’ (230-75m), Boxed 50’ (15m) Specifications: ID Diameter (inches): 1/4" Length (Feet): 50 Box Dimensions: 3"H x 18"W x 18"L WT: 5.4 lbs UPC: 704917005645

Read more less

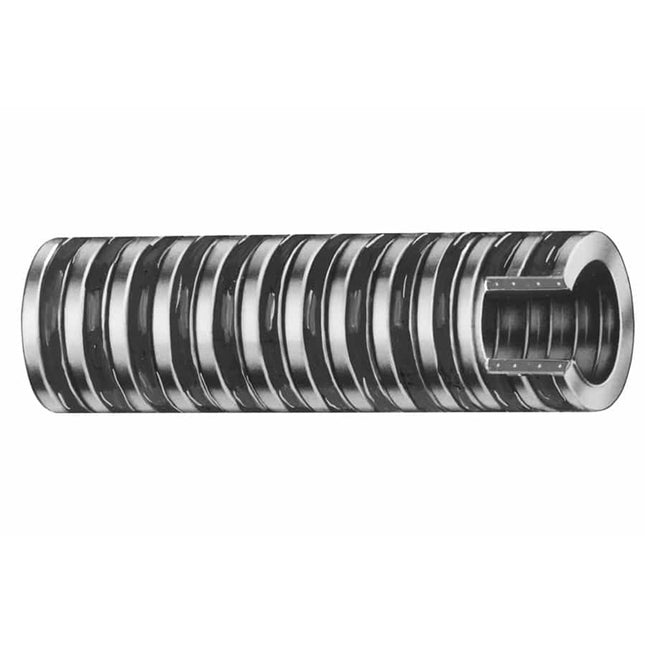

5/8" x 50' Box Bilge & Live Well Hose Clear with Black HelixHeavy-duty bilge, drain, and live well hose. Clear vinyl (FDA) corrugated with black hard PVC helix and smooth tube. Provides exceptional flexibility and bend radius. *NOT RECOMMENDED FOR BELOW-WATERLINE THRU-HULL CONNECTIONS. No cuffs required. Operating temperatures +10° to +140° F (-12° to +60°C). CA Prop 65 Compliant.Specifications: Sizes: 5/8" to 1-1/2", 16mm to 38mm Colors: Clear with Black Helix Packaging: 100' (30.5m) Coil, 50' (15m) Boxed Specifications: ID Diameter (inches): 5/8" Length (Feet): 50 Box Dimensions: 5"H x 18"W x 18"L WT: 6.9 lbs UPC: 704917005997

Read more less

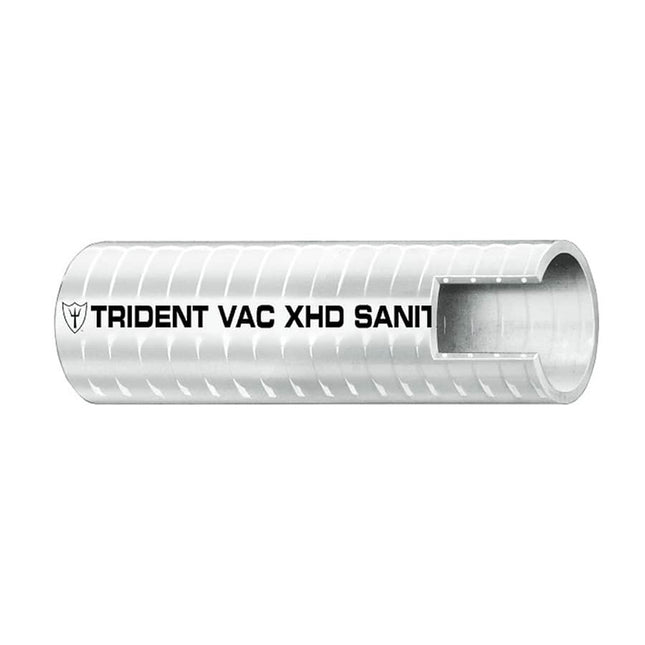

3/4" x 50' Box VAC X.H.D. Sanitation HoseExtra heavy-duty sanitation hose of smooth white vinyl. Specially compounded to provide excellent resistance to odor permeation and (FDA) potable water fill. Also for critical bilge, drain scuppers, live wells, etc. Hard PVC helix gives good flexibility and bend radius. No cuffs required.* Don’t use with alcohols, antifreeze, petrochemicals, or solvents. Self-draining installations are recommended for the longest odor-free service. Max. operating temps: +10° to +140° F (-12° to +60°C).Specifications: Sizes: 5/8" to 1-1/2", 16mm to 38mm Colors: White Packaging: Coils: 50' (15m), 100' (183m), Boxed: 50' (15m), 25' (7.6m) Specifications: ID Diameter (inches): 3/4" Length (Feet): 50 Box Dimensions: 5"H x 18"W x 18"L WT: 10.5 lbs UPC: 704917006277

Read more less

3/4" x 50' Box Black HD Water Hose 200 PSICost-effective, Hi Temp, EPDM rubber, polyester reinforced, and exceeds SAE J20R3. Both are resistant to coolants, ozone, cold & heat, and serve a variety of boat and plant pressurized applications (water & air delivery) #132 is 2 spiral, 200PSI (1.38MPa) W.P. Operating Temp. -40°F to 212°F (-40°C to 100°C).Specifications: Sizes: 1/4" to 1-1/2", 6.3mm to 25mm Colors: Black Packaging: Reels 750’-250’ (230-75m), Boxed 50’ (15m) Specifications: ID Diameter (inches): 3/4" Length (Feet): 50 Box Dimensions: 5"H x 18"W x 18"L WT: 15.8 lbs UPC: 704917005744

Read more less

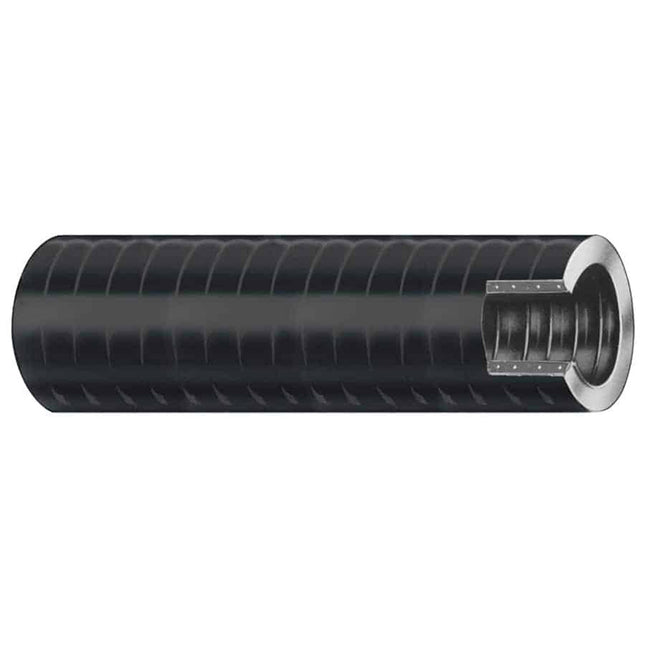

5/8" x 50' Box VAC XHD Bilge & Live Well Hose Black - Soft Plasticizer Wall149-Black ”Extra Flexible”. Smooth extra heavy wall vinyl hose. Excellent durability, flexibility & bend radius for XHD bilge, live well, drain, scupper lines, etc. No cuffs required. Operating temperatures +10° to +140° F (-12° to +60°C). CA Prop 65 Compliant.Specifications: Sizes: 5/8" to 1-1/2", 16mm to 38mm Colors: Clear with Black Helix Packaging: 100’ (30.5m) Coil, 50’ (15m) Boxed Specifications: ID Diameter (inches): 5/8" Length (Feet): 50 Box Dimensions: 5"H x 18"W x 18"L WT: 8.3 lbs UPC: 704917010373

Read more less

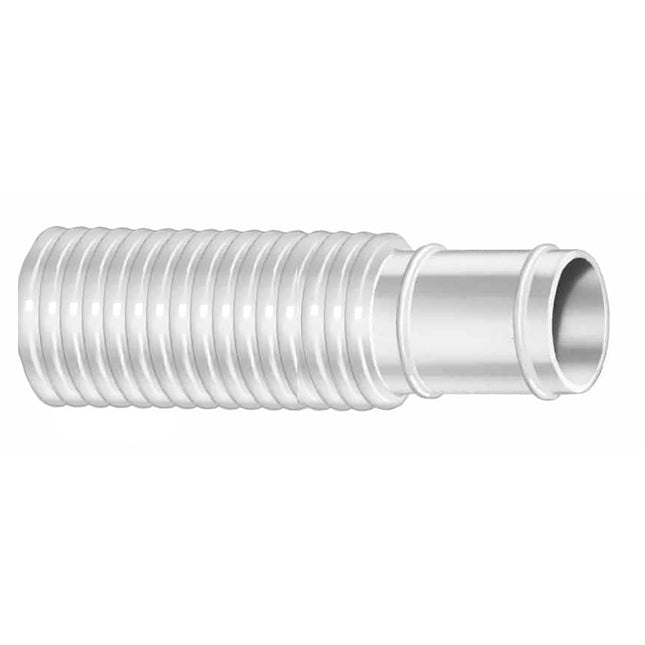

3/4" x 50' Box White Bilge HoseExtremely flexible corrugated polyethylene hose for bilge intake and discharge. Cuffed every foot for clamping. Resists oily bilge and seawater. *NOT RECOMMENDED FOR BELOW-WATERLINE THRU-HULL CONNECTIONS. Operating temperatures -40° to +200° F (-40° to +93°C).Specifications: Sizes: 5/8" to 1-1/2", 16mm to 38mm Colors: White Packaging: Bulk Box: 1000' (305m) to 150' (46m), Boxed: 100' (30.5m) & 50' (15m) Specifications: ID Diameter (inches): 3/4" Length (Feet): 50 Box Dimensions: 5"H x 18"W x 18"L WT: 4.3 lbs UPC: 704917005218

Read more less

1" x 50' Box VAC XHD Bilge & Live Well Hose Black - Soft Plasticizer Wall149-Black ”Extra Flexible”. Smooth extra heavy wall vinyl hose. Excellent durability, flexibility & bend radius for XHD bilge, live well, drain, scupper lines, etc. No cuffs required. Operating temperatures +10° to +140° F (-12° to +60°C). CA Prop 65 Compliant.Specifications: Sizes: 5/8" to 1-1/2", 16mm to 38mm Colors: Clear with Black Helix Packaging: 100’ (30.5m) Coil, 50’ (15m) Boxed Specifications: ID Diameter (inches): 1" Length (Feet): 50 Box Dimensions: 6"H x 22"W x 23"L WT: 14.5 lbs UPC: 704917010410

Read more less

3/4" x 50' Heavy Duty PVC Bilge & Livewell Hose (FDA) - Clear with Black HelixTrident Smooth extra heavy wall vinyl (FDA) well hose. All clear (see thru) with black helix. Excellent durability, flexibility & bend radius for XHD bilge, live well, drain, scupper lines, etc. No cuffs are required. Features:Flexible, but the 147 series is less flexible than the 149 series of hosesApplication:Bilge and live well hoseSpecifications: Tube & Cover: Clear vinyl reinforced with black helix  Color: Clear with black helix Reinforcement: PVC Helix Temperature Range: 10°F-120°F (-12°C-49°C)  Boxed: 50ft. / (15.24m) Inner Diameter: (inch) 3/4" / (mm) 19 Outer Diameter: (inch) 0.968" / (mm) 24.6 Working Pressure: (Psi Vac In./Hg) 28 Weight: (Lb./ 50 ft.) 11 / (Kg/m) 0.33 Bend Radius: (inch) 2.25" / (mm) 57.2 *Burst Pressure is 4 x Working Pressure Specifications: Length (Feet): 50' ID Diameter (inches): 3/4" Box Dimensions: 5"H x 18"W x 18"L WT: 9.2 lbs UPC: 704917006154 Quick Guide (pdf)

Read more less
