Marine Plumbing & Ventilation

Replacement Cartridge for Tsunami 500 MK2Attwood replacement motor cartridge for T500 model Tsunami series bilge pumps. Sold per each.

Read more less

Turbo 3000 Series In-Line BlowerPart #: 1733-4The first vane axial-flow fan bilge blowers designed using aerospace technology to maximize performance. No other bilge blowers in the industry provide such powerful system output at such a low power input in a compact size.Patented in-line design - provides ventilation for engine compartments, galleys, bilges, and heads. Mounting feet allow vertical or horizontal installation in confined spaces. Install with #10 fasteners. Individual carton includes 2 tie straps. All are CE certified. 16-gauge tinned and caulked copper wire leads with optional MP1 molded rubber connectors. Improved 3" design.Features: Nickel-plated motor can for corrosion resistance Stiffening ribs to reduce housing distortion Motor cap to seal wires and motor for water resistance Five-blade fan maximize airflow and efficiency Tabs in intake and exhaust hold ventilation hose/clamp firmly in place Low amp draw motor for longer blower and battery life Built-in mounting feet allow easy vertical or horizontal install WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Open Flow (CFM): 120 CFM Volts: 12v Box Dimensions: 4"H x 5"W x 6"L WT: 1 lbs UPC: 022697173348 Quick Guide (pdf)Brochure (pdf)

Read more less

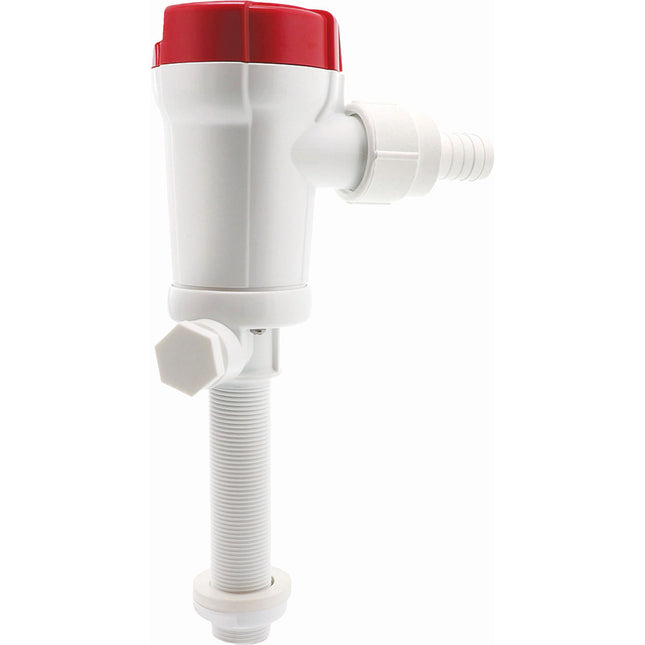

1100 GPH Livewell Pump Straight Thru-Hull InletGood Fishing Begins with Good BaitFor over 50 years, boat builders and owners have depended on Rule pumps for a safe, fun day out on the water. Building on that legacy of marine performance, the Rule Livewell Pump Series has been designed to deliver superior performance and unsurpassed quality – making it the perfect choice for keeping bait and catch alive.To meet the needs of today’s faster watercraft, this livewell pump can withstand the pressures of high-speed water intake scoops.Easy Motor ReplacementA simple and convenient “push and twist button” motor cartridge removal system makes it easy to remove and replace the motor cartridge when fitted in hard-to-reach areas of the boat.High-Efficiency Motor and Impeller DesignThe advanced engineering of the Rule Livewell Pump Series ensures a more efficient water circulation, which is crucial for maintaining the well-being of bait/catch in the livewell.Adaptable to Different Setups and ConfigurationsAll Rule livewell pumps are supplied with threaded nylon hose barb attachments, making them adaptable to different setups and configurations and allowing for versatile hose mounting options.High Inlet Pressure Capability for High-Speed VesselsWhile other livewell pumps are not engineered to withstand the additional water pressures of boats with high-speed pickup scoops, the Rule Livewell Pump Series features a high inlet pressure capability that can keep up with the demands of more powerful boats.Features: High-efficiency pump design for optimal bait health Simple one-hand ‘twist & click’ motor cartridge removal/replacement Inlets for straight thru-hull, angled thru-hull, and seacock installations Secondary inlet port for washdown pump connection Advanced anti-airlock protection Specifications: Open Flow: 1100 GPH Inlet Style: Straight Thru-Hull Inlet Size - NPT: 3/4" NPSM Thread Discharge Size - Hose Barb: 1-1/8" Voltage: 12VDC Amp Draw @ 12VDC: 4.7 AMP Fuse Size: 7.5 AMP Replacement Motor Cartridge PN: 67DR Quick Guide (pdf)

Read more less

High Water Bilge Alarm with Switch & Gauge - 24VUsing a compact float switch and dash mounted alarm, Rule provides boaters with a warning to high bilge water levels. Ideal for larger yachts and commercial vessels larger than 26' with unmanned compartments that have to comply with CFR 182.530. A bright LED indicator light provides a visual alarm when ambient noise levels exceed alarm volume. Constantly monitor your bilge for water and stay compliant to Coast Guard regulations with a Hi-Water Bilge Alarm from Rule.Features: Visible and audible alarm to monitor bilge water levels Includes mercury-free float switch and dash mounted alarm Complies with CFR 182.530 24V WARNING: This product can expose you to chemicals including STYRENE which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Read more less

Ballast King Bronze DC Pump with Reversing Switch - 15 GPMWakeboard and Ski Boat Ballast PumpFeatures: Flow rate: 15 US gallons/min (57 Litres/min) Self-priming from dry up to 1.2m (4ft) Adds approx 125lbs (56kgs) of ballast per minute Reversible to both fill and empty tanks Simple design means fewer wearing parts. ISO 8846 MARINE (Ignition protection). Applications:The Ballast King is designed to pump water into Wakeboard Liquid Ballast Tanks and when reversed will also pump water out of them. It has a flow rate of 15 gallons per minute, so it can fill most ballast tanks in about five minutes. It is equipped with a Run-Dry Protection Device (patent pending) to automatically shut-off the pump and protect the impeller from run-dry damage should the pump be mistakenly left on after the Ballast Tank is empty. Specifications: Body Materials: Bronze Impeller: Jabsco Neoprene compound Seal: Lip Type Port(s): 1/2" Internal Pipe Threads 1" External Hose Barb  Voltage: 12 (Vdc) Amp Draw: 19 (amp) Fuse Size: 25 (amp) Motor Type: Equipped with Run-Dry Protection Device (Patent Pending) Permanent Magnet Type Fully Enclosed Stainless Steel Shaft Ball Type Shaft Bearing Reversible  Duty Cycle: 30 Minutes Max Dimensions: 3 5/8 x 8 x 4 3/4 (inches) WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Specifications: Gallons Per Minute: 15 GPM Volts: 12v Box Dimensions: 6"H x 6"W x 12"L WT: 8.6 lbs UPC: 671880628846 Brochure (pdf)

Read more less

iL500 Plus In-Line & Submersible Pump 12V Suitable for diesel, fresh and salt water Quick diesel transfer with no spillage Water transfer, deck shower, or deck wash Continuous rating but should not be run dry for long periods Specifications Output:tup to 31.8 litres/minute at up to 1bar (7 gallons/minute at 14psi) Connections:t3/4" (19mm) Hose Dimensions:t165mm long, 38mm diameter Amp Draw:t6 (amp) Weight:t560 (g) WARNING: This product can expose you to chemicals including FORMALDEHYDE (GAS) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Specifications: Gallons Per Minute: 7 GPM Volts: 12v Type: Electric Box Dimensions: 4"H x 9"W x 14"L WT: 1.5 lbs UPC: 042237109828 Owner's Manual (pdf)

Read more less

1-1/4" Flex Marine Wet Exhaust & Water Hose - Black - Sold by the FootTrident Flex wet exhaust hose for longer bent connections. In smaller i.d.s for engine intake, critical water, drain, scupper bilge & sanitation uses. Resists heat, ozone, exhaust, panting, and collapse. Black High Temp EDPM Rubber 250°F (121°C) Max.Features:  Sold by the foot Extra heavy tube and cover with wire helix between 2-ply reinforcement provides excellent flexibility and bend radius  Resists heat, ozone, exhaust, sani chemicals, panting, and collapse Exceeds SAE J2006-R2, ABYC & NMMA P-1 exhaust standards, and Lloyd’s Registry Type Approved Application: Trident Flex wet exhaust hose for longer bent connections In smaller I.D.s for engine intake, critical water, drain, scupper bilge & sanitation uses Construction: Tube & Cover: High temp EDPM rubber Color: Black with blue stripe Reinforcement: Multi-ply, high-tenacity polyester, steel helix Temperature Range: 250°F (121°C) Specifications: Inner Diameter: (inch) 1-1/4" / (mm) 31.8 Outer Diameter: (inch) 1.40" / (mm) 32 Working Pressure: (Psi) 70 / (bar) 4.8 Bend Radius: (inch) 1.5" / (mm) 38 Weight: (Lb./50 ft.) 35 / (Kg/m) 15.7 *Burst Pressure is 4 x Working PressureThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: ID Diameter (inches): 1-1/4" Length (Feet): Sold By The Foot Box Dimensions: 1"H x 1"W x 1"L WT: 0.64 lbs Quick Guide (pdf)

Read more less

Marine Valve KitFeatures: Original spare rubber valves in NBR material for diaphragm pump PN 03-01-001, 03-01-002 03-01-015, 03-01-016 For optimized capacity and flow performance, 2 duck valves in a kit With 2 kits, a total of 4 valves, a replacement for PN 03-01-003 and 03-01-004

Read more less

Stainless Steel Hose Barb Thru-Hull Fitting - 5/8" Features: NPS Thread With Hose Connection #316 Stainless Steel UL Listed 647B Specifications: Hose Size: 5/8" Material: Stainless Steel Box Dimensions: 3"H x 3"W x 4"L WT: 0.5 lbs UPC: 742985138971

Read more less

Waste Water Diaphragm Pump 22L (5.8 GPM) - 12VSingle chamber, self priming, diaphragm pump 12V for grey or bilge water. Shower drain, transfer or pump out.Includes 19mm (3/4″) and 25mm (1″) straight connectors. Interchangeable with Johnson Pump 10-13350-03.Features: Flexible installation with 360 degree rotational ports  Quiet operation and low power consumption  Operates with no need for filter Specifications: Weight: 0.8 kg/1 lb Dimensions: 141/5.5L x 105/4H x 140/5.5W mm/in  Type: Bilge/Grey Water Capacity: 22 L/min (5,8 GPM) Fuse: 4,5A *CE marked 94/25/ECC, ISO8846 Small Craft, Electromagnetic compatibility 89/336/EEC, EN51014 1993/radio disturbance Specifications: Color: Black Gallons Per Minute: 5.8 GPM Inlet Size: 3/4" or 1" Outlet Size: 3/4" or 1" Volts: 12v Type: Waste Pumps Box Dimensions: 7"H x 9"W x 12"L WT: 5.5 lbs UPC: 7340176600738

Read more less

Active Carbon FilterPrevents outside odor coming from tank by connecting it at the highest point along the breather hose.Specifications: Weight: 0.15 kg/.25 lbs Type: Black water Adjustable Ports: With 16, 19, & 25mm / (3/8″, 3/4″, 1″)  *Certification: CE marked 94/25/ECC, ISO8846 Small Craft, Electromagnetic compatibility 89/336/EEC, EN51014 1993/radio disturbance

Read more less

Standard Electric Toilet Conversion Kit - 12VConverts your manual or silent electric toilet to a 12V one cycle electric operated version.Features:Including all you need for a new assembly, also the one push electrical control panelSpecifications: Weight: 2.44 kg/6 lbs Port Connections: Inlet 19mm (3/4″), outlet 25mm or 38mm (1″ or 1,5″) *Certification: CE marked 94/25/ECC, ISO8846 Small Craft, Electromagnetic compatibility 89/336/EEC, EN51014 1993/radio disturbance

Read more less
