Sailing - Shackles/Rings/Pins

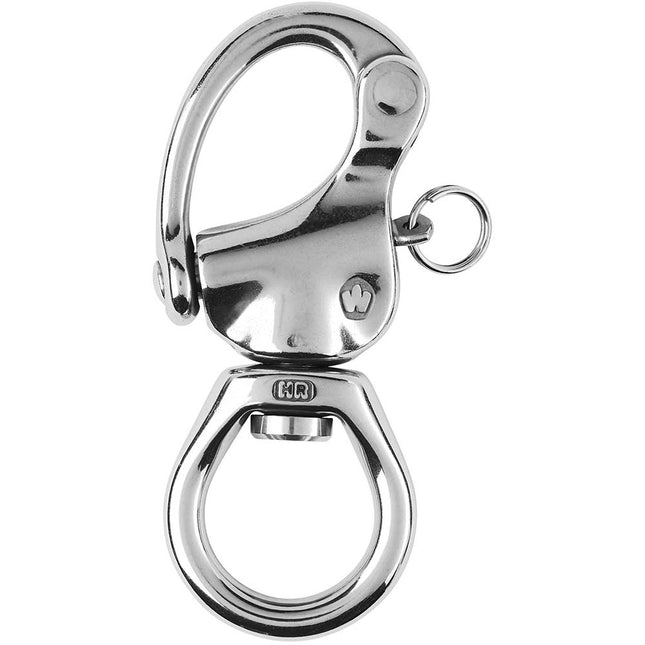

HR Snap Shackle with Thimble Eye - Length 3-3/4"Features: HR Forged snap shackle (Grade 17.4 PH stainless steel) with thimble eye Allows to splice the halyard directly onto the snap shackle (without using a thimble) Avoids the wear of the ropes Free rotation of the snap shackle thanks to the swivel eye The plunger pin is set captive into the hook and cannot become detached Excellent working and breaking loads > Easy to open by pulling the plunger pin (possibility to attach a lanyard) Applications: Snap shackle applications Allows to splice the halyard Applications requiring a free rotation of the snap shackle (for a better sail orientation) Specifications: Materials HR 17.4 PH stainless steel grade Length (inch) 3 3/4" Working load (lb) 2110 Breaking load (lb) 4400 Weight (lb) 0.168 A (inch) 5/8" B (inch) 15/32"

Read more less

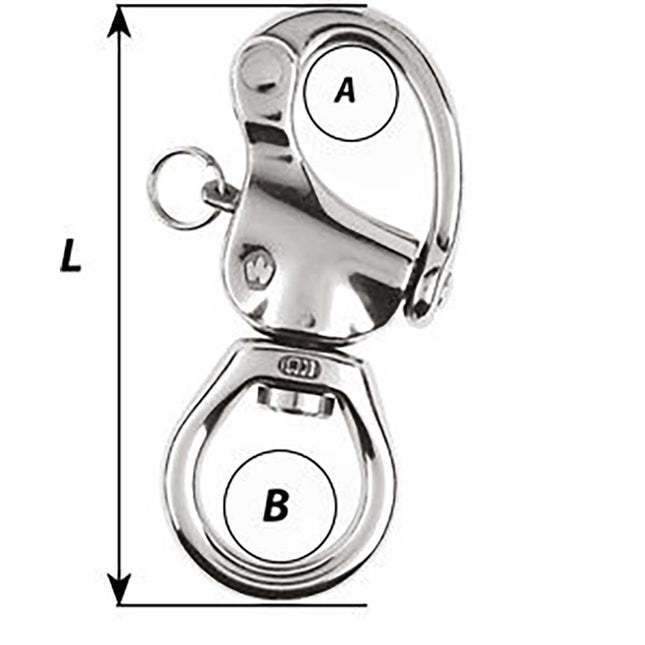

2-3/4" Snap Shackle with Swivel & Clevis Pin - 70mmFeatures: HR Forged snap shackle (Grade 17.4 PH stainless steel) with clevis pin swivel Free rotation of the snap shackle thanks to the swivel eye The plunger pin is set captive into the hook and cannot become detached Excellent working and breaking loads Easy to open by pulling the plunger pin (possibility to attach a lanyard) Applications:Snap shackle applications

Read more less

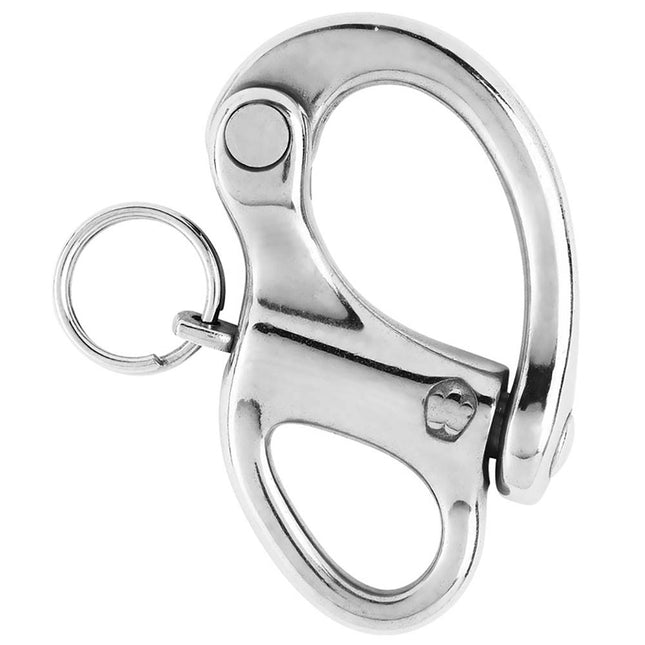

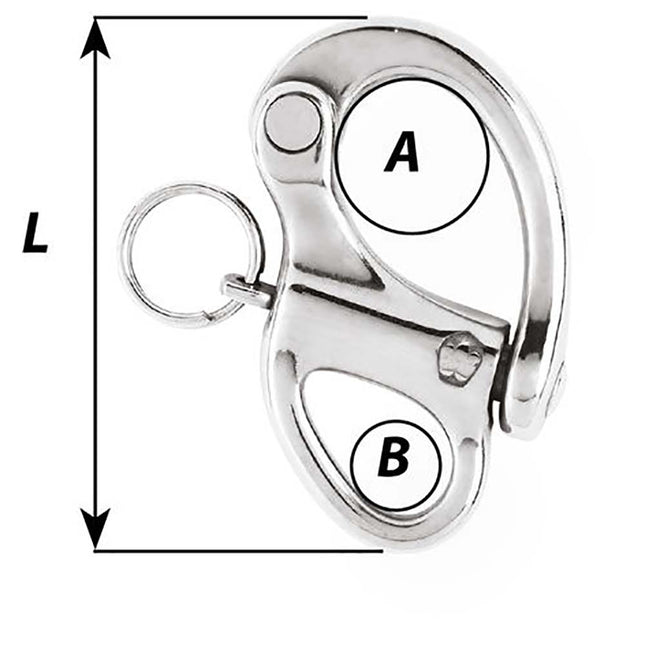

2-3/4" Snap Shackle with Fixed Eye - 70mmFeatures: HR Forged snap shackle (Grade 17.4 ph stainless steel) with fixed eye The plunger pin is set captive into the hook and cannot become detached Excellent working and breaking loads Easy to open by pulling the plunger pin (possibility to attach a lanyard) Applications: Snap shackle applications with fixed eye Use for applications where the free rotation is not required

Read more less

Safety Snap Hook - 50mmFeatures: Grade 316L forged snap hook Various applications onboard Outstanding working and breaking loads Modern design Applications:Various uses on board: fastening applications

Read more less

Captive Pin Bow Shackle - Diameter 4mm - 5/32"Features: Captive pin bow shackle forged in grade 316L stainless steel The pin is connected to the body at all times even when opened The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads Single-handed operation for more safety WLL: only for industrial applications (lifting i.e…) CE marking and batch number Applications: To be used when ample room is required Possibility to attach several lines or cables Specifications: Materials 316 stainless steel grade Working load (lb) 700 WLL (lb) 440 Breaking load (lb) 2200 Weight (lb) 0.022 Dimensions (see 2nd image): A (inch) 45/64" B (inch) 5/16" C (inch) 13/64" D (inch) 23/64" D diameter (inch) 5/32" E (inch) 5/32" M (inch) 53/64"

Read more less

Soft Shackle - Size S - 4mm x 65mm with Robline LineFeatures: Small-diameter puller line allows for easy removal after the soft shackle has been loaded Lightweight and easy on the boat Alternative to traditional metal shackles SK98 Dyneema® Soft Links UHMWPE Soft Shackles XG coating for UV stability and resistance to abrasion Quick Guide (pdf)

Read more less

Brass Snap Shackle - Fixed Bail - 59.3mm(2-5/16") LengthFeatures: Brass body and plunger pin Full release arm Heavy duty stainless steel plunger spring and precision components ensure dependable service Split ring on plunger pin for pull-line attachment

Read more less

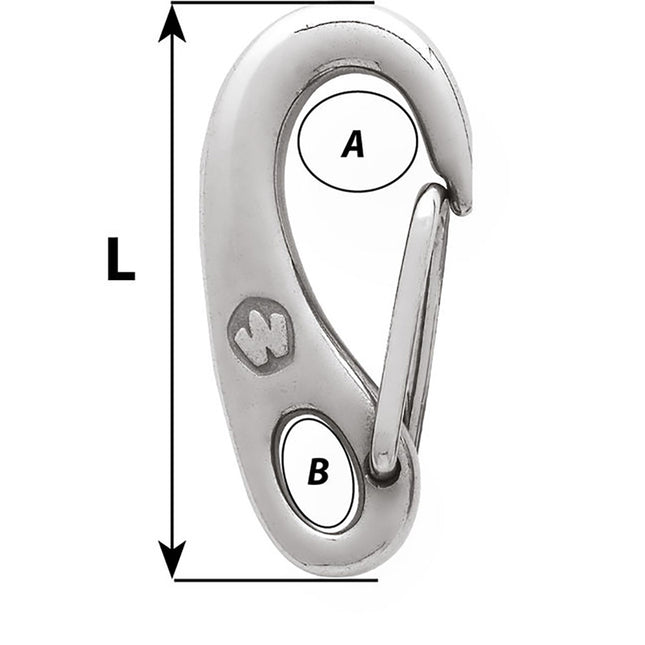

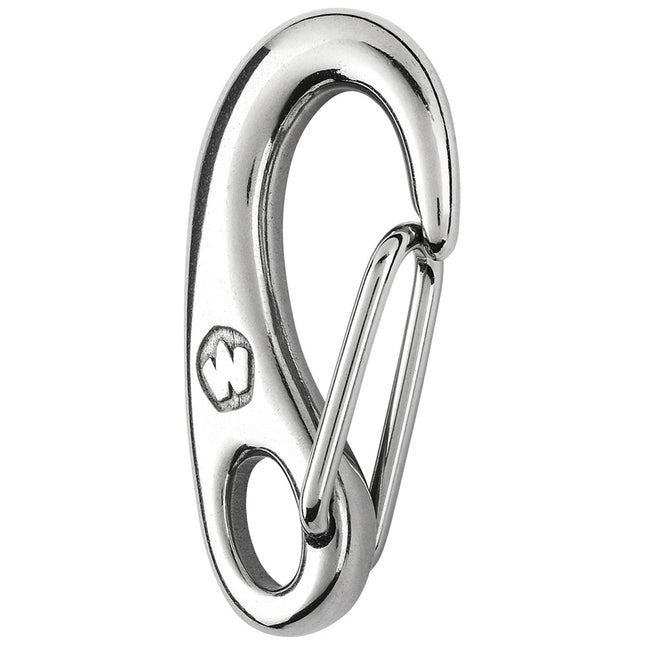

Snap Hook - Length 3-15/16"Features: Grade 316L forged snap hook Various applications onboard Outstanding working and breaking loads Modern design Applications:Various uses onboard: fastening applicationsSpecifications: Materials 316L stainless steel grade Length (inch) 3 15/16" Working load (lb) 2460 Breaking load (lb) 3300 Weight (lb) 0.41 A (inch) 5/8" B (inch) 33/64"

Read more less

HR Quick Release Snap Shackle With Large Bail - 80mm Length - 3-5/32"Features: HR forged (17.4 PH) quick-release snap shackle with large bail The opening is made by pulling the lanyard Perfect to attach several lines (spinnaker sheets...) Outstanding working and breaking loads Free rotation of the snap shackle thanks to the swivel Applications: For spinnaker operations Perfect to attach several lines: spinnaker sheets... Specifications: Materials: HR 17.4 PH stainless steel grade Working load: (lb) 1940 / (kg) 880  Breaking load: (lb) 2860 / (kg) 1300  Weight: (lb) 0.119 / (g) 54  Dimensions: A: (inch) 35/64" / (mm) 14  B: (inch) 3/4" / (mm) 19  Length: (inch) 3 5/32" / (mm) 80  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)

Read more less

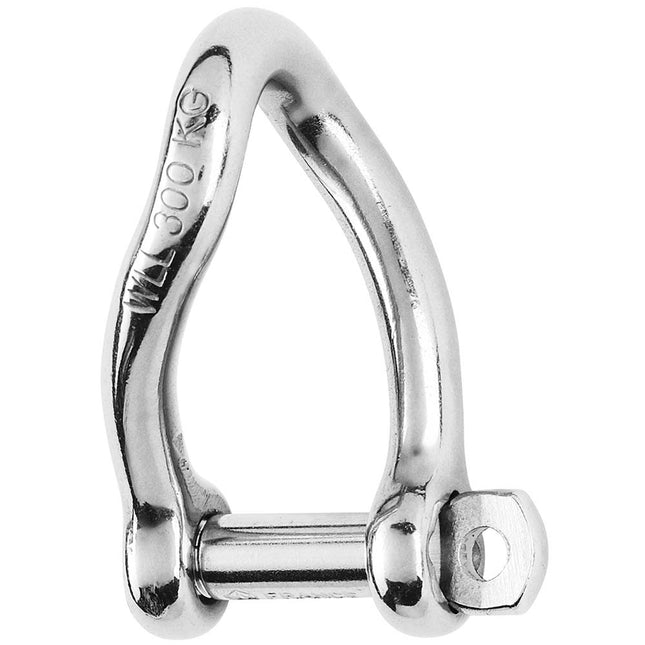

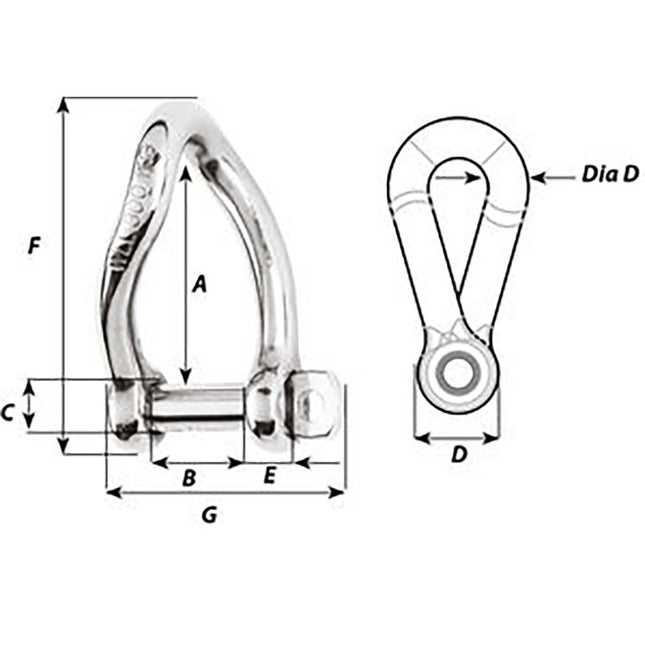

Self-Locking D Shackle - Diameter 8mm - 5/16"Features: Self-locking D shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking and batch number Applications: Standard applications of the shackle Attachment applications: blocks, head… Specifications: Materials 316 stainless steel grade Working load (lb) 2200 WLL (lb) 1190 Breaking load (lb) 5950 Weight (lb) 0.121 Dimensions (see 2nd image): A (inch) 1-1/32" B (inch) 5/8" C (inch) 5/16" D (inch) 5/8" D diameter (inch) 5/16" E (inch) 9/32" F (inch) 1-49/64" G (inch) 1-39/64"

Read more less

Captive Pin Long D Shackle - Diameter 8mm - 5/16"Features: Captive pin long "D" shackle forged in grade 316L stainless steel The pin is connected to the body at all times even when opened The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads Applications: Standard applications of shackle requiring more length Attachment applications: blocks, head... Specifications: Materials 316 stainless steel grade Working load (lb) 2200 WLL (lb) 1580 Breaking load (lb) 7930 Weight (lb) 0.203 Dimensions (see 2nd image): A (inch) 2-7/16" B (inch) 5/8" C (inch) 23/64" D (inch) 43/64" D diameter (inch) 5/16" E (inch) 5/16" F (inch) 3-15/64" G (inch) 1-11/16"

Read more less

Snap Shackle - Small Swivel Bail - 92mm(3-5/8") LengthHeavy duty plunger springs and precision components ensure dependable service. Body and hasp profiles are designed for easy clearance of lines and fittings when released. High strength to weight ratio. Split ring on plunger pin is spot welded for security. A lanyard can be attached to the plunger pin for easy opening.Materials: Grade 15-5PH investment cast stainless steel body and hasp Grade 316 stainless steel plunger pin and spring

Read more less
