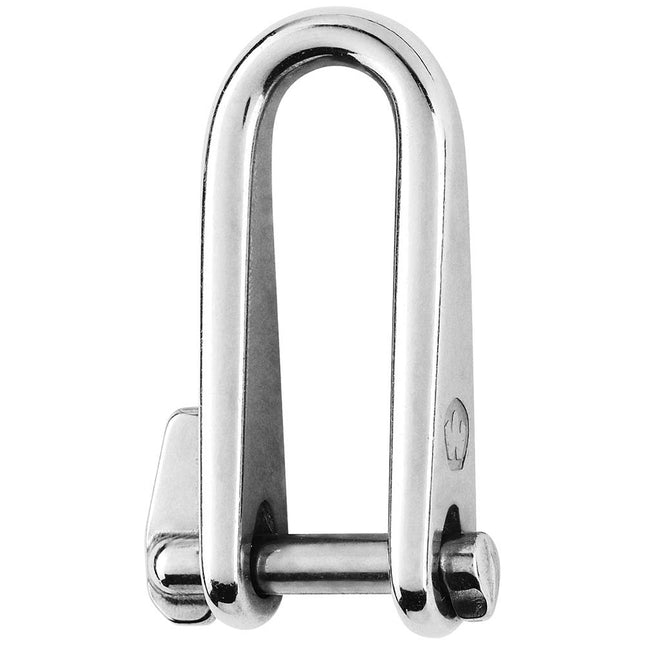

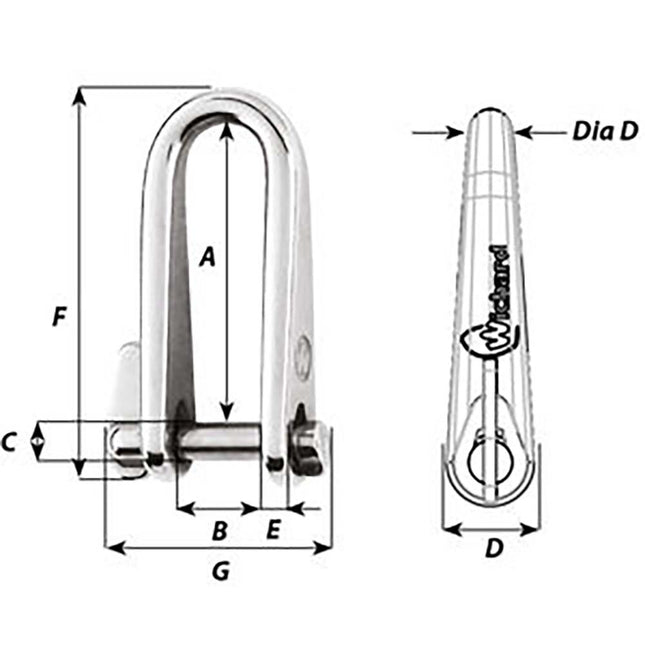

Key Pin Shackle - Diameter 5mm - 3/16"Features: Key pin shackle forged in grade 316L stainless steel Opening and closing is done simply by rotating the pin half a turn No risk to lose the pin as it remains attached Outstanding working and breaking loads Applications:Perfect product for halyards or applications requiring to open/close the shackle oftenSpecifications: Materials 316 stainless steel grade Working load (lb) 880 Breaking load (lb) 2200 Weight (lb) 0.068 Dimensions (see 2nd image): A (inch) 1-29/64" B (inch) 33/64" C (inch) 13/64" D (inch) 7/16" D diameter (inch) 13/64" E (inch) 5/32" F (inch) 1-59/64" G (inch) 1-7/32"

Read more less

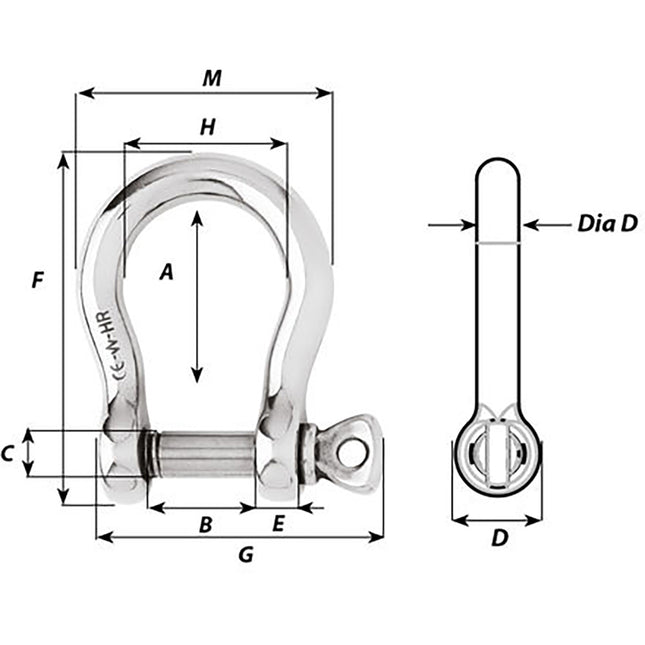

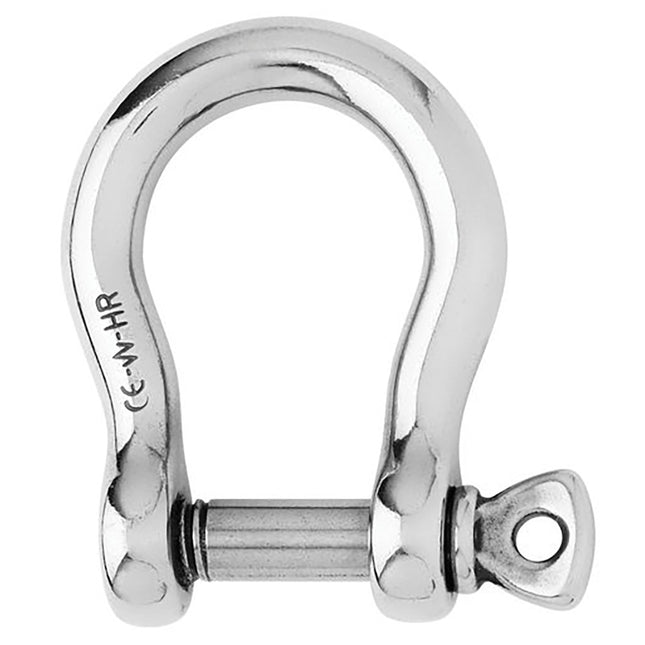

HR Bow Shackle - 20mm Diameter - 25/32"Features:  Forged bow shackle in HR stainless steel grade (17,4 PH) Outstanding working and breaking load An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel WLL: only for industrial applications (lifting i.e…) CE marking Applications: Applications requesting high loads To be used when ample room is required Possibility to attach several lines or cables Do not use it for mooring applications Specifications:  Materials: HR 17.4 PH stainless steel grade Working load: (lb) 19400 / (kg) 8800  WLL: (lb) 12340 / (kg) 5600  Breaking load: (lb) 61720 / (kg) 28000  Weight: (lb) 2.229 / (kg) 1.011  Dimensions: A: (inch) 3 5/32" / (mm) 80  B: (inch) 1 37/64" / (mm) 40  C: (inch) 25/32" / (mm) 20  D: (inch) 1 37/64" / (mm) 40  D diameter: (inch) 25/32" / (mm) 20  E: (inch) 45/64" / (mm) 18  M: (inch) 3 15/16" / (mm) 100  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)

Read more less

1/2 Eye Nut - 1-1/16" DiameterFeatures: A complete range of single piece forged products for fastenings applications Outstanding breaking loads Available in different sizes Applications: Various fastening applications Towing application Waterskiing lines attachment Specifications: 1-1/16" Diameter 1/2 Eye Nut

Read more less

22mm Fiddle Micro Block with V-Jam & BecketLow-friction Micro blocks are compact and lightweight. They are ideal for sailboards, smaller dinghies, and lightly loaded control lines on boats of all sizes.Specifications: Sheave: 22mm / 7/8in. Length: 102mm / 4in. Weight: 57g / 2oz. Shackle pin: 5mm / 3/16in. Maximum line: 6mm / 1/4in. Maximum working load: 159kg / 350lb Breaking load: 544kg/ 1200 lb

Read more less

Series 50 Ball Bearing Block - Single Loop TopSheaves running on Acetal or Torlon® ball bearings provide high performance & low friction. The 2-stage ball bearing system provides consistent performance over the full load range.Features: Low friction, 2-stage ball bearing system High static and dynamic load capacity Lightweight Cheek cut-outs for easy bearing maintenance Specifications: Max. Rope diameter (in): 1/2" M.W.L. (lb): 1100lbs Sheave diameter (in): 2" B.L. (lb): 3310lbs Weight (oz): 3.4oz Materials: Acetal ball bearings UV-stabilized acetal sheave Grade 316 stainless steel load strap and head fitting Impact and UV-resistant, fiber-reinforced nylon cheeks

Read more less

38mm Double Big Bullet BlockLow-friction Bullet blocks lead control lines aft. They are compact and lightweight, with fast trim and release under high or low loads. A range of styles lets these blocks adapt to almost all control line applications. Features: Sheave: 38mm (1-1/2") Maximum Line: 10mm (3/8") Maximum Working Load: 272kg (600lb)

Read more less

Sea Rail Bag - MediumThis handy Blue Performance sea rail bag is perfect for letting you store your gear.Features: Integrated Raincover Attach to the wire/rail using a Velcro flap and fix upright with two webbing straps on the lower wire/rail Inner pocket with closure Mesh side panels Waterproof, mildew, and UV-resistant material Ripstop lining An integrated pocket in the base contains a waterproof cover manufactured from UV-resistant Ripstop Specifications (L x W):Medium: (inch) 13.8 x 9.8 x 2.8 / (mm) 350 x 250 x 70*Sold as an Individual Specifications: Type: Bags Box Dimensions: 2"H x 12"W x 16"L WT: 1.9 lbs UPC: 8717933038339

Read more less

16mm Block with BecketThe 16 mm is Harken’s smallest block. It is perfect for small synthetic control lines found on high-tech dinghies. The patented bearing system uses stainless steel balls in a captive grooved race and has a 250 lb (113 kg) maximum working load.Specifications: Sheave: 16mm / 5/8in. Length: 38mm / 1-1/2in. Weight: 12g / .44oz Maximum line: 5mm / 7/32in Maximum working load: 113kg/ 250lb Breaking load: 544kg / 1200lb

Read more less

Standard Cam-Matic® Aluminum Kit with Wire FairleadWire fairleads maintain a low profile while holding the line close to the cleat. Kit includes hardcoat-anodized 150 aluminum Cam-Matic® and 298 wire fairlead.Specifications: Weight: 85g / 3 oz. Maximum working load: 136kg / 300lb.

Read more less

Waxed Whipping Twine - 0.5mm x 40M - White Excellent for whipping line ends, this twine is pre-waxed with a round construction and will not open because of the flat, strong seem.  The special wax formula makes this whipping twine particularly easy to use with the high quality of the twisted PES (polyester) twine.Technical Specifications: Color - White Material - Polyester (PES) Thickness -  .02" (.5mm) Length -  131' (40 M) *Sold as an Individual Brochure (pdf)

Read more less

Series 20 Ball Bearing Block - Single - Cheek Rivet MountFeatures: Low friction High static and dynamic load capacity Lightweight Suitable for screw or pop rivet mounting Precision molded Acetal sheaves running on stainless steel or Torlon® ball bearings provide high performance & low friction Applications: Dinghy control lines Dinghy Vangs Cunninghams Traveller controls Materials: U.V. Stabilized Acetal sheaves Stainless steel ball bearings Grade 316 stainless steel load strap and head fitting Impact and UV resistant, fiber reinforced Nylon cheeks Specifications:Sheave Ø:t20mm(3/4")Max. Rope Ø:t6mm(1/4")M.W.L.:t200kg(440lbs)B. L.:t550kg(1,210lbs)Weight:t17g(0.6oz)

Read more less

Series 40 Ball Bearing Block - Fiddle - Becket - CleatFeatures: Low friction Acetal or Torlon® bearing system Lightweight Cheek cut-outs for easy bearing maintenance Captive Lock™ universal head Slotted pin shackle eliminates fouled lines Snap fit removable becket pin Multi-position cleat arm Low friction, 2-stage ball bearing system High static and dynamic load capacity Lightweight Cheek cut-outs for easy bearing maintenance Sheaves running on Acetal or Torlon® ball bearings provide high performance & low friction. The 2-stage ball bearing system provides consistent performance over the full load range.Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required. Quick adjusting cleat arms require no tools to adjust and fix securely in position. Becket pin is removable so line can be spliced prior to fitting and is iApplications: Mainsheet Halyard Vang Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats  up to 8m (26ft) Typically used in direct 4:1 purchase systems such as mainsheets and boom vangs On larger boats they are used for fine-tune mainsheet tackles, outhauls, cunninghams, checkstays, genoa lead pullers and traveller controls. Materials: Acetal ball bearings UV stabilized Acetal sheave Grade 316 stainless steel load strap and head fitting Impact and UV resistant, fiber reinforced Nylon cheeks
