Splice Eye to Splice Eye Fitting*Dyneema Line not included with fittingsC. Sherman Johnson Marine's Splice Line fittings allow you to easily splice hi tech Dyneema line to standard life line fittings. The Splice Line fittings are designed to be light weight and easy on the line. Both US Sailing and ISAF now allow Dyneema/ Spectra life lines for offshore racing and Dyneema/ Spectra is also a great product for the cruising sailor that wants to replace their stainless steel life line cables. Professional splicing recommended.

Read more less

T-Style Jaw/Jaw Open Body Turnbuckle - 1/4-28 Thread SizeFor those who prefer a traditional body turnbuckle. The forged silicon bronze body, coupled with our integral toggle jaw, provides positive locking and ease of adjustment.Forged silicon bronze bodies with 316 stainless ends offer a great non-galling combination. Integral toggle jaw eliminates the need for a separate rigging toggle. Specifications: Jaw with "T" Toggle Construction Machine swage Bronze body/ 316 stainless ends Wire size: 5/32" Breaking strength: 2,500 pounds Safe working load: 1,000 pounds Thread size: 1/4-28 Pin to pin length: 8" (closed) 11" (open) Body length: 4-3/4" Pin diameter: 1/4"  Weight: 5 ounces

Read more less

Double Folding Pad Eye - 6mm Diameter - 15/64"Features: Fully drop forged product with outstanding working and breaking loads regardless of the angle of the load Perfect solution attachment (stay, blocks, jib tack point) Possibility to attach several stays Modern and optimized design to suit the aesthetics of modern boats They can be folded down to minimize the risk of injuries The silicon pad eliminates noise and unpleasant vibrations Applications: For any fastening/attachment application Allows to attach several shrouds Specifications: Materials: 316L stainless steel grade Working load: (lb) 3170 / (kg) 1440 Breaking load; (lb) 5510 / (kg) 2500  Weight: (lb) 0.278 / (g) 126  Dimensions: A: (inch) 1 49/64" / (mm) 45  B: (inch) 1 1/16" / (mm) 27  C: (inch) 35/64" / (mm) 14  d diameter: (inch) 1/4" / (mm) 6.4  D diameter: (inch) 15/64" / (mm) 6  E: (inch) 2 61/64" / (mm) 75  F: (inch) 2 21/64" / mm) 59  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

Double Folding Pad Eye - 10mm Diameter - 25/64"Features: Fully drop forged product with outstanding working and breaking loads regardless of the angle of the load Perfect solution attachment (stay, blocks, jib tack point) Possibility to attach several stays Modern and optimized design to suit the aesthetics of modern boats They can be folded down to minimize the risk of injuries The silicon pad eliminates noise and unpleasant vibrations Applications: For any fastening/attachment application Allows to attach several shrouds Specifications: Materials: 316L stainless steel grade Working load: (lb) 10050 / (kg) 4560  Breaking load: (lb) 19840 / (kg) 9000  Weight: (lb) 1.089 / (g) 494  Dimensions: A: (inch) 2 61/64" / (mm) 75  B: (inch) 1 49/64" / (mm) 45  C: (inch) 29/32" / (mm) 23  d diameter: (inch) 13/32" / (mm) 10.5  D diameter: (inch) 25/64" / (mm) 10  E: (inch) 4 3/32" / (mm) 104  F: (inch) 3 5/64" / (mm) 78  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

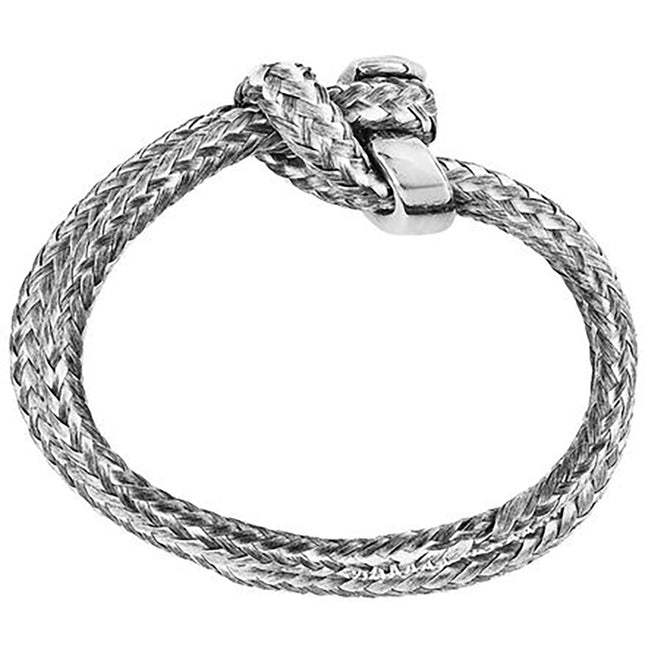

Softlink 3.0 Soft Shackle - 3mm Diameter - 1/8" - 70mm Length - 2-3/4"Features:  SoftLink is a soft shackle developed by Wichard for recreational sailors looking for performance and ease of use For the same strength, SoftLink is 4 or 5 times lighter than a 316L stainless steel shackle No knowledge of ropework required Replaces shackles and snap hooks Easy to fit and easy to open Remarkably light and strong Re-usable 3 sizes available  Applications: Fastenings Replaces shackles and snap hooks Specifications: Materials: 316L stainless steel grade Dyneema SK78Dimensions: Loop diameter: (inch) 1/8" / (mm) 3  Loop length: (inch) 2 3/4" / (mm) 70  Working load: (lb) 3300 / (kg) 1500  Breaking load: (lb) 4400 / (kg) 2000  Weight: (lb) 0.026 / (g) 12  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

Eye Bolt - M12 x 175mm - Length 120mmFeatures: A complete range of single piece forged products for fastenings applications Outstanding working and breaking loads Available in different sizes Max tightening torque: 60 Nm Applications: Various fastening applications Towing application Waterskiing lines attachment Specifications: Materials: 316L stainless steel grade Working load: (lb) 5290 / (kg) 2400 Breaking load: (lb) 7710 / (kg) 3500 Weight: (lb) 0.359 / (g) 163 Dimensions: A: (mm) M12 x 175 B: (inch) 45/64" / (mm) 18 C: (inch) 1 39/64" / (mm) 41 D: (inch) 5/16" / (mm) 8 E: (inch) 1 7/64" / (mm) 28 F: (inch) 4 23/32" / (mm) 120 G: (inch) 4 9/64" / (mm) 105 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

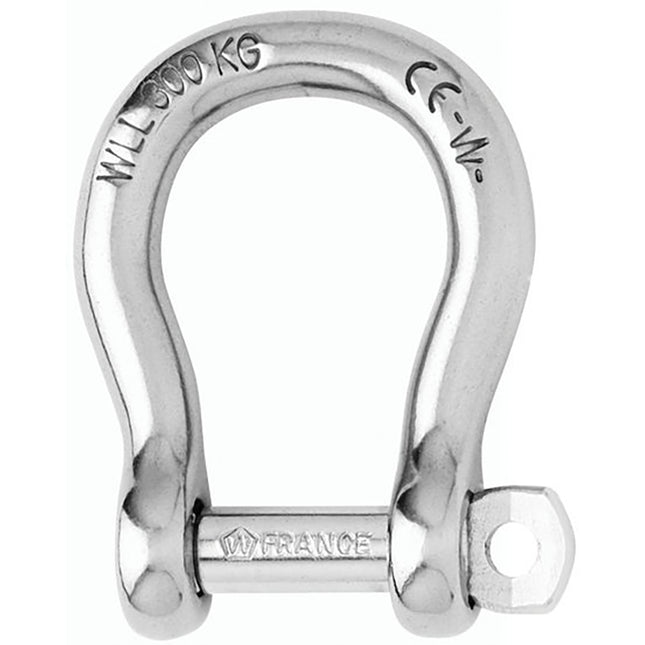

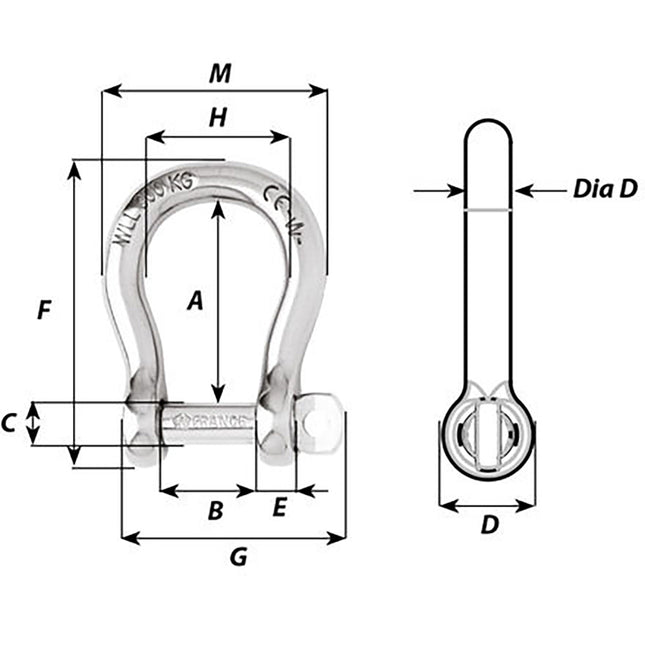

Not Self-Locking Bow Shackle - 20mm Diameter - 25/32"Features:  Bow shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking Part # 01248 is not self-locking   Applications: To be used when ample room is required Possibility to attach several lines or cables  Specifications:  Materials: 316 stainless steel grade Working load: (lb) 9920 / (kg) 4500  WLL: (lb) 6610 / (kg) 3000  Breaking load: (lb) 33060 / (kg) 15000  Weight: (lb) 2.328 / (kg) 1.056  Dimensions: A: (inch) 3 5/32" / (mm) 80  B: (inch) 1 37/64" / (mm) 40  C: (inch) 25/32" / (mm) 20  D: (inch) 1 37/64" / (mm) 40  D diameter: (inch) 25/32" / (mm) 20  E: (inch) 45/64" / (mm) 18  M: (inch) 3 15/16" / (mm) 100  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

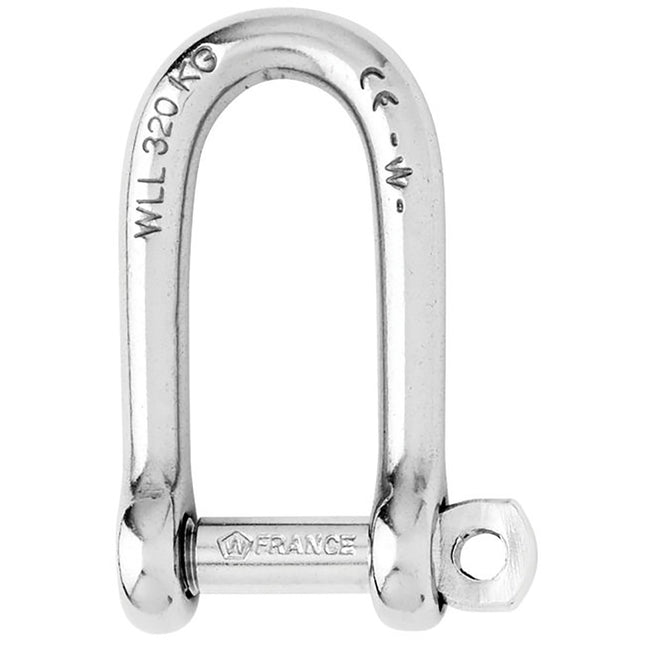

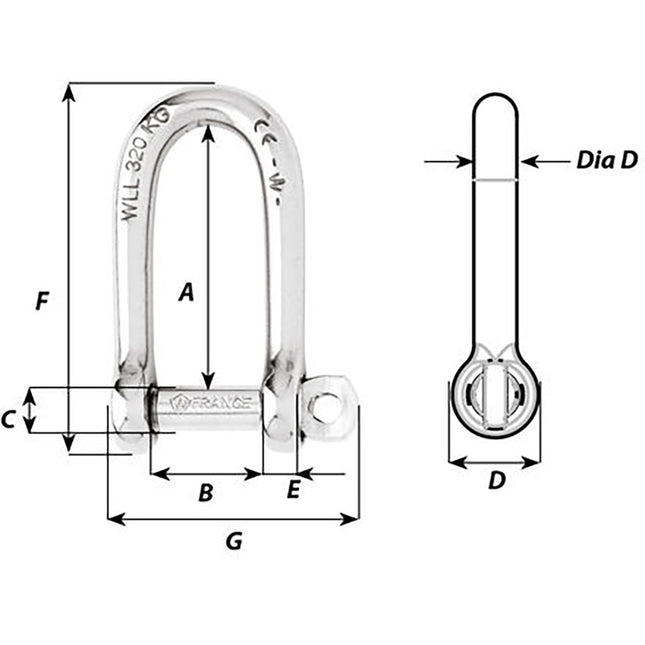

Self-Locking Long D Shackle - 10mm Diameter - 13/32"Features:  Self-locking D shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking Applications Standard applications of shackle requiring more length Attachment applications: blocks, head Specifications: Materials: 316 stainless steel grade Working load: (lb) 3350 / (kg) 1520  WLL: (lb) 1890 / (kg) 860  Breaking load: (lb) 9470 / (kg) 4300  Weight: (lb) 0.282 / (kg) 4300  Dimensions: A: (inch) 2 11/64" / (mm) 55  B: (inch) 25/32" / (mm) 20  C: (inch) 25/64" / (mm) 10  D: (inch) 3/4" / (mm) 19  D diameter: (inch) 25/64" / (mm) 10  E: (inch) 23/64" / (mm) 9  G: (inch) 3 7/64" / (mm) 79  H: (inch) 2 3/64" / (mm) 52  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

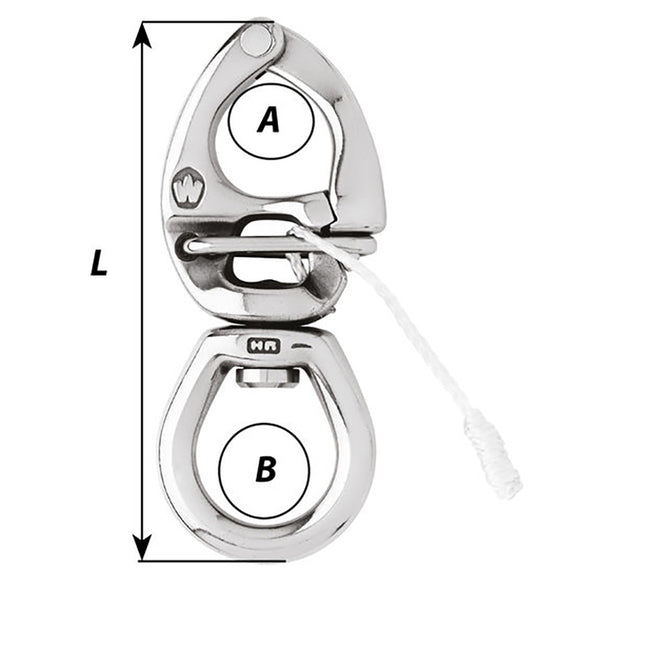

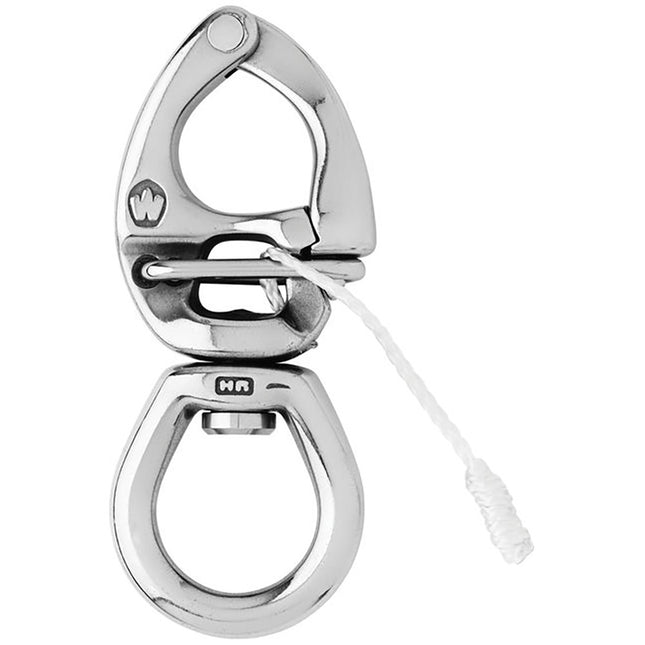

HR Quick Release Snap Shackle With Large Bail - 80mm Length - 3-5/32"Features: HR forged (17.4 PH) quick-release snap shackle with large bail The opening is made by pulling the lanyard Perfect to attach several lines (spinnaker sheets...) Outstanding working and breaking loads Free rotation of the snap shackle thanks to the swivel Applications: For spinnaker operations Perfect to attach several lines: spinnaker sheets... Specifications: Materials: HR 17.4 PH stainless steel grade Working load: (lb) 1940 / (kg) 880  Breaking load: (lb) 2860 / (kg) 1300  Weight: (lb) 0.119 / (g) 54  Dimensions: A: (inch) 35/64" / (mm) 14  B: (inch) 3/4" / (mm) 19  Length: (inch) 3 5/32" / (mm) 80  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)

Read more less

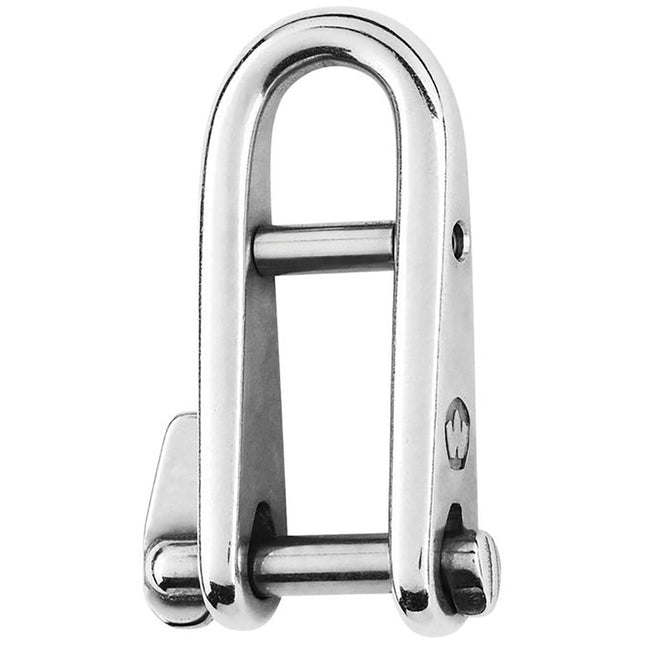

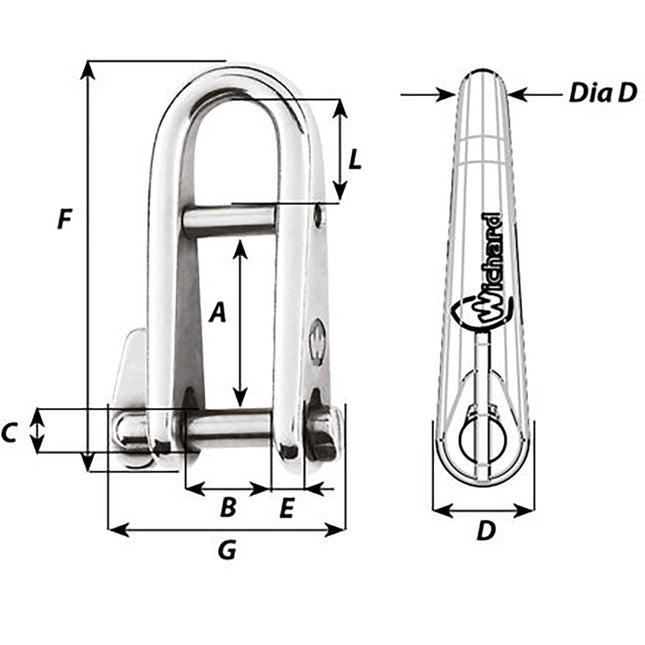

HR Key Pin Shackle With Bar - 5mm Pin DiameterFeatures:  Forged D shackle in HR stainless steel grade (17,4 PH) Outstanding working and breaking load An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel WLL: only for industrial applications (lifting i.e…) CE marking Applications: Applications requesting high loads Perfect product for halyards or applications requiring opening/closing the shackle often Do not use it for mooring applications Specifications:  Materials: HR 17.4 PH stainless steel grade Working load: (lb) 1050 / (kg) 480  Breaking load: (lb) 3300 / (kg) 1500  Weight: (lb) 0.068 / (g) 31  Dimensions: A: (inch) 1 29/64" / (mm) 37  B: (inch) 33/64" / (mm) 13  C: (inch) 13/64" / (mm) 5  D: (inch) 7/16" / (mm) 11  E: (inch) 5/32" / (mm) 4  F: (inch) 1 59/64" / (mm) 49  G: (inch) 1 7/32" / (mm) 31  L: (inch) 15/32" / (mm) 12  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)

Read more less

U-Bolt Pad Eye - 6mm Diameter - 15/64" - 90mm Length - 3-35/64"Features: Entirely drop forged product with high-quality stainless steel Outstanding working and breaking loads For any fastening applications (shrouds, lifelines, blocks...) Delivered with bolts and counter-plate Max tightening torque: 7.5 Nm Applications:Various fastening applications: shrouds, lifelines, blocks…Specifications: Materials: 316L stainless steel grade Working load: (lb) 2820 / (kg) 1280  Breaking load: (lb) 6610 / (kg) 3000  Weight: (lb) 0.148 / (g) 67  Dimensions: A: (inch) 1 17/64" / (mm) 32  B: (inch) 1 1/16" / (mm) 27  C: (inch) 2 11/64" / (mm) 55  D diameter: (inch) 15/64" / (mm) 6  Length: (inch) 3 35/64" / (mm) 90  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

HR Key Pin Shackle With Bar - 6mm Pin DiameterFeatures:  Forged D shackle in HR stainless steel grade (17,4 PH) Outstanding working and breaking load An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel WLL: only for industrial applications (lifting i.e…) CE marking Applications: Applications requesting high loads Perfect product for halyards or applications requiring opening/closing the shackle often Do not use it for mooring applications Specifications:  Materials: HR 17.4 PH stainless steel grade Working load: (lb) 1320 / (kg) 600  Breaking load: (lb) 4850 / (kg) 2200  Weight: (lb) 0.117 / (g) 53  Dimensions: A: (inch) 1 49/64" / (mm) 45  B: (inch) 5/8" / (mm) 16  C: (inch) 15/64" / (mm) 6  D: (inch) 33/64" / (mm) 13  E: (inch) 5/32" / (mm) 4  F: (inch) 2 23/64" / (mm) 60  G: (inch) 1 29/64" / (mm) 37  L: (inch) 19/32" / (mm) 15  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)
