URP-102 Point Pad™ for ACR Searchlights Control an ACR spotlight from any place on a vessel with fingertip control and accuracy  This controller can be surface or flush mounted.In the Box: Point Pad™ URP-102 remote  Flush and surface mount case Gaskets (surface and Flush) Mounting hardware Instruction manual  *Sold as an Individual WARNING: This product can expose you to chemicals including BISPHENOL A (BPA) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Parts Box Dimensions: 4"H x 7"W x 9"L WT: 1 lbs UPC: 791659192832

Read more less

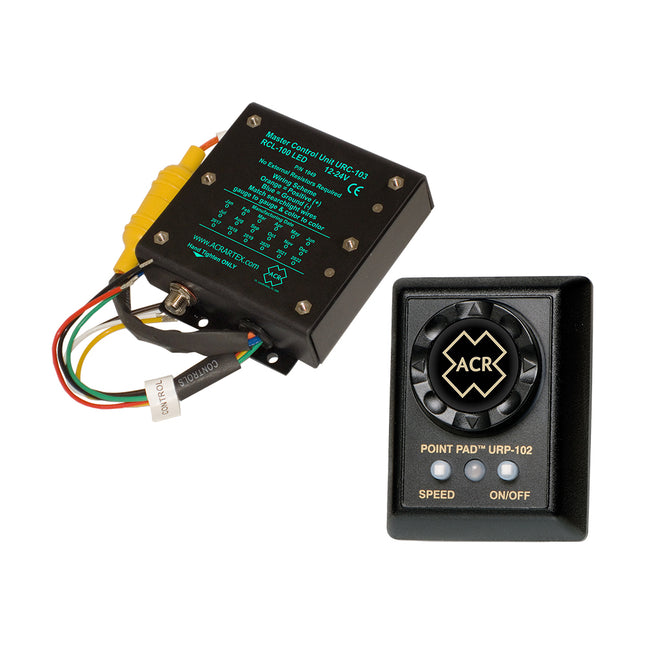

URP-102 Point Pad™ Kit for ACR Searchlights Control an ACR spotlight from any place on a vessel with fingertip control and accuracy  This controller can be surface or flush mounted.In the Box: Point Pad™ URP-102 remote  Flush and surface mount case Gaskets (surface and Flush) Splitter F-Connectors Coaxial cable - 15' *Sold as an IndividualWARNING: This product can expose you to chemicals including BISPHENOL A (BPA) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

V5/V6 Cat II Manual Release EPIRB BracketHarsh conditions don’t stand a chance against the Cat II Manual Release EPIRB Bracket. This EPIRB bracket is built to last, made to endure through even your wildest adventures. Should your vessel start to take on water, the manual release EPIRB bracket’s simplistic grab-and-go release mechanism, with a one-way mounting design, makes it easy to remove and activate. This bracket fits GlobalFix™ V5 and GlobalFix™ V6 EPIRBs only.Features: Simplistic, grab-and-go manual release mechanism One-way mounting eliminates the possibility of installing the EPIRB backward The integral deactivation magnet prevents the EPIRB from transmitting until removed Specifications: Size: 8.5 x 4 x 3.5″ Weight: 3 lbs Warranty Length: 1 year. This product is warranted against factory defect in material and workmanship for a period of 1 (one)* year from the date of purchase or receipt as a gift. During the warranty period, ACR Electronics, Inc. will repair or, at its option, replace at no cost to you for labor, materials, or return transportation. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

Wireless Dash Mount Remote for RCL85 & RCL95 SearchlightBlack Dash Mount Wireless Remote for RCL85 & RCL95 Searchlights. Enjoy the convenience of controlling your RCL85 or RCL95 searchlight with the Wireless Dash Mount Remote. The compact form factor and the sleek design of this remote ensure a visually appealing look when the remote is dash-mounted. It operates on the 433.92 MHz frequency and offers an impressive remote operation distance of 213' (65M).Features: Sleek design and compact form factor Impressive remote operation distance of 213' (65M) Allows for directional control and provides the ability to switch rotation/tilt speed between fast and slow The simple searchlight sync process Sync up to 4 remotes with one searchlight USCG Approved FCC CE Specifications: Dimensions: 3.98" L x 2.36" W x 0.71" H Housing Color: Black Mount Type: Dash Mount WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

Premium Replacement Distributor Cap f/Mercruiser Inboard Engines - GM-StyleThis distributor cap fits GM-Style (module in the cap) distributors - V8 Applications excluding MPI engines with ECM 555.Replaces: INDMAR Distributor Cap 556038 CRUSADER Distributor Cap 38070 MERCRUISER Distributor Cap 804418 MERCRUISER Distributor Cap 808483 MERCRUISER Distributor Cap 808483T MERCRUISER Distributor Cap 808483T3 SIERRA Distributor Cap 18-5354 CDI ELECTRONICS Distributor Cap E64-0014 *ARCO Assurance 12-month part and labor warranty protectionThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

0183 to N2K Gateway with PC Interface, ISO ConnectionIntelligent Gateway technology enables PC interfacing and NMEA data conversion…The NGX-1 is an intelligent multi-function gateway, combining the power of our two previous generation products (NGT-1 and NGW-1) into one, cost effective, flexible product.Configure the NGX-1 to operate as an NMEA 2000 <–> PC interface, or as a bi-directional NMEA 0183 <–> NMEA 2000 conversion gateway.Features: View all NMEA 2000 network data on Actisense NMEA Reader. The device supports every available PGN in the NMEA 2000 standard. View converted NMEA 0183 data on Actisense NMEA Reader. The device sports the largest conversion library of any gateway. Easily interface with a wide range of PC applications via the NGX-1, such as TimeZero (NMEA 2000) and OpenCPN (NMEA 0183). Configure the Actisense EMU-1, NGW-1 and NGX-1 via Actisense Toolkit using an NGX-1. Connect legacy NMEA 0183 instruments together with new NMEA 2000 networks, greatly reducing upgrade costs. Vital NMEA 2000 diagnostic tool OPTO-isolated input and ISO-Drive™ output for safely interfacing with RS232 or RS422 Up to 230,400 baud data transfer rate Advanced configuration using Actisense Toolkit allows Tx / Rx lists and Tx rates to be set Supports Fast Heading at 10Hz Multiple diagnostic LEDs Allows all major PC Chartplotter applications to interface with the NMEA 2000 bus Provides a rule-enforcing firewall between the PC and the NMEA 2000 bus Powerful diagnosis of the NMEA 2000 network using the FREE NMEA Reader software provided Configure and flash-update Actisense products on the bus Upgrade NMEA 0183 equipment to NMEA 2000 Allow NMEA 0183 devices to receive vital NMEA 2000 data Use the NMEA 2000 bus to multiplex several NMEA 0183 signals together Reliable, renowned bi-directional conversion engine Supports a wide range of conversions including AIS Easily configurable using Actisense Toolkit Technical SpecificationsPower Supply Supply Voltage (NMEA 2000 Port) - 9 to 30V DC Supply Current (NMEA 2000 Port) - 62mA @ 9V DC Load Equivalent Number (LEN) - 2 NMEA 2000 Port Speed / Baud Rate - 250kbps Connectivity - M12 Male (A coded) ISO Port Compatibility - Full NMEA 0183, RS232 & RS422 compatibility. RS485 Listener compatible Speed/Baud Rate - 4800 to 230400 Baud Output Voltage Drive - >= 2.1V (differential) into 100Ω Output Current Drive - 20mA max. Output Protection - Short circuit and ESD Input Voltage Tolerance - -15V to +15V continuous -35V to +35V short term (< 1 second) Input Protection - Current limited and overdrive protection to 40VDC Connectivity - 5mm stripped and tinned wire Cable Length - 0.75m Isolation NMEA 2000 Port to ISO Port - Uses IsoDriveTM, Hi-Pot tested to 1000V NMEA 2000 Port to USB Port - Galvanic Isolation, Hi-Pot tested to 1000V Mechanical Housing Material Body - Flame retardant Polycarbonate Housing Material End Caps - Flame retardant PBT Weight - 113g Approvals and Certifications NMEA 2000 - NMEA 2000 Certified NMEA 0183 - Meets IEC 61162-1 & 61162-2 Requirements RoHS and REACH - Compliant Module Certification - KCC / BQB / IC / Wi-Fi / NCC / MIC / FCC DSS / FCC DTS / SRRC / CE, EN 60945:2002 Edition 4 (section 9.3), EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4 EMC - EN 300 328 V2.2.2 Radiated Spurious Emissions, FCC Part 15b, ICES-003 Iss 7 Environmental Protection    IP67 Operating Temperature    -25°C to +70°C Storage Temperature    -30°C to +70°C Recommended Humidity    0 to 93% RH @ 40°C Guarantee    3 years, extended to 5 years upon registration This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): 2.4' Data Interface: NMEA 0183 Box Dimensions: 2"H x 6"W x 6"L WT: 0.35 lbs UPC: 5060998710553 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

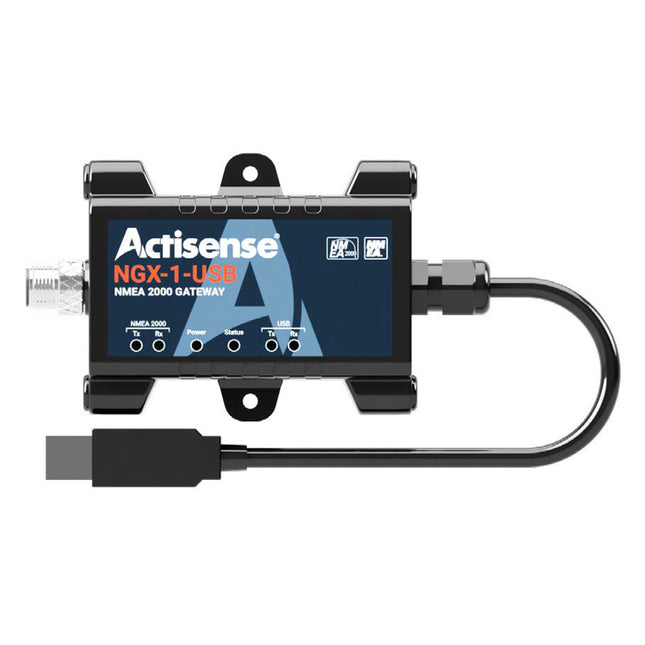

0183 to N2K Gateway with PC Interface, USB ConnectionIntelligent Gateway technology enables PC interfacing and NMEA data conversion…The NGX-1 is an intelligent multi-function gateway, combining the power of our two previous generation products (NGT-1 and NGW-1) into one, cost effective, flexible product.Configure the NGX-1 to operate as an NMEA 2000 <–> PC interface, or as a bi-directional NMEA 0183 <–> NMEA 2000 conversion gateway.Features: View all NMEA 2000 network data on Actisense NMEA Reader. The device supports every available PGN in the NMEA 2000 standard. View converted NMEA 0183 data on Actisense NMEA Reader. The device sports the largest conversion library of any gateway. Easily interface with a wide range of PC applications via the NGX-1, such as TimeZero (NMEA 2000) and OpenCPN (NMEA 0183). Configure the Actisense EMU-1, NGW-1 and NGX-1 via Actisense Toolkit using an NGX-1. Connect legacy NMEA 0183 instruments together with new NMEA 2000 networks, greatly reducing upgrade costs. Vital NMEA 2000 diagnostic tool Fully isolated to prevent dangerous ground loops Up to 230,400 baud data transfer rate Advanced configuration using Actisense Toolkit allows Tx / Rx lists and Tx rates to be set Supports Fast Heading at 10Hz Multiple diagnostic LEDs Allows all major PC Chartplotter applications to interface with the NMEA 2000 bus Provides a rule-enforcing firewall between the PC and the NMEA 2000 bus Powerful diagnosis of the NMEA 2000 network using the FREE NMEA Reader software provided Configure and flash-update Actisense products on the bus Upgrade NMEA 0183 equipment to NMEA 2000 Allow NMEA 0183 devices to receive vital NMEA 2000 data Use the NMEA 2000 bus to multiplex several NMEA 0183 signals together Reliable, renowned bi-directional conversion engine Supports a wide range of conversions including AIS Easily configurable using Actisense Toolkit Technical SpecificationsPower Supply Supply Voltage (NMEA 2000 Port) - 9 to 30V DC Supply Current (NMEA 2000 Port) - 62mA @ 9V DC Load Equivalent Number (LEN) - 2 NMEA 2000 Port Speed / Baud Rate - 250kbps Connectivity - M12 Male (A coded) USB Port Compatibility - USB 1.1, 2.0 and 3.0 Speed / Baud Rate - 4800 to 230400 Baud Connectivity - Male type A plug moulded onto cable Cable Length - 1.8m Isolation NMEA 2000 Port to ISO Port - Uses IsoDriveTM, Hi-Pot tested to 1000V NMEA 2000 Port to USB Port - Galvanic Isolation, Hi-Pot tested to 1000V Mechanical Housing Material Body - Flame retardant Polycarbonate Housing Material End Caps - Flame retardant PBT Weight - 113g Approvals and Certifications NMEA 2000 - NMEA 2000 Certified NMEA 0183 - Meets IEC 61162-1 & 61162-2 Requirements RoHS and REACH - Compliant Module Certification - KCC / BQB / IC / Wi-Fi / NCC / MIC / FCC DSS / FCC DTS / SRRC / CE, EN 60945:2002 Edition 4 (section 9.3), EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4 EMC - EN 300 328 V2.2.2 Radiated Spurious Emissions, FCC Part 15b, ICES-003 Iss 7 Environmental Protection    IP67 Operating Temperature    -25°C to +70°C Storage Temperature    -30°C to +70°C Recommended Humidity    0 to 93% RH @ 40°C Guarantee    3 years, extended to 5 years upon registration This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): 5.9' Data Interface: NMEA 0183 Box Dimensions: 2"H x 6"W x 6"L WT: 0.5 lbs UPC: 5060998710560 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

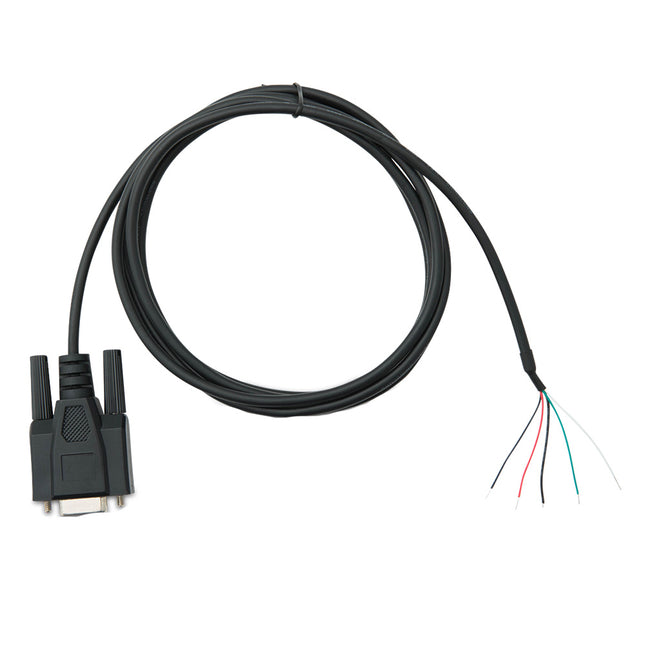

9-Pin, D-Type Molded Cable Assembly - Female9-pin, D-type molded cable assembly.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

A2K-TDC-0M25 NMEA2000 Micro Cable Assembly - 0.25MAvailable in various lengths, the cable assemblies can be used as either a drop cable from a NMEA 2000 backbone or to extend the length of the backbone cable.Actisense Lite cable assemblies allow quick installation and come with quality reassurance as only the Actisense UL-certified cable is used.NMEA 2000 cable includes five wires within a single waterproof cable: power and ground wires, two signal (data) wires, and a drain wire. The drain wire connects to the cable shield, which protects the signal, power, and ground wires from external Radio Frequency Interference (RFI) and helps reduce RFI emission from the cable.NMEA 2000 Lite cable can be used to create a backbone up to 100 meters in length. If the backbone length required exceeds 100 meters, the center of the bus can be extended with an NMEA 2000 mini cable to keep the outer Lite sections to the 100-meter maximum.The maximum length of a drop cable (distance from the backbone) is 6 meters. It is important to limit each drop length to the minimum required, as the total of all drop lengths must not exceed 72 meters.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.Technical Specifications: Rated Current - 3A Rated Voltage - 60VDC Male Contact - Brass, gold plated Female Contact - Phosphor bronze, gold plated Contact Carrier - PBT, black Contact Polarization - Standard M12 -“A”- polarization Mating Thread - M12 Screw Cap - Brass, nickel plated O-Ring Seal - Rubber, black Housing - PVC, black Power Pair - 22 AWG (19-strand tinned copper) Data Pair - 24 AWG (19-strand tinned copper) Drain - 22 AWG (19-strand tinned copper) Braid - 37 AWG (tinned copper) Jacket Material - 0.8mm Nom. PVC, black Jacket Outer Diameter - 6.85mm ±0.254mm Weight -  51g Protection - IP67 (when mated) Operating Temperature - -20°C to +70°C Storage Temperature - -40°C to +85°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): 1' Connection Gender: Male-Female Data Interface: NMEA 2000 Box Dimensions: 1"H x 5"W x 9"L WT: 0.1 lbs UPC: 5060998710195 Owner's Manual (pdf)Brochure (pdf)

Read more less

A2K-TDC-0M5 NMEA2000 Micro Cable Assembly - 0.5MAvailable in various lengths, the cable assemblies can be used as either a drop cable from a NMEA 2000 backbone or to extend the length of the backbone cable.Actisense Lite cable assemblies allow quick installation and come with quality reassurance as only the Actisense UL-certified cable is used.NMEA 2000 cable includes five wires within a single waterproof cable: power and ground wires, two signal (data) wires, and a drain wire. The drain wire connects to the cable shield, which protects the signal, power, and ground wires from external Radio Frequency Interference (RFI) and helps reduce RFI emission from the cable.NMEA 2000 Lite cable can be used to create a backbone up to 100 meters in length. If the backbone length required exceeds 100 meters, the center of the bus can be extended with an NMEA 2000 mini cable to keep the outer Lite sections to the 100-meter maximum.The maximum length of a drop cable (distance from the backbone) is 6 meters. It is important to limit each drop length to the minimum required, as the total of all drop lengths must not exceed 72 meters.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.Technical Specifications: Rated Current - 3A Rated Voltage - 60VDC Male Contact - Brass, gold-plated Female Contact - Phosphor bronze, gold plated Contact Carrier - PBT, black Contact Polarization - Standard M12 -“A”- polarization Mating Thread - M12 Screw Cap - Brass, nickel plated O-Ring Seal - Rubber, black Housing - PVC, black Power Pair - 22 AWG (19-strand tinned copper) Data Pair - 24 AWG (19-strand tinned copper) Drain - 22 AWG (19-strand tinned copper) Braid - 37 AWG (tinned copper) Jacket Material - 0.8mm Nom. PVC, black Jacket Outer Diameter - 6.85mm ±0.254mm Weight -  67g Protection - IP67 (when mated) Operating Temperature - -20°C to +70°C Storage Temperature - -40°C to +85°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): 1.6' Connection Gender: Male-Female Data Interface: NMEA 2000 Box Dimensions: 1"H x 4"W x 5"L WT: 0.2 lbs UPC: 5060998710201 Owner's Manual (pdf)Brochure (pdf)

Read more less

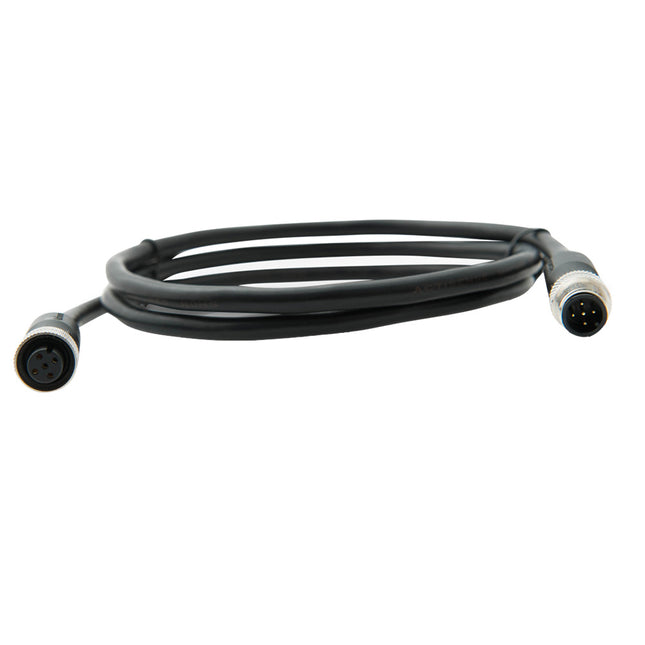

A2K-TDC-10M NMEA2000 Micro Cable Assembly - 10MAvailable in various lengths, the cable assemblies can be used as either drop cable from a NMEA 2000 backbone or to extend the length of the backbone cable.Actisense Lite cable assemblies allow quick installation and come with quality reassurance as only the Actisense UL-certified cable is used.NMEA 2000 cable includes five wires within a single waterproof cable: power and ground wires, two signal (data) wires, and a drain wire. The drain wire connects to the cable shield, which protects the signal, power, and ground wires from external Radio Frequency Interference (RFI) and helps reduce RFI emission from the cable.NMEA 2000 Lite cable can be used to create a backbone up to 100 meters in length. If the backbone length required exceeds 100 meters, the center of the bus can be extended with an NMEA 2000 mini cable to keep the outer Lite sections to the 100-meter maximum.The maximum length of a drop cable (distance from the backbone) is 6 meters. It is important to limit each drop length to the minimum required, as the total of all drop lengths must not exceed 72 meters.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.Technical Specifications: Rated Current - 3A Rated Voltage - 60VDC Male Contact - Brass, gold-plated Female Contact - Phosphor bronze, gold plated Contact Carrier - PBT, black Contact Polarization - Standard M12 -“A”- polarization Mating Thread - M12 Screw Cap - Brass, nickel plated O-Ring Seal - Rubber, black Housing - PVC, black Power Pair - 22 AWG (19-strand tinned copper) Data Pair - 24 AWG (19-strand tinned copper) Drain - 22 AWG (19-strand tinned copper) Braid - 37 AWG (tinned copper) Jacket Material - 0.8mm Nom. PVC, black Jacket Outer Diameter - 6.85mm ±0.254mm Weight -  688g Protection - IP67 (when mated) Operating Temperature - -20°C to +70°C Storage Temperature - -40°C to +85°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): 32.8' Connection Gender: Male-Female Data Interface: NMEA 2000 Box Dimensions: 2"H x 6"W x 6"L WT: 1.5 lbs UPC: 5060998710218 Owner's Manual (pdf)Brochure (pdf)

Read more less
