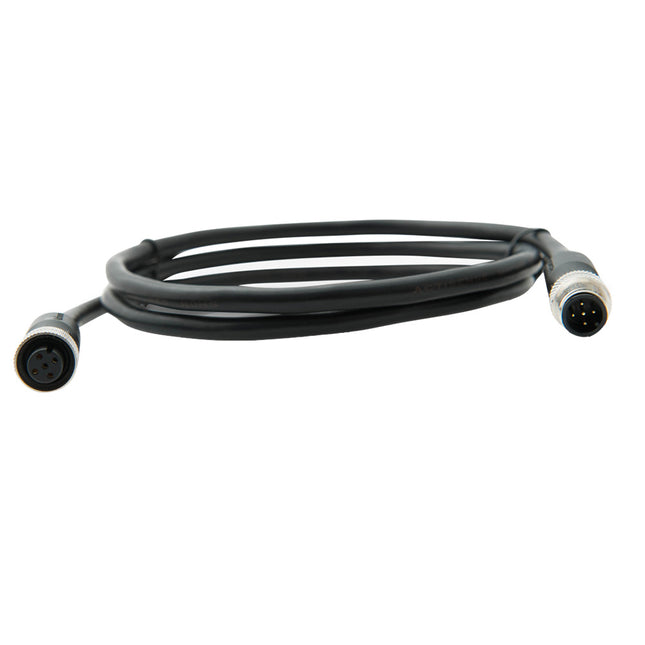

A2K-TDC-5M NMEA2000 Micro Cable Assembly - 5MAvailable in various lengths, the cable assemblies can be used as either a drop cable from a NMEA 2000 backbone or to extend the length of the backbone cable.Actisense Lite cable assemblies allow quick installation and come with quality reassurance as only the Actisense UL-certified cable is used.NMEA 2000 cable includes five wires within a single waterproof cable: power and ground wires, two signal (data) wires, and a drain wire. The drain wire connects to the cable shield, which protects the signal, power, and ground wires from external Radio Frequency Interference (RFI) and helps reduce RFI emission from the cable.NMEA 2000 Lite cable can be used to create a backbone up to 100 meters in length. If the backbone length required exceeds 100 meters, the center of the bus can be extended with an NMEA 2000 mini cable to keep the outer Lite sections to the 100-meter maximum.The maximum length of a drop cable (distance from the backbone) is 6 meters. It is important to limit each drop length to the minimum required, as the total of all drop lengths must not exceed 72 meters.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.Technical Specifications: Rated Current - 3A Rated Voltage - 60VDC Male Contact - Brass, gold plated Female Contact - Phosphor bronze, gold plated Contact Carrier - PBT, black Contact Polarization - Standard M12 -“A”- polarization Mating Thread - M12 Screw Cap - Brass, nickel plated O-Ring Seal - Rubber, black Housing - PVC, black Power Pair - 22 AWG (19-strand tinned copper) Data Pair - 24 AWG (19-strand tinned copper) Drain - 22 AWG (19-strand tinned copper) Braid - 37 AWG (tinned copper) Jacket Material - 0.8mm Nom. PVC, black Jacket Outer Diameter - 6.85mm ±0.254mm Weight -  370g Protection - IP67 (when mated) Operating Temperature - -20°C to +70°C Storage Temperature - -40°C to +85°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 5m NMEA 2000 Connectors: Backbone/Drop Cables Box Dimensions: 1"H x 6"W x 7"L WT: 0.8 lbs UPC: 5060998710263 Owner's Manual (pdf)Brochure (pdf)

Read more less

A2K-TDC-6M NMEA2000 Micro Cable Assembly - 6MAvailable in various lengths, the cable assemblies can be used as either drop cable from a NMEA 2000 backbone or to extend the length of the backbone cable.Actisense Lite cable assemblies allow quick installation and come with quality reassurance as only the Actisense UL-certified cable is used.NMEA 2000 cable includes five wires within a single waterproof cable: power and ground wires, two signal (data) wires, and a drain wire. The drain wire connects to the cable shield, which protects the signal, power, and ground wires from external Radio Frequency Interference (RFI) and helps reduce RFI emission from the cable.NMEA 2000 Lite cable can be used to create a backbone up to 100 meters in length. If the backbone length required exceeds 100 meters, the center of the bus can be extended with an NMEA 2000 mini cable to keep the outer Lite sections to the 100-meter maximum.The maximum length of a drop cable (distance from the backbone) is 6 meters. It is important to limit each drop length to the minimum required, as the total of all drop lengths must not exceed 72 meters.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.Technical Specifications: Rated Current - 3A Rated Voltage - 60VDC Male Contact - Brass, gold-plated Female Contact - Phosphor bronze, gold plated Contact Carrier - PBT, black Contact Polarization - Standard M12 -“A”- polarization Mating Thread - M12 Screw Cap - Brass, nickel plated O-Ring Seal - Rubber, black Housing - PVC, black Power Pair - 22 AWG (19-strand tinned copper) Data Pair - 24 AWG (19-strand tinned copper) Drain - 22 AWG (19-strand tinned copper) Braid - 37 AWG (tinned copper) Jacket Material - 0.8mm Nom. PVC, black Jacket Outer Diameter - 6.85mm ±0.254mm Weight -  430g Protection - IP67 (when mated) Operating Temperature - -20°C to +70°C Storage Temperature - -40°C to +85°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 6m NMEA 2000 Connectors: Backbone/Drop Cables Box Dimensions: 2"H x 6"W x 6"L WT: 0.9 lbs UPC: 5060998710270 Owner's Manual (pdf)Brochure (pdf)

Read more less

N2K Micro 4 Way T-PieceThe 4 Way T-Piece from Actisense saves you time, space and money on your NMEA 2000® installation.The Actisense 4 Way T-Piece is for use where multiple drops or ‘ports’ are required from the NMEA 2000 backbone. It’s as quick and easy to install as a single T-Piece, uses less space than two individual T-pieces and costs less than four.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.Features: NMEA 2000 Approved RoHS Compliant Technical Specifications:Electrical Rated Current - 4A Rated Voltage - 60V DC Mechanical Male Contact - Brass, gold plated Female Contact - Phosphor bronze, gold plated Contact Carrier - PA66 (30% Glass filled), black Contact Polarization - Standard M12 -“A”- polarization Mating Thread - M12 Screw Cap - Brass, nickel plated O-Ring Seal - Rubber, Black Housing - TPU, flame retardant to UL94V-0, Halogen Free Internal Housing Shield - Copper Foil Weight - 105g Approvals and Certifications Protection - IP67 (when mated) Operating Temperature - -20°C to +70°C Storage Temperature - -40°C to +85°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Data Interface: NMEA 2000 NMEA 2000 Connectors: Tee Connectors Box Dimensions: 2"H x 3"W x 5"L WT: 0.25 lbs UPC: 5060998710010 Brochure (pdf)

Read more less

N2K Micro Gender Changer - Female to Female - .25MUse between two cable connectors of the same type and gender of connector on an NMEA 2000® backbone.Manufactured using Actisense designed connectors with 0.25m UL certified cable, the gender changers offer easy and secure connections.The gender changers are available in male and female versions.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Connection Gender: Female-Female Data Interface: NMEA 2000 Cable Length (Meters): 0.25m Box Dimensions: 1"H x 6"W x 6"L WT: 0.1 lbs UPC: 5060998710072

Read more less

N2K Micro Gender Changer - Male to Male - .25MUse between two cable connectors of the same type and gender of connector on an NMEA 2000® backbone.Manufactured using Actisense designed connectors with 0.25m UL certified cable, the gender changers offer easy and secure connections.The gender changers are available in male and female versions.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Connection Gender: Male-Male Data Interface: NMEA 2000 Cable Length (Meters): 0.25m Box Dimensions: 1"H x 5"W x 6"L WT: 0.1 lbs UPC: 5060998710089

Read more less

NMEA 0183 PC OPTO-Isolator Cable, RS232 DB9 Female, Shielded (Isolated to PC)Add isolation to an RS232 port to protect against ground loops. The OPTO-4 provides a safe and low cost way of connecting an RS422 (NMEA 0183) system to an RS232 (PC COM port) system, or any other device with a standard RS232 9-pin port.The OPTO-4 provides comprehensive galvanic OPTO-isolation to protect the PC input/receiver, plus important spike suppression to improve the PC output/transmitter protection. Initially designed for systems wishing to receive NMEA 0183 data without the risk of ground loop damage, the flexible OPTO-4 can be used to interface any RS422 and standard RS232 connection, whilst powering itself from the RS232 port, making installation simple and very quick.The Actisense opto isolator design integrates an over-molded case for excellent water resistance and a small footprint for installation into tight spaces.Features: One RS422 OPTO-isolated input One RS422 (NMEA 0183) output Up to 115200 baud Port powered Shielded cable and case Protects PC input/receiver from damage Water resistant cable. Ruggedized over-molded case suitable for harsh environment Quick and easy to install Technical Specifications:Electrical NMEA Listener / Input Isolation - 2kV Opto-Isolation between Red / Black NMEA Input Pair and all other Connections NMEA Listener / Input Voltage - +/-15V Continuous Maximum, +/-35V Max < 1 Second NMEA Listener / Input Signal Thresholds - Logic ‘0’ +2V to +15V, Logic ‘1’-15V to 0V NMEA Talker / Output Voltage & Current - Dependent on Host RS232 Interface. Typically +/-5V to +/-15V @ 10mA Max RS232 Voltage on Host - +/-7V to +/-15V RS232 Port Total Current Consumption - 2mA to 5mA depending on RS232 Voltage Speed / Baud Rate - 4800 to 115200 Baud Mechanical Housing Material - PVC Black Thumb Screw Material - PVC Orange Screw - Steel, Nickel Plated, M2.8 Thread DB9 Connector - 9 Pin Female Cable Length - 1.5m Cable Wire - 22AWG (17/34AWG) Tinned Stranded Copper Cable Jacket - PVC Shield - Internal Copper Foil Shield Cable Outer Diameter - 5.5mm Approvals and Certifications Operating Temperature - -20°C to +70°C Electrical Specification - Meets IEC 61162-2 Weight - 100g Guarantee - 3 Years UL Certification - Cable E137250 This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Connection Gender: Female Data Interface: NMEA 0183 Cable Length (Meters): 1.5m Box Dimensions: 2"H x 4"W x 5"L WT: 0.25 lbs UPC: 5060998710430 Quick Guide (pdf)Brochure (pdf)

Read more less

NMEA 0183 to NMEA2000 Gateway with WiFi and PC Interface - ISO ConnectionThe WGX-1 is an intelligent NMEA 0183 and NMEA 2000 WiFi Gateway with bi-directional conversion capability.Transfer data from an NMEA 2000 backbone to any device (e.g, laptop, tablet, or smartphone) connected to the WGX-1 via Wi-Fi and additionally convert data bi-directionally between NMEA 0183 and NMEA 2000 using Actisense’s renowned conversion engine. The WGX also acts as a wired gateway, allowing for the transfer or conversion of data between existing NMEA 0183/NMEA2000 instruments.The WGX-1 has built-in conversion of NMEA 2000 messages into NMEA 0183 sentences and vice versa. Allowing a wide variety of vessel data (e.g., position, speed, course, wind speed, depth, engine data, AIS messages, etc.) to be shared with connected devices and applications, both wired and wireless.Stream NMEA 0183 and NMEA 2000 data over Wi-Fi with ease, making it simple to integrate with your favorite boating apps.Data can be logged to an internal micro SD card (not supplied) for post voyage analysis. This is very useful for analyzing race data, generating logbooks, diagnosing problems, or even sharing your voyage details.Actisense-i comes included as standard. Benefit from our full suite of diagnostic tools to help check and diagnose potential issues on a boat’s electronics network, including voltage issues, and the working status of all devices attached to the network. Actisense-i has been designed to save installers and boaters time and ultimately, money, by giving them confidence in their electronics onboard.The WGX-1 has the legendary Actisense “Reliability Built-In” along with useful diagnostic LEDs, internal antenna, enhanced password security, full certification, and all packaged in an extremely rugged IP67 case.Features: OPTO-isolated input and ISO-Drive output for safely interfacing with NMEA 0183 or RS232 / RS422. Up to 230,400 baud rate data transfer rate. Integrated 0.75m ISO cable. Advanced configuration using the Actisense Toolkit allows Tx and Rx lists and Tx rates to be set. Supports fast-heading at 10Hz. Actisense-i network health checker provides valuable feedback on the status of the NMEA 2000 network. Supports both TCP and UDP data streaming over Wi-Fi. Wide range of support for various mobile apps. Remote Firmware upgradability ensures the device is future-proof. IP67 rugged case Vital NMEA 2000 diagnostic tool Diagnostic LEDs on both input and output Technical Specifications:Power Supply Supply Voltage (NMEA 2000 Port) - 9 to 30V DC Supply Current (NMEA 2000 Port) - 78mA @ 9V DC, Max 220mA Load Equivalent Number (LEN) - 2 NMEA 2000 Port Speed / Baud Rate - 250kbps Connectivity - M12 Male (A coded) ISO Port Compatibility - Full NMEA 0183, RS232 & RS422 compatible. RS-485 Listener compatible Speed/Baud Rate - 4800 to 230400 Baud Output Voltage Drive - >= 2.1V (differential) into 100Ω Output Current Drive - 20mA max. Output Protection - Short circuit and ESD Input Voltage Tolerance - -15V to +15V continuous -35V to +35V short term (< 1 second) Input Protection - Current limited and overdrive protection to 40VDC Connectivity - 5mm stripped and tinned wire Cable Length - 0.75m IsolationNMEA 2000 Port to ISO Port - Uses IsoDriveTM, Hi-Pot tested to 1000VWi-Fi Radio Compatibility - IEEE 802.11 b/g/n Speed - 802.11n up to 150Mbps Frequency Band - Wi-Fi: 2412 -2484MHz, Wi-Fi: 19.14dBm (802.11b) Max Output power - 19.22dBm (802.11g), 19.12dBm (802.11n) Antenna - Integrated internal antenna, 3.4dBi Range (Open space) - approx. 30 meters Security - WPA_PSK,  WPA2_PSK,  WPA_WPA2_PSK Configuration IP support - Supports TCP & UDP broadcast Data protocols - NMEA 0183 & Five proprietary Security - Unique SSID and unique default Password per device. (Password is user configurable) Mechanical Housing Material Body - Flame-retardant Polycarbonate Housing Material End Caps - Flame-retardant PBT Weight - 112g Approvals and Certifications Environmental Protection - IP67 Operating Temperature - -25°C to +70°C Storage Temperature - -30°C to +70°C Recommended Humidity - 0 to 93% RH @ 40°C Guarantee - 5 years upon registration This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Data Interface: NMEA 0183 Box Dimensions: 2"H x 4"W x 8"L WT: 0.5 lbs UPC: 5060998710768 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

NMEA 2000 Engine Monitoring Unit - Analog to NMEA2000 Engine GatewayShare engine information on the NMEA 2000 bus.The Actisense EMU-1 is a specialized analogue to NMEA 2000 Gateway which converts data from analogue engine gauges/senders into NMEA 2000 data. The EMU-1 enables the sharing of engine data throughout the NMEA 2000 bus. It digitizes analogue engine sensors, enabling NMEA 2000 display devices to monitor the connected engine(s) on a vessel.The EMU-1 can monitor vital engine parameters such as temperature, pressure RPM and fluid levels from up to two engines.The EMU-1 has a PC-based configuration tool that allows the settings inside the EMU-1 to be changed to best suit the engine it is working with, making it a flexible solution for many engine makes and models.An Actisense PC to NMEA 2000 Gateway (NGX-1/NGT-1) is required to configure the EMU-1.The NGX-1 or NGT-1 must be used to update the firmware, connect the Toolkit and display data on a PC for diagnostic and information purposes, using NMEA Reader. Please visit the NGX-1 page and/or NGT-1 page for product details.Features: Enables analogue signals to be converted to NMEA 2000 messages Convert signals from up to two engines (that share a common ground) with a single EMU-1 6 gauge / parameter inputs 4 alarm inputs 2 additional auxiliary inputs 2 Tacho inputs Customized IP65 case Diagnostic LED’s Wide power compatibility of 9 to 35VDC No need to change an existing engine Easy installation Easy to configure to suit the connected engine Connect signals from fluid level gauges (that share a common ground with the engine) to NMEA 2000® Optional DIN rail mounting kit available Total engine hours are logged by the monitoring of engine Tach (RPM) input Technical Specifications:Power Supply Supply Voltage - 9 to 35VDC Supply Current - Typically < 25mA @ 12VDC Supply Protection - Continuous reverse polarity protection and load dump protection (meets SAE J1113) Supply Connector - Pluggable 2-way screw terminal, 3.5mm pitch Supply Voltage (NMEA 2000 Port) - 9 to 29VDC Supply Current (NMEA 2000 Port) - < 20mA @ 12VDC from NMEA 2000 bus Load Equivalent Number (LEN) - 1 Supply Protection (NMEA 2000 Port) - Continuous reverse polarity protection and overvoltage protection to 40V NMEA 2000 Port – In/Out Compatibility - Fully NMEA 2000 certified Galvanic Isolation - 2500V input to ground, 1500V output to ground using ISO-Drive Speed / Baud Rate - 250kbps NMEA 2000 Connector - M12 male (A coded) connector Gauge Inputs Voltage Range - 0 to 35VDC Input Impedance - > 50kΩ Sender Feed - 0, 4 or 18mA Accuracy - <= 2% Input Connector - Pluggable 6-way screw terminal, 3.5mm pitch Input Protection - Overvoltage protection to ±40V Alarm Inputs Voltage Range - 0 to 37VDC Input Impedance - > 50kΩ Threshold Voltage - Configurable, default is 5V Alarm Polarity - Configurable, default is alarm on low input Accuracy - <= 2% Input Connector - Pluggable 4-way screw terminal, 3.5mm pitch Input Protection - Overvoltage protection to ±40V Tacho Inputs Voltage Range - ±3 to ±60V Input Impedance - > 100kΩ to ground Input Pulse Range - 4 to 50,000Hz Accuracy - <= 1% Sender Compatibility - Ignition coil, alternator (“W”, “R” or “AC”) terminal, hall effect, VR or inductive sender Threshold - Automatically adjusts to signal level Input Connector - Pluggable 4-way screw terminal, 3.5mm pitch Input Protection - Can withstand an ignition pulse to ±500V Engine LogEngine Hours - 2 separate engine hour logs internally connected to the tacho Inputs. Hours are logged when RPM is present, stored in non-volatile memoryMechanical Housing Material - Polycarbonate Protective Lid Material - Polycarbonate Sealing Materials - Expanded silicone foam gasket, closed cell polyurethane splash guard and ePTFE waterproof vent Dimensions - 127mm (L) x 112mm (W) x 48mm (H) Weight - 250g Mounting - 4 x 3.5mm lugs to allow panel mount with self tapping s/s screws (included), optional DIN Rail mount available on request Approvals and Certifications EMC - EN 60945 (sections 9 & 10) Environmental Protection - IP66 (PCB housing) Operating Temperature - -20°C to +55°C Storage Temperature - -30°C to +70°C Recommended Humidity - 0 – 93% RH Guarantee - 3 years This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Data Interface: NMEA 2000 Box Dimensions: 3"H x 6"W x 9"L WT: 1 lbs UPC: 5060998710331 Owner's Manual (pdf)Brochure (pdf)

Read more less

NMEA2000 Micro 4-Way DropReduce your NMEA 2000 cabling requirements, saving time, space and money.The Actisense 4-way drop makes it easier to reach up to four devices with a single cable.Typically, when four devices need to be connected to an NMEA 2000 backbone, a T-piece and individual cable is required for each one. This can either mean excessive cabling demands or moving the backbone closer to your devices.The 4-way drop makes it possible to shorten the length of each cable needed before reaching a T-piece.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Data Interface: NMEA 2000 NMEA 2000 Connectors: Tee Connectors Box Dimensions: 1"H x 7"W x 7"L WT: 0.55 lbs UPC: 5060998710003
