Sailing - Shackles/Rings/Pins

Self-Locking Large Shackle - Diameter 5mm - 3/16"Features:  Self-locking large shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking and batch number Applications:For applications where a large opening shackle is requiredSpecifications: Materials 316 stainless steel grade Working load (lb) 550 WLL (lb) 480 Breaking load (lb) 2420 Weight (lb) 0.035 Dimensions (see 2nd image): A (inch) 1-27/64" B (inch) 25/32" C (inch) 13/64" D (inch) 7/16" D diameter (inch) 13/64" E (inch) 13/64" F (inch) 1-57/64" G (inch) 1-3/8"

Read more less

Self-Locking Allen Head Pin Bow Shackle - 8mm Diameter - 5/16"Features: Self-locking twisted shackle with allen head pin forged in grade 316L stainless steel The pin is locked into one of the indentations The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking Applications: Ideal for linking chains and anchor On the halyard, avoids damaging the sails To be used when the clutter is reduced To be used when ample room is required Specifications: Materials: 316 stainless steel grade Working load: (lb) 2110 / (kg) 960  WLL: (lb) 1190 / (kg) 540  Breaking load: (lb) 5950 / (kg) 2700  Weight: (lb) 0.148 / (g) 67  Dimensions: A: (inch) 1 29/64" / (mm) 37  B: (inch) 5/8" / (mm) 16  C: (inch) 5/16" / (mm) 8  D: (inch) 5/8" / (mm) 16  D diameter: (inch) 5/16" / (mm) 8  E: (inch) 9/32" / (mm) 7  F: (inch) 63/64" / (mm) 25  M: (inch) 1 37/64" / (mm) 40  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

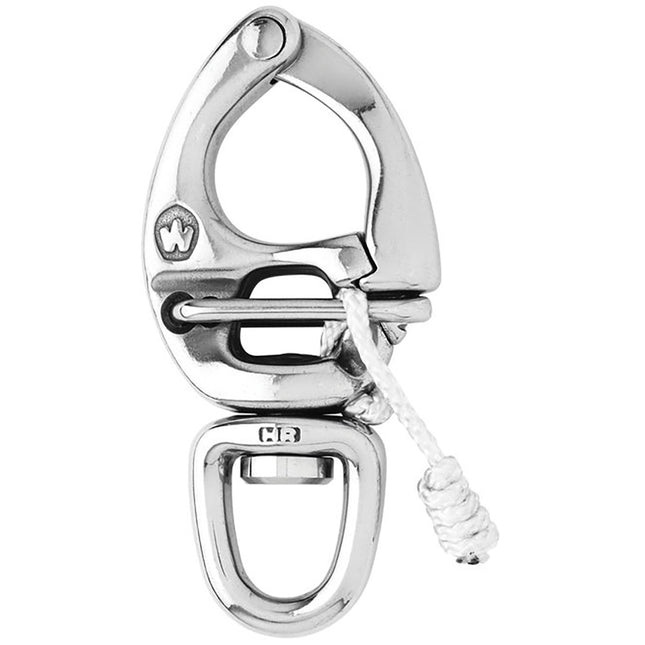

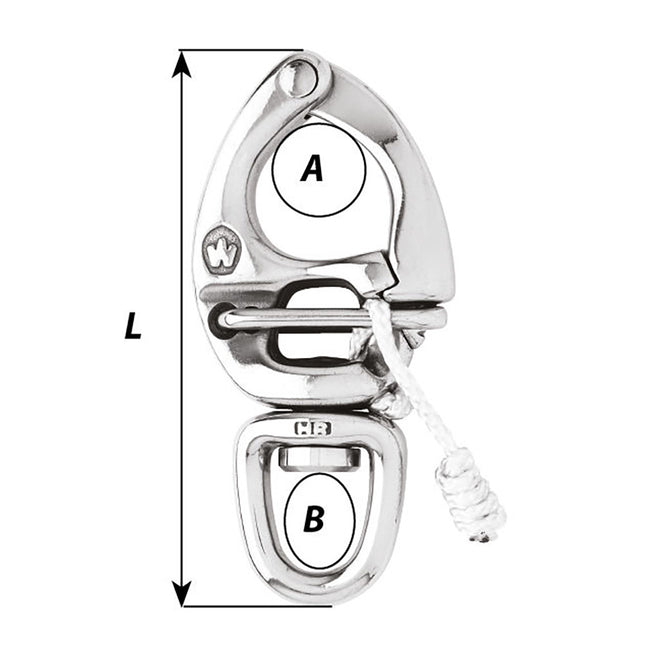

HR Snap Shackle With Thimble Eye - 110mm Length - 4-21/64"Features: HR Forged snap shackle (Grade 17.4 PH stainless steel) with thimble eye Allows to splice the halyard directly onto the snap shackle (without using a thimble) Avoids the wear of the ropes Free rotation of the snap shackle thanks to the swivel eye The plunger pin is set captive into the hook and cannot become detached Excellent working and breaking loads > Easy to open by pulling the plunger pin (possible to attach a lanyard)  Applications: Snap shackle applications Allows to splice the halyard Applications requiring a free rotation of the snap shackle (for a better sail orientation) Specifications: Materials: HR 17.4 PH stainless steel grade Working load: (lb) 2820 / (kg) 1280  Breaking load: (lb) 5290 / (kg) 2400  Dimensions: A: (inch) 53/64" / (mm) 110  B: (inch) 35/64" / (mm) 21  Length: (inch) 4 21/64" / (mm) 14  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)

Read more less

HR Snap Shackle With Clevis Pin Swivel - 120mm Length - 4-23/32"Features: HR Forged snap shackle (Grade 17.4 PH stainless steel) with clevis pin swivel Free rotation of the snap shackle thanks to the swivel eye The plunger pin is set captive into the hook and cannot become detached Excellent working and breaking loads Easy to open by pulling the plunger pin (possible to attach a lanyard) Applications:Snap shackle applicationsSpecifications: Materials: HR 17.4 PH stainless steel grade Working load: (lb) 5290 / (kg) 2400  Breaking load: (lb) 15430 / (kg) 7000  Weight: (lb) 0.919 / (g) 417  Dimensions: A: (inch) 1 1/32" / (mm) 26  B: (inch) 1 1/16" / (mm) 27  C: (inch) 45/64" / (mm) 18  D diameter: (inch) 7/16" / (mm) 11  Length: (inch) 4 23/32" / (mm) 120  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)

Read more less

Captive Pin Bow Shackle - Diameter 6mm - 1/4"Features: Captive pin bow shackle forged in grade 316L stainless steel The pin is connected to the body at all times even when opened The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads Single handed operation for more safety WLL: only for industrial applications (lifting i.e…) CE marking and batch number Applications: To be used when ample room is required Possibility to attach several lines or cables Specifications: Materials 316 stainless steel grade Working load (lb) 1320 WLL (lb) 970 Breaking load (lb) 4850 Weight (lb) 0.073 Dimensions (see 2nd image): A (inch) 1-1/16" B (inch) 15/32" C (inch) 9/32" D (inch) 35/64" D diameter (inch) 15/64" E (inch) 15/64" M (inch) 1-7/32"

Read more less

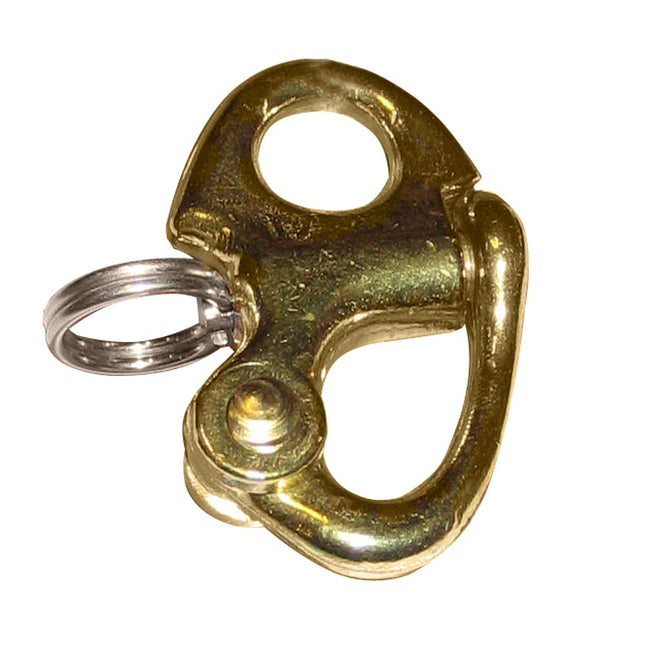

Snap Shackle - Fixed Eye - 32mm(1-1/4") LengthHeavy duty plunger springs and precision components ensure dependable service. Body and hasp profiles are designed for easy clearance of lines and fittings when released. High strength to weight ratio. Split ring on plunger pin is spot welded for security. A lanyard can be attached to the plunger pin for easy opening.Materials: Grade 15-5PH investment cast stainless steel body and hasp Grade 316 stainless steel plunger pin and spring

Read more less

Drop Nose Pin 5mm x 40mmThis drop-nose pin is manufactured from 316 stainless steel and barrel-finished for a smooth, high-shine surface finish. It has a spring-loaded mechanism that positively locks the pin in either the open or closed position. The standard head features an annular groove for attachment of a retaining wire if required for larger bespoke pins and retaining wires.Specifications: Working Length: 40mm Pin Diameter: 5mm Weight: 0.018kg

Read more less

Quick Release Pin - 5/16" x 1.5" GripQuick Release Pin. 5/16" x 1.5" Grip. 316 Stainless Steel. Safe Working Load 4600 lbs.

Read more less

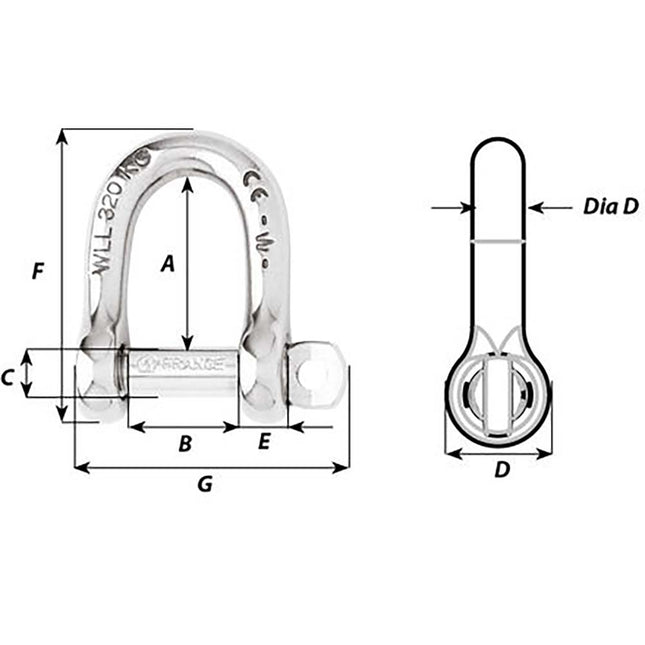

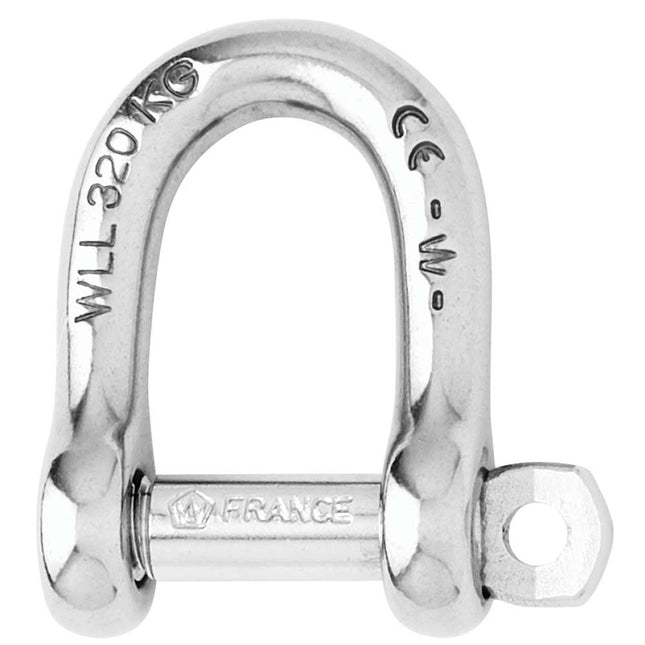

Self-Locking D Shackle - 12mm Diameter - 15/32"Features: Self-locking D shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking Applications: Standard applications of the shackle Attachment applications: blocks, head Specifications: Materials: 316 stainless steel grade Working load: (lb) 4580 / (kg) 2080 WLL: (lb) 2640 / 1200 (kg) Breaking load: (lb) 13220 / (kg) 6000  Weight: (lb) 0.425 / (g) 193 Dimensions: A: (inch) 1-21/32" / (mm) 42  B: (inch) 1-1/16" / (mm) 27  C: (inch) 15/32" / (mm) 12  D: (inch) 15/16" / (mm) 24  D diameter: (inch) 15/32" / (mm) 12  E: (inch) 7/16" / (mm) 11  F: (inch) 2-7/8" / (mm) 73  G: (inch) 2-7/16" / (mm) 62   Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

Symmetric Carbin Hook - 120mm Length - 15/32"Features: Grade 316L stainless steel carbine hooks Symmetrical shape With eye to attach a webbing or a splicing Applications:For fastening applications Specifications: Materials: 316L stainless steel grade Working load: (lb) 2990 / (kg) 1360  WLL: (lb) 1580 / (kg) 720  Breaking load: (lb) 7930 / (kg) 3600  Weight: (lb) 0.505 / (g) 229  Dimensions: A: (inch) 53/64" / (mm) 21 B: (inch) 5/8" / (mm) 16 D diameter: (inch) 15/32" / (mm) 12 Length: (inch) 4 23/32" / (mm) 120 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

Key Pin Shackle - Diameter 6mm - 1/4"Features: Key pin shackle forged in grade 316L stainless steel Opening and closing is done simply by rotating the pin half a turn No risk to lose the pin as it remains attached Outstanding working and breaking loads Applications:Perfect product for halyards or applications requiring to open/close the shackle oftenSpecifications: Materials 316 stainless steel grade Working load (lb) 1140 Breaking load (lb) 3300 Weight (lb) 0.106 Dimensions (see 2nd image): A (inch) 1-49/64" B (inch) 5/8" C (inch) 15/64" D (inch) 33/64" D diameter (inch) 15/64" E (inch) 5/32" F (inch) 2-23/64" G (inch) 1-29/64"

Read more less

Safety Snap Hook - 35mmFeatures: Grade 316L forged snap hook Various applications on board Oustanding working and breaking loads Modern design Applications:Various uses onboard: fastening applications

Read more less
