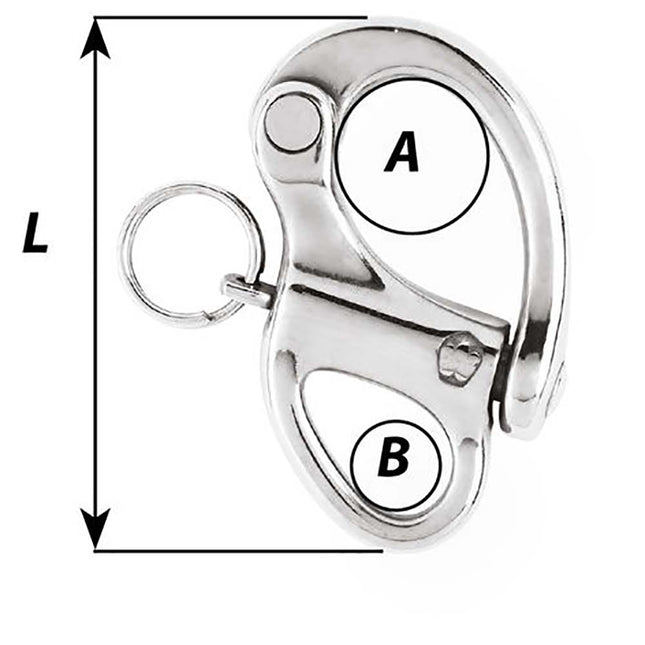

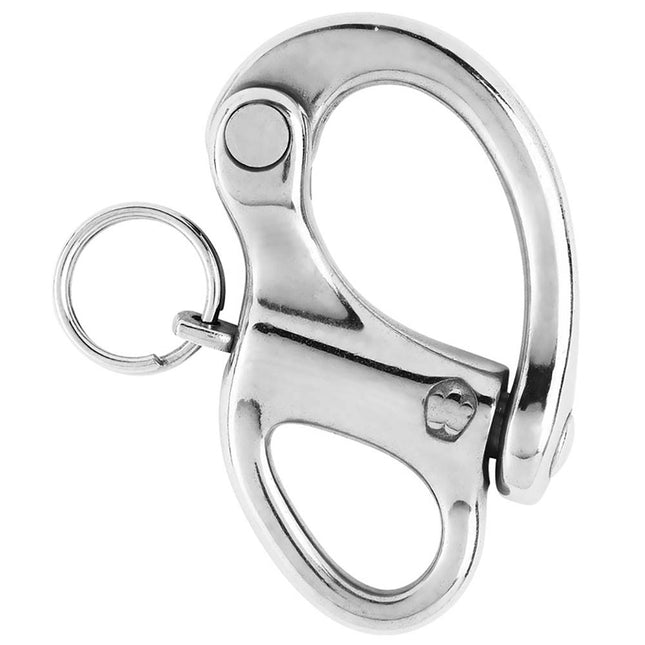

2" Snap Shackle with Fixed Eye - 50mmFeatures: HR Forged snap shackle (Grade 17.4 ph stainless steel) with fixed eye The plunger pin is set captive into the hook and cannot become detached Excellent working and breaking loads Easy to open by pulling the plunger pin (possibility to attach a lanyard) Applications: Snap shackle applications with fixed eye Use for applications where the free rotation is not required

Read more less

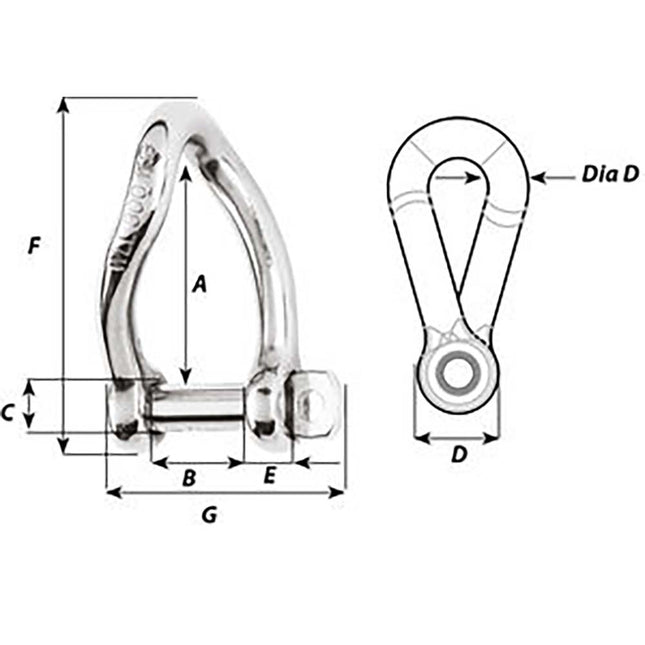

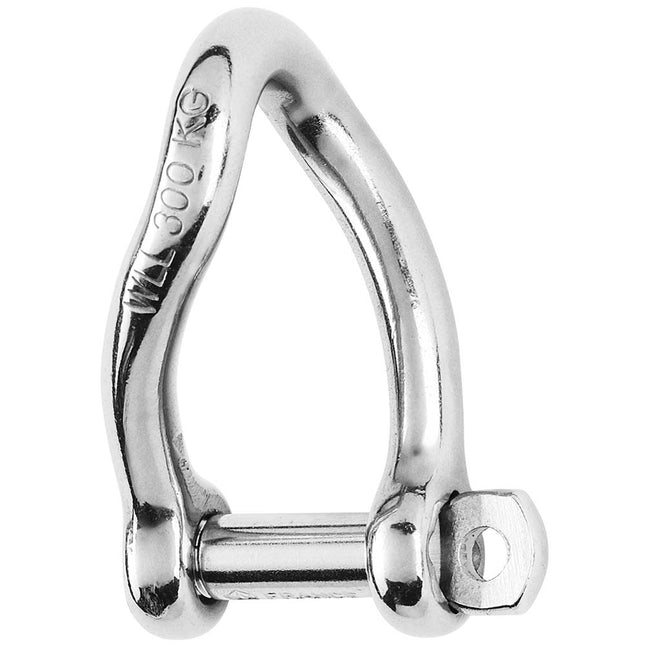

Self-Locking Twisted Shackle - Diameter 5mm - 3/16"Features: Self-locking twisted shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads Applications: Perfect for application where a 90° angle twist setup is required Often used to attach an unarticulated part (block on a rail) or on purchases Specifications: Materials 316 stainless steel grade Working load (lb) 1050 Breaking load (lb) 2420 Weight (lb) 0.035 Dimensions (see 2nd image): A (inch) 1-1/32" B (inch) 25/64" C (inch) 13/64" D (inch) 25/64" D diameter (inch) 13/64" E (inch) 5/32" F (inch) 1-1/2" H (inch) 1-1/32"

Read more less

40mm Carbo Air Triple Swivel BlockLow-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to the popular Harken Black Magic block line, these small, compact blocks have very high working loads for safe, easy trimming. Specifications: Sheave Ø (mm)40 mm Sheave Ø (in)1 9/16 in Maximum line Ø (mm)10 mm Maximum line Ø (in)3/8 in Maximum working load (kg)660 kg Maximum working load (lb)1455 lb Quick Guide (pdf)

Read more less

Micro Carbo-Cam Base with BullseyeMicro Carbo-Cam® with bullseye keeps line fair. Mounts on stainless steel base.Specifications: Height: 22mm / 7/8in. Weight: 50g / 1.75oz Minimum line: 3mm / 1/8in Maximum line: 6mm / 1/4in Fastener spacing: 27mm / 1-1/16in Fasteners: 4 FH mm / #8 FH in Maximum working load: 68kg/ 150lb

Read more less

22mm Triple Micro BlockLow-friction Micro blocks are compact and lightweight. They are ideal for sailboards, smaller dinghies, and lightly loaded control lines on boats of all sizes.Specifications: Sheave: 22mm / 7/8in. Length: 51mm / 2in. Weight: 57g / 2oz. Maximum line: 6mm / 1/4in. Maximum working load: 227kg / 550lb Breaking load: 544kg/ 1200 lb

Read more less

Series 15 Ball Bearing Utility Block - Exit BlockFeatures: Smallest and lightest ball bearing block available Precision molded acetal sheave running on stainless steel ball bearings provide high performance & low friction Single loop head blocks include an O-ring to separate running line from head lashing or fixing Features a flush rivet to minimize cutout and facilitate installation. Featuring a formed single piece housing for maximum strength and minimal rope wear.Applications: Dinghy control lines Vangs, cunninghams and tweakers Shock cord tensioning systems Materials: BB sheaves: UV stabilized acetal Ball bearings: Stainless steel Cheeks: Grade 316 stainless steel

Read more less

Series 30 Block - Single - Loop TopFeatures: Maintenance free Economical Lightweight durable construction Stainless steel cheeks and Acetal sheaves ensure a long service life with virtually no maintenance Hollow rivets in the block heads can be fitted with shackles, which can also be used to add a becket for extra purchase Applications: Vang, cunningham and trapeze retriever systems on dinghies Leech line tackles, bunk adjusters etc on larger yachts Materials: UV Stabilized Acetal sheave Grade 316 stainless steel cheeks Specifications:Sheave Ø:29mm(1-1/8")Max. Rope Ø:8mm(5/16")M.W.L.:300kg(660lbs)B. L.:600kg(1,320lbs)Weight:20g(0.7oz)

Read more less

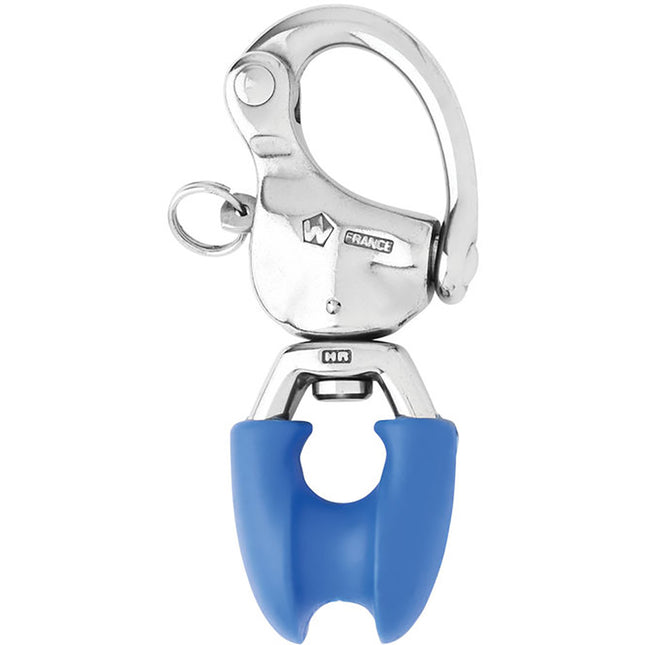

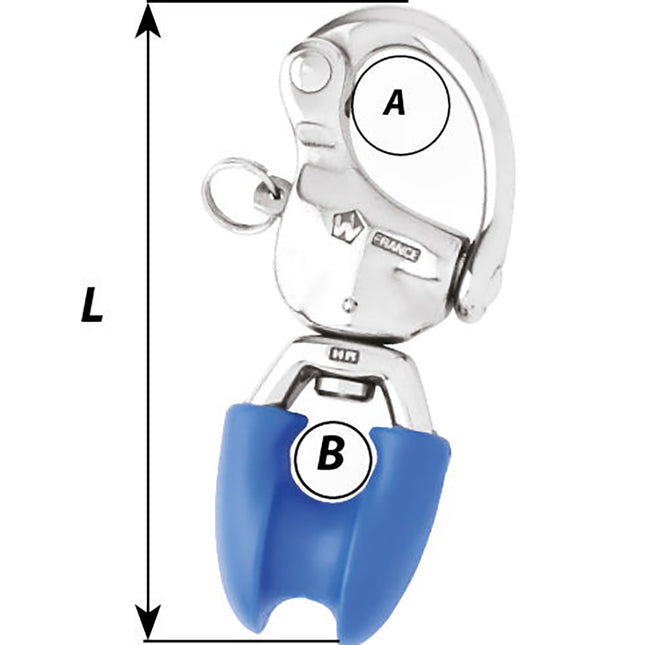

HR Snap Shackle With Thimble Eye - 110mm Length - 4-21/64"Features: HR Forged snap shackle (Grade 17.4 PH stainless steel) with thimble eye Allows to splice the halyard directly onto the snap shackle (without using a thimble) Avoids the wear of the ropes Free rotation of the snap shackle thanks to the swivel eye The plunger pin is set captive into the hook and cannot become detached Excellent working and breaking loads > Easy to open by pulling the plunger pin (possible to attach a lanyard)  Applications: Snap shackle applications Allows to splice the halyard Applications requiring a free rotation of the snap shackle (for a better sail orientation) Specifications: Materials: HR 17.4 PH stainless steel grade Working load: (lb) 2820 / (kg) 1280  Breaking load: (lb) 5290 / (kg) 2400  Dimensions: A: (inch) 53/64" / (mm) 110  B: (inch) 35/64" / (mm) 21  Length: (inch) 4 21/64" / (mm) 14  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)

Read more less

Webbing Eye Strap - 5mm Diameter - 13/64" - 86mm Spacing - 3-25/64"Features: Drop-forged webbing eye straps with high-quality stainless steel (316L) Outstanding strength Specific use for webbing Applications:The perfect solution to attach webbingSpecifications: Materials: 316L stainless steel grade Weight: (lb) 0.04 / (g) 18 Dimensions: A: (inch) 1 31/32" / (mm) 50  B: (inch) 15/32" / (mm) 12  D diameter: (inch) 13/64" / (mm) 5  E: (inch) 3 25/64" / (mm) 86  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

6mm Eye Nut - 1/2" DiameterFeatures: A complete range of single-piece forged products for fastenings applications Outstanding breaking loads Available in different sizes Applications: Various fastening applications Towing application Waterskiing lines attachment Specifications: Materials: 316L stainless steel grade Breaking load: (lb) 3300 / (kg) 1500  Weight: (lb) 0.049 / (g) 22  Dimensions: A: (inch) M6 x 100 / (mm) M6 x 100  B: (inch) 33/64" / (mm) 13  C: (inch) 1 1/16" / (mm) 27  D: (inch) 15/64" / (mm) 6  E: (inch) 43/64" / (mm) 17  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

U-Bolt Pad Eye - 8mm Diameter - 5/16" - 100mm Length - 3-15/16"Features: Entirely drop forged product with high-quality stainless steel Outstanding working and breaking loads For any fastening applications (shrouds, lifelines, blocks...) Delivered with bolts and counter-plate Max tightening torque: 18 Nm Applications:Various fastening applications: shrouds, lifelines, blocks…Specifications: Materials: 316L stainless steel grade Working load: (lb) 5290 / (kg) 2400  Breaking load: (lb) 10580 / (kg) 4800  Weight: (lb) 0.28 / (g) 127  Dimensions: A: (inch) 1 27/64" / (mm) 36  B: (inch) 1 3/16" / (mm) 30  C: (inch) 2 23/64" / (mm) 60  D diameter: (inch) 5/16" / (mm) 8  Length: (inch) 3 15/16" / (mm) 100  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

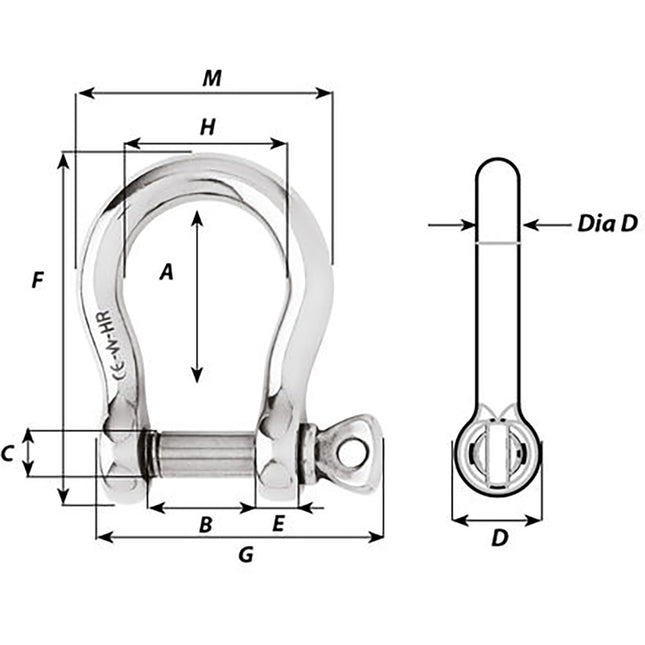

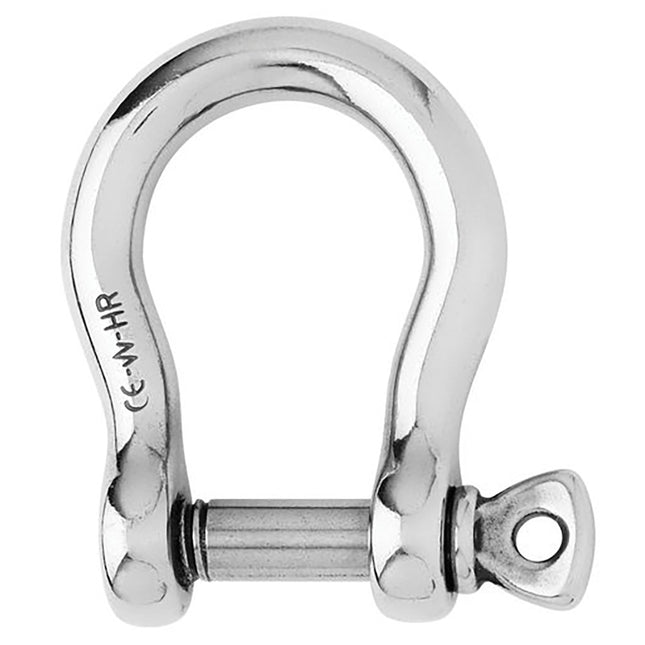

HR Bow Shackle - 24mm Diameter - 15/16"Features:  Forged bow shackle in HR stainless steel grade (17,4 PH) Outstanding working and breaking load An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel WLL: only for industrial applications (lifting i.e…) CE marking Applications: Applications requesting high loads To be used when ample room is required Possibility to attach several lines or cables Do not use it for mooring applications Specifications:  Materials: HR 17.4 PH stainless steel grade Working load: (lb) 28210 / (kg) 12800  WLL: (lb) 15430 / (kg) 7000  Breaking load: (lb) 77160 / (kg) 35000  Weight: (lb) 3.761 / (kg) 1.706  Dimensions: A: (inch) 4 1/4" / (mm) 108  B: (inch) 1 57/64" / (mm) 48  C: (inch) 15/16" / (mm) 24  D: (inch) 1 27/32" / (mm) 47  D diameter: (inch) 15/16" / (mm) 24  E: (inch) 25/32" / (mm) 20  M: (inch) 4 41/64" / (mm) 118  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)
