Sailing

Asymmetric Carbine Hook - Length 80mm - 5/16"Features: Grade 316L stainless steel carbine hooks Asymmetrical shape to support higher loads With eye to attach a webbing Applications: For fastening applications Integrated on Wichard tethers Specifications: Materials 316L stainless steel grade Length (inch) 3-5/32" Working load (lb) 2110 WLL (lb) 660 Breaking load (lb) 3300 Weight (lb) 0.161 Dimensions (see 2nd image): A (inch) 19/32" B (inch) 7/16" D diameter (inch) 5/16"

Read more less

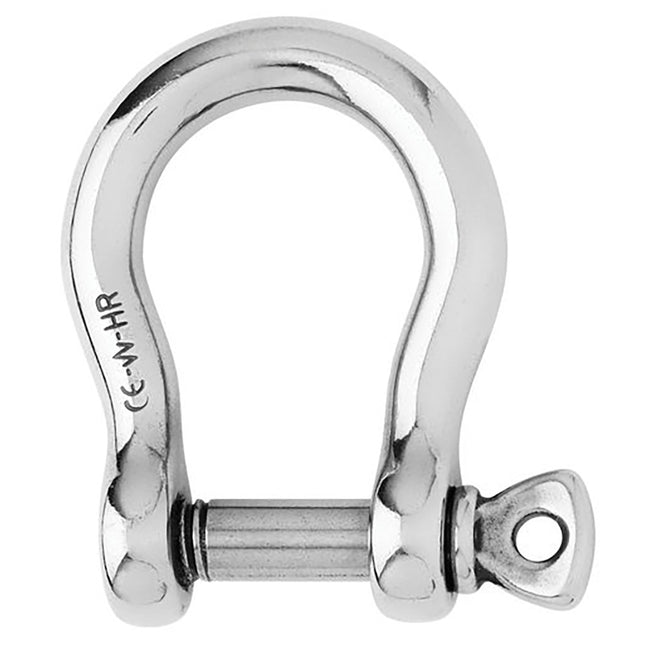

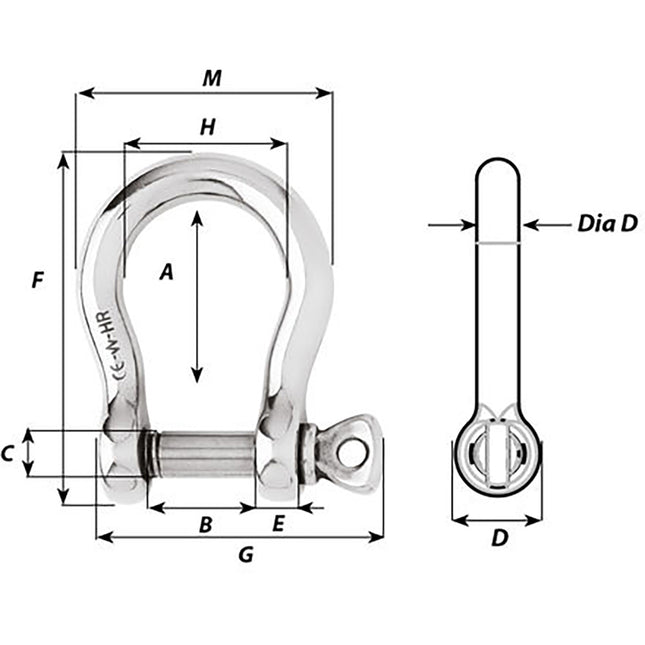

HR Bow Shackle - 8mm Pin Diameter Features: Forged bow shackle in HR stainless steel grade (17,4 PH) Outstanding working and breaking load A HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel WLL: only for industrial applications (lifting i.e…) CE marking Applications: Applications requesting high loads To be used when ample room is required Possibility to attach several lines or cables Do not use for mooring applications Specifications: Materials: HR 17.4 PH stainless steel grade Working load: (lb) 3880 / (kg) 1760  WLL: (lb) 1800 / (kg) 820  Breaking load: (lb) 9030 / (kg) 4100  Weight: (lb) 0.15 / (g) 68  Dimensions: A: (inch) 1 29/64" / (mm) 37  B: (inch) 5/8" / (mm) 16  C: (inch) 5/16" / (mm) 8  D: (inch) 5/8" / (mm) 16  D diameter: (inch) 25/64" / (mm) 10  E: (inch) 9/32" / (mm) 7  M: (inch) 1 21/32" / (mm) 42  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)

Read more less

Black Watertight U-Bolt - 8mm Diameter - 5/16" - 100mm Length - 3-15/16"Features:  Fully drop-forged product with high-quality stainless steel Outstanding working and breaking loads Complete water-tightness thanks to the resistant rubber collar (black color) Easy installation (no need to use a waterproof sealant) Delivered with bolts and counter-plate Max tightening torque: 18 nm Applications:Various fastening applications: shrouds, lifelines, blocks…Specifications:  Materials: 316L stainless steel grade Color: Black Working load: (lb) 5290 / (kg) 2400  Breaking load: (lb) 10580 / (kg) 4800  Weight: (lb) 0.3 / (g) 136  Dimensions: Length: (inch) 3 15/16" / (mm) 100  A: (inch) 1 27/64" / (mm) 36  B; (inch) 63/64" / (mm) 25  C: (inch) 2 23/64" / (mm) 60  D diameter: (inch) 5/16" / (mm) 8  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

8mm Eye Nut - 21/32" DiameterFeatures: A complete range of single-piece forged products for fastenings applications Outstanding breaking loads Available in different sizes  Applications: Various fastening applications Towing application Waterskiing lines attachment Specifications: Materials: 316L stainless steel grade Breaking load: (lb) 6610 / (kg) 3000 Weight: (lb) 0.112 / (g) 51  Dimensions: A: (inch) M8 x125 / (mm) M8 x125  B: (inch) 43/64" / (mm) 17  C: (inch) 1 27/64" / (mm) 36  D: (inch) 5/16" / (mm) 8  E: (inch) 55/64" / (mm) 22  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

HR Long D Shackle - 10mm Diameter - 25/64"Features: Forged long shackle in HR stainless steel grade (17,4 PH) Outstanding working and breaking load An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel WLL: only for industrial applications (lifting i.e…) CE marking Applications: Applications requesting high loads Standard applications of the shackle Attachment applications: blocks, head … Do not use it for mooring applications Specifications: Materials: HR 17.4 PH stainless steel grade Working load: (lb) 5820 / (kg) 2640  WLL: (lb) 2640 / (kg) 1200  Breaking load: (lb) 13220 / (kg) 6000  Weight: (lb) 0.362 / (g) 164  Dimensions: A: (inch) 3 5/64" / (mm) 78  B: (inch) 25/32" / (mm) 20  D diameter: (inch) 25/64" / (mm) 10  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)

Read more less

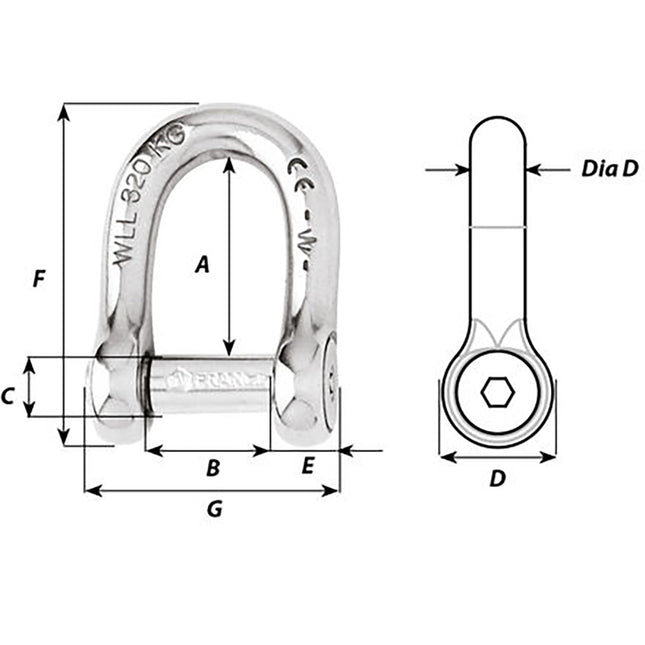

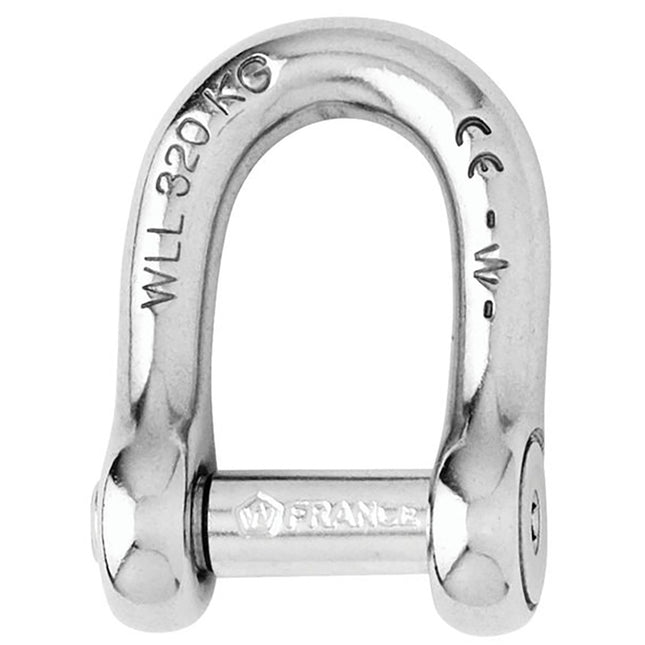

Self-Locking Allen Head Pin D Shackle - 6mm Diameter - 1/4"Features: Self-locking shackle with allen head pin D forged in grade 316L stainless steel The pin is locked into one of the indentations The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking Applications: Ideal to link chains and anchor On the halyard, avoids damaging the sails To be used when the clutter is reduced  Specifications: Materials: 316 stainless steel grade  Working load: (lb) 1320 / (kg) 600  WLL: (lb) 700 / (kg) 320  Breaking load: (lb) 3520 / (kg) 1600  Weight: (lb) 0.049 / (g) 22  Dimensions: A: (inch) 3/4" / (mm) 19  B: (inch) 15/32" / (mm) 12  C: (inch) 15/64" / (mm) 6  D: (inch) 15/32" / (mm) 12  D diameter: (inch) 15/64" / (mm) 6  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

Lyf'Safe Jackline Kit - 14M/46'Either sailing solo or fully crewed, operating on the foredeck in most conditions requires extra attention and safety precautions. Lyf'Safe by Wichard is a complete jackline kit allowing safer operations and offering added value to the crew.Why Choose Lyf'Safe?Adaptable and universal: Lyf'Safe can be tailored to the length of the boat (using the adjuster) and can be fitted onto most deck fastenings (pad eyes, pullpit, pushpit, cleats...).Features: Ready-to-use: easy to install, Lyf'Safe does not require additional fastening components such as shackles. Reflective: thanks to its reflective stripe and photoluminescent casings, Lyf'Safe can be easily identified when sailing at night. The locking system of the webbing: the adjuster casing prevents any accidental adjustment or release of the webbing. Resistant: the anti-abrasion edges to the webbing prevent early wear and fraying. Aesthetic: Lyf'Safe is an elegant solution suiting most modern deck designs. Anti-chafing: the soft elastomer casing isolates the deck, eliminating noise and unpleasant vibrations. Lyf'Safe Includes: 2 webbings (material: polyester) with 1 end with a loop and 1 free end 2 forged adjusters 2 casings Technical Specifications: For boats less than 15 m (50') Webbing length: 14 m (46') Webbing width: 25 mm Sewing resistance: 3 tons Applications:Safety on board

Read more less

Lyf'Safe Jackline Kit - 11M/36'Either sailing solo or fully crewed, operating on the foredeck in most conditions requires extra attention and safety precautions. Lyf'Safe by Wichard is a complete jackline kit allowing safer operations and offering added value to the crew.Why Choose Lyf'Safe?Adaptable and universal: Lyf'Safe can be tailored to the length of the boat (using the adjuster) and can be fitted onto most deck fastenings (pad eyes, pullpit, pushpit, cleats...).Features: Ready-to-use: easy to install, Lyf'Safe does not require additional fastening components such as shackles. Reflective: thanks to its reflective stripe and photoluminescent casings, Lyf'Safe can be easily identified when sailing at night. The locking system of the webbing: the adjuster casing prevents any accidental adjustment or release of the webbing. Resistant: the anti-abrasion edges to the webbing prevent early wear and fraying. Aesthetic: Lyf'Safe is an elegant solution suiting most modern deck designs. Anti-chafing: the soft elastomer casing isolates the deck, eliminating noise and unpleasant vibrations. Lyf'Safe Includes: 2 webbings (material: polyester) with 1 end with a loop and 1 free end 2 forged adjusters 2 casings Technical Specifications: For boats less than 12.20 m (40') Webbing length: 11 m (36') Webbing width: 25 mm Sewing resistance: 3 tons Applications:Safety on board

Read more less

Gyb'Easy Boom BrakeGybe safely with Gyb'Easy, the Wichard boom brake. Why a boom brake? Gybing remains one of the most challenging operations on a sailing boat even for experienced sailors and can possibly generate injuries and material damage. Gyb'Easy is an efficient and safe solution to reduce such risks.Concept: Thanks to the frictions of the specific line called Gyb'Flex passing over the boom brake, the boom is allowed to gybe smoothly and without jerks. The more the line passes over the openings, the more the friction is increased and hence the brake efficiency.Settings of the Gyb'Easy: The adjustment is made thanks to the tension of the line. 3 different positions exist for a better adaptation of the mainsail and wind conditions.Easy installation: It takes a few minutes to install it on an eye strap of the boom. Two different fittings can be implemented to fit with all the deck configurations.Technical Data: Can be used on mainsail areas below 40 sqm Gyb'Flex line supplied (part#: 7148): Length: 16 m / Diameter: 11 mm Weight (g/lbs): 600g/1.323lbs Materials: Anodized Aluminum Applications:Gybing operations

Read more less

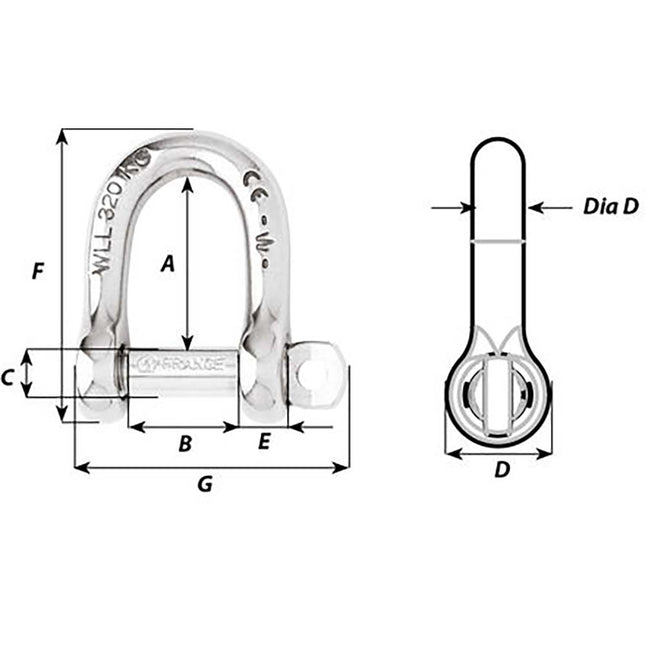

Self-Locking D Shackle - Diameter 6mm - 1/4"Features: Self-locking D shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking and batch number Applications: Standard applications of the shackle Attachment applications: blocks, head… Specifications: Materials 316 stainless steel grade Working load (lb) 1320 WLL (lb) 700 Breaking load (lb) 3520 Weight (lb) 0.049 Dimensions (see 2nd image): A (inch) 25/32" B (inch) 15/32" C (inch) 15/64" D (inch) 15/32" D diameter (inch) 15/64" E (inch) 13/64" F (inch) 1-11/32" G (inch) 1-7/32"

Read more less

Webbing Snap Hook - 30mm - Length 60mmFeatures: Grade 316L forged webbing snap hook Various applications onboard Outstanding working and breaking loads Modern design Applications:Various uses onboard: canopy installation fastening applications…Specifications: Materials 316L stainless steel grade Length (inch) 2-23/64" Working load (lb) 440 Breaking load (lb) 660 Weight (lb) 0.077 Dimensions (see 2nd image): A (inch) 5/16" B (inch) 1-3/16"

Read more less

Boomstrut - Black for Boats 25-30'Boomstrut 44010 is designed for boats up to 6m (20ft) in length with a maximum boom tip weight of 6.3kg (14 lbs). Working alongside the existing kicker or rope vang it creates upward lift on the boom to keep the desired sail shape even in light winds. Manufactured with white rods and Spectro Anodised boom & mast fittings. The uplift created means that the boom will not fall onto the boat when the sail is lowered or the topping lift is released or removed. Suitable to be used with wooden, carbon fiber, or aluminum spars.Six sizes to suit yachts up to 12m/40ft LOAPatented flexing spring provides fast response and a constant force for vang efficiencyThe boomstrut’s lightweight, low-profile design features two flexible coated fibreglass rods which provide the force to support the boom. Pulling the boom down with a conventional kicker causes the Boomstrut to flex; releasing straightens the rods, thereby lifting and supporting the boom.Maintenance-free, durable designEliminates friction and sliding parts.Improved performanceLess weight and windage.Easy installationThere’s no need to replace your existing hardware – the Boomstrut mounts independently inside the existing kicking strap tackle.Simple to follow instructionsThe Boomstrut is supplied with complete fitting instructions and more comprehensive details are available here on our website.Mast fitting can use existing luff grooveTo eliminate drilling, the Boomstrut’s mast bracket can be slotted into your mast’s luff groove.Contoured boom fittingThe Boomstrut’s boom bracket is contoured to fit both round and flat boom profiles.Carefully designed & constructedThe Barton Boomstrut has been carefully designed and constructed to eliminate sharp edges, minimise parts and provide trouble-free installation and use.All parts are from high grade stainless steel and black or grey anodised aluminium for good looks and durability. Spare parts available.

Read more less
