Sailing

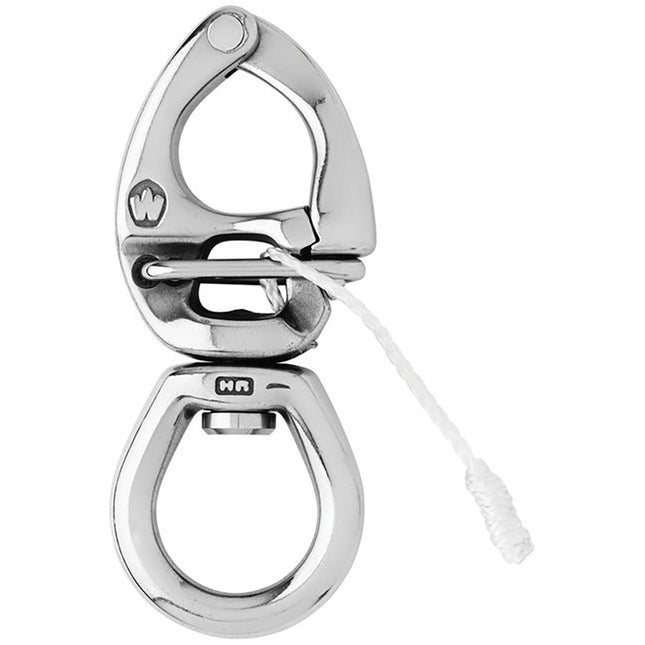

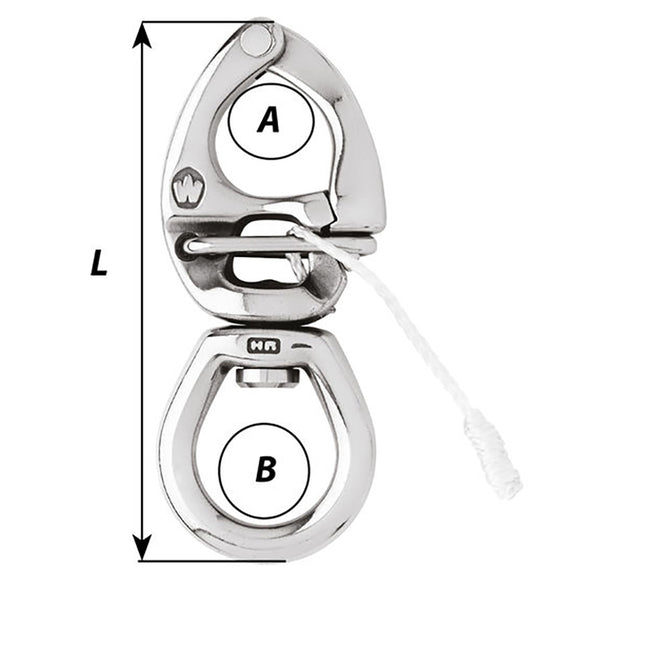

HR Quick Release Snap Shackle With Large Bail -160mm Length - 6-19/64"Features: HR forged (17.4 PH) quick-release snap shackle with large bail The opening is made by pulling the lanyard Perfect to attach several lines (spinnaker sheets...) Outstanding working and breaking loads Free rotation of the snap shackle thanks to the swivel Applications: For spinnaker operations Perfect to attach several lines: spinnaker sheets... Specifications: Materials: HR 17.4 PH stainless steel grade Working load: (lb) 11460 / (kg) 5200  Breaking load: (lb) 17630 / (kg) 8000  Weight: (lb)1.362 / (g) 618  Dimensions: A: (inch) 1 11/32" / (mm) 34 B: (inch) 1 39/64" / (mm) 41  Length: (inch) 6 19/64" / (mm) 160  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)

Read more less

Chain Grip - 8mm Chain - 5/16" - 85mm Length - 3-11/32"Features:  For an 8mm chain Perfect to ensure safe anchoring by easing the tension on the anchor chain Protects the boat by reducing the chafe of the chain on the rub rail and roller chock Positioned between two links of the chain (single-handed operation) Optimized design to avoid accidental release of the chain One piece with nonmoving parts Forged in Duplex stainless steel grade (increased mechanical & corrosion resistance) Applications:MooringSpecifications: Materials: Duplex stainless steel gradeDimensions: Rope size: (mm) 17 Length: (inch) 3 11/32" / (mm) 85  Working load: (lb) 1050 / (kg) 480  Breaking load: (lb) 1960 / (kg) 890  Weight: (lb) 0.194 / (g) 88  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

U-Bolt Pad Eye - 10mm Diameter - 25/64" - 110mm Length - 4-21/64"Features: Entirely drop forged product with high-quality stainless steel Outstanding working and breaking loads For any fastening applications (shrouds, lifelines, blocks...) Delivered with bolts and counter-plate Max tightening torque: 36 Nm Applications:Various fastening applications: shrouds, lifelines, blocks…Specifications: Materials: 316L stainless steel grade Working load: (lb) 7930 / (kg) 3600  Breaking load: (lb) 15430 / (kg) 7000  Weight: (lb) 0.489 / (g) 222  Dimensions: A: (inch) 1 37/64" / (mm) 40  B: (inch) 1 17/64" / (mm) 32  C: (inch) 2 9/16" / (mm) 65  D diameter: (inch) 25/64" / (mm) 10  Length: (inch) 4 21/64" / (mm) 110  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

5/16" Eye Nut - 1/2" DiameterFeatures: Imperial thread A complete range of single-piece forged products for fastenings applications Outstanding breaking loads Available in different sizes  Applications: Various fastening applications Towing application Waterskiing lines attachment Specifications:Materials: 316L stainless steel gradeDimensions: Diameter: (inch) 1/2" / (mm) 12.7 Thread UNC (Unified Coarse): 5/16" x 18" *Sold as an Individual

Read more less

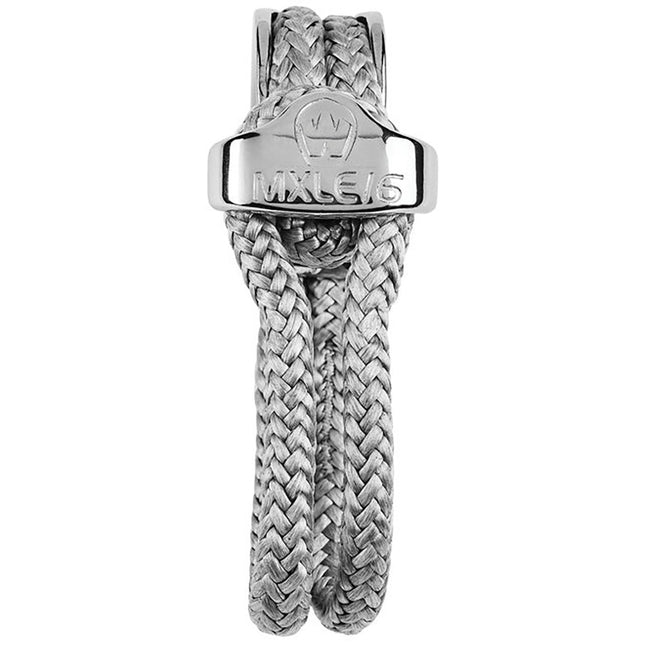

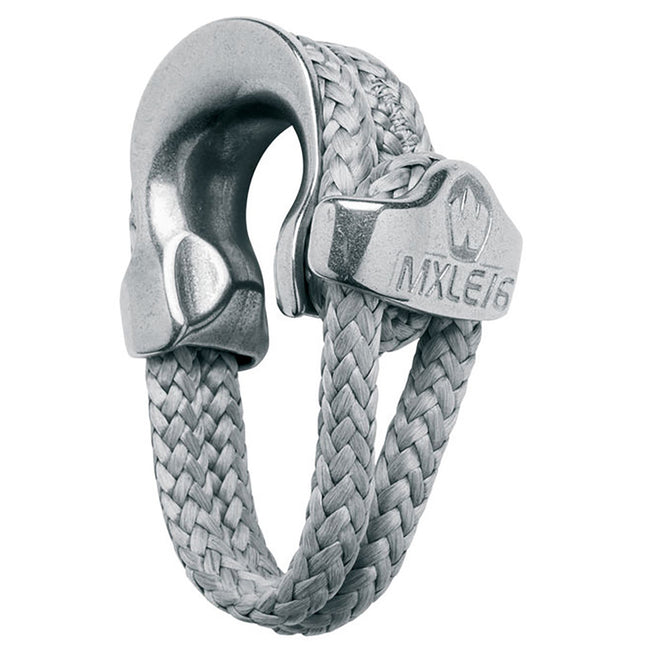

MXLEvo 16 - Soft Block - 16mm Rope Size - 11/16"Features:  MXLEvo: A soft block solution designed for all yachtsmen, amateur or pro. Designed for heavy-load applications, this system is available in three sizes Economical and easy to use: Delivered complete with a Dyneema SK78 loop, you don't need any specific technical knowledge to use the MXLEvo. It can be installed quickly and easily on any type of anchoring (chain plate, head ropes, etc.). The rope housing keeps the ropes inside the block when there is no load on the system  The MXLEvo offers excellent value for money. It is one of the cheapest soft blocks on the market Heavy load applications: The MXLEvo is designed to be used with heavier loads (low rope movement speed). As such, it is the perfect solution for use as a mast foot block, halyard tackle, barber hauler, block and tackle, sheet return, large sail, foot, etc. Lightweight, robust, and highly compact, the MXLEvo provides exceptional resistance for its weight. In comparison with a standard competitor's block, The MXLEvo 16 is: twice as robust, half the weight, a 35% lighter rope with a stronger breaking load A reliable solution with no need for maintenance: As it does not contain any moving parts (such as a sheave), the MXLEvo is highly reliable and requires no maintenance Adaptable to your deck plan: The loop on the MXLEvo can be positioned in one of two ways, making it easily flexible to your deck and to whatever anchoring point or chain plate alignment you choose Applications: Mast foot block Halyard block Barber hauler Purchase Tackle Sheet return Mainsail outhaul Snatch block (in that case it is recommended to use an 8 mm rope size) Specifications:  Materials: Duplex stainless steel grade S78 Dyneema Rope size: (inch) 11/16" / (mm) 16 Dimensions: Length: (inch) 1 27/32" / (mm) 47  Width: (inch) 2 23/64" / (mm) 60  Thickness: (inch) 1 39/64" / (mm) 41  Loop diameter: (inch) 15/64" / (mm) 6  Loop length: (inch) 10 5/8" / (mm) 270  Working load: (lb) 5510 / (kg) 2500  Breaking load: (lb) 11020 / (kg) 5000  Weight: (lb) 0.309 / (g) 140  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

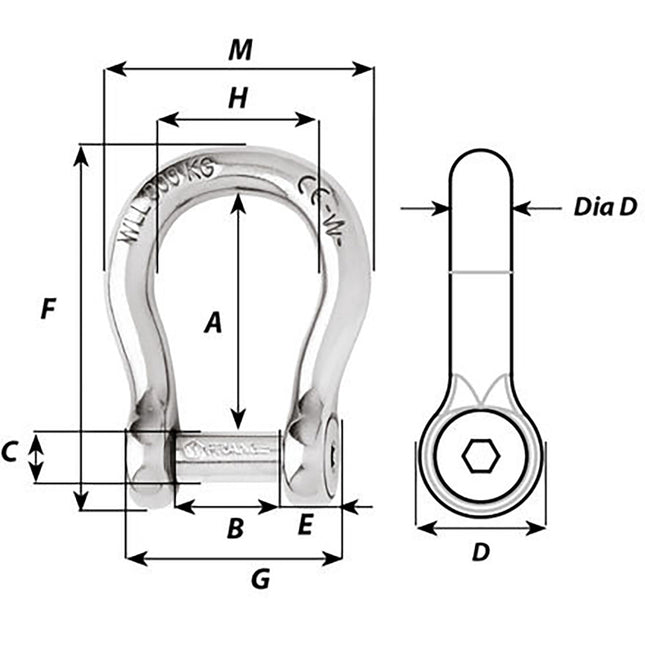

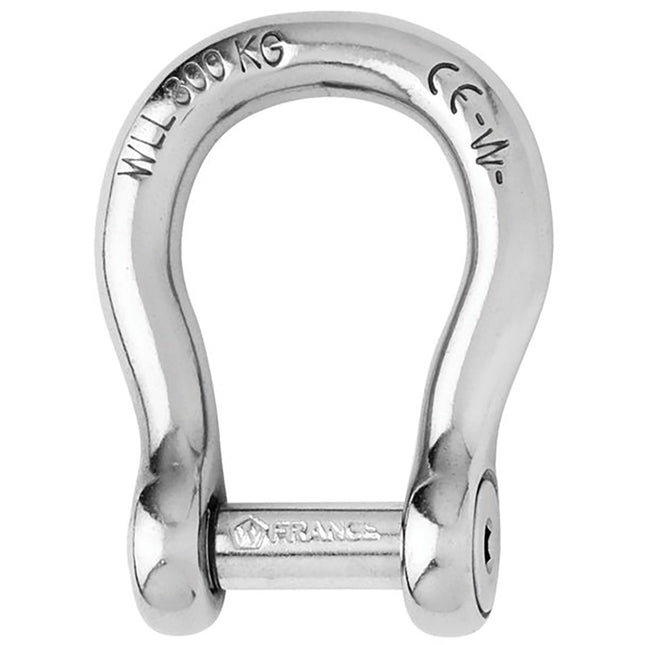

Self-Locking Allen Head Pin Bow Shackle - 10mm Diameter - 13/32"Features:  Self-locking twisted shackle with allen head pin forged in grade 316L stainless steel The pin is locked into one of the indentations The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking Applications: Ideal to link chain and anchor On the halyard, avoids to damage the sails To be used when the clutter is reduced To be used when ample room is required Specifications: Materials: 316 stainless steel grade Working load: (lb) 3170 / (kg) 1440  WLL: (lb) 1890 / (kg) 860  Breaking load: (lb) 9470 / (kg) 4300  Weight: (lb) 0.293 / (g) 133  Dimensions: A: (inch) 1 27/32" / (mm) 47  B: (inch) 25/32" / (mm) 20  C: (inch) 25/64" / (mm) 10  D: (inch) 25/32" / (mm) 20  D diameter: (inch) 25/64" / (mm) 10  E: (inch) 23/64" / (mm) 9  F: (inch) 1 17/64" / (mm) 32  M: (inch) 2 3/64" / (mm) 52  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

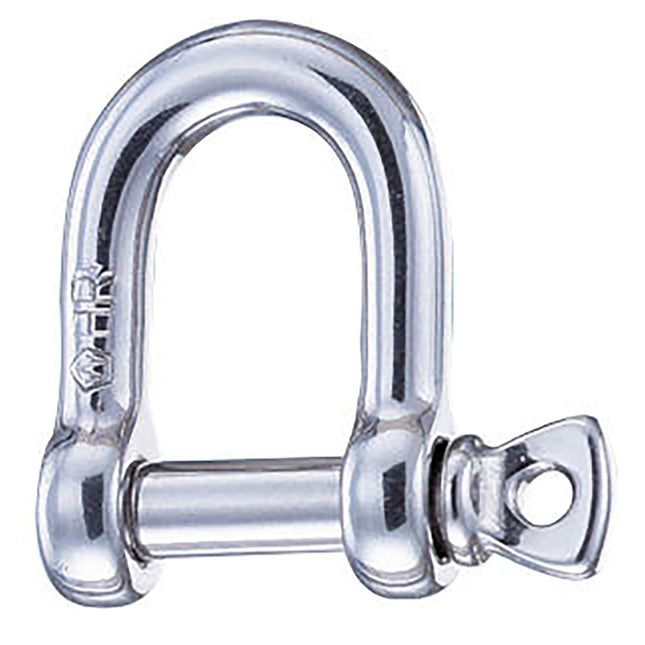

HR D Shackle - 16mm Diameter - 5/8"Features: Forged D shackle in HR stainless steel grade (17,4 PH) Outstanding working and breaking load An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel WLL: only for industrial applications (lifting i.e…) CE marking Applications: Applications requesting high loads Standard applications of the shackle Attachment applications: blocks, head … Do not use it for mooring applications  Specifications: Materials: HR 17.4 PH stainless steel grade Working load: (lb) 14990 / (kg) 6800  WLL: (lb) 8370 / (kg) 3800  Breaking load: (lb) 41880 / (kg) 19000  Weight: (lb) 1.023 / (g) 464  Dimensions: A: (inch) 2 13/64" / (mm) 56  B: (inch) 1 17/64" / (mm) 32  D diameter: (inch) 5/8" / (mm) 16  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)

Read more less

Self-Locking Allen Head Pin Bow Shackle - 12mm Diameter - 15/32"Features: Self-locking twisted shackle with allen head pin forged in grade 316L stainless steel The pin is locked into one of the indentations The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking Applications: Ideal to link chains and anchor On the halyard, avoids damaging the sails To be used when the clutter is reduced To be used when ample room is required Specifications: Materials: 316 stainless steel grade Working load: (lb) 4580 / (kg) 2080  WLL: (lb) 2640 / (kg) 1200  Breaking load: (lb) 13220 / (kg) 6000  Weight: (lb) 0.489 / (g) 222  Dimensions: A: (inch) 2 11/64" / (mm) 55  B: (inch) 1 1/16" / (mm) 27  C: (inch) 15/32" / (mm) 12  D: (inch)15/16" / (mm) 24  D diameter: (inch) 15/32" / (mm) 12  E: (inch) 25/64" / (mm) 10  F: (inch) 1 1/2" / (mm) 38  M: (inch) 2 31/64" / (mm) 63  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

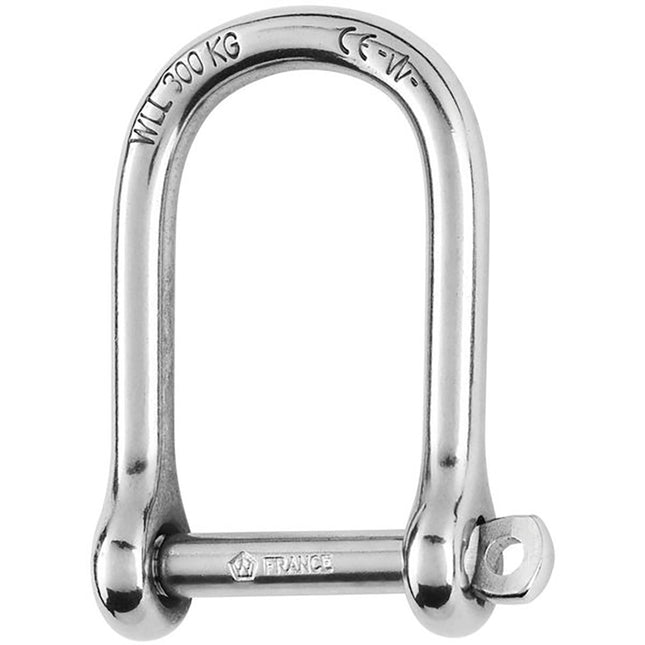

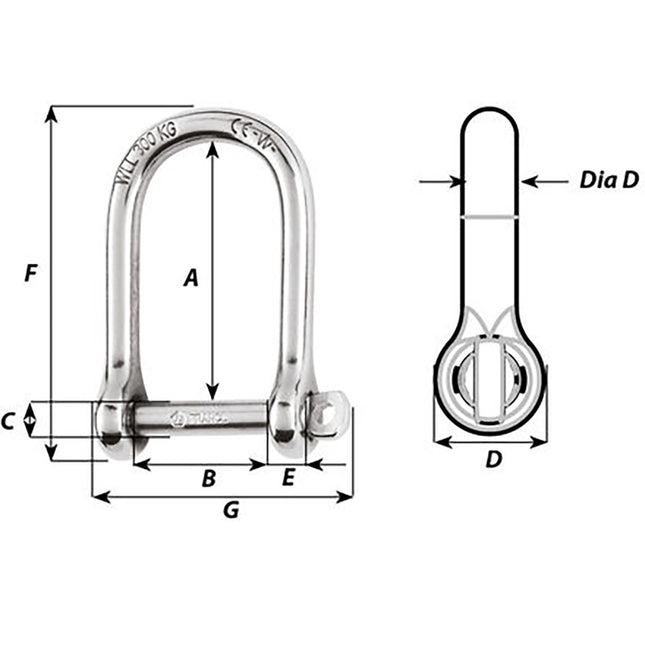

Self-Locking Large Opening Shackle - 8mm Diameter - 5/16"Features:   Self-locking large shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking  Applications:For applications where a large opening shackle is requiredSpecifications: Materials: 316 stainless steel grade Working load: (lb) 1780 / (kg) 810  WLL: (lb) 1190 / (kg) 540  Breaking load: (lb) 5950 / (kg) 2700  Weight: (lb) 0.148 / (g) 67 Dimensions:   A: (inch) 2 1/4" / (mm) 57  B: (inch) 1 17/64" / (mm) 32  C: (inch) 5/16" / (mm) 8  D: (inch) 43/64" / (mm) 17  D diameter: (inch) 5/16" / (mm) 8  E: (inch) 5/16" / (mm) 8  F: (inch) 3 1/32" / (mm) 77  G: (inch) 2 1/4" / (mm) 57 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

Eye Bolt - Diameter 9/16" - Length 3-5/32"Features: A complete range of single piece forged products for fastenings applications Outstanding working and breaking loads Available in different sizes Max tightening torque: 18 Nm Applications: Various fastening applications Towing application Waterskiing lines attachment Specifications:Materials 316L stainless steel grade Working load (lb) 2110 Breaking load (lb) 3300 Weight (lb) 0.123 A (inch) M8 x125 B (inch) 35/64" C (inch) 1 3/16" D (inch) 15/64" E (inch) 25/32" F (inch) 3 5/32" G (inch) 2 3/4"

Read more less

3/8 Eye Nut - 13/16" DiameterFeatures: A complete range of single piece forged products for fastenings applications Outstanding breaking loads Available in different sizes Applications: Various fastening applications Towing application Waterskiing lines attachment Specifications: 13/16" Diameter 3/8 Eye Nut

Read more less

Eye Bolt - Diameter 5/32" - Length 4"Features: A complete range of single piece forged products for fastenings applications Outstanding working and breaking loads Available in different sizes Max tightening torque: 18 Nm Applications: Various fastening applications Towing application Waterskiing lines attachment Specifications:Materials 316L stainless steel grade Working load (lb) 2110 Breaking load (lb) 3300 Weight (lb) 0.134 A (inch) M8 x125 B (inch) 35/64" C (inch) 1 3/16" D (inch) 15/64" E (inch) 25/32" F (inch) 3 15/16" G (inch) 3 35/64"

Read more less
