Sailing

Series 20 Ball Bearing Block- Single, Stand-Up Loop TopFeatures: Low friction High static and dynamic load capacity Lightweight Precision molded Acetal sheaves running on stainless steel or Torlon® ball bearings provide high performance & low friction.Applications: Dinghy control lines Dinghy vangs Cunninghams Traveler controls Materials: Stainless steel ball bearings UV stabilized Acetal sheave Grade 316 stainless steel load strap and head fitting Impact and UV resistant, fiber reinforced Nylon cheeks

Read more less

Double Folding Pad Eye - 8mm Diameter - 5/16"Features: Fully drop forged product with outstanding working and breaking loads regardless of the angle of the load Perfect solution attachment (stay, blocks, jib tack point) Possibility to attach several stays Modern and optimized design to suit the aesthetics of modern boats They can be folded down to minimize the risk of injuries The silicon pad eliminates noise and unpleasant vibrations Applications: For any fastening/attachment application Allows to attach several shrouds  Specifications: Materials: 316L stainless steel grade Working load: (lb) 5290 / (kg) 2400  Breaking load: (lb) 9470 / (kg) 4300  Weight: (lb) 0.556 / (g) 252  Dimensions: A: (inch) 2 21/64" / (mm) 59  B: (inch) 1 3/8" / (mm) 35  C: (inch) 43/64" / (mm) 17  d diameter: (inch) 21/64" / (mm) 8.5  D diameter: (inch) 5/16" / (mm) 8  E: (inch) 3 3/16" / (mm) 81  F: (inch) 2 21/64" / (mm) 59  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

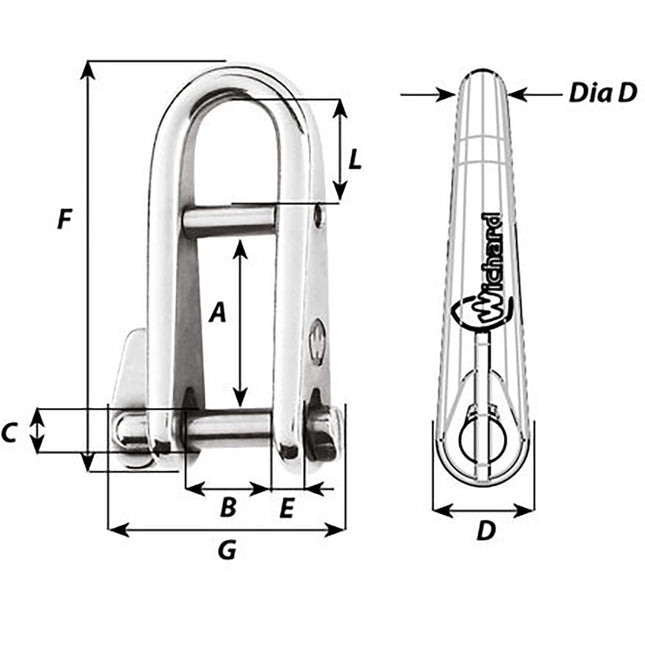

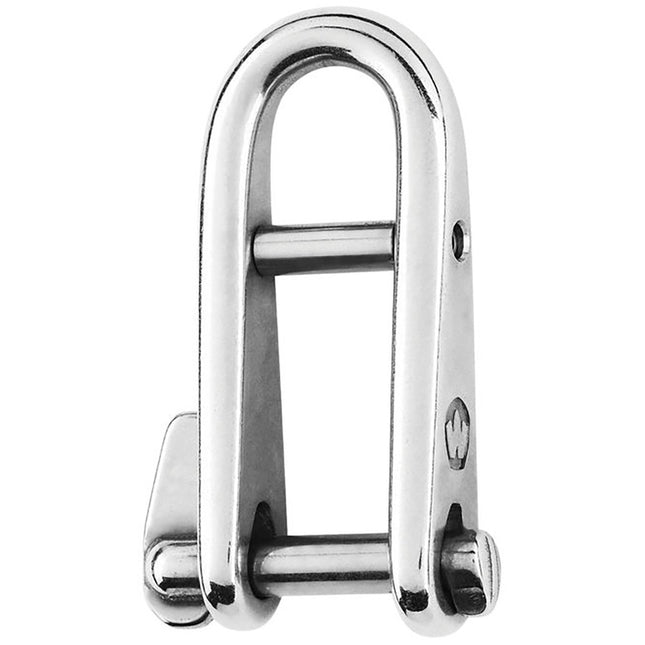

HR Key Pin Shackle With Bar - 8mm Pin DiameterFeatures:  Forged D shackle in HR stainless steel grade (17,4 PH) Outstanding working and breaking load An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel WLL: only for industrial applications (lifting i.e…) CE marking Applications: Applications requesting high loads Perfect product for halyards or applications requiring to opening/closing the shackle often Do not use it for mooring applications Specifications:  Materials: HR 17.4 PH stainless steel grade Working load: (lb) 2110 / (kg) 960  Breaking load: (lb) 7710 / (kg) 3500  Weight: (lb) 0.271 / (g) 123  Dimensions: A: (inch) 2 21/64" / (mm) 59  B: (inch) 53/64" / (mm) 21  C: (inch) 5/16" / (mm) 8  D: (inch) 43/64" / (mm) 17  E: (inch) 15/64" / (mm) 6  F: (inch) 3 7/64" / (mm) 79  G: (inch) 1 57/64" / (mm) 48  L: (inch) 25/32" / (mm) 20  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)

Read more less

Eye Strap - 4mm Diameter - 5/32" - 30mm Spacing - 1-17/64"Features: Complete range of drop-forged saddles with high-quality stainless steel (316L) Outstanding strength The round shape reduces the wear of the components connected to them (straps, ropes...) Applications: Fastening applications  Attachment of straps & cordage Specifications: Materials: 316L stainless steel grade Breaking load: (lb) 1430 / (kg) 650  Weight: (lb) 0.009 / (g) 4  Dimensions: A: (inch) 5/16" / (mm) 8  B: (inch) 7/16" / (mm) 11  D diameter: (inch) 5/32" / (mm) 4  E: (inch) 1 17/64" / (mm) 32  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

Chain Grip - For 10mm Chain - 3/8" - 103mm Length - 4-1/16"Features:  For a 10mm chain Perfect for ensuring safe anchoring by easing the tension on the anchor chain Protects the boat by reducing the chafe of the chain on the rub rail and roller chock Positioned between two links of the chain (single-handed operation) Optimized design to avoid accidental release of the chain One piece with nonmoving parts Forged in Duplex stainless steel grade (increased mechanical & corrosion resistance)  Applications:MooringSpecifications: Materials: Duplex stainless steel grade Dimensions: Rope size: (mm) 22 Length: (inch) 4 1/16" / (mm) 103  Working load: (lb) 1580 / (kg) 720  Breaking load: (lb) 2820 / (kg) 1280  Weight: (lb) 0.344 / (g) 156  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

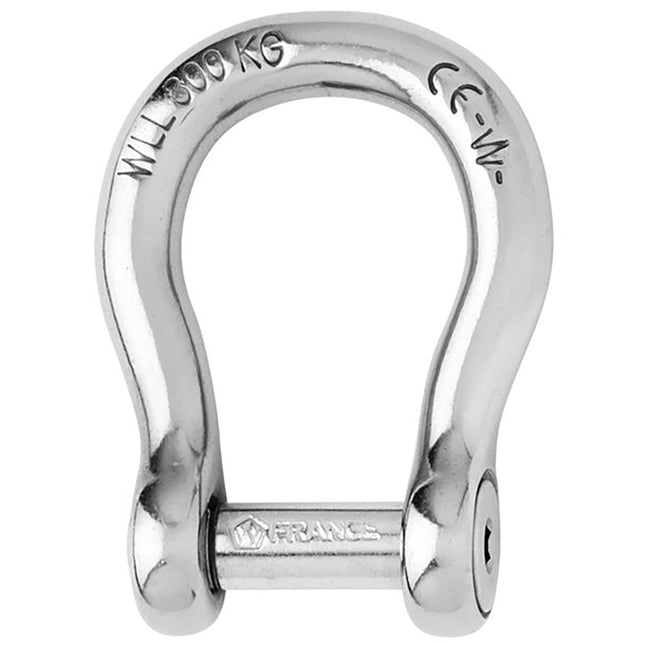

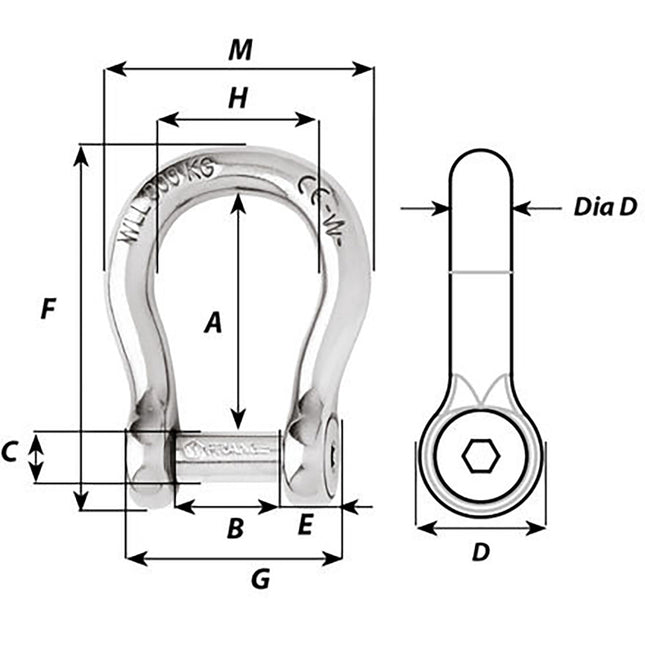

Self-Locking Allen Head Pin Bow Shackle - 8mm Diameter - 5/16"Features: Self-locking twisted shackle with allen head pin forged in grade 316L stainless steel The pin is locked into one of the indentations The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking Applications: Ideal for linking chains and anchor On the halyard, avoids damaging the sails To be used when the clutter is reduced To be used when ample room is required Specifications: Materials: 316 stainless steel grade Working load: (lb) 2110 / (kg) 960  WLL: (lb) 1190 / (kg) 540  Breaking load: (lb) 5950 / (kg) 2700  Weight: (lb) 0.148 / (g) 67  Dimensions: A: (inch) 1 29/64" / (mm) 37  B: (inch) 5/8" / (mm) 16  C: (inch) 5/16" / (mm) 8  D: (inch) 5/8" / (mm) 16  D diameter: (inch) 5/16" / (mm) 8  E: (inch) 9/32" / (mm) 7  F: (inch) 63/64" / (mm) 25  M: (inch) 1 37/64" / (mm) 40  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

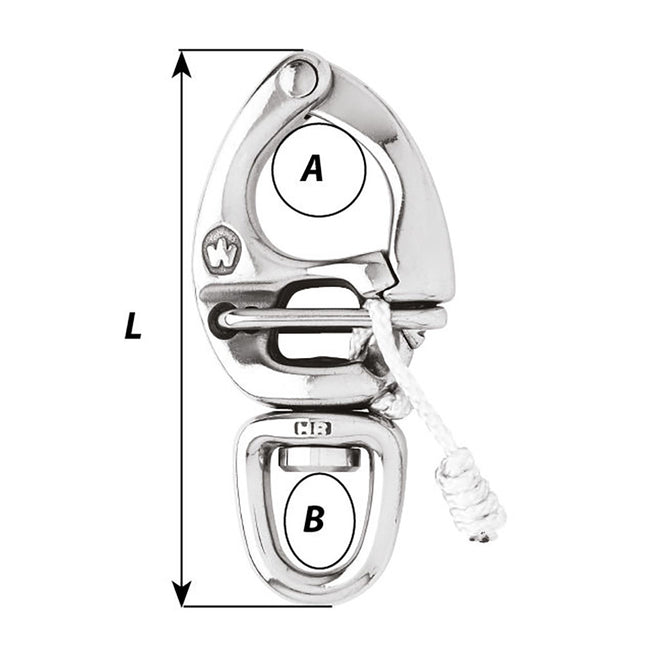

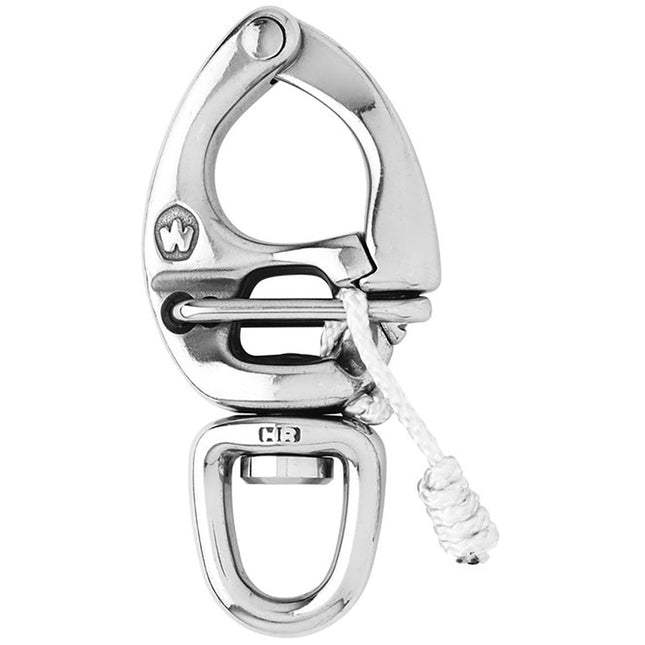

HR Quick Release Snap Shackle With Large Bail-110mm Length - 4-21/64"Features: HR forged (17.4 PH) quick-release snap shackle with large bail The opening is made by pulling the lanyard Perfect to attach several lines (spinnaker sheets...) Outstanding working and breaking loads Free rotation of the snap shackle thanks to the swivel Applications: For spinnaker operations Perfect to attach several lines: spinnaker sheets... Specifications: Materials: HR 17.4 PH stainless steel grade Working load: (lb) 3520 / (kg) 1600  Breaking load: (lb) 6610 / (kg) 3000  Weight: (lb) 0.353 / (g) 160  Dimensions: A: (inch) 25/32" / (mm) 20  B: (inch) 1 3/64" / (mm) 26.5  Length: (inch) 4 21/64" / (mm) 110  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)

Read more less

3/8" Eye Nut - 21/32" DiameterFeatures: Imperial thread A complete range of single-piece forged products for fastenings applications Outstanding breaking loads Available in different sizes  Applications: Various fastening applications Towing application Waterskiing lines attachment Specifications:Materials: 316L stainless steel gradeDimensions: Diameter: (inch) 21/32" / (mm) 16.6 Thread UNC (Unified Coarse): 3/8" x 16" *Sold as an Individual

Read more less

Webbing Eye Strap - 4mm Diameter - 5/32" - 56mm Spacing - 2-13/64"Features: Drop-forged webbing eye straps with high-quality stainless steel (316L) Outstanding strength Specific use for webbing Applications:The perfect solution to attach webbingSpecifications: Materials: 316L stainless steel grade Weight: (lb) 0.015 / (g) 7  Dimensions: A: (inch) 1 7/64" / (mm) 28  B: (inch) 13/64" / (mm) 5  D diameter: (inch) 5/32" / (mm) 4  E: (inch) 2 13/64" / (mm) 56  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

8mm Eye Nut - 1/2" DiameterFeatures: A complete range of single-piece forged products for fastenings applications Outstanding breaking loads Available in different sizes Applications: Various fastening applications Towing application Waterskiing lines attachment Specifications: Materials: 316L stainless steel grade Breaking load: (lb) 4850 / (kg) 2200  Weight: (lb) 0.044 / (g) 20  Dimensions: A: (inch) M8 x125 / (mm) M8 x125  B: (inch) 33/64" / (mm) 13  C: (inch) 1 1/16" / (mm) 27  D: (inch) 15/64" / (mm) 6  E: (inch) 43/64" / (mm) 17  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

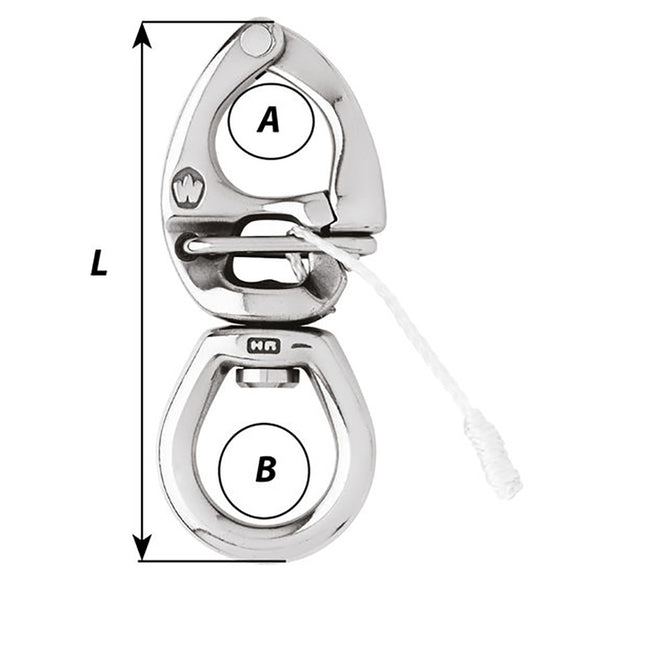

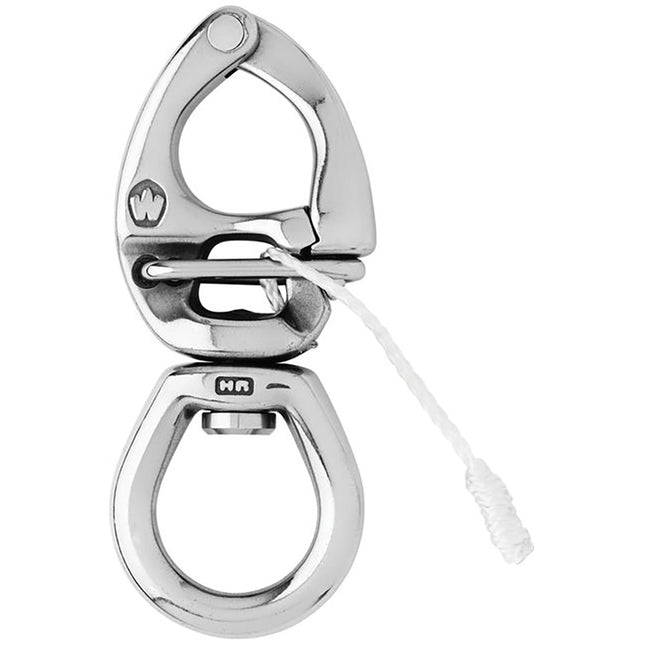

HR Quick Release Snap Shackle With Swivel Eye - 130mm Length - 5-1/8"Features: HR forged (17.4 PH) quick-release snap shackle with swivel eye The opening is made by pulling the lanyard Perfect to attach one sheet or halyard Outstanding working and breaking loads Free rotation of the snap shackle thanks to the swivel Applications: For spinnaker operations Perfect for spinnaker sheets and halyards Specifications: Materials: HR 17.4 PH stainless steel grade Working load: (lb) 7050 / (kg) 3200  Breaking load: (lb) 13880 / (kg) 6300  Weight: (lb) 0.818 / (g) 371  Dimensions: A: (inch) 1 3/16" / (mm) 30  B: (inch) 25/32" / (mm) 20  Length: (inch) 5 1/8" / (mm) 130  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)

Read more less

U-Bolt Pad Eye - 12mm Diameter - 15/32" - 130mm Length - 5-1/8"Features: Entirely drop forged product with high-quality stainless steel Outstanding working and breaking loads For any fastening applications (shrouds, lifelines, blocks...) Delivered with bolts and counter-plate Max tightening torque: 60 Nm Applications:Various fastening applications: shrouds, lifelines, blocks…Specifications: Materials: 316L stainless steel grade Working load: (lb) 14100 / (kg) 6400   Breaking load: (lb) 22040 / (kg) 10000  Weight: (lb) 0.769 / (g) 349  Dimensions: A: (inch) 1 47/64" / (mm) 44  B: (inch) 1 11/32" / (mm) 34  C: (inch) 2 3/4" / (mm) 70  D diameter: (inch) 15/32" / (mm) 12  Length: (inch) 5 1/8" / (mm) 130  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less
