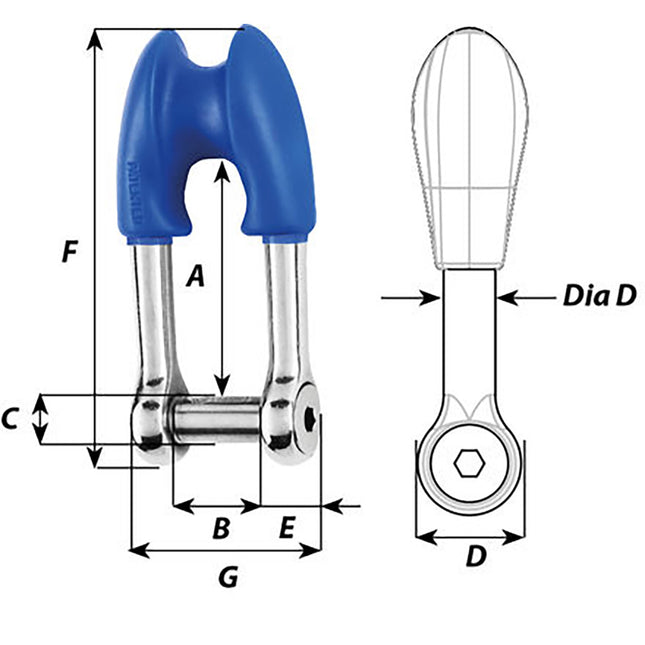

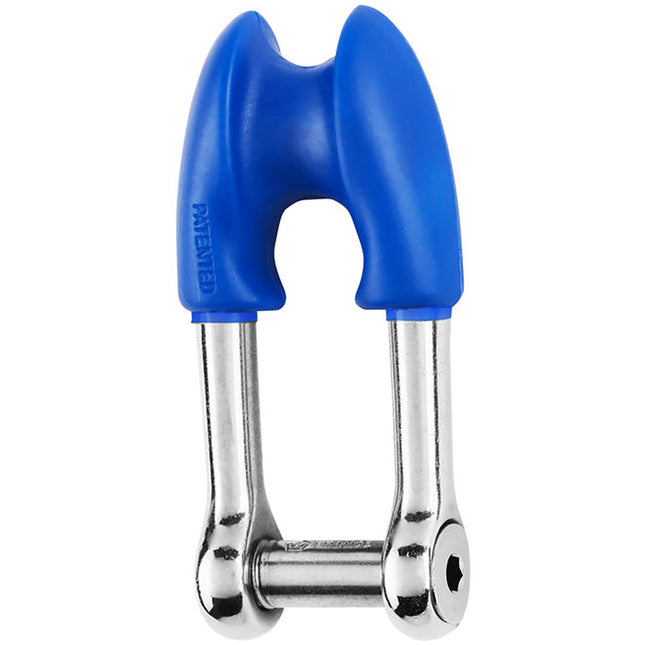

Thimble Shackle - Allen Head Pin - 8mm Diameter - 5/16"Features: Thimble shackle with allen head pin forged in grade 316L stainless steel Allows to spliced a rope without adding and additional thimble With the captive pin, no risk to lose the pin Outstanding working and breaking loads Applications: Mainsheet halyards Max rope size: 12 mm Specifications: Materials: 316 stainless steel grade Working load: (lb) 2200 / (kg) 1000  Breaking load: (lb) 6610 / (kg) 3000  Weight: (lb) 0.168 / (g) 76  Dimensions: A: (inch) 1 39/64" / (mm) 41  B: (inch) 5/8" / (mm) 16  C: (inch) 5/16" / (mm) 8  D: (inch) 5/8" / (mm) 16  D diameter: (inch) 5/16" / (mm) 8  E: (inch) 9/32" / (mm) 7  F: (inch) 2 63/64" / (mm) 76  G: (inch) 1 19/64" / (mm) 33  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

Eye Strap - 5mm Diameter - 13/64" - 37.5mm Spacing - 1-15/32"Features: Complete range of drop-forged saddles with high-quality stainless steel (316L) Outstanding strength The round shape reduces the wear of the components connected to them (straps, ropes...) Applications: Fastening applications  Attachment of straps & cordage Specifications: Materials: 316L stainless steel grade Breaking load: (lb) 3960 / (kg) 1800  Weight: (lb) 0.02 / (g) 9  Dimensions: A: (inch) 25/64" / (mm) 10  B: (inch) 35/64" / (mm) 14  D diameter: (inch) 13/64" / (mm) 5  E: (inch) 1 15/32" / (mm) 37.5  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

Thimble Shackle Allen Head Pin - 10mm Diameter - 13/32"Features: Thimble shackle with allen head pin forged in grade 316L stainless steel Allows a rope to be spliced without adding and additional thimble With the captive pin, no risk to lose the pin Outstanding working and breaking loads Applications: Mainsheet halyards Max rope size: 16 mm Specifications: Materials: 316 stainless steel grade Working load: (lb) 3350 / (kg) 1520 Breaking load: (lb) 11020 / (kg) 5000 Weight: (lb) 0.313 / (g) 142 Dimensions: A: (inch) 2 1/64" / (mm) 51 B: (inch) 25/32" / (mm) 20 C: (inch) 25/64" / (mm) 10 D: (inch) 25/32" / (mm) 20 D diameter: (inch) 25/64" / (mm) 10 E: (inch) 5/16" / (mm) 8 F: (inch) 3 25/32" / (mm) 96 G: (inch) 1 39/64" / (mm) 41 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

5/8" Eye Nut - 1 1/16" DiameterFeatures: Imperial thread A complete range of single-piece forged products for fastenings applications Outstanding breaking loads Available in different sizes  Applications: Various fastening applications Towing application Waterskiing lines attachment Specifications:Materials: 316L stainless steel gradeDimensions: Diameter: (inch) 1 1/16" / (mm) 27 Thread UNC (Unified Coarse): 5/8" x 11" *Sold as an Individual

Read more less

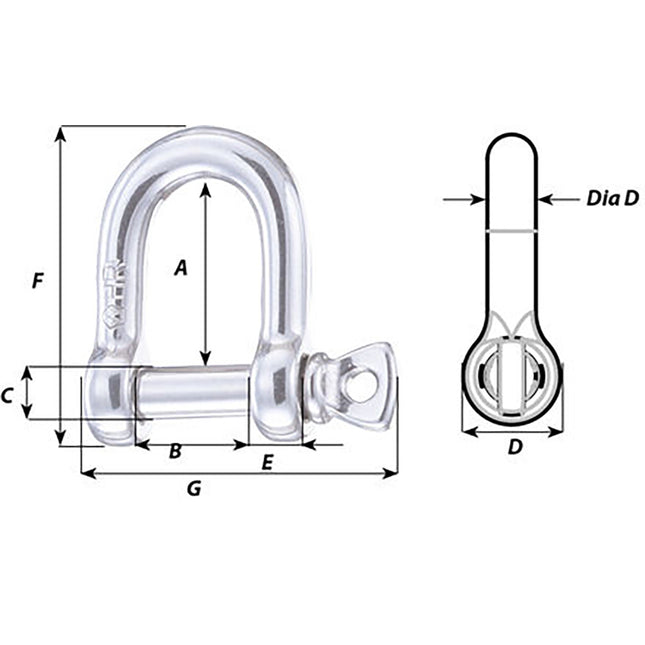

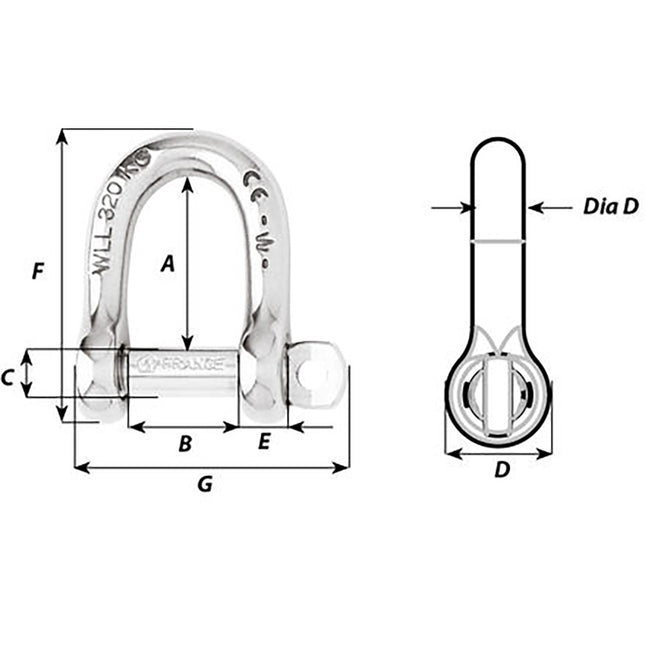

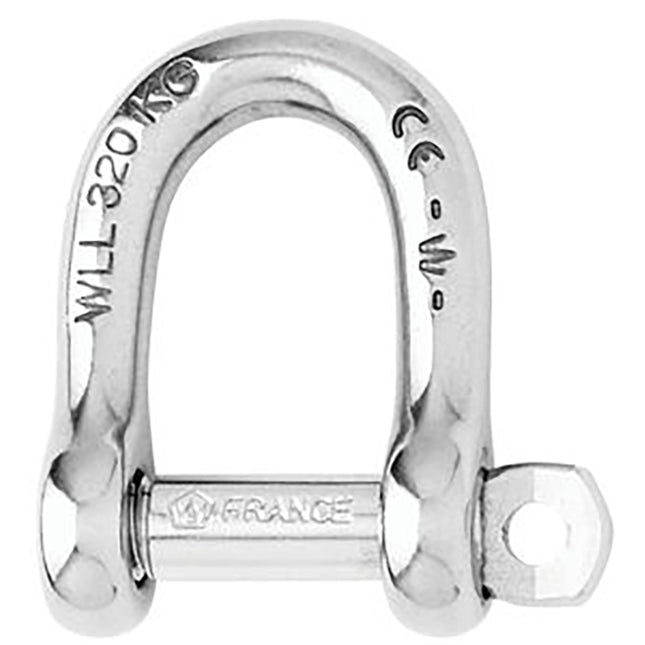

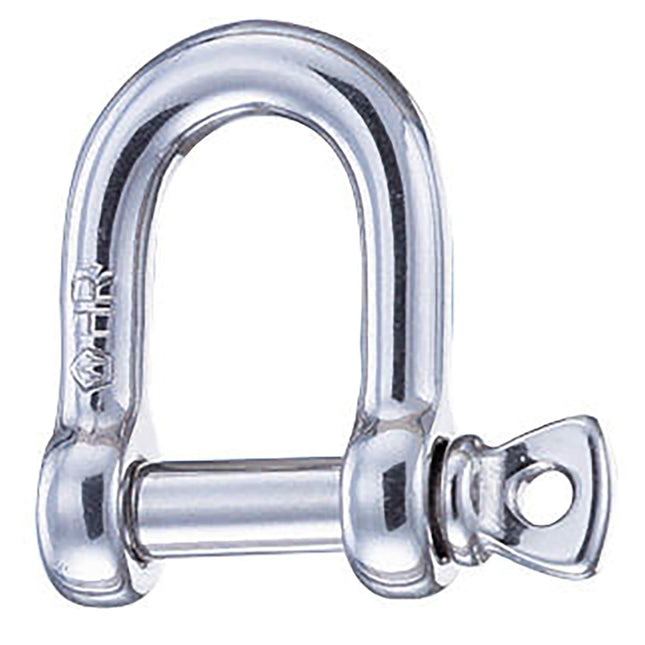

Not Self-Locking D Shackle - 14mm Diameter - 9/16"Features:  D shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking Part #01207 is not a self-locking D shackle  Applications: Standard applications of the shackle Attachment applications: blocks, head Specifications:  Materials: 316 stainless steel grade Working load: (lb) 5290 / (kg) 2400  WLL: (lb) 3520 / (kg) 1600  Breaking load: (lb) 17630 / (kg) 8000  Weight: (lb) 0.688 / (g) 312  Dimensions: A: (inch) 1 27/32" / (mm) 47  B: (inch) 1 7/64" / (mm) 28  C: (inch) 35/64" / (mm) 14  D: (inch) 1 7/64" / (mm) 28  D diameter: (inch) 35/64" / (mm) 14  E: (inch) 33/64" / (mm) 13  F: (inch) 3 15/64" / (mm) 82  G: (inch) 3 5/64" / (mm) 78  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

HR D Shackle - 14mm Diameter - 35/64"Features: Forged D shackle in HR stainless steel grade (17,4 PH) Outstanding working and breaking load An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel WLL: only for industrial applications (lifting i.e…) CE marking  Applications: Applications requesting high loads Standard applications of the shackle Attachment applications: blocks, head … Do not use it for mooring applications Specifications: Materials: HR 17.4 PH stainless steel grade Working load: (lb) 11280 / (kg) 5120  WLL: (lb) 5290 / (kg) 2400  Breaking load: (lb) 26450 / (kg) 12000  Weight: (lb) 0.67 / (g) 304  Dimensions: A: (inch) 1 59/64" / (mm) 49  B: (inch) 1 7/64" / (mm) 28  D diameter: (inch) 35/64" / (mm) 14  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)

Read more less

Black Watertight U-Bolt - 12mm Diameter - 15/32" - 110mm Length - 4 21/64" Features:  Fully dropforged product with high quality stainless steel Outstanding working and breaking loads Complete water-tightness thanks to the resistant rubber collar (black color) Easy installation (no need to use a waterproof sealant) Delivered with bolts and counter-plate Max tightening torque: 60 Nm Applications:Various fastening applications: shrouds, lifelines, blocks…Specifications:  Materials; 316L stainless steel grade Color: Black Working load: (lb) 14100 / (kg) 6400  Breaking load: (lb) 22040 / (kg) 10000  Weight: (lb) 0.761 / (g) 345  Dimensions: Length: (inch) 4 21/64" / (mm) 110  A: (inch) 1 47/64" / (mm) 44  B: (inch) 1 1/16" / (mm) 27  C: (inch) 1 31/32" / (mm) 50  D diameter: (inch) 15/32" / (mm) 12  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

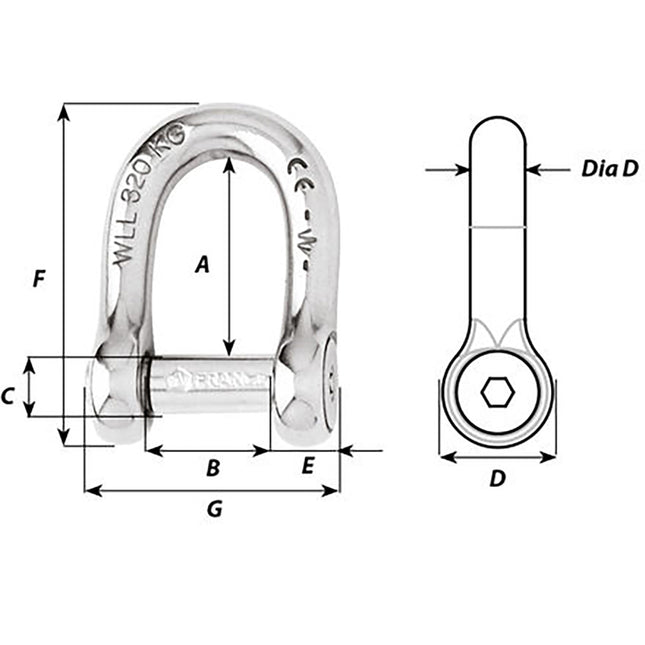

Self-Locking Allen Head Pin D Shackle - 10mm Diameter - 13/32"Features: Self-locking shackle with allen head pin D forged in grade 316L stainless steel The pin is locked into one of the indentations The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking Applications: Ideal for linking chains and anchor On the halyard, avoids damaging the sails To be used when the clutter is reduced Specifications: Materials: 316 stainless steel grade Working load: (lb) 3170 / (kg) 1440  WLL: (lb) 1890 / (kg) 860  Breaking load: (lb) 9470 / (kg) 4300  Weight: (lb) 0.218 / (g) 99  Dimensions: A: (inch) 1 19/64" / (mm) 33  B: (inch) 25/32" / (mm) 20  C: (inch) 25/64" / (mm) 10  D: (inch) 3/4" / (mm) 19  D diameter: (inch) 25/64" / (mm) 10  E: (inch) 23/64" / (mm) 9  F: (inch) 2 1/4" / (mm) 57  G: (inch) 1 39/64" / (mm) 41  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

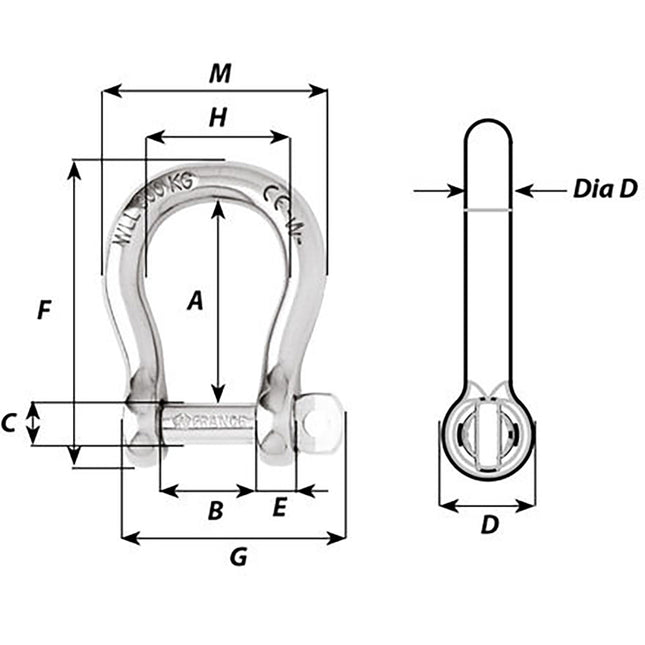

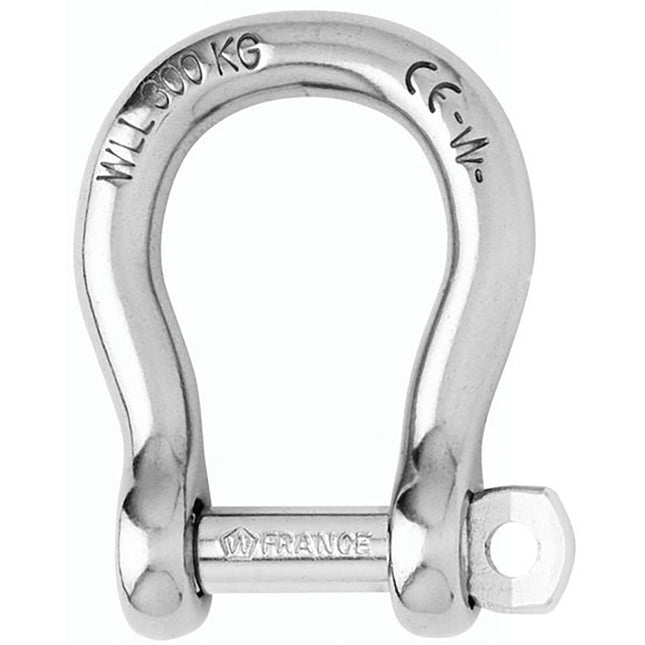

Not Self-Locking Bow Shackle - 16mm Diameter - 5/8"Features:  Bow shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking Part # 01247 is not self-locking   Applications:  To be used when ample room is required Possibility to attach several lines or cables Specifications:   Materials: 316 stainless steel grade Working load: (lb) 7050 / (kg) 3200  WLL: (lb) 4400 / (kg) 2000  Breaking load: (lb) 22040 / (kg) 10000  Weight: (lb) 1.19 / (g) 540 Dimensions:   A: (inch) 2 3/4" / (mm) 70  B: (inch) 1 17/64" / (mm) 32  C: (inch) 35/64" / (mm) 14  D: (inch) 1 17/64" / (mm) 14  D diameter: (inch) 5/8" / (mm) 16  E: (inch) 19/32" / (mm) 15  M: (inch) 3 11/32" / (mm) 85  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

Black Watertight U-Bolt - 10mm Diameter - 25/64" - 90mm Length - 3-35/64" Features:  Fully drop-forged product with high-quality stainless steel Outstanding working and breaking loads Complete water-tightness thanks to the resistant rubber collar (black color) Easy installation (no need to use a waterproof sealant) Delivered with bolts and counter-plate Max tightening torque: 36 nm Applications:Various fastening applications: shrouds, lifelines, blocks…Specifications:  Materials: 316L stainless steel grade Color: Black Working load: (lb) 7930 / (kg) 3600  Breaking load: (lb) 15430 / (kg) 7000  Weight: (lb) 0.483 / (g) 219  Dimensions: Length: (inch) 3 35/64" / (mm) 90  A: (inch) 1 37/64" / (mm) 40  B: (inch) 1 1/32" / (mm) 26  C: (inch) 1 49/64" / (mm) 45  D diameter: (inch) 25/64" / (mm) 10  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

U-Bolt Pad Eye - 10mm Diameter - 25/64" - 90mm Length - 3-35/64"Features: Fully drop forged product with high-quality stainless steel Outstanding working and breaking loads For any kind of fastening applications (shrouds, lifelines, blocks...) Delivered with bolts and counter-plate Max tightening torque: 36 Nm Applications:Various fastening applications: shrouds, lifelines, blocks…Specifications: Materials: 316L stainless steel grade Working load: (lb) 7930 / (kg) 3600  Breaking load: (lb) 15430 / (kg) 7000  Weight: (lb) 0.441 / (g) 200  Dimensions: A: (inch) 1 37/64" / (mm) 40  B: (inch) 1 17/64" / (mm) 32  C: (inch) 1 49/64" / (mm) 45  D diameter: (inch) 25/64" / (mm) 10   Length: (inch) 3 35/64" / (mm) 90  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

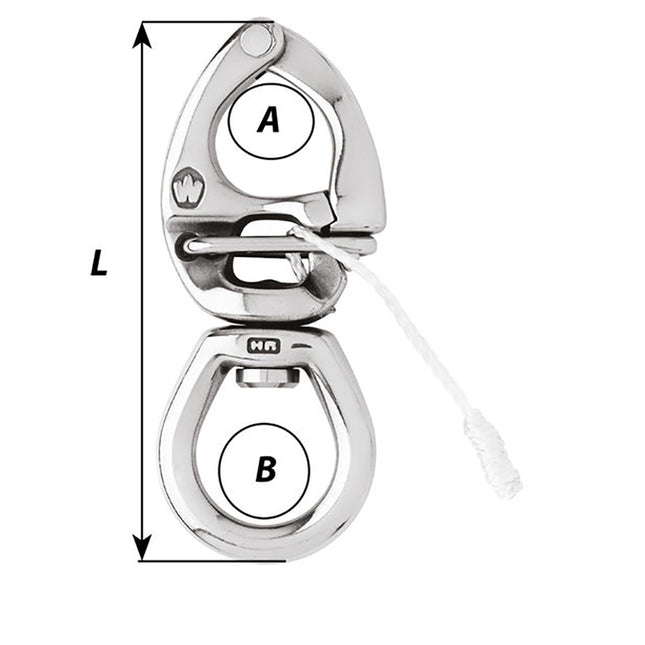

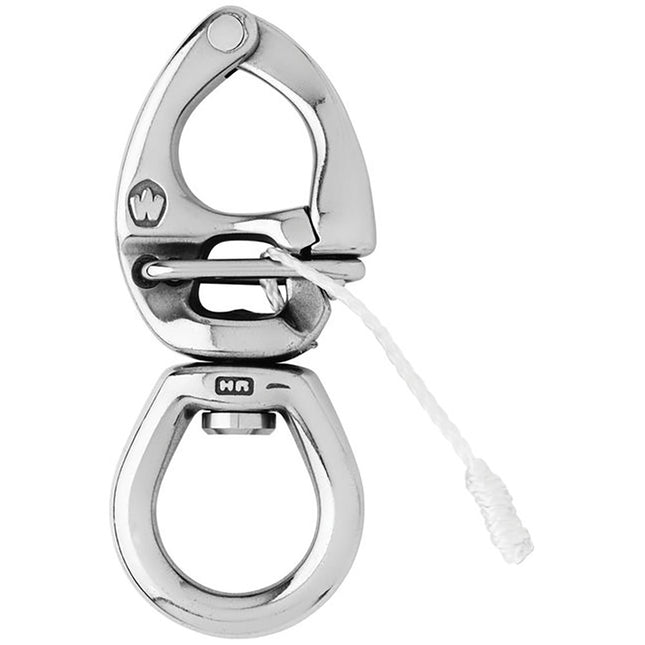

HR Quick Release Snap Shackle With Large Bail -145mm Length - 5-45/64"Features: HR forged (17.4 PH) quick-release snap shackle with large bail The opening is made by pulling the lanyard Perfect to attach several lines (spinnaker sheets...) Outstanding working and breaking loads Free rotation of the snap shackle thanks to the swivel Applications: For spinnaker operations Perfect to attach several lines: spinnaker sheets... Specifications: Materials: HR 17.4 PH stainless steel grade Working load: (lb) 6170 / (kg) 2800  Breaking load: (lb) 13880 / (kg) 6300  Weight: (lb) 0.873 / (g) 396  Dimensions: A: (inch) 1 3/16" / (mm) 30  B: (inch) 1 25/64" / (mm) 35.5  Length: (inch) 5 45/64" / (mm) 145  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)

Read more less
